Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08

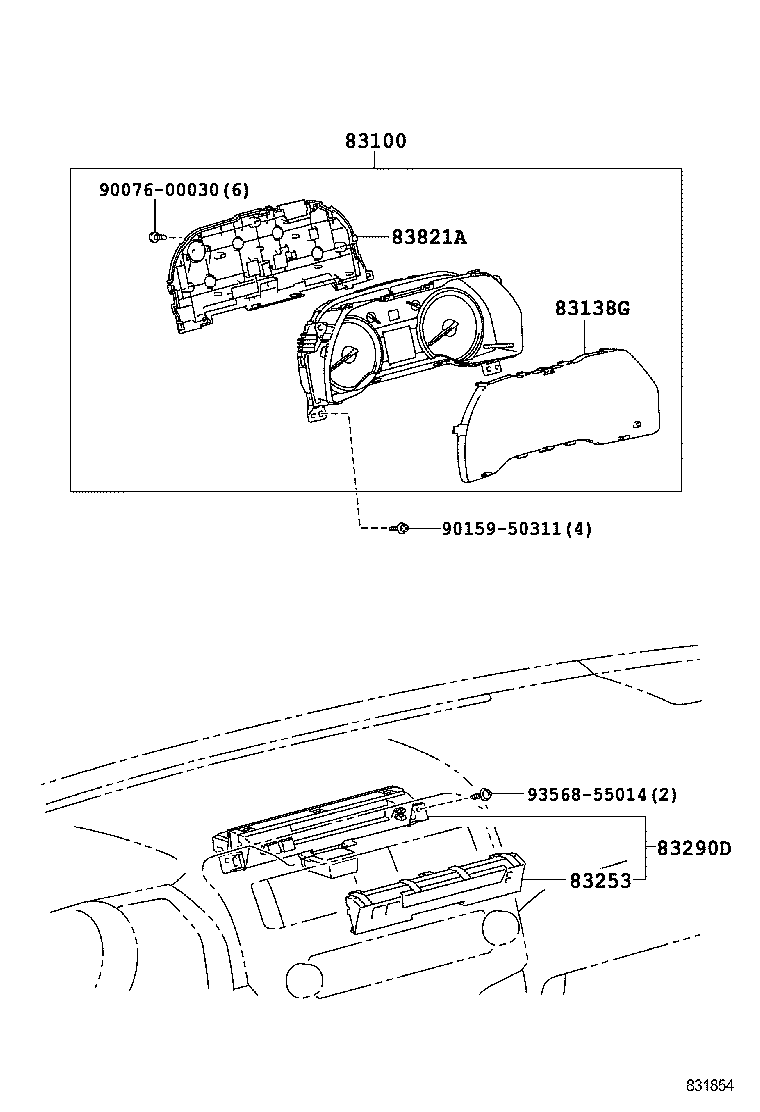

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-35J40 note |
Meter Assy, Combination
2009-08 → 2010-07
ended
|
GRN280 | — | |
| 83800-35J50 note |
Meter Assy, Combination
2009-08 → 2010-07
ended
|
GRN280 | — | |
| 83800-35J60 |
Meter Assy, Combination
2009-08 → 2010-07
ended
|
GRN28# | — | |
| 83800-35J70 note |
Meter Assy, Combination
2009-08 → 2010-07
ended
|
GRN285 | — | |
| 83800-35J70 note |
Meter Assy, Combination
2009-08 → 2010-07
ended
|
GRN285 | — | |
| 83800-35J80 note |
Meter Assy, Combination
2009-08 → 2010-07
ended
|
GRN285 | — | |
| 83800-35J90 note |
Meter Assy, Combination
2009-08 → 2010-07
ended
|
GRN285 | — | |
| 83800-35J90 note |
Meter Assy, Combination
2009-08 → 2010-07
ended
|
GRN285 | — | |
| 83800-35K00 note |
Meter Assy, Combination
2009-08 → 2010-07
ended
|
GRN285 | — | |
| 83800-35K90 |
Meter Assy, Combination
2009-11 → 2010-07
ended
|
TRN280 | — | |
| 83800-35M70 note |
Meter Assy, Combination
2010-08 → 2011-10
ended
|
GRN280 | — | |
| 83800-35M71 note |
Meter Assy, Combination
2011-10 → 2013-08
ended
|
GRN280 | — | |
| 83800-35M80 note |
Meter Assy, Combination
2010-08 → 2011-10
ended
|
GRN280 | — | |
| 83800-35M90 |
Meter Assy, Combination
2010-08 → 2011-10
ended
|
GRN28# | — | |
| 83800-35M91 |
Meter Assy, Combination
2011-10 → 2013-08
ended
|
GRN28# | — | |
| 83800-35N00 note |
Meter Assy, Combination
2010-08 → 2011-10
ended
|
GRN285 | — | |
| 83800-35N00 note |
Meter Assy, Combination
2010-08 → 2011-10
ended
|
GRN285 | — | |
| 83800-35N01 note |
Meter Assy, Combination
2011-10 → 2013-08
ended
|
GRN285 | — | |
| 83800-35N01 note |
Meter Assy, Combination
2011-10 → 2013-08
ended
|
GRN285 | — | |
| 83800-35N10 note |
Meter Assy, Combination
2010-08 → 2011-10
ended
|
GRN285 | — | |
| 83800-35N11 note |
Meter Assy, Combination
2011-10 → 2013-08
ended
|
GRN285 | — | |
| 83800-35N11 note |
Meter Assy, Combination
2011-10 → 2013-08
ended
|
GRN285 | — | |
| 83800-35N20 note |
Meter Assy, Combination
2010-08 → 2011-10
ended
|
GRN285 | — | |
| 83800-35N20 note |
Meter Assy, Combination
2010-08 → 2011-10
ended
|
GRN285 | — | |
| 83800-35N21 note |
Meter Assy, Combination
2011-10 → 2013-08
ended
|
GRN285 | — | |
| 83800-35N21 note |
Meter Assy, Combination
2011-10 → 2013-08
ended
|
GRN285 | — | |
| 83800-35N30 note |
Meter Assy, Combination
2010-08 → 2011-10
ended
|
GRN285 | — | |
| 83800-35N60 |
Meter Assy, Combination
2010-08 → 2011-08
ended
|
TRN28# | — | |
| 83800-35N70 note |
Meter Assy, Combination
2010-08 → 2011-08
ended
|
TRN285 | — | |
| 83800-35P70 |
Meter Assy, Combination
2013-08 → 2014-08
ended
|
GRN280 | — | |
| 83800-35P80 note |
Meter Assy, Combination
2013-08 → 2014-08
ended
|
GRN285 | — | |
| 83800-35P90 |
Meter Assy, Combination
2013-08 → 2014-08
ended
|
GRN285 | — | |
| 83800-35Q00 note |
Meter Assy, Combination
2013-08 → 2014-08
ended
|
GRN285 | — | |
| 83800-35Q10 note |
Meter Assy, Combination
2013-08 → 2014-08
ended
|
GRN285 | — | |
| 83800-35R40 note |
Meter Assy, Combination
2014-08 → 2015-08
ended
|
GRN285 | — | |
| 83800-35R40 note |
Meter Assy, Combination
2014-08 → 2015-08
ended
|
GRN285 | — | |
| 83800-35R50 |
Meter Assy, Combination
2014-08 → 2015-08
ended
|
GRN285 | — | |
| 83800-35R60 note |
Meter Assy, Combination
2014-08 → 2015-08
ended
|
GRN285 | — | |
| 83800-35R70 note |
Meter Assy, Combination
2014-08 → 2015-08
ended
|
GRN285 | — | |
| 83800-35S00 |
Meter Assy, Combination
2014-08 → 2015-08
ended
|
GRN280 | — | |
| 83800-35S10 |
Meter Assy, Combination
2015-08 → 2019-08
ended
|
GRN280 | — | |
| 83800-35S40 note |
Meter Assy, Combination
2015-08 → 2019-08
ended
|
GRN285 | — | |
| 83800-35S40 note |
Meter Assy, Combination
2015-08 → 2019-08
ended
|
GRN285 | — | |
| 83800-35S50 |
Meter Assy, Combination
2015-08 → 2019-08
ended
|
GRN285 | — | |
| 83800-35S60 note |
Meter Assy, Combination
2015-08 → 2019-08
ended
|
GRN285 | — | |
| 83800-35S60 note |
Meter Assy, Combination
2016-12 → 2019-08
ended
|
GRN285 | — | |
| 83800-35S70 note |
Meter Assy, Combination
2015-08 → 2019-08
ended
|
GRN285 | — | |
| 83800-35R30 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN28# | — | |
| 83800-35S20 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN280 | — | |
| 83800-35S20 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 83800-35S20 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 83800-35S20 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 83800-35S20 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 83800-35S20 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 83800-35T30 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 83800-35T30 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 83800-35T30 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 83800-35T30 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 83800-35T30 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 83800-35T50 note |
Meter Assy, Combination
2019-08 → 2021-08
ended
|
GRN285 | — | |
| 83800-35U30 note |
Meter Assy, Combination
2021-08 → —
|
GRN285 | — | |
| 83800-35U30 note |
Meter Assy, Combination
2021-08 → —
|
GRN285 | — | |
| 83800-35U30 note |
Meter Assy, Combination
2021-08 → —
|
GRN280 | — | |
| 83800-35U30 note |
Meter Assy, Combination
2021-08 → —
|
GRN285 | — | |
| 83800-35U30 note |
Meter Assy, Combination
2021-08 → —
|
GRN285 | — | |
| 83800-35U40 note |
Meter Assy, Combination
2021-08 → —
|
GRN28# | — | |
| 83800-35U50 note |
Meter Assy, Combination
2021-08 → —
|
GRN285 | — | |
| 83800-35U50 note |
Meter Assy, Combination
2021-08 → —
|
GRN285 | — | |
| 83800-35U50 note |
Meter Assy, Combination
2021-08 → —
|
GRN285 | — | |
| 83800-35U50 note |
Meter Assy, Combination
2021-08 → —
|
GRN285 | — | |
| 83800-35U60 note |
Meter Assy, Combination
2021-08 → —
|
GRN285 | — | |
| 83138G — Glass, Combination Meter | ||||
| 83852-35J40 note |
Glass, Combination Meter
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 83852-35J40 note |
Glass, Combination Meter
2011-10 → 2013-08
ended
|
GRN285 | — | |
| 83852-35J40 note |
Glass, Combination Meter
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 83852-35J40 note |
Glass, Combination Meter
2009-08 → 2011-10
ended
|
GRN285 | — | |
| 83852-35J40 note |
Glass, Combination Meter
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 83852-35J60 |
Glass, Combination Meter
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 83852-35J60 |
Glass, Combination Meter
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 83852-35P70 |
Glass, Combination Meter
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 83852-35S20 |
Glass, Combination Meter
2019-08 → —
|
GRN28# | — | |
| 83253 — Glass, Center Display | ||||
| 83253-35040 |
Glass, Center Display
2009-08 → 2010-06
ended
|
GRN28#,TRN280 | — | |
| 83253-35041 |
Glass, Center Display
2010-06 → 2011-08
ended
|
TRN28# | — | |
| 83253-35041 |
Glass, Center Display
2010-06 → 2013-08
ended
|
GRN28# | — | |
| 83253-35041 note |
Glass, Center Display
2013-08 → 2014-08
ended
|
GRN285 | — | |
| 83253-35110 |
Glass, Center Display
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 83253-35110 |
Glass, Center Display
2019-08 → —
|
GRN28# | — | |
| 83290D — Meter Assy, Accessory | ||||
| 83290-35040 note |
Meter Assy, Accessory
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 83290-35050 |
Meter Assy, Accessory
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 83290-35050 |
Meter Assy, Accessory
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 83290-35090 note |
Meter Assy, Accessory
2013-08 → 2014-08
ended
|
GRN285 | — | |
| 83290-35110 |
Meter Assy, Accessory
2013-08 → 2019-08
ended
|
GRN28# | — | |
| 83290-35110 |
Meter Assy, Accessory
2019-08 → —
|
GRN28# | — | |
| 83821A — Cover, Combination Meter, NO.1 | ||||
| 83821-35J40 note |
Cover, Combination Meter, NO.1
2009-08 → 2011-10
ended
|
GRN285 | — | |
| 83821-35J40 note |
Cover, Combination Meter, NO.1
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 83821-35J40 note |
Cover, Combination Meter, NO.1
2009-08 → 2013-08
ended
|
GRN285 | — | |
| 83821-35J40 note |
Cover, Combination Meter, NO.1
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 83821-35J40 note |
Cover, Combination Meter, NO.1
2011-10 → 2013-08
ended
|
GRN285 | — | |
| 83821-35J60 |
Cover, Combination Meter, NO.1
2009-08 → 2011-08
ended
|
TRN28# | — | |
| 83821-35J60 |
Cover, Combination Meter, NO.1
2009-08 → 2013-08
ended
|
GRN28# | — | |
| 83821-35P70 |
Cover, Combination Meter, NO.1
2013-08 → 2019-08
ended
|
GRN28# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
