Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

32 part groups · 3 illustrations

Illustrations

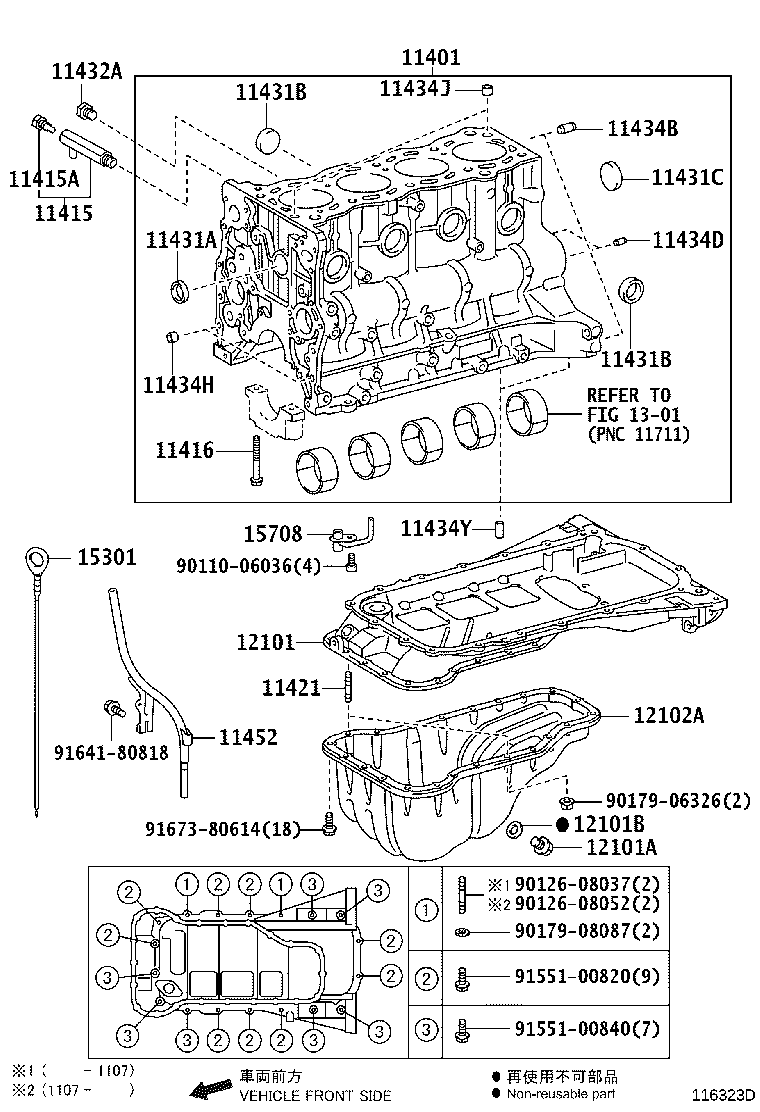

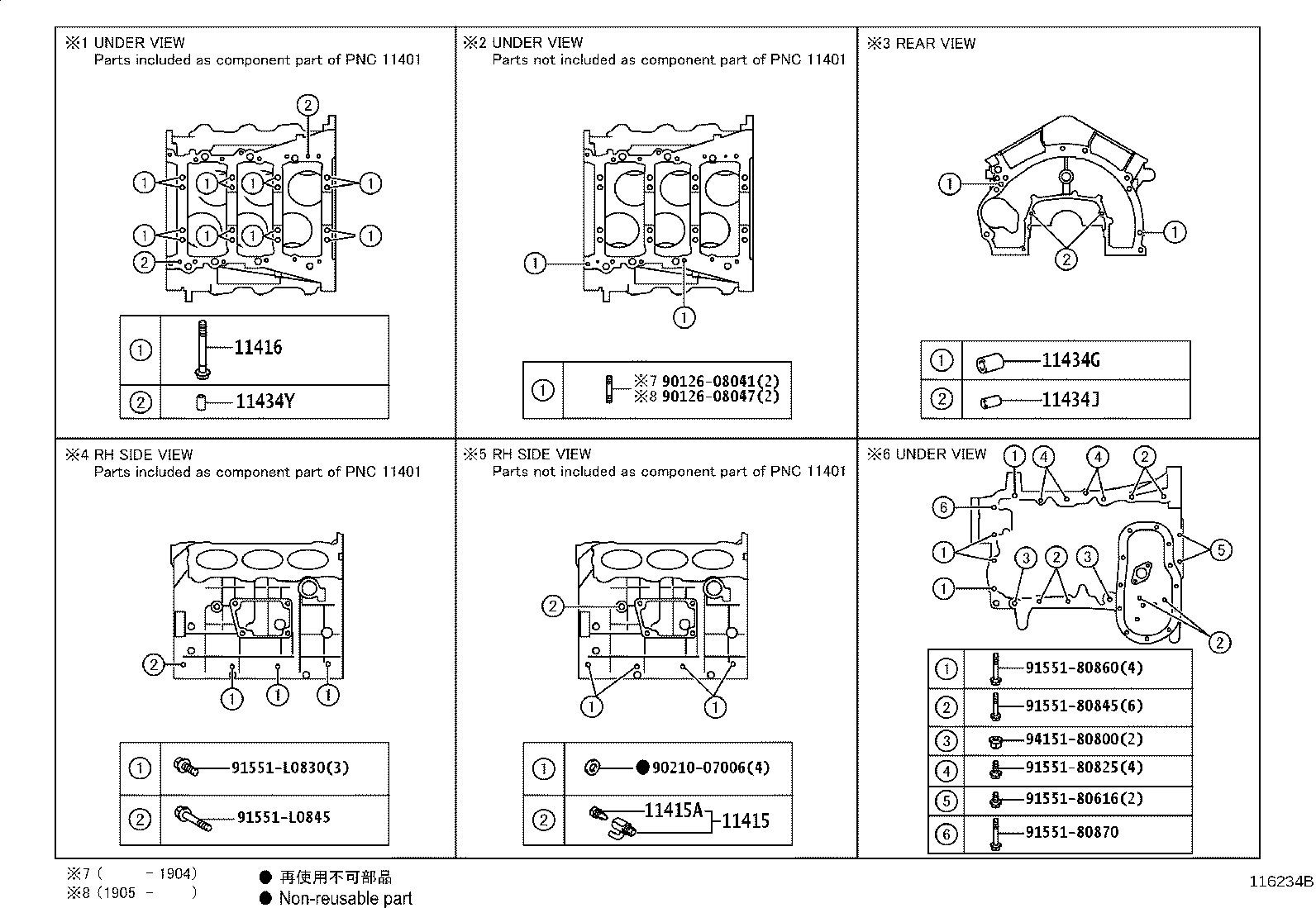

Figure 116232H 116232H 2009-08 → — Figure 116234B 116234B 2009-08 → — Figure 116323D 116323D 2009-11 → —

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434T Pin, Ring(FOR TIMING BELT IDLER BRACKET SET)
11434Y Pin, Straight(FOR OIL PAN)
11445A Spacer, Cylinder Block Water Jacket, RH
11446 Spacer, Cylinder Block Water Jacket, LH
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
12151 Gasket, Oil Pan
15301 Gage Sub-assy, Oil Level
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
