Timing Gear Cover & Rear End Plate

15 part groups · 3 illustrations

Illustrations

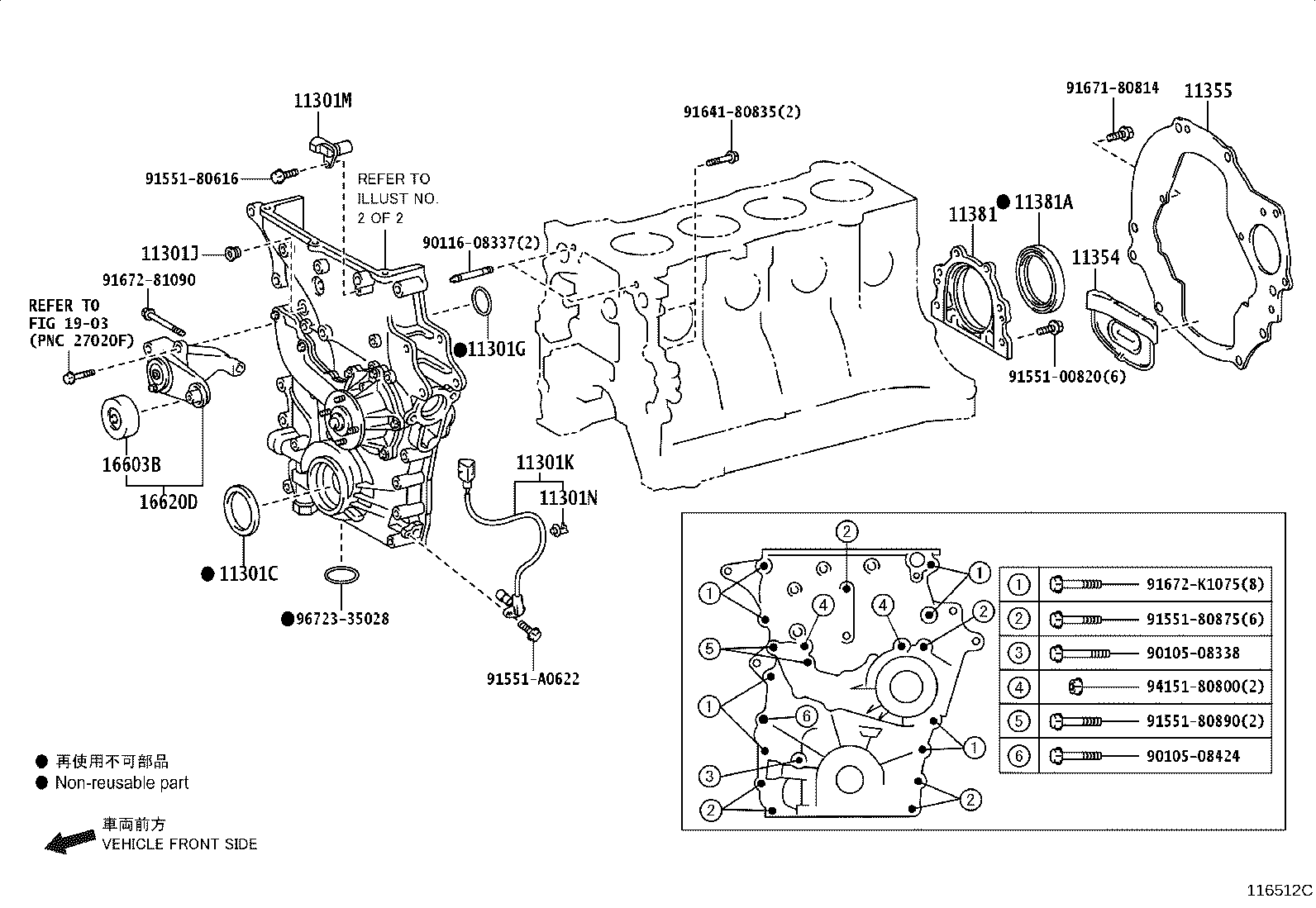

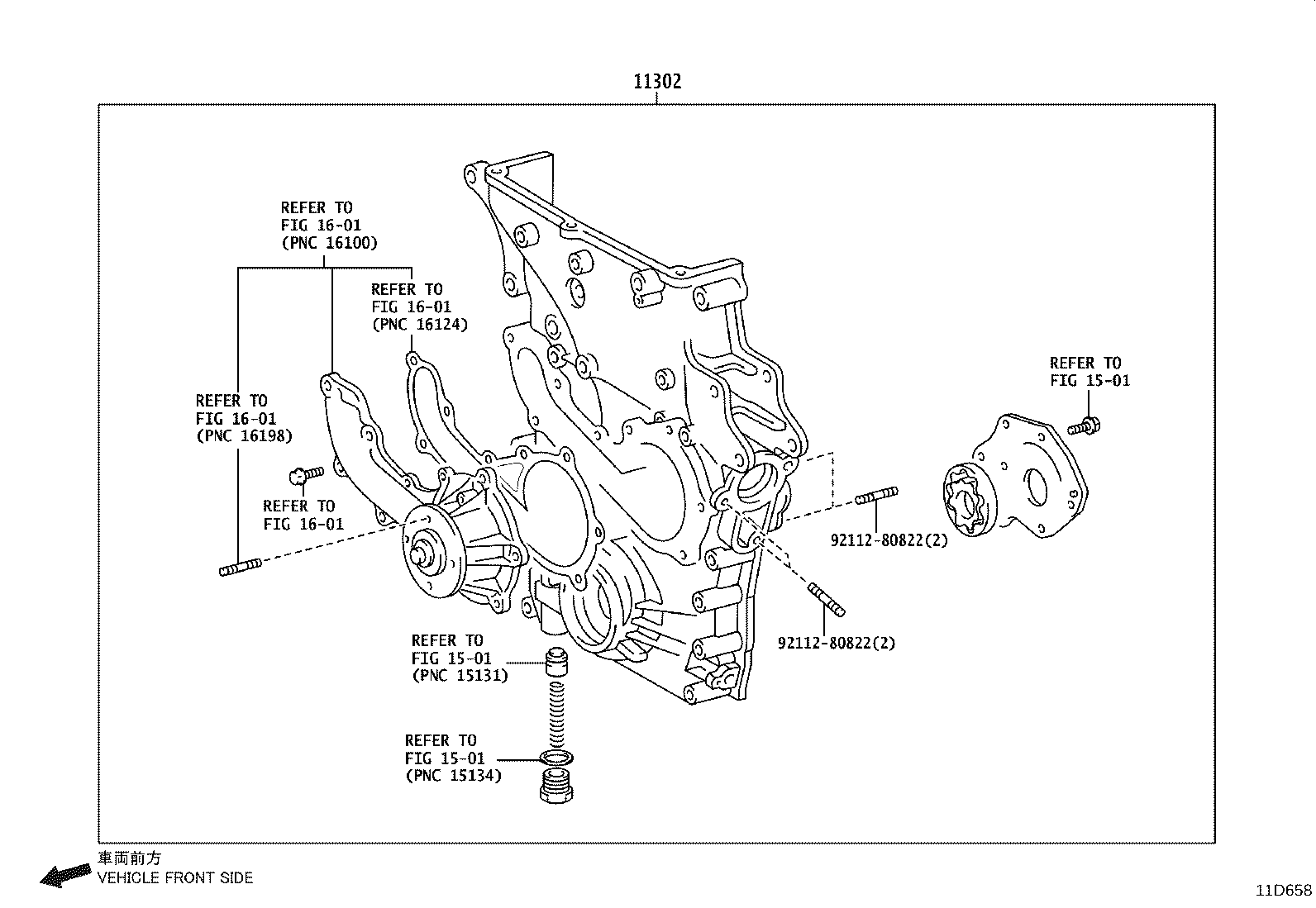

Figure 11C002B 11C002B 2009-08 → — Figure 116512C 116512C 2009-11 → — Figure 11D658 11D658 2009-11 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301M Sensor, Cam Position
11301N Clamp
11302 Cover Sub-assy, Timing Chain OR Belt
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
16603B Pulley Sub-assy, Idler
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
