Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

5 part groups · 2 illustrations

Illustrations

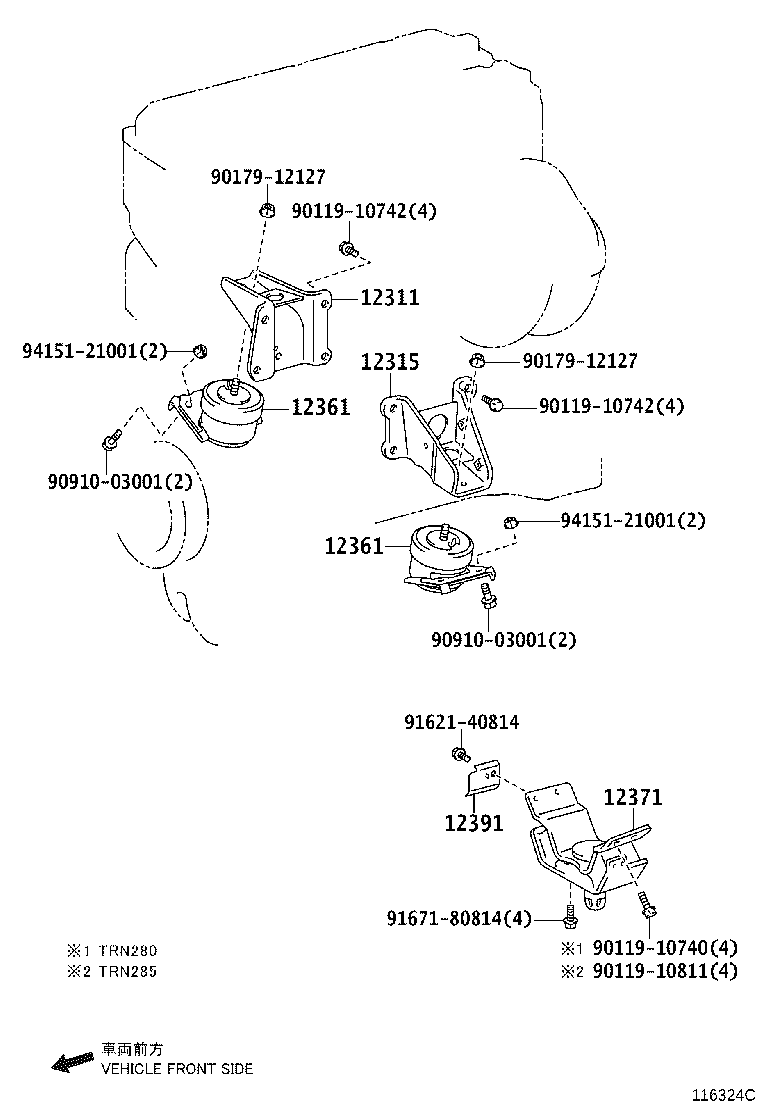

Figure 114080D 114080D 2009-08 → — Figure 116324C 116324C 2009-11 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12391 Insulator, Engine Mounting Front, Heat, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
