Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

26 part groups · 2 illustrations

Illustrations

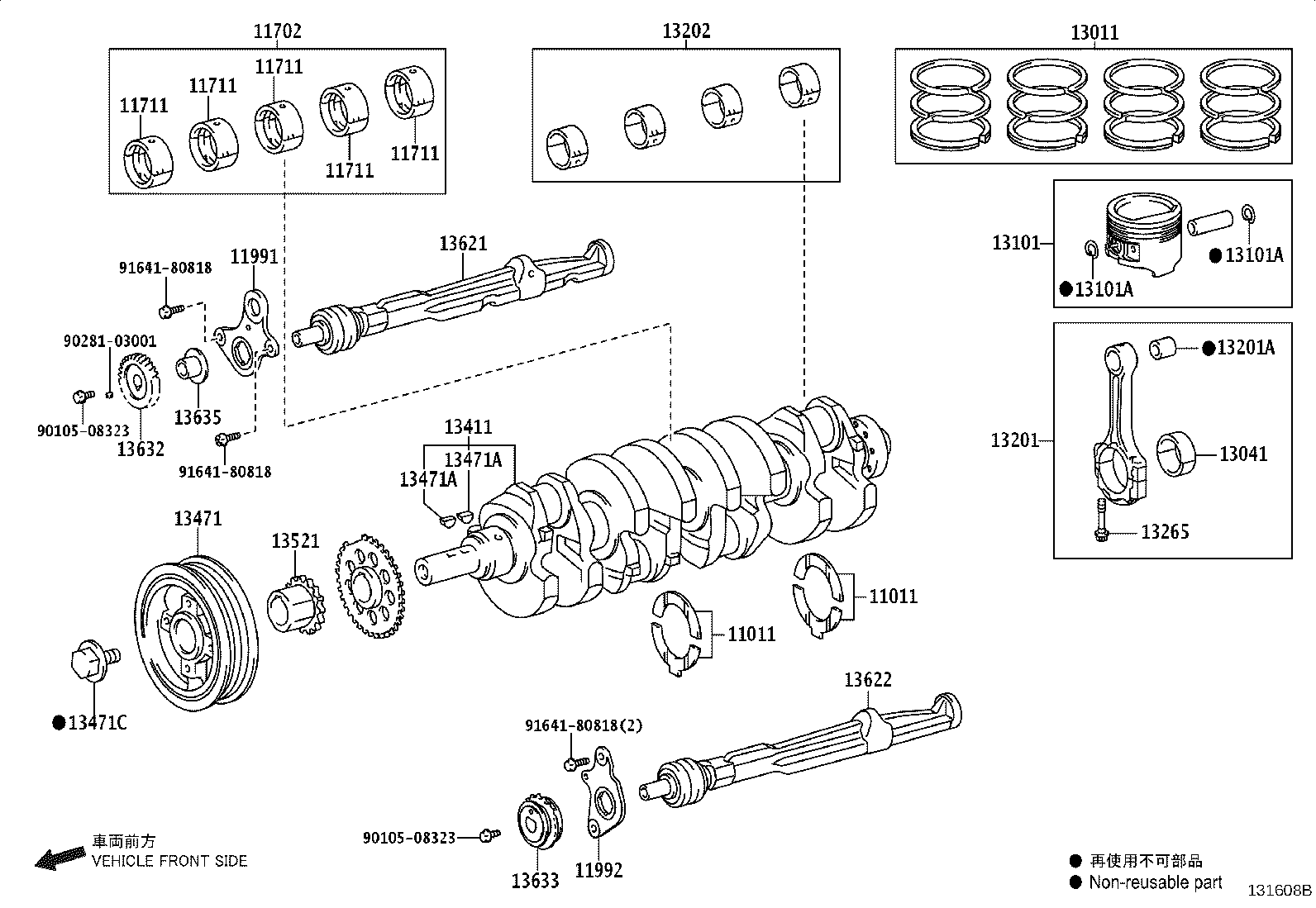

Figure 132768A 132768A 2009-08 → — Figure 131608B 131608B 2009-11 → —

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
11991 Washer, Balanceshaft Thrust
11992 Washer, Balanceshaft Thrust, NO.2
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13202 Bearing Set, Connecting Rod
13265 Bolt, Connecting Rod
13411 Crankshaft
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13581 Shaft, Idle Gear, NO.1
13582 Shaft, Idle Gear, NO.2
13621 Balanceshaft, NO.1
13622 Balanceshaft, NO.2
13632 Gear, Balanceshaft Driven, NO.1
13633 Gear, Balanceshaft Driven, NO.2
13635 Spacer, Balanceshaft Thrust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
