Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08

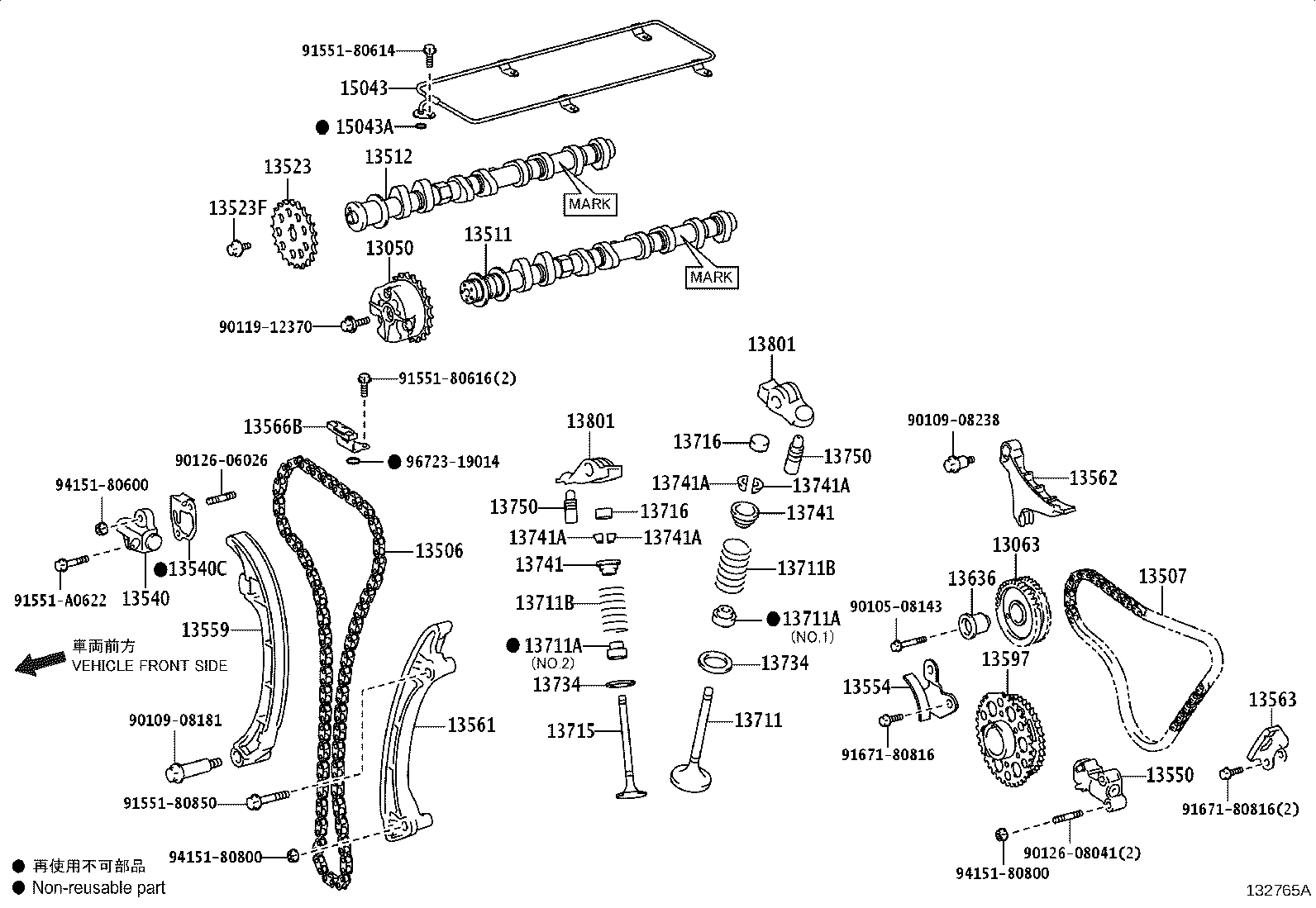

Camshaft & Valve

38 part groups · 2 illustrations

PNC	Description
13050	Gear Assy, Camshaft Timing
13053	Camshaft Sub-assy, NO.3
13054	Camshaft Sub-assy, NO.4
13063	Gear Sub-assy, Balanceshaft Drive
13070A	Gear Assy, Camshaft Timing Exhaust
13506	Chain Sub-assy
13507	Chain Sub-assy, NO.2
13511	Camshaft
13512	Camshaft, NO.2
13523	Gear OR Sprocket, Camshaft Timing
13523F	Bolt(FOR CAMSHAFT TIMING GEAR)
13530	Sprocket Assy, Idle
13540	Tensioner Assy, Chain, NO.1
13540C	Gasket(FOR CHAIN TENSIONER)
13550	Tensioner Assy, Chain, NO.2
13554	Damper, Chain Vibration, NO.4
13559	Slipper, Chain Tensioner
13560A	Tensioner Assy, Chain, NO.3
13561	Damper, Chain Vibration, NO.1
13562	Damper, Chain Vibration, NO.2
13563	Damper, Chain Vibration, NO.3
13566B	Guide, Timing Chain
13597	Sprocket, Crankshaft Timing, NO.2
13636	Shaft, Balanceshaft Drive Gear
13711	Valve, Intake
13711A	Seal OR Ring, O(FOR VALVE STEM OIL)
13711B	Spring, Compression(FOR INNER)
13711E	Seal, Intake Valve Stem Oil
13715	Valve, Exhaust
13715A	Seal, Exhaust Valve Stem Oil
13716	Cap, Valve Stem
13734	Seat, Valve Spring
13741	Retainer, Valve Spring
13741A	Lock, Valve Spring Retainer
13750	Adjuster Assy, Valve Lash
13801	Arm Sub-assy, Valve Rocker, NO.1
15043	Pipe Sub-assy, Camshaft Oil Delivery
15043A	Ring, O(FOR CAMSHAFT OIL DELIVERY PIPE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
