Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08

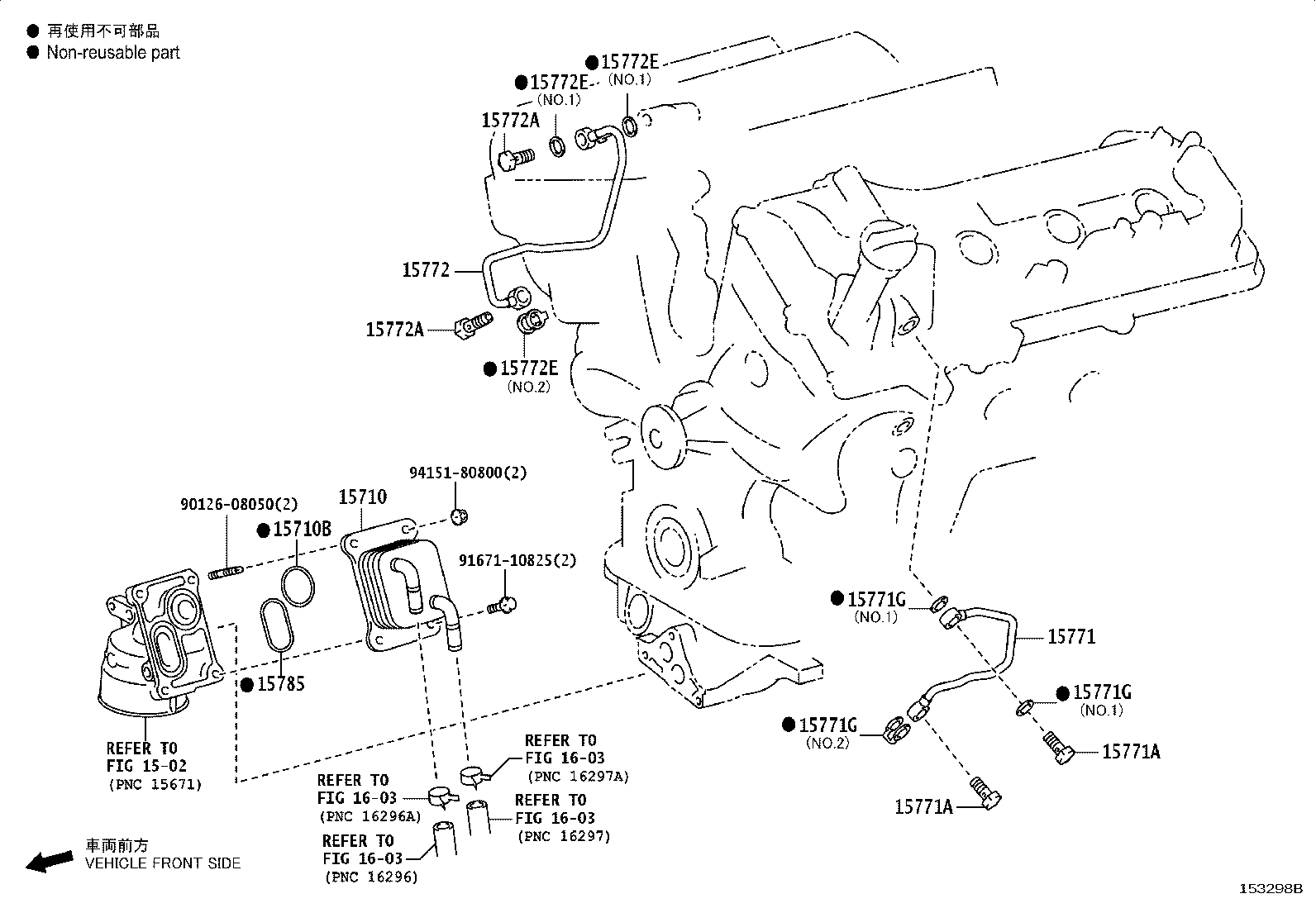

Engine Oil Cooler
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15695 | Bolt, Oil Cooler Union |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15771 | Pipe, Oil, NO.1 |
| 15771A | Union(FOR OIL PIPE) |
| 15771G | Gasket |
| 15772 | Pipe, Oil, NO.2 |
| 15772A | Union(FOR OIL PIPE) |
| 15772E | Gasket(FOR OIL PIPE) |
| 15785 | Gasket, Oil Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
