Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08
Air Cleaner

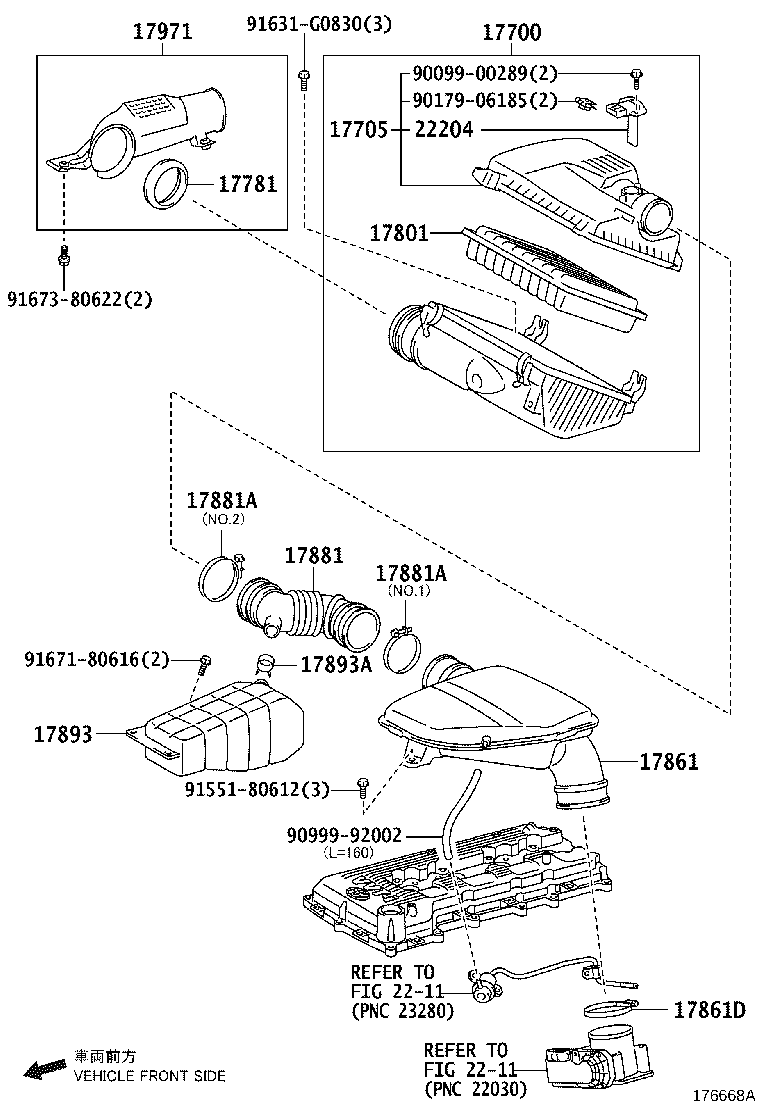

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17781 | Seal, Air Cleaner Inlet |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17861 | Connector, Intake Air |
| 17861D | Clamp(FOR INTAKE AIR CONNECTOR) |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17881C | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17881D | Tube, Union(FOG AIR CLEANER HOSE) |
| 17893 | Resonator, Intake Air |
| 17893A | Clamp, Hose |
| 17894 | Bracket, Resonator |
| 17971 | Inlet, Cool Air, NO.1 |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
