Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08
Fuel Injection System

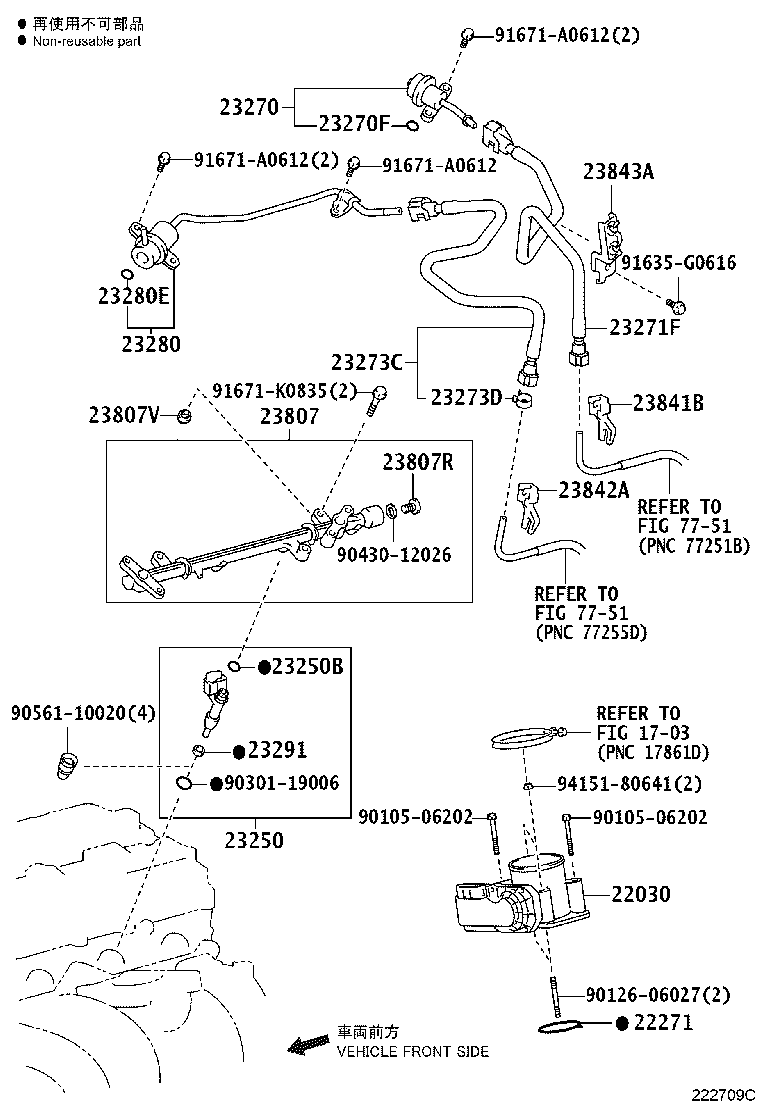

21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22271 | Gasket, Throttle Body |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270F | Ring, O(FOR PULSATION DAMPER) |
| 23271F | Hose, Fuel |
| 23273C | Hose, Fuel, NO.2 |
| 23273D | Clip(FOR FUEL HOSE NO.2) |
| 23280 | Regulator Assy, Fuel Pressure |
| 23280E | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23283A | Holder, Fuel Pressure Regulator |
| 23291 | Insulator, Injector Vibration |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23802B | Pipe Sub-assy, Fuel, NO.2 |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807R | Plug, Fuel Delivary Pipe |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23843A | Clamp,Fuel Pipe, NO.3(FOR EFI) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
