Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08

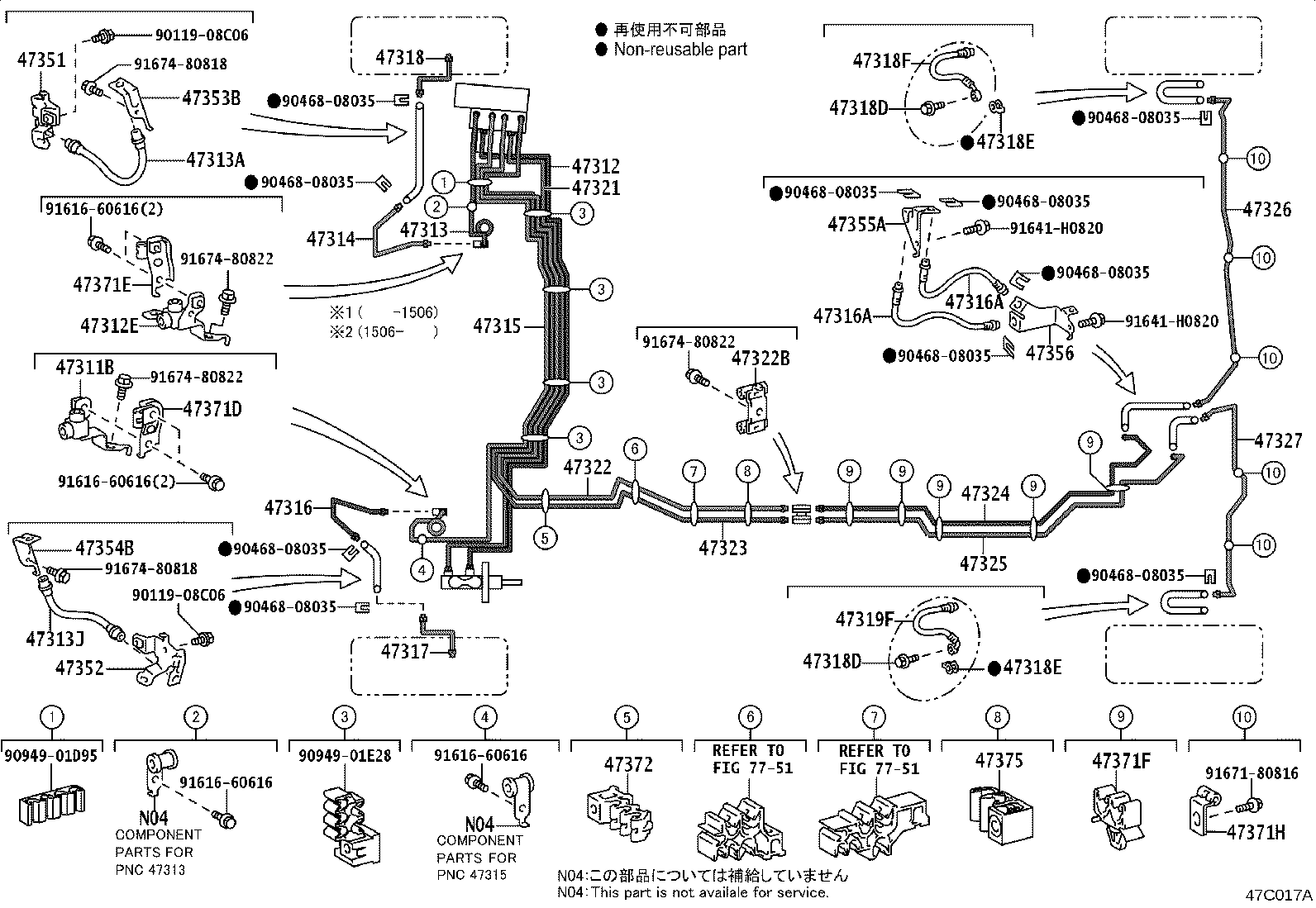

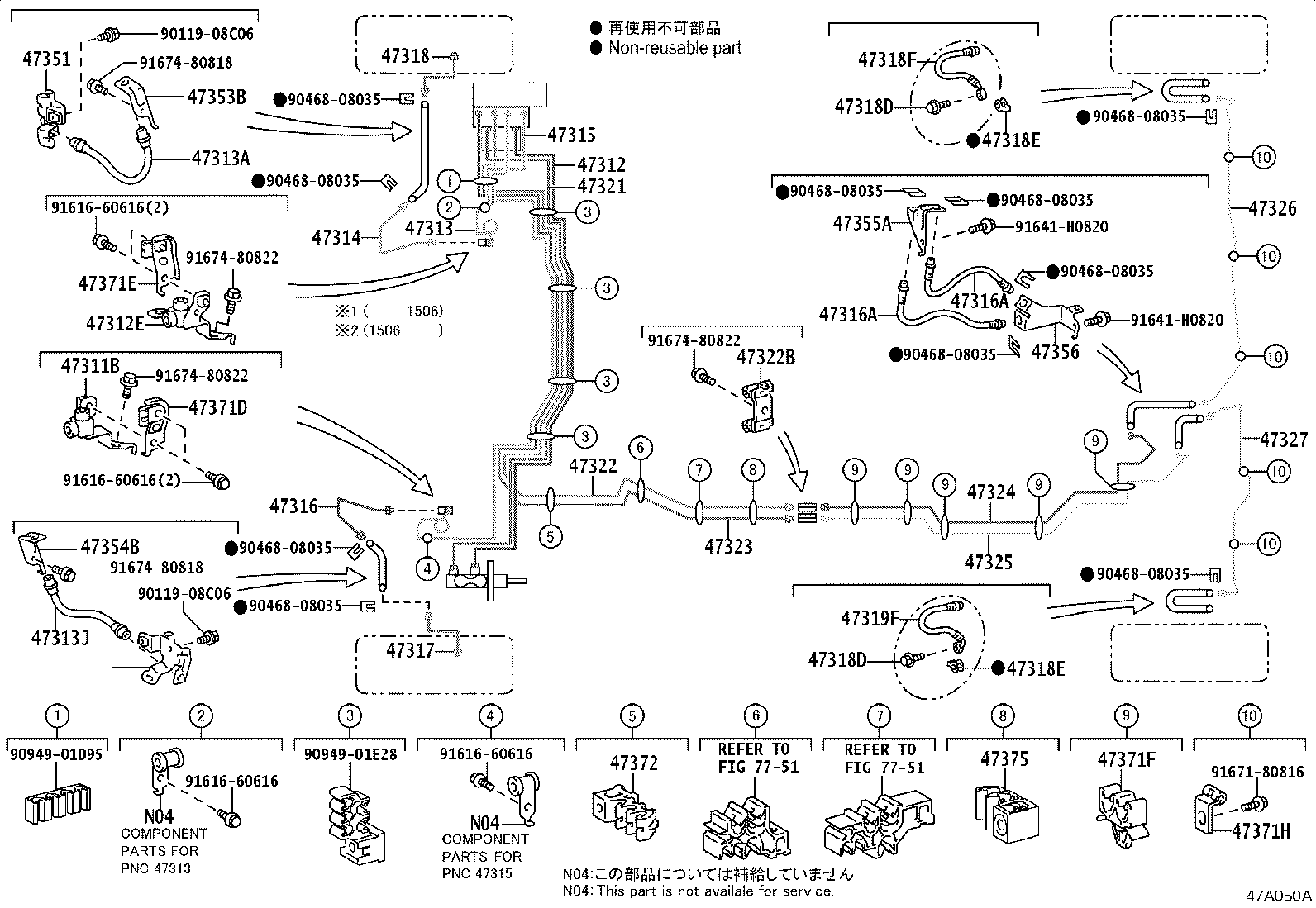

Brake Tube & Clamp

43 part groups · 6 illustrations

PNC	Description

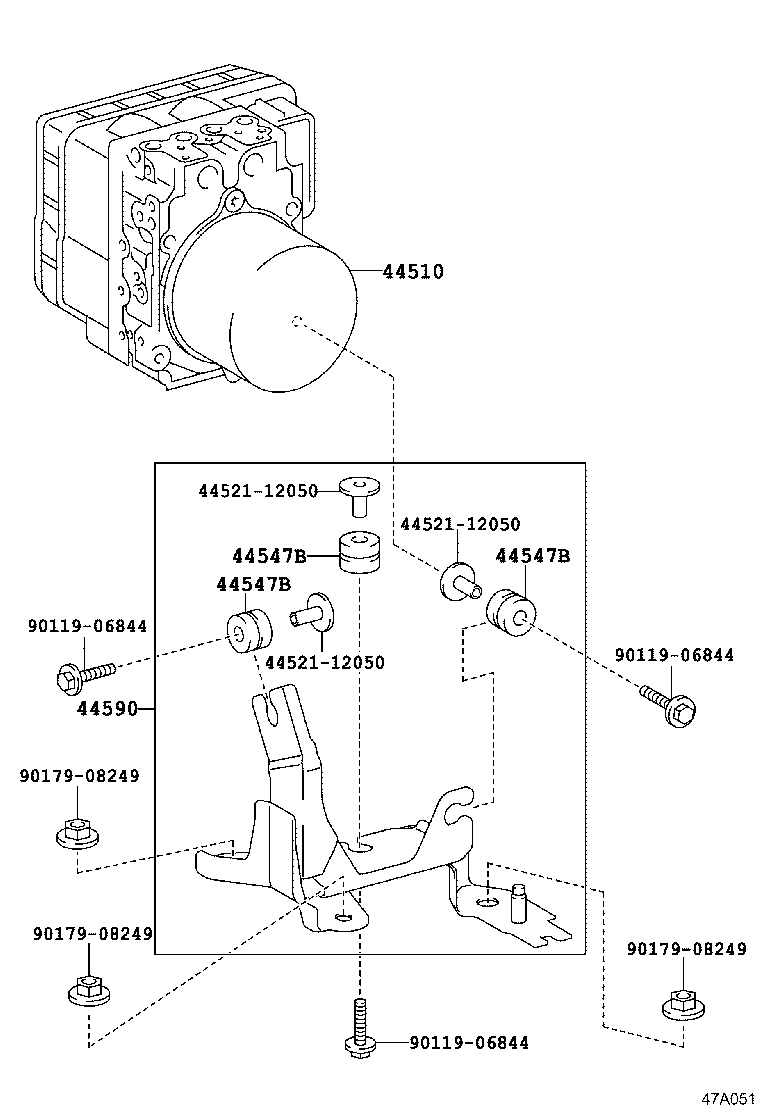

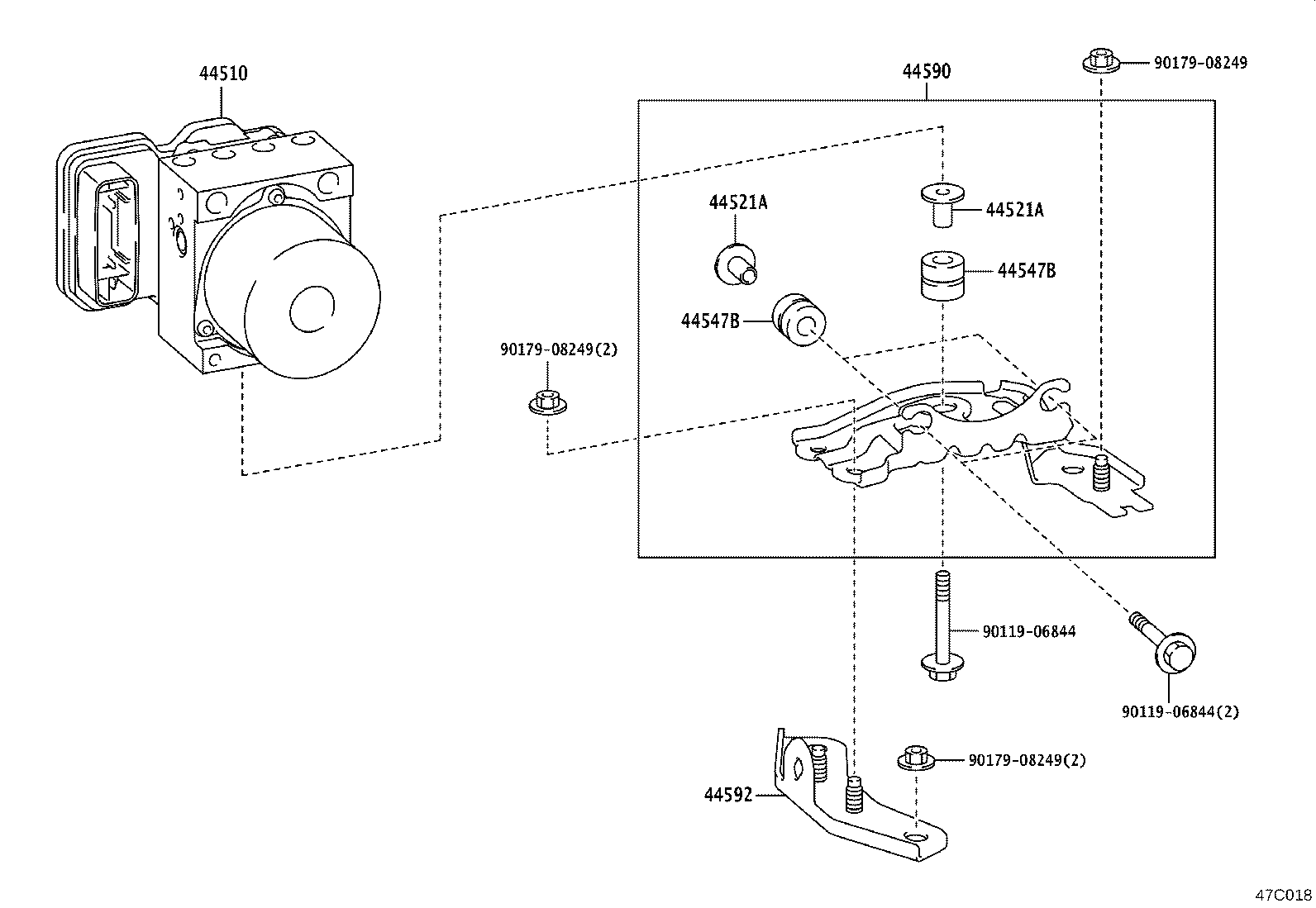

44510	Actuator Assy, Brake
44521A	Collar, Brake Actuator Case, NO.1
44547B	Cushion, Brake Actuator Bracket
44590	Bracket Assy, Brake Actuator
44592	Bracket, Brake Actuator, NO.2
47311B	Way, NO.1(FOR FRONT BRAKE TUBE)
47312	Tube, Front Brake, NO.2
47312E	Way, NO.2(FOR FRONT BRAKE TUBE)
47313	Tube, Front Brake, NO.3
47313A	Hose, Flexible, NO.1(FOR FRONT)
47313J	Hose, Flexible, NO.2(FOR FRONT)
47314	Tube, Front Brake, NO.4
47315	Tube, Front Brake, NO.5
47316	Tube, Front Brake, NO.6
47316A	Hose, Flexible(FOR REAR BRAKE TUBE)
47317	Tube, Front Brake, NO.7
47318	Tube, Front Brake, NO.8
47318D	Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E	Gasket(FOR REAR FLEXIBLE HOSE)
47318F	Hose, Flexible(FOR REAR RH)
47319F	Hose, Flexible(FOR REAR LH)
47321	Tube, Rear Brake, NO.1
47322	Tube, Rear Brake, NO.2
47322B	Way, NO.2(FOR REAR BRAKE TUBE)
47323	Tube, Rear Brake, NO.3
47324	Tube, Rear Brake, NO.4
47325	Tube, Rear Brake, NO.5
47326	Tube, Rear Brake, NO.6
47327	Tube, Rear Brake, NO.7
47351	Bracket, Flexible Hose(FOR FRONT RH)
47352	Bracket, Flexible Hose(FOR FRONT LH)
47353B	Bracket, Flexible Hose, NO.3
47354B	Bracket, Flexible Hose, NO.4
47355A	Bracket, Flexible Hose, NO.5
47356	Bracket, Flexible Hose, NO.6
47371C	Clamp, Brake Tube, NO.7
47371D	Clamp, Brake Tube, NO.8
47371E	Clamp, Brake Tube, NO.9
47371F	Clamp, Brake Tube, NO.10
47371H	Clamp, Brake Tube, NO.12
47372	Clamp, Brake Tube, NO.2
47373B	Clamp, Brake Tube, NO.3
47375	Clamp, Brake Tube, NO.5

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
