Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08

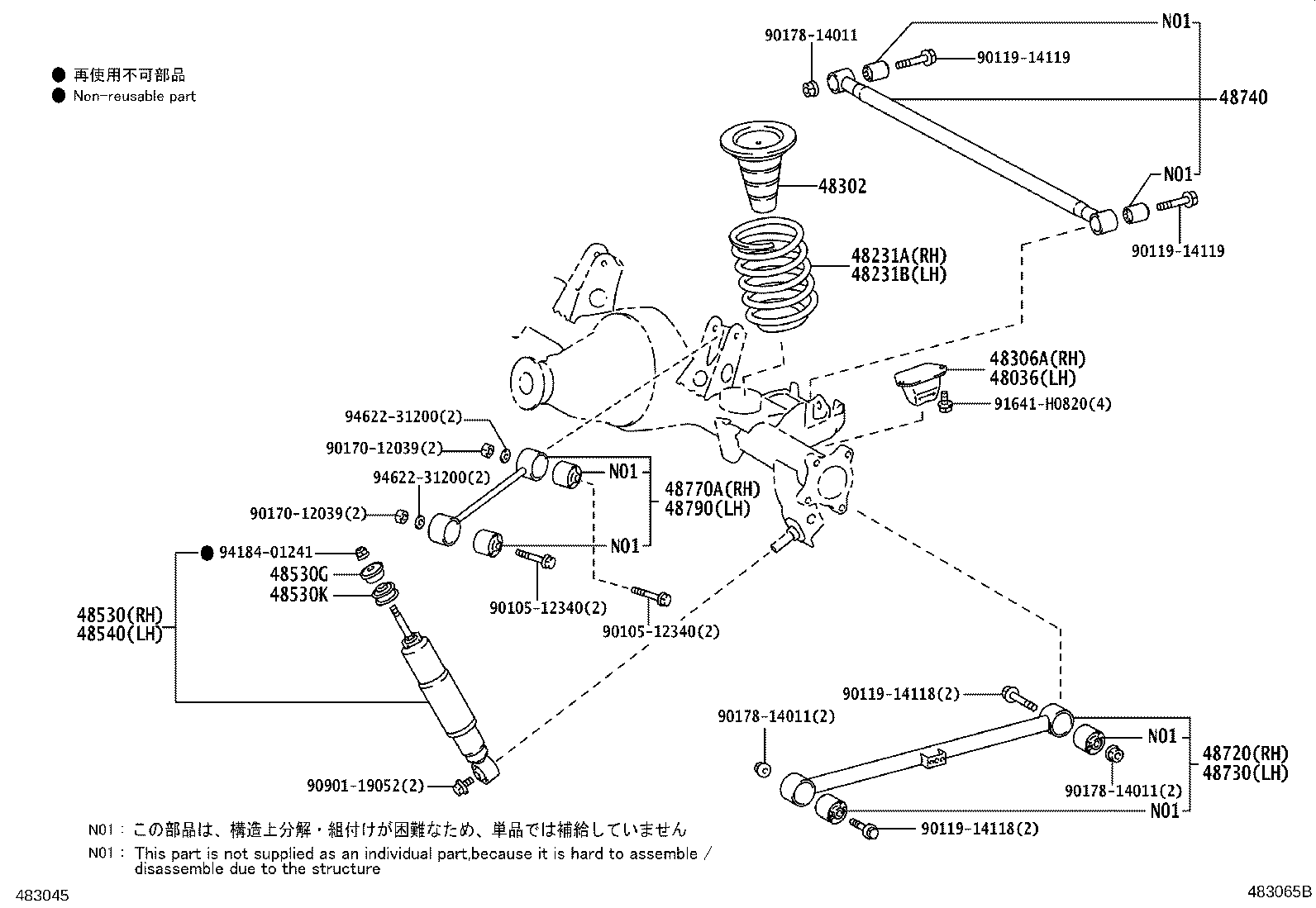

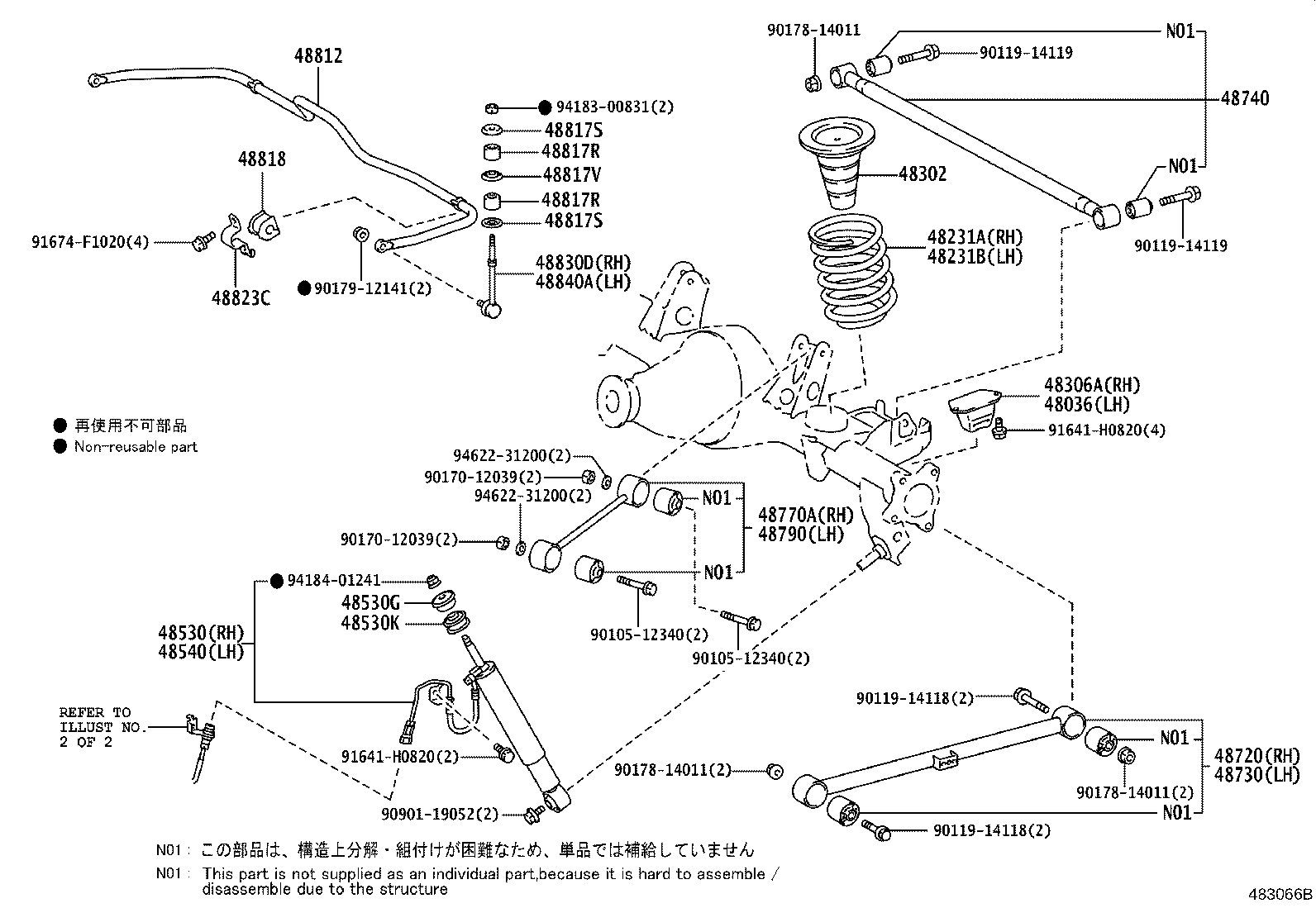

Rear Spring & Shock Absorber
39 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 31478T | Cap, Bleeder Plug(FOR REAR SUSPENSION CONTROL) |
| 44327D | Gasket, Pressure Port(FOR REAR STABILIZER CONTROL TUBE) |
| 44327N | Bolt, Union(FOR REAR STABILIZER CONTOROL TUBE) |
| 47378D | Protector, Tube, RH |
| 47388B | Protector, Tube, LH |
| 48036 | Bumper Sub-assy, Rear Spring, LH |
| 48231A | Spring, Coil, Rear RH |
| 48231B | Spring, Coil, Rear LH |
| 48302 | Spring Sub-assy, Hollow |
| 48306A | Bumper Sub-assy, Rear Spring, RH |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530G | Cushion, Rear Shock Absorber, NO.1 |
| 48530K | Cushion, Rear Shock Absorber, NO.2 |
| 48540 | Absorber Assy, Shock, Rear LH |

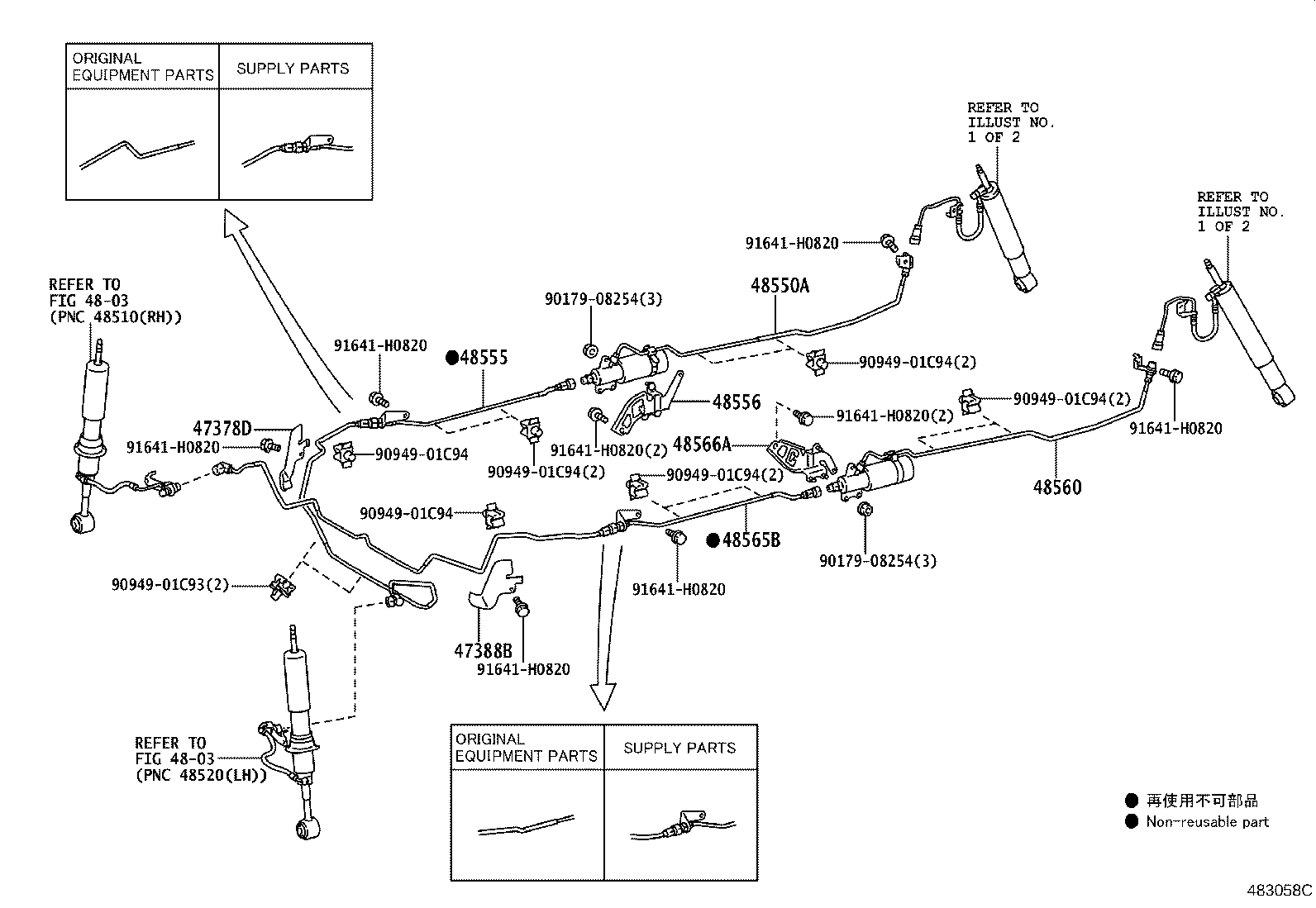

| 48550A | Absorber Assy, Center Control, RH |
| 48555 | Tube, Center Control Absorber, RH |
| 48556 | Bracket, Center Control Absorber, RH |
| 48560 | Absorber Assy, Center Control, LH |
| 48565B | Tube, Center Control Absorber, LH |
| 48566A | Bracket, Center Control Absorber, LH |
| 48720 | Arm Assy, Lower Control, RH |
| 48730 | Arm Assy, Lower Control, LH |
| 48740 | Rod Assy, Rear Lateral Control |
| 48770A | Arm Assy, Upper Control, Rear RH |
| 48790 | Arm Assy, Upper Control, Rear LH |

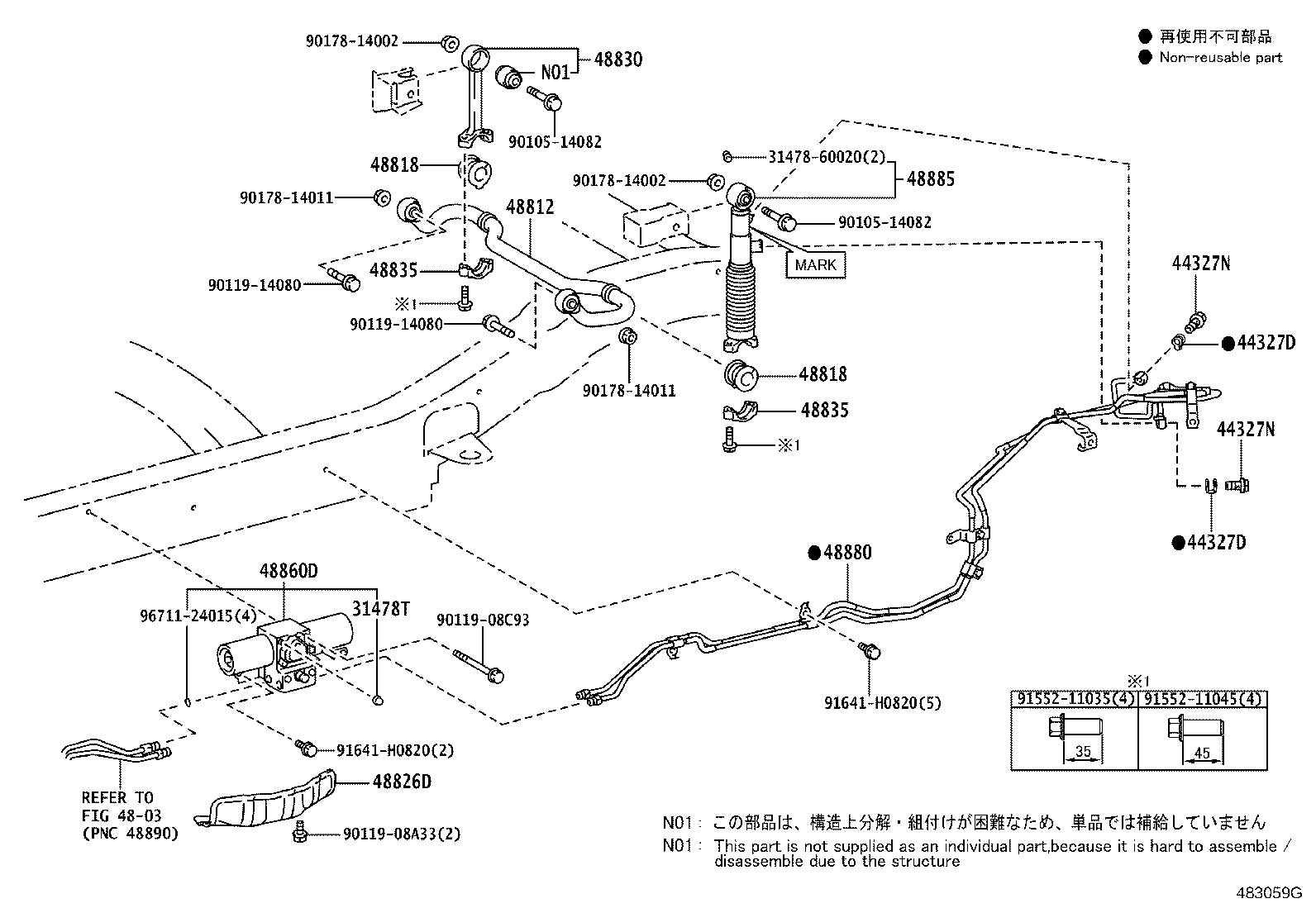

| 48812 | Bar, Stabilizer, Rear |
| 48817R | Cushion, Stabilizer(FOR REAR) |
| 48817S | Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR) |
| 48817V | Retainer, Cushion, NO.2(FOR STABILIZER REAR BAR) |
| 48818 | Bush, Stabilizer, Rear |
| 48823C | Cover, Rear Stabilizer Bracket |
| 48826D | Protector, Stabilizer Control Valve |
| 48830 | Link Assy, Rear Stabilizer |
| 48830D | Link Assy, Rear Stabilizer, RH |
| 48835 | Bracket, Rear Stabilizer, Lower |
| 48840A | Link Assy, Rear Stabilizer, LH |
| 48860D | Housing Assy, Stabilizer Control W/Accumulator |
| 48880 | Tube Assy, Rear Stabilizer Control, NO.1 |
| 48885 | Cylinder, Rear Stabilizer Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
