Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 4 illustrations

Illustrations

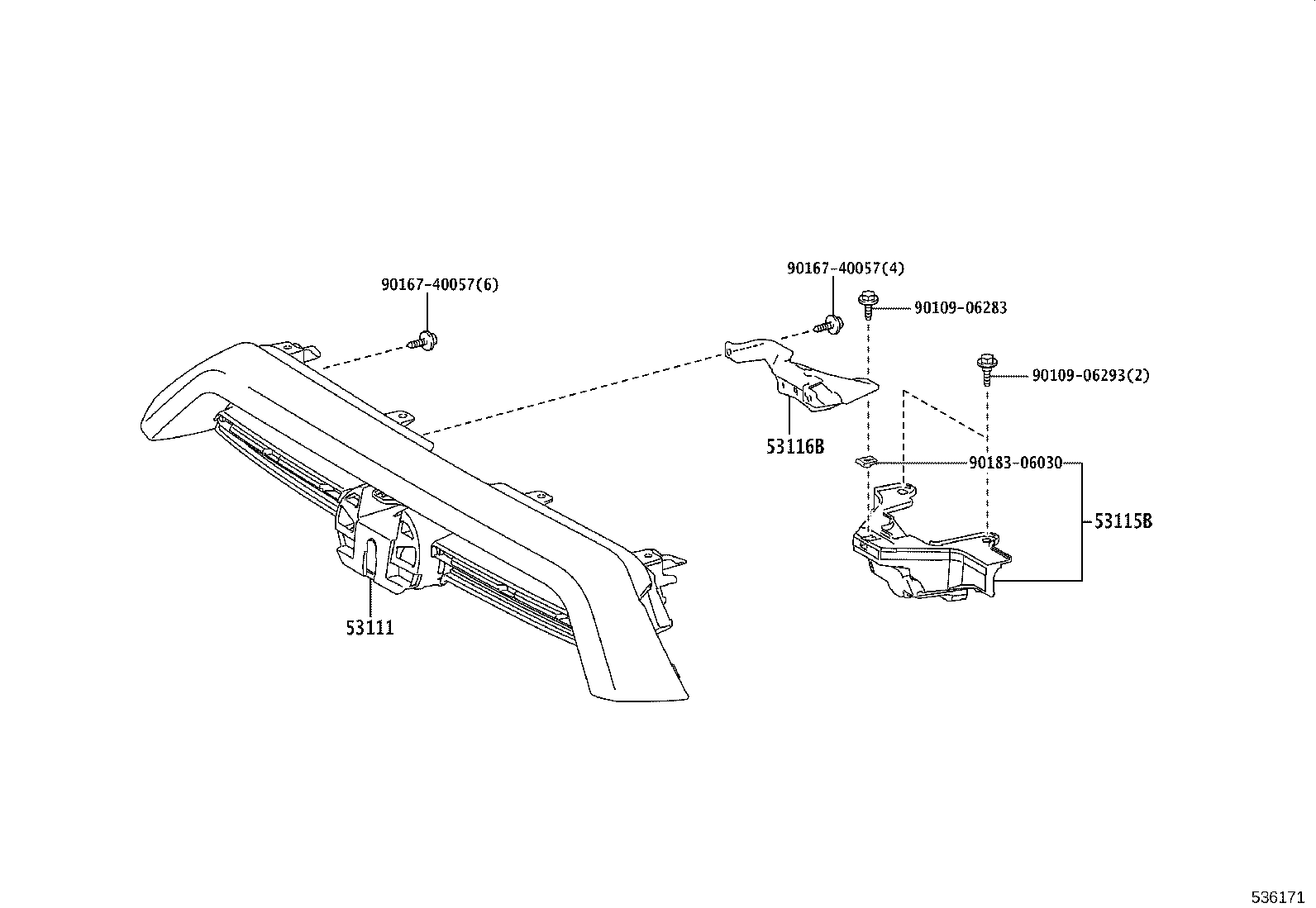

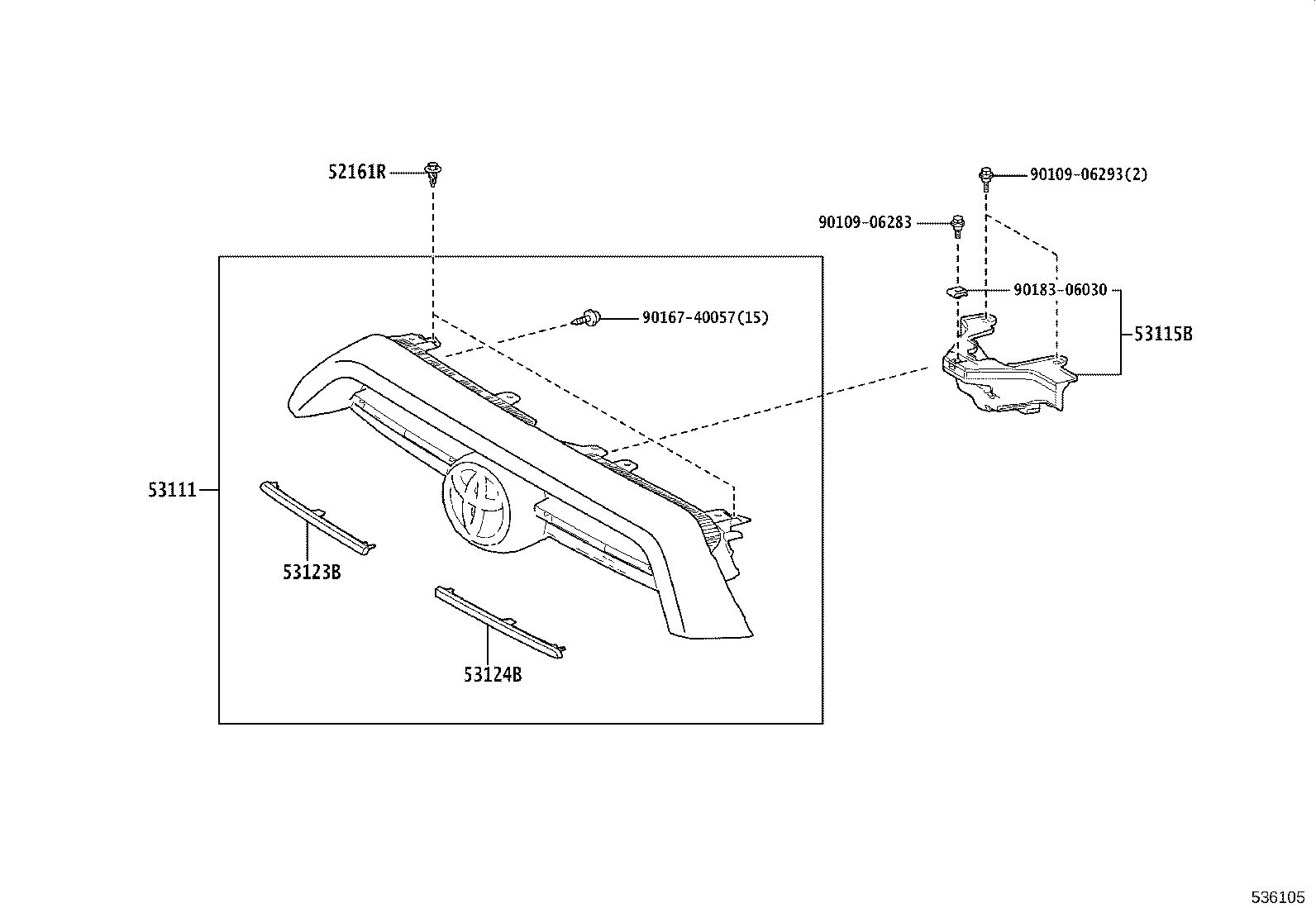

Figure 533080C 533080C 2009-08 → 2013-08 Figure 534036 534036 2013-08 → 2019-08 Figure 536105 536105 2019-08 → — Figure 536171 536171 2019-10 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53116B Bracket, Radiator Grille, NO.2
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
