Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08

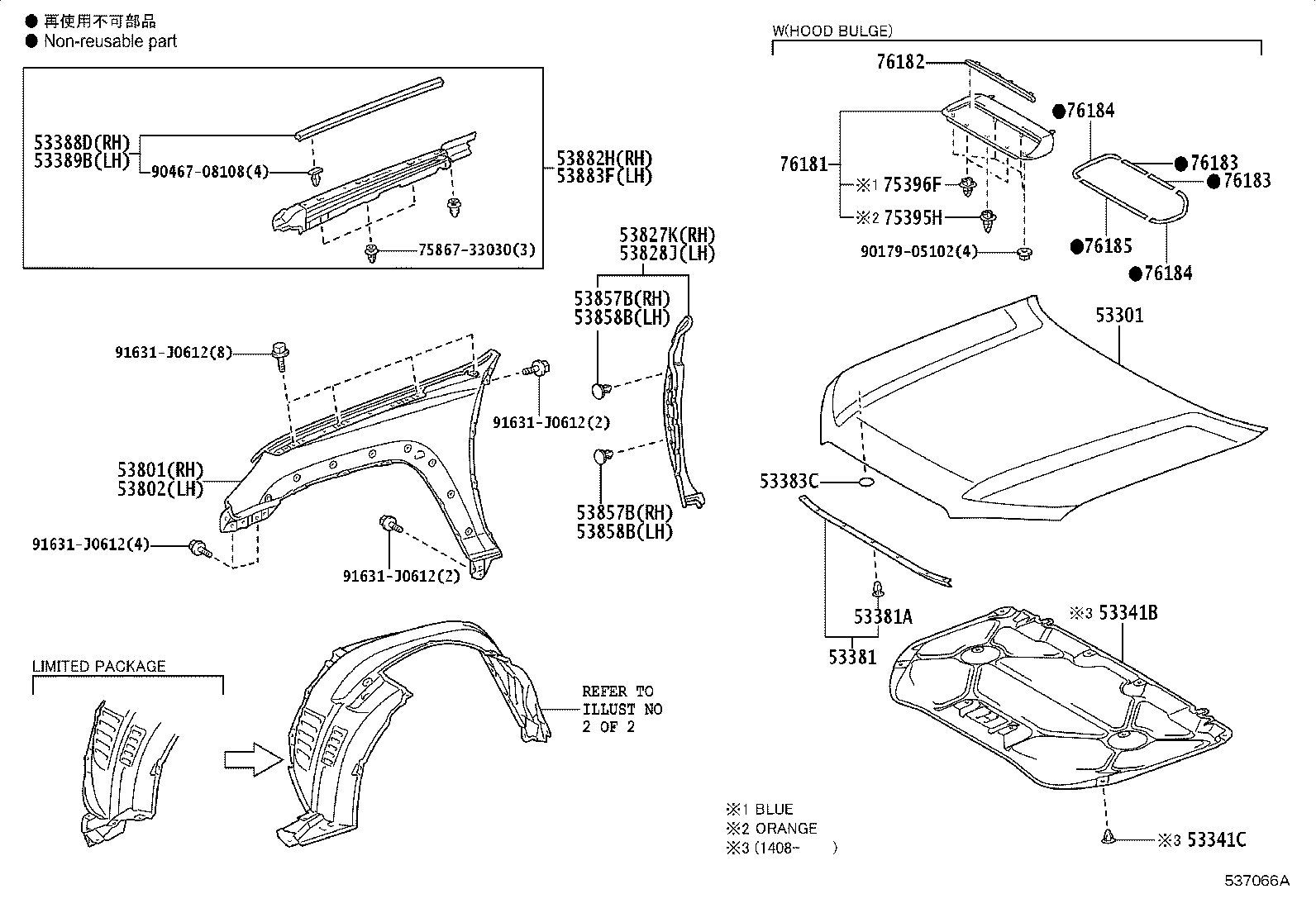

Hood & Front Fender
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53383C | Seal, Hood TO Cowl Top |
| 53388D | Seal, Hood TO Front Fender, RH |
| 53389B | Seal, Hood TO Front Fender, LH |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827K | Protector, Front Fender Side Panel, RH |
| 53828J | Protector, Front Fender Side Panel, LH |
| 53857B | Retainer, Front Wheel Opening Extension, RH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |

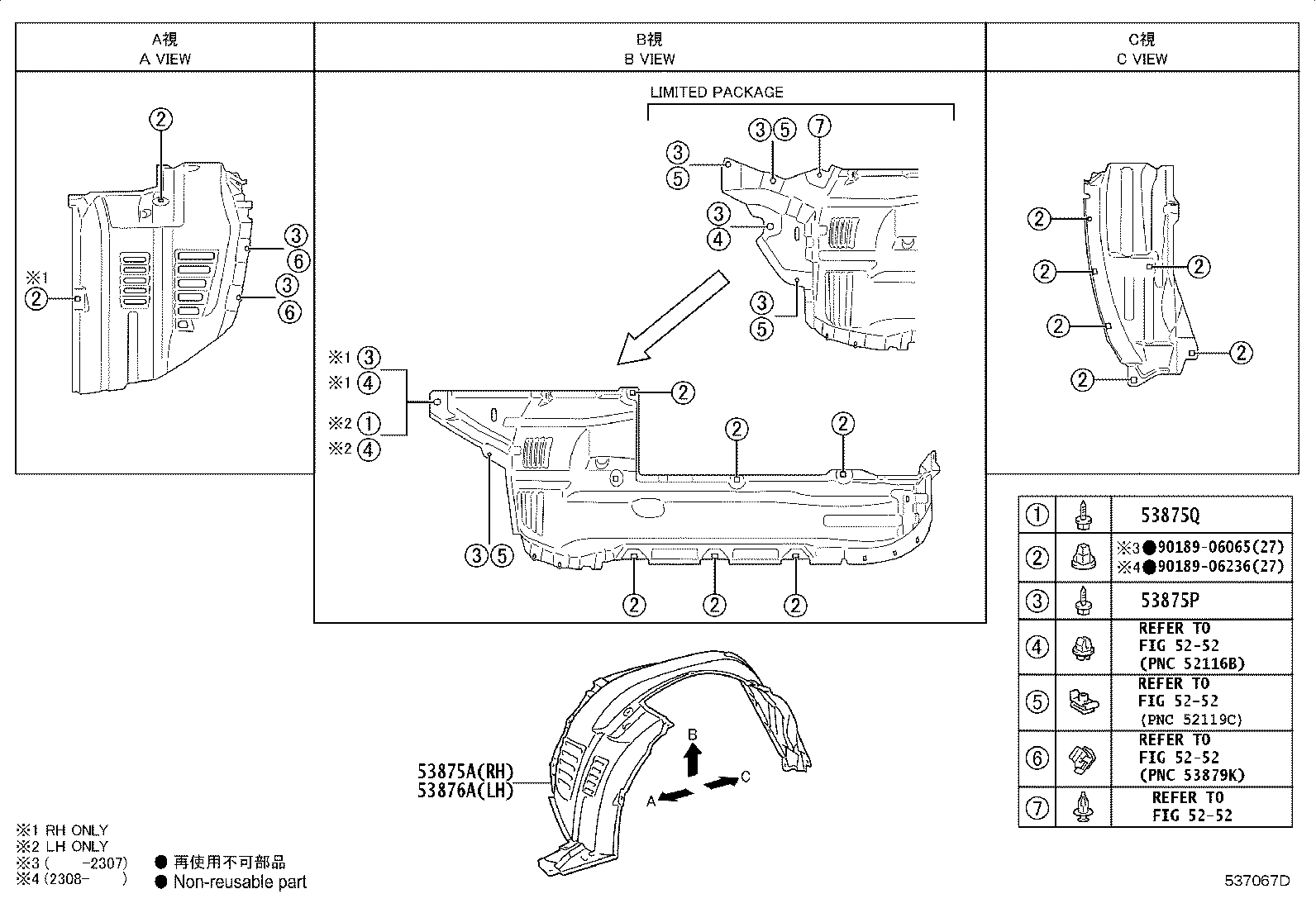

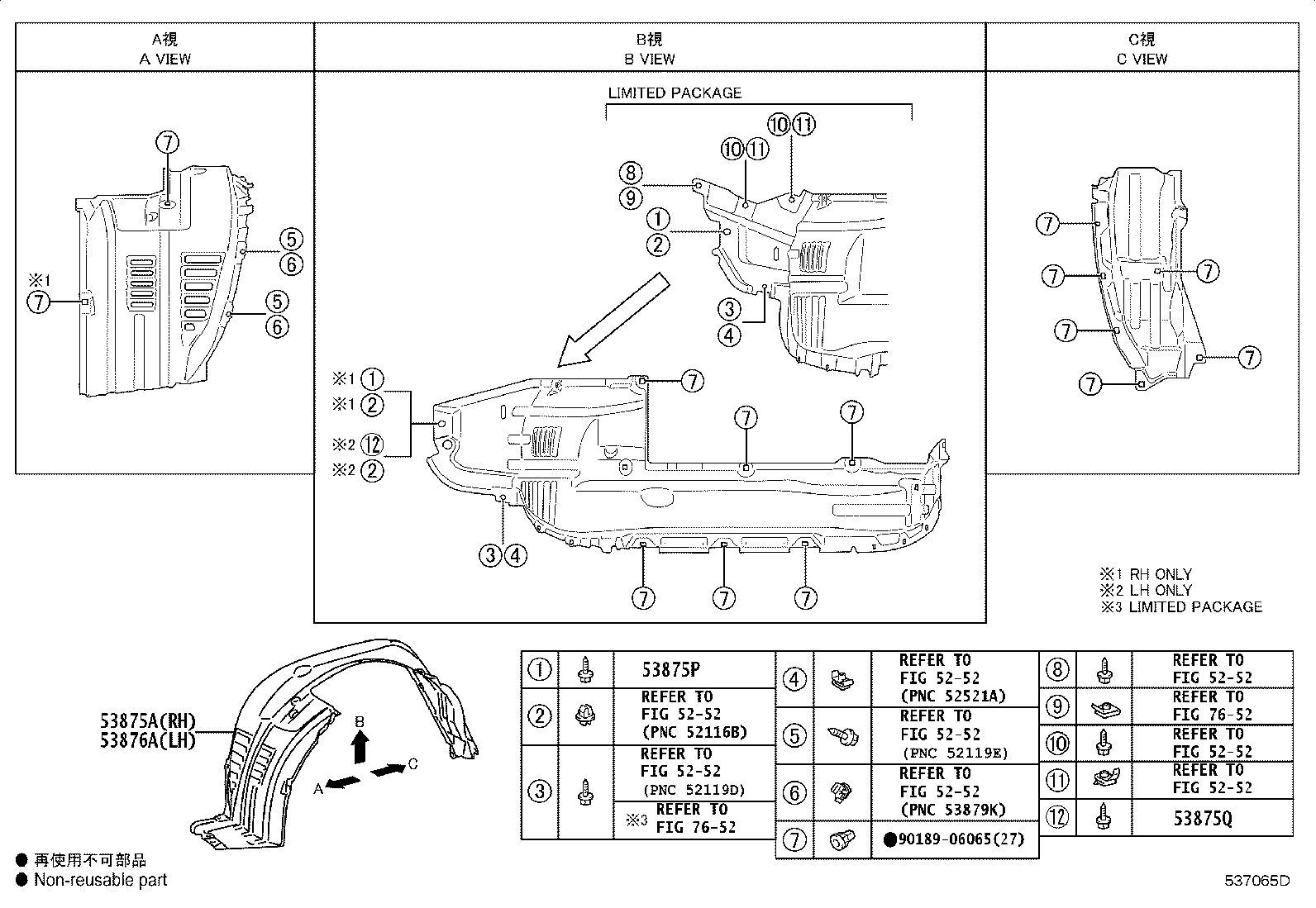

| 53875A | Liner, Front Fender, RH |
| 53875P | Screw, NO.1 |
| 53875Q | Screw, NO.2 |
| 53876A | Liner, Front Fender, LH |
| 53882H | Seal, Front Fender Main, RH |
| 53883F | Seal, Front Fender Main, LH |
| 75395H | Clip, Outside Moulding, NO.1 |
| 75396F | Clip, Outside Moulding, NO.2 |
| 76181 | Bulge, Hood |
| 76182 | Guide, Hood Air Intake |
| 76183 | Protector, Hood Bulge, NO.1 |
| 76184 | Protector, Hood Bulge, NO.2 |
| 76185 | Protector, Hood Bulge, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
