Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08

Front Floor Panel & Front Floor Member

40 part groups · 3 illustrations

PNC	Description
51714A	Boss, Step Arm, Lower

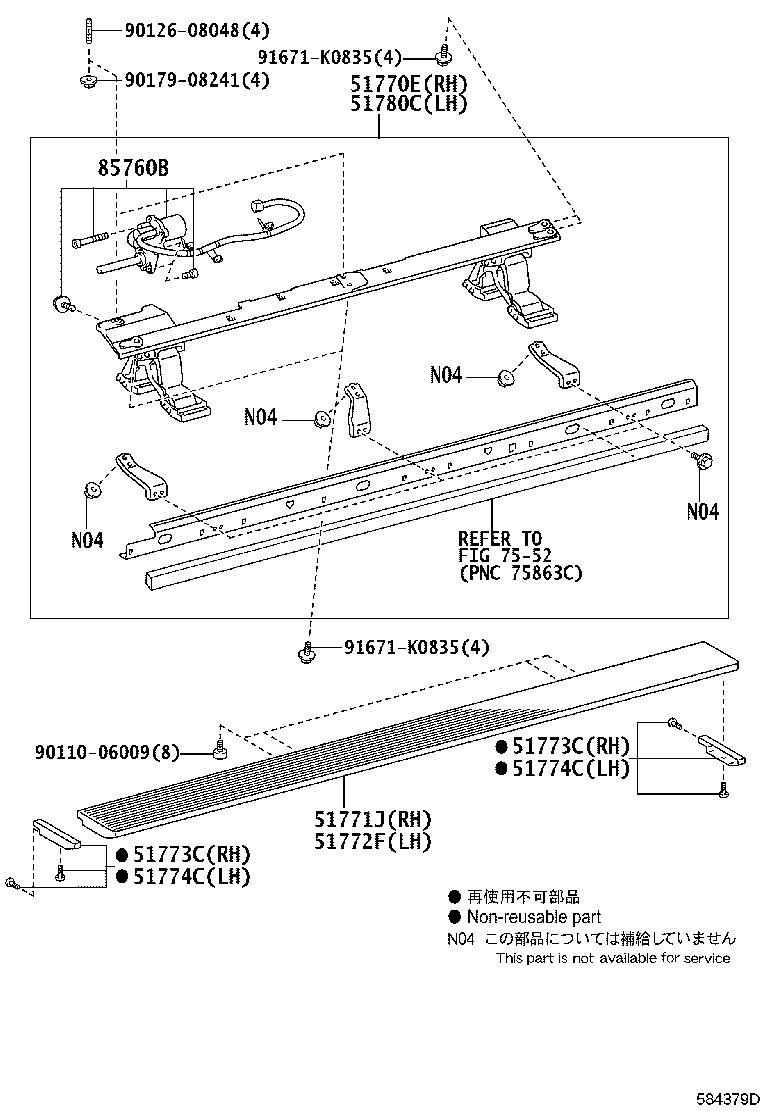

51770E	Step Assy, Power Lift, RH

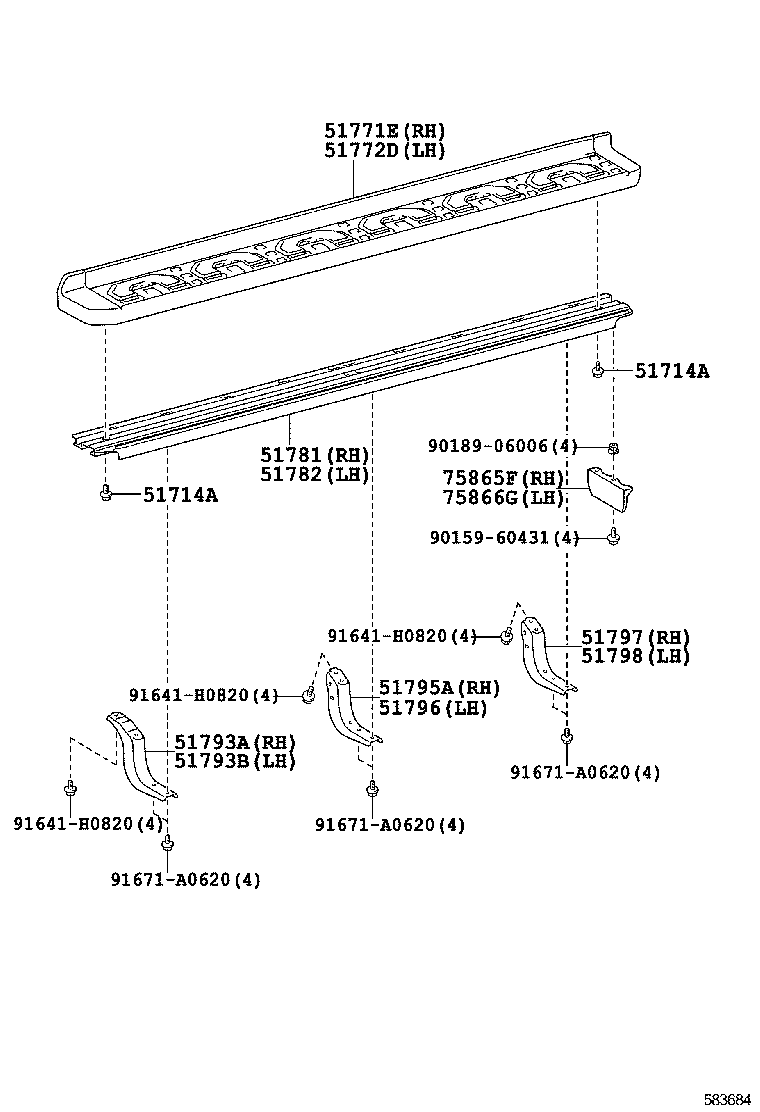

51771E	Plate, Step, RH
51771J	Step, RH
51772D	Plate, Step, LH
51772F	Step, LH
51773C	Cover, Step Plate, RH
51774C	Cover, Step Plate, LH
51780C	Step Assy, Power Lift, LH
51781	Panel, Step, RH
51782	Panel, Step, LH
51793A	Bracket, Side Step, NO.1 RH
51793B	Bracket, Side Step, NO.1, LH
51795A	Bracket, Side Step, NO.2 RH
51796	Bracket, Side Step, NO.2 LH
51797	Bracket, Side Step, NO.3 RH
51798	Bracket, Side Step, NO.3 LH
57051	Member Sub-assy, Front Floor Cross, RH
57052	Member Sub-assy, Front Floor Cross, LH
57401C	Member Sub-assy, Floor Side, Inner RH
57402C	Member Sub-assy, Floor Side, Inner LH
57417	Reinforcement, Front Floor Under, RH
57418	Reinforcement, Front Floor Under, LH
57427	Reinforcement, Front Floor TO Brace
57458	Member, Front Floor Cross, NO.1
57459	Member, Front Floor Cross, NO.2
57461B	Member Sub-assy, Center Floor Cross, NO.1
57509	Reinforcement Sub-assy, Front Floor, Center
58111	Pan, Front Floor
58111B	Bolt, Weld(FOR FRONT FLOOR PAN)
58115A	Reinforcement, Front Floor Panel
58127A	Reinforce, Front Cross TO Front Panel Member, RH
58128A	Reinforcement, Front Cross TO Front Panel Member, LH
58171	Reinforcement, Parking Brake Base
58179C	Bracket, Clamp Floor
58191	Footrest, Front Floor
58286	Boot, Shift & Select Lever, NO.1
75865F	Protector, Rocker Panel Moulding, NO.5
75866G	Protector, Rocker Panel Moulding, NO.6
85760B	Motor Assy, Side Auto Step

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
