Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

37 part groups · 6 illustrations

Illustrations

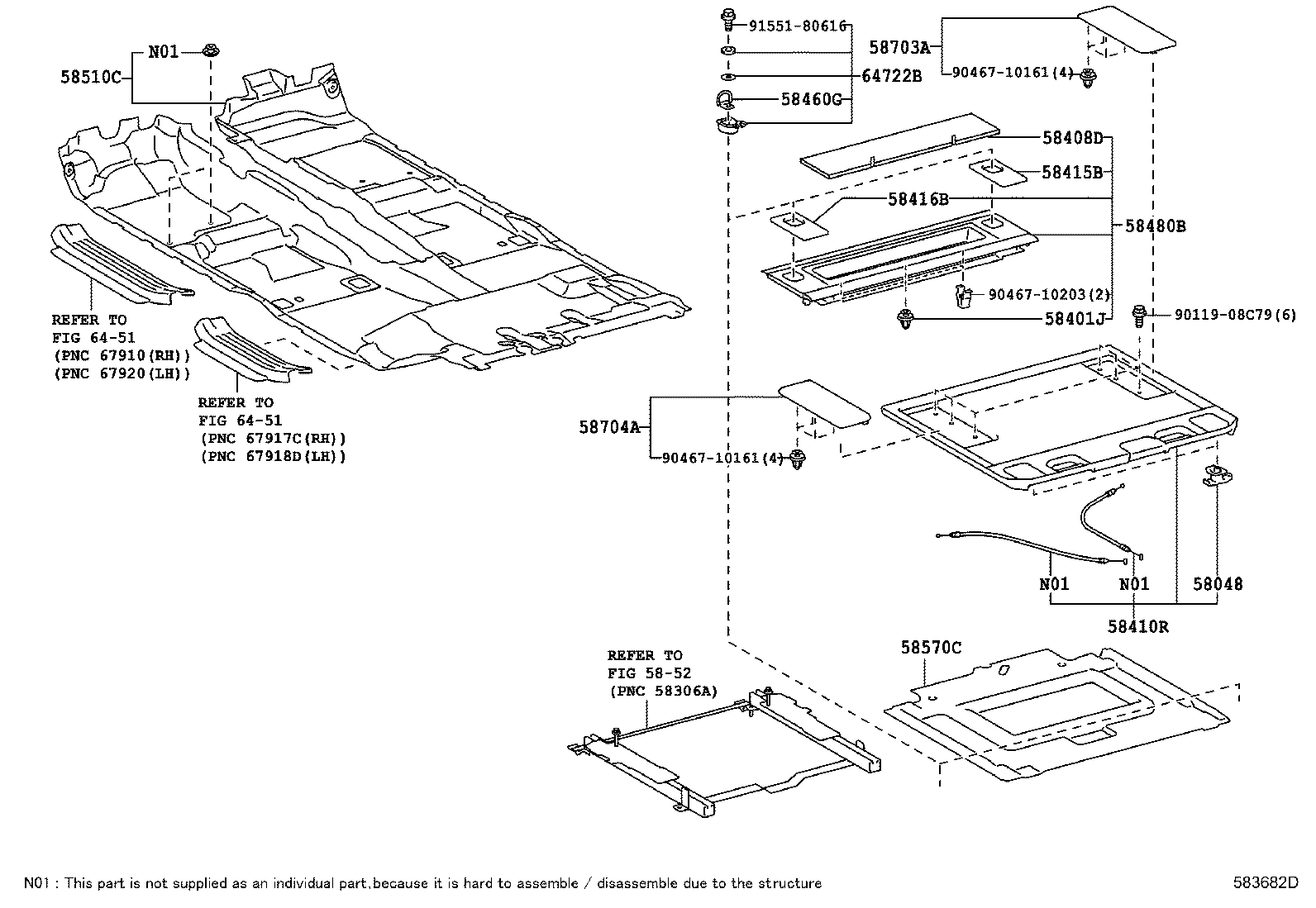

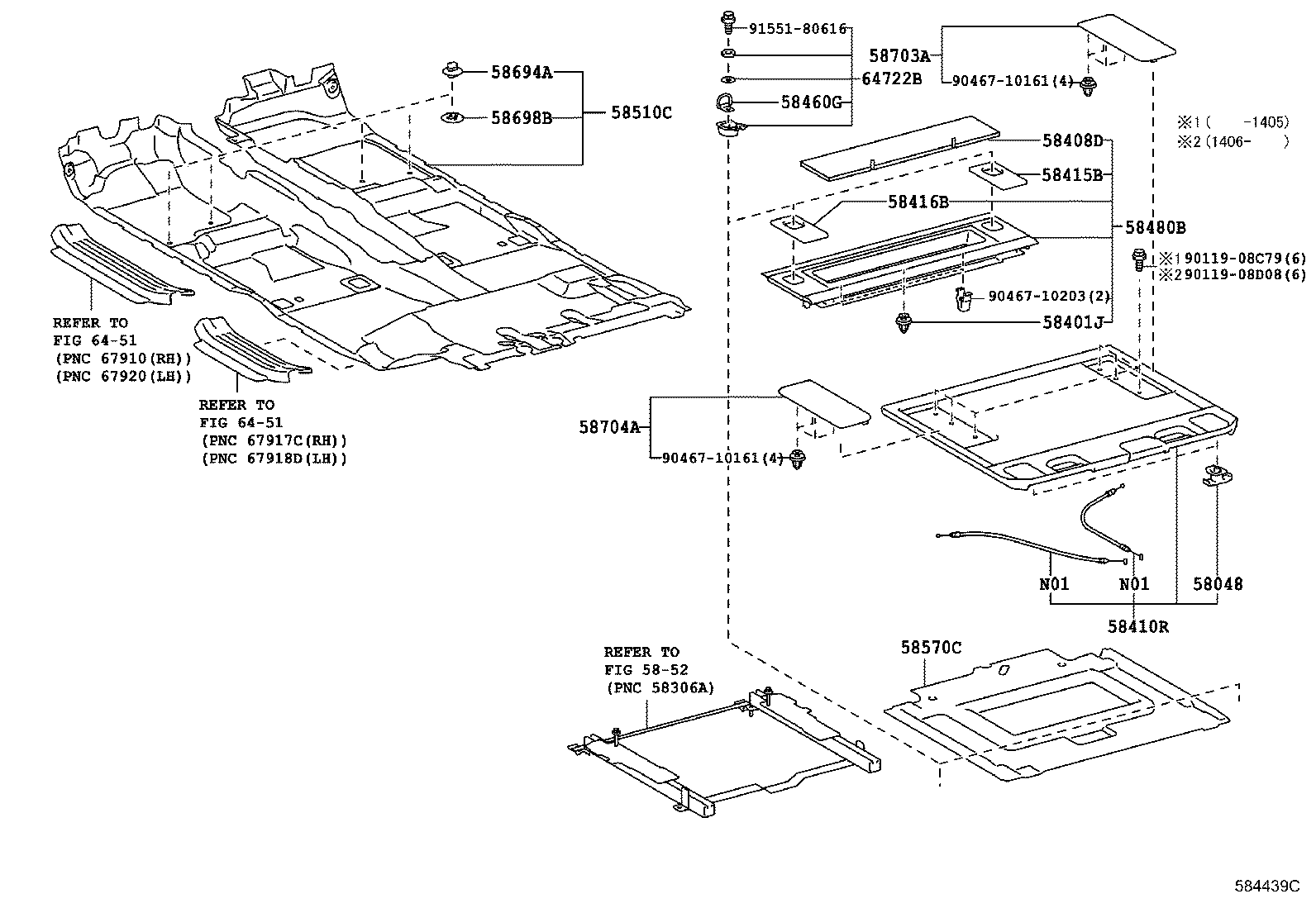

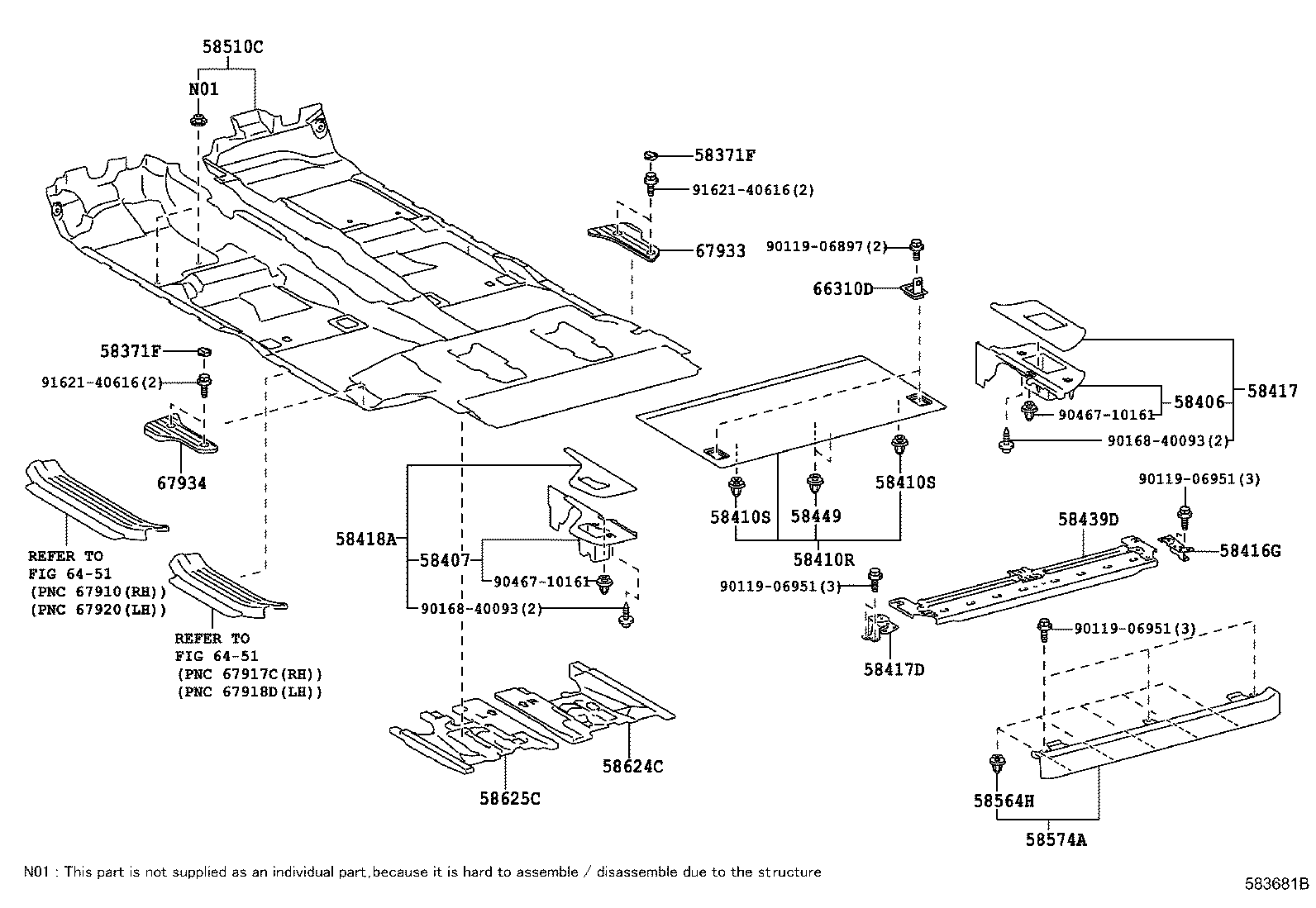

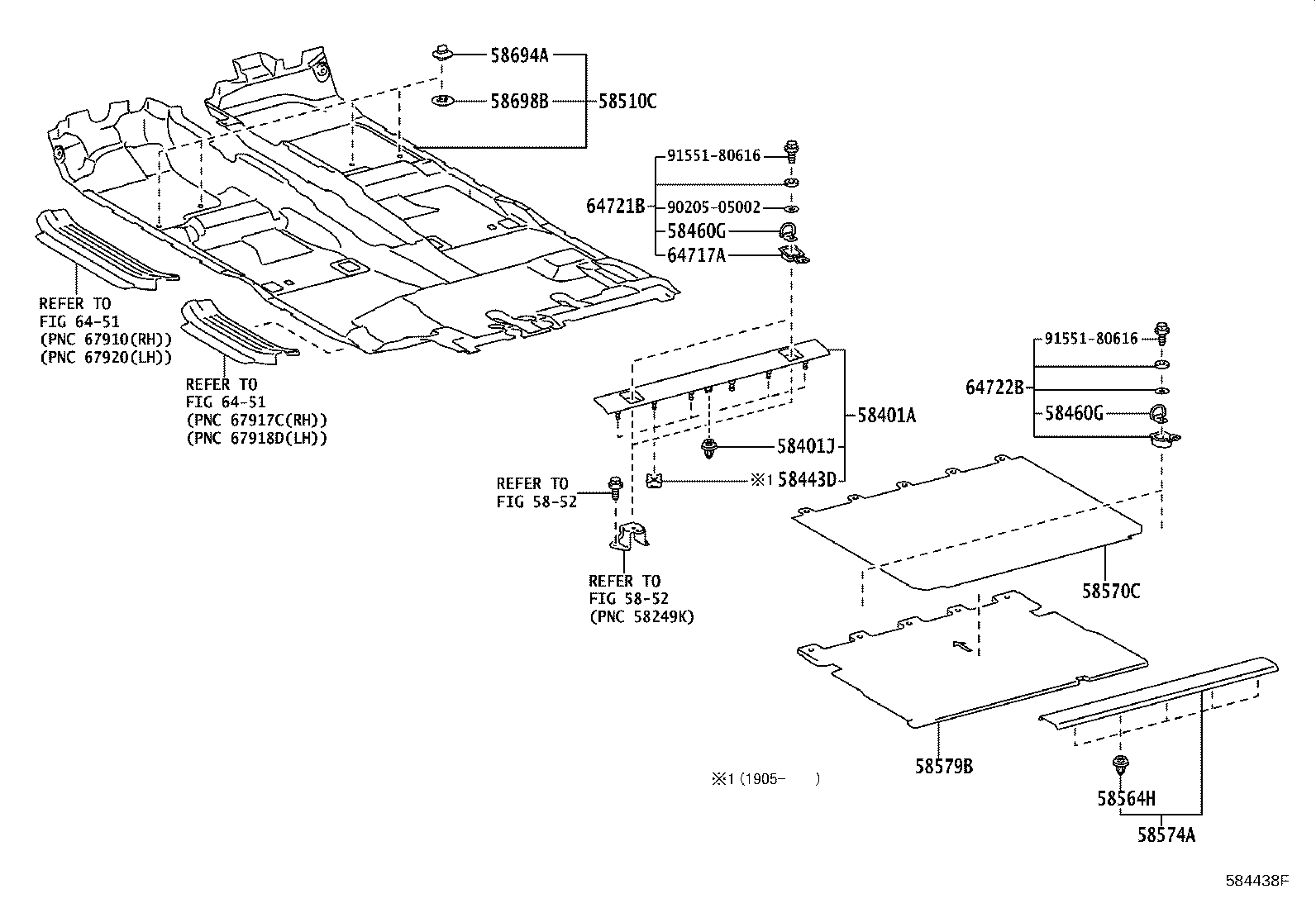

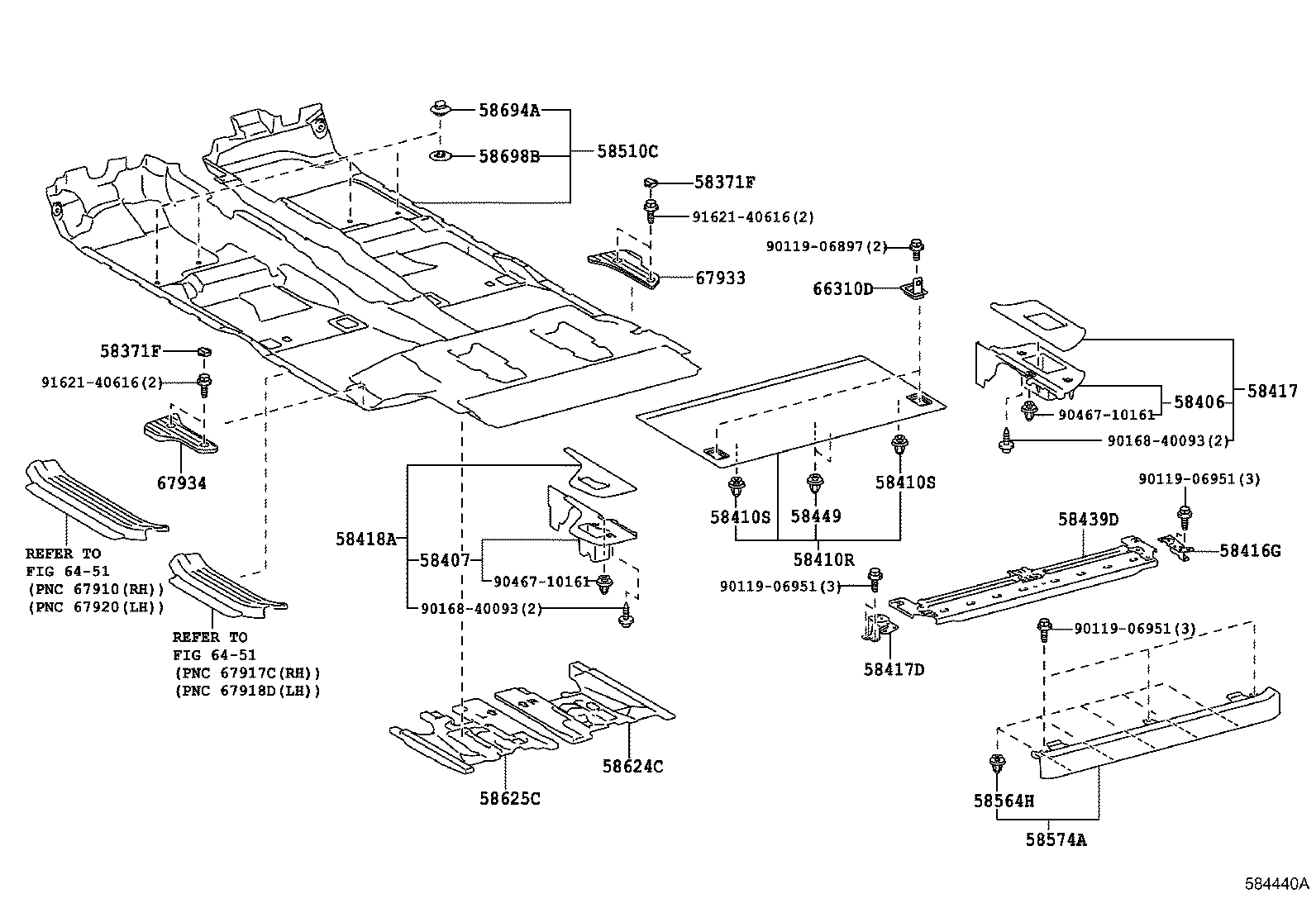

Figure 583705B 583705B 2009-08 → 2012-08 Figure 583682D 583682D 2009-08 → 2012-08 Figure 583681B 583681B 2009-08 → 2012-08 Figure 584438F 584438F 2012-08 → — Figure 584439C 584439C 2012-08 → — Figure 584440A 584440A 2012-08 → —

Part groups

PNCDescription
58048 Hook, Deck Board, NO.1
58371F Cover, Rear Floor Step, NO.1
58401A Board Sub-assy, Deck, NO.1
58401J Clip(FOR DECK BOAD)
58406 Bracket Sub-assy, Deck Board, RH
58407 Bracket Sub-assy, Deck Board, LH
58408D Board Sub-assy, Deck, NO.2
58410R Board Assy, Deck
58410S Clip, Deck Board
58415B Board, Rear Floor, NO.1
58416B Board, Rear Floor, NO.2
58416G Bracket, Deck Board, NO.1 RH
58417 Board, Rear Floor, NO.3
58417D Bracket, Deck Board, NO.1 LH
58418A Board, Rear Floor, NO.4
58439D Reinforcement, Deck Board Bracket
58443D Cushion, Deck Board, NO.1
58449 Clip, Deck Board
58460G Striker Assy, Luggage Hold Belt
58480B Board Assy, Rear Floor, NO.2
58510C Carpet Assy, Front Floor, Front
58564H Clip(FOR REAR FLOOR CARPET)
58570C Carpet Assy, Rear Floor
58574A Plate, Rear Floor Mat Support, Rear
58579B Pad, Rear Floor
58624C Pad, Center Floor Silencer, RH
58625C Pad, Center Floor Silencer, LH
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
58703A Cover Sub-assy, Luggage Compartment Side, RH
58704A Cover Sub-assy, Luggage Compartment Side, LH
64717A Cover, Luggage Compartment Trim, Front
64721B Cover, Luggage Compartment Trim, NO.1
64722B Cover, Luggage Compartment Trim, NO.2
66310D Hook Assy, Rope
67933 Plate, Quarter Scuff, Inner RH
67934 Plate, Quarter Scuff, Inside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
