Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08

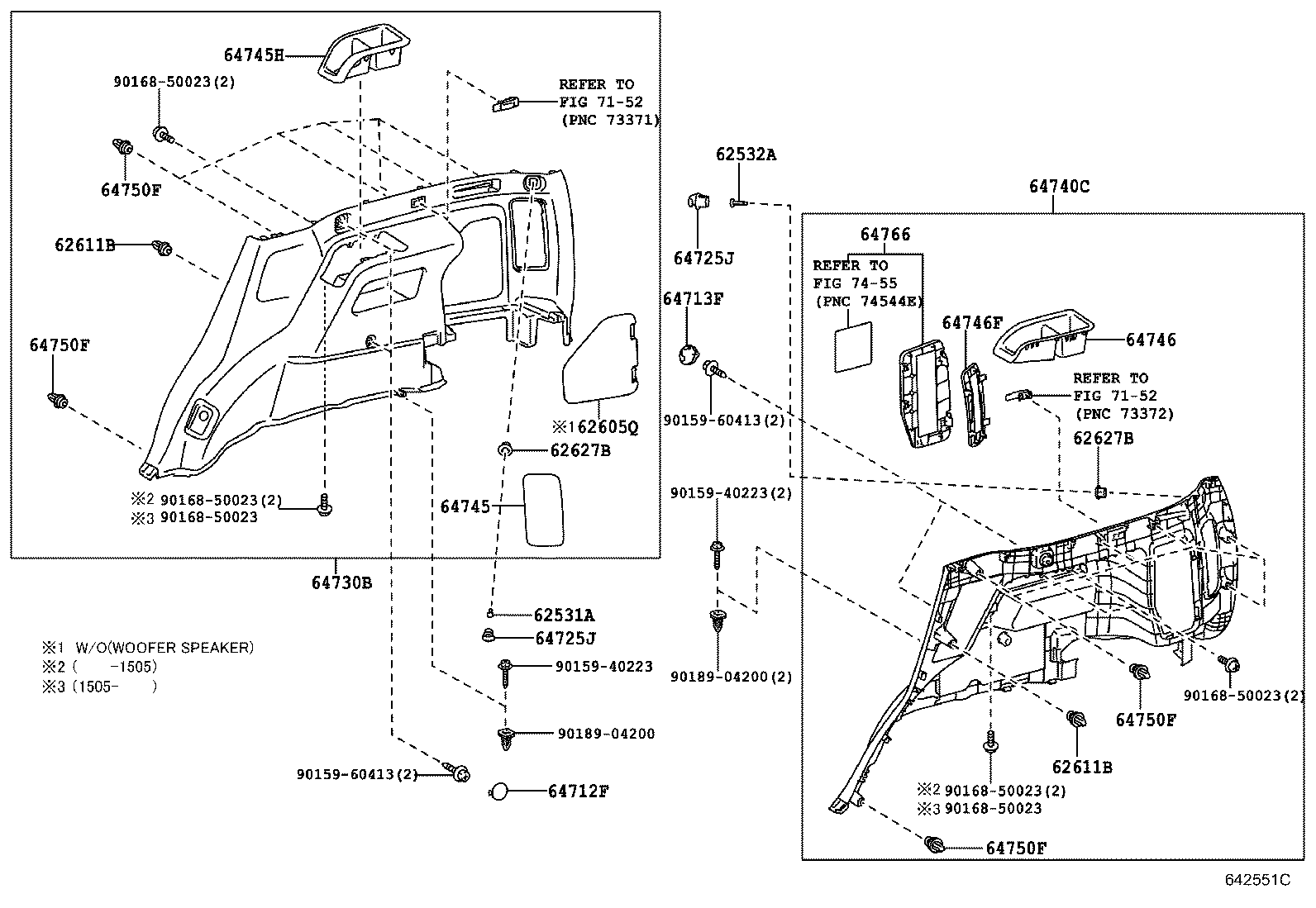

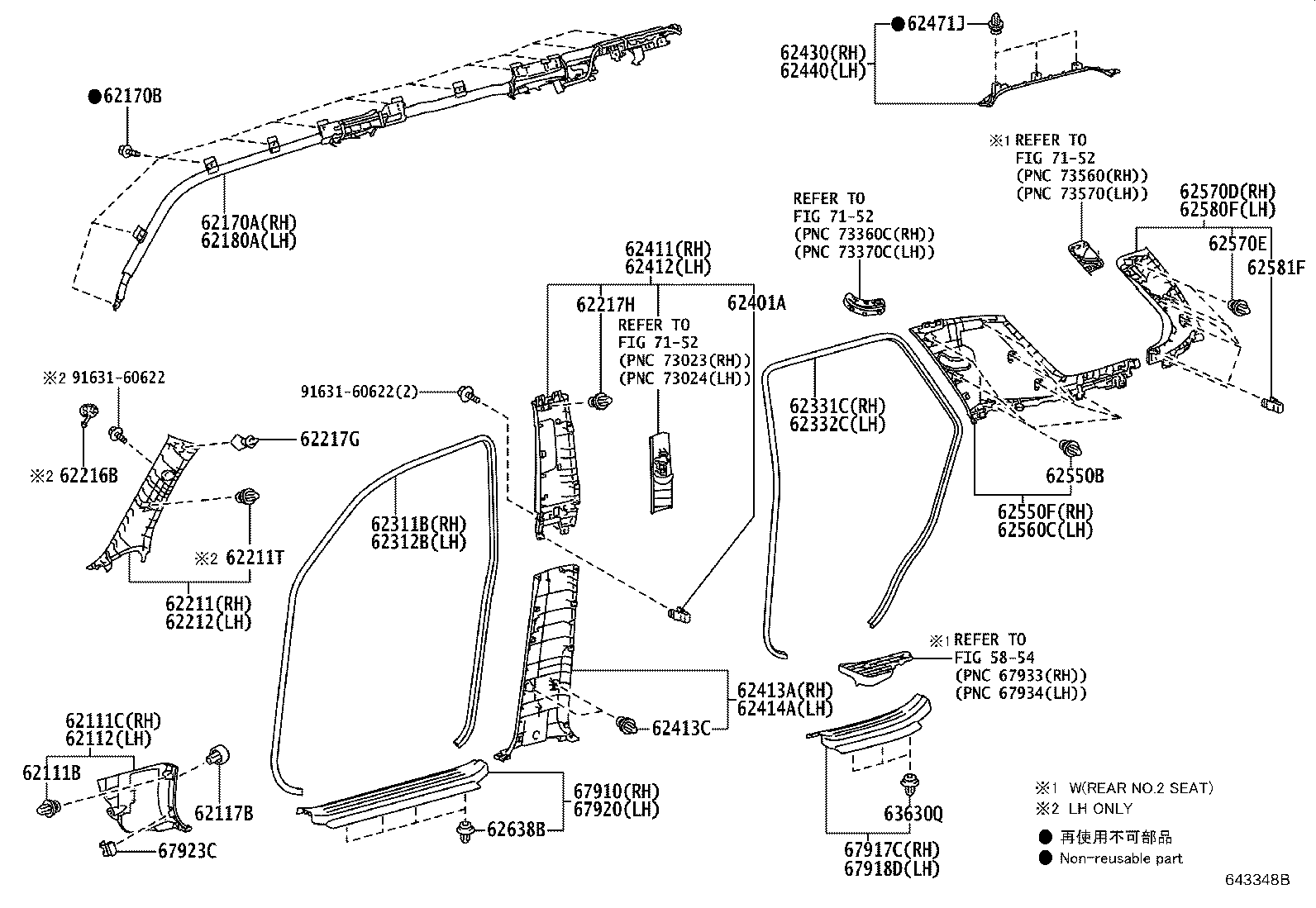

Inside Trim Board
59 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62216B | Cover, Front Pillar Garnish, NO.1 LH |
| 62217G | Clip, Front Pillar Garnish |
| 62217H | Clip, Center Piller Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62531A | Spacer, Quarter Trim, RH |
| 62532A | Spacer, Quarter Trim, LH |
| 62550B | Clip(FOR REAR WINDOW SIDE GARNISH) |
| 62550F | Garnish Assy, Rear Window Side, RH |
| 62560C | Garnish Assy, Rear Window Side, LH |
| 62570D | Garnish Assy, Rear Window Side, NO.2 RH |
| 62570E | Clip, Rear Window Side Garnish |
| 62580F | Garnish Assy, Rear Window Side, NO.2 LH |
| 62581F | Clip (FOR QUARTER PILLAR GARNISH) |
| 62597A | Box, Side Trim |
| 62605Q | Lid Sub-assy, Quarter Trim, RH |
| 62611B | Clip (FOR SIDE TRIM BOARD) |
| 62627B | Cover, Quarter Trim |
| 62638B | Clip |
| 63630Q | Clip |
| 64712F | Cover, Deck Side Trim, Front RH |
| 64713F | Cover, Deck Side Trim, Front LH |
| 64725J | Hook, Luggage Compartment Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64745H | Holder, Deck Side Trim Cup, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64746F | Holder, Deck Side Trim Cup, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64753B | Plate, Rear Floor Finish Side, RH |
| 64754B | Plate, Rear Floor Finish Side, LH |
| 64766 | Cover Sub-assy, Quarter Trim Jack |
| 67910 | Plate Assy, Door Scuff, RH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918D | Plate, Rear Door Scuff, LH |
| 67920 | Plate Assy, Door Scuff, LH |
| 67923C | Clamp, Door Scuff Plate, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
