Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08

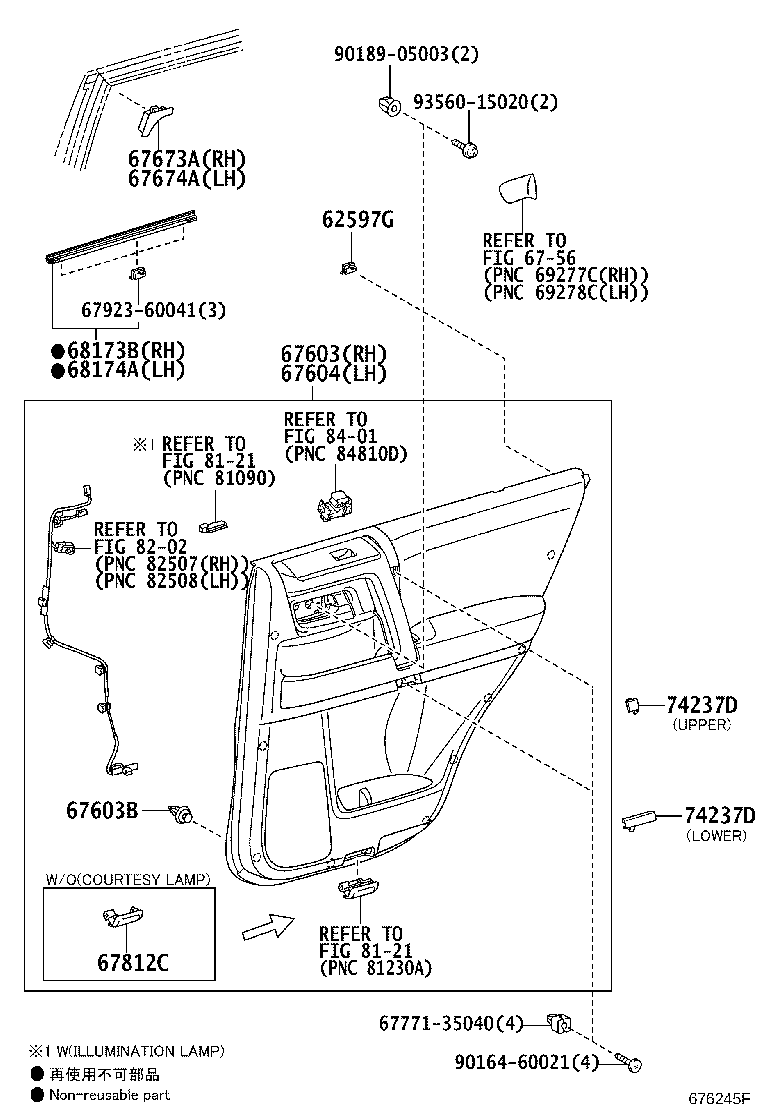

Rear Door Panel & Glass
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62597G | Clamp, Rear Door Trim |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407F | Frame Sub-assy, Rear Door Window, Rear Lower RH |
| 67408F | Frame Sub-assy, Rear Door Window, Rear Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67812C | Cover, Rear Door Hole |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871A | Retainer(FOR REAR DOOR WEATHERSTRIP) |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124C | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 74237D | Cap, Rear Door Armrest Base |
| 75923C | Tape, Black Out, NO.2 RH |
| 75924C | Tape, Black Out, NO.2 LH |
| 75977H | Stripe, Rear Door Outside, Lower RH |
| 75978H | Stripe, Rear Door Outside, Lower LH |
| 75987F | Stripe, Rear Door, Outside, RH |
| 75988E | Stripe, Rear Door, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
