Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

28 part groups · 2 illustrations

Illustrations

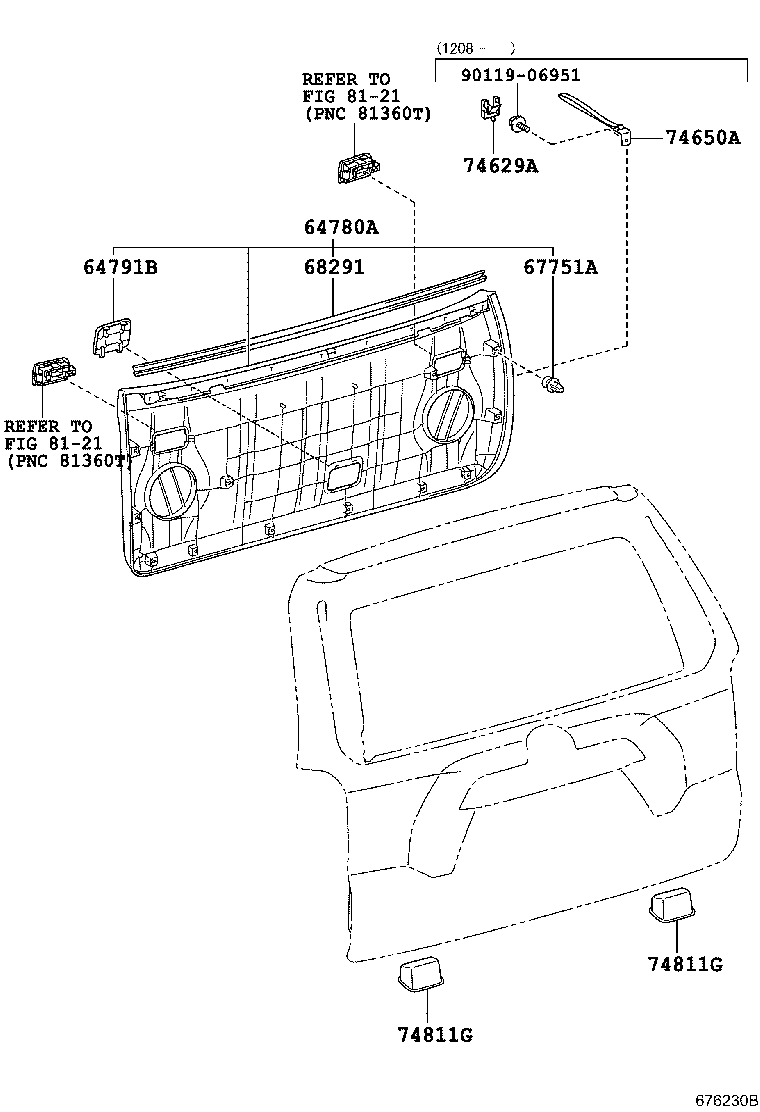

Figure 676229F 676229F 2009-08 → — Figure 676230B 676230B 2009-08 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64791B Cover, Back Door Trim
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67381A Bracket, Back Window Wiper Motor, NO.1
67751A Clip(FOR BACK DOOR TRIM BOARD)
67847 Cover, Back Door Service Hole, RH
67848 Cover, Back Door Service Hole, LH
67848C Cover, Back Door Service Hole, NO.2
67881A Weatherstrip, Back Door
68131 Glass, Back Door
68275 Run, Back Door Glass
68290A Weatherstrip Assy, Back Door Glass, Outer
68291 Weatherstrip, Back Door Glass
68675 Retainer, Back Door Panel, RH
68676 Retainer, Back Door Panel, LH
74629A Cover, Assist Strap Hole
74650A Strap Assy, Assist
74811G Handle, Door Pull
75129C Cushion, Rear Licence Plate
76811A Garnish, Back Door, Outside
76812A Garnish, Back Door, Outside NO.2
76817 Clip, Back Door Outside Garnish
76819 Seal, Back Door Outside Garnish
76821C Protector, Back Door Garnish Side, RH
76822D Protector, Back Door Garnish Side, LH
76826A Retainer, Back Door Garnish, NO.1
76827A Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
