Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

14 part groups · 3 illustrations

Illustrations

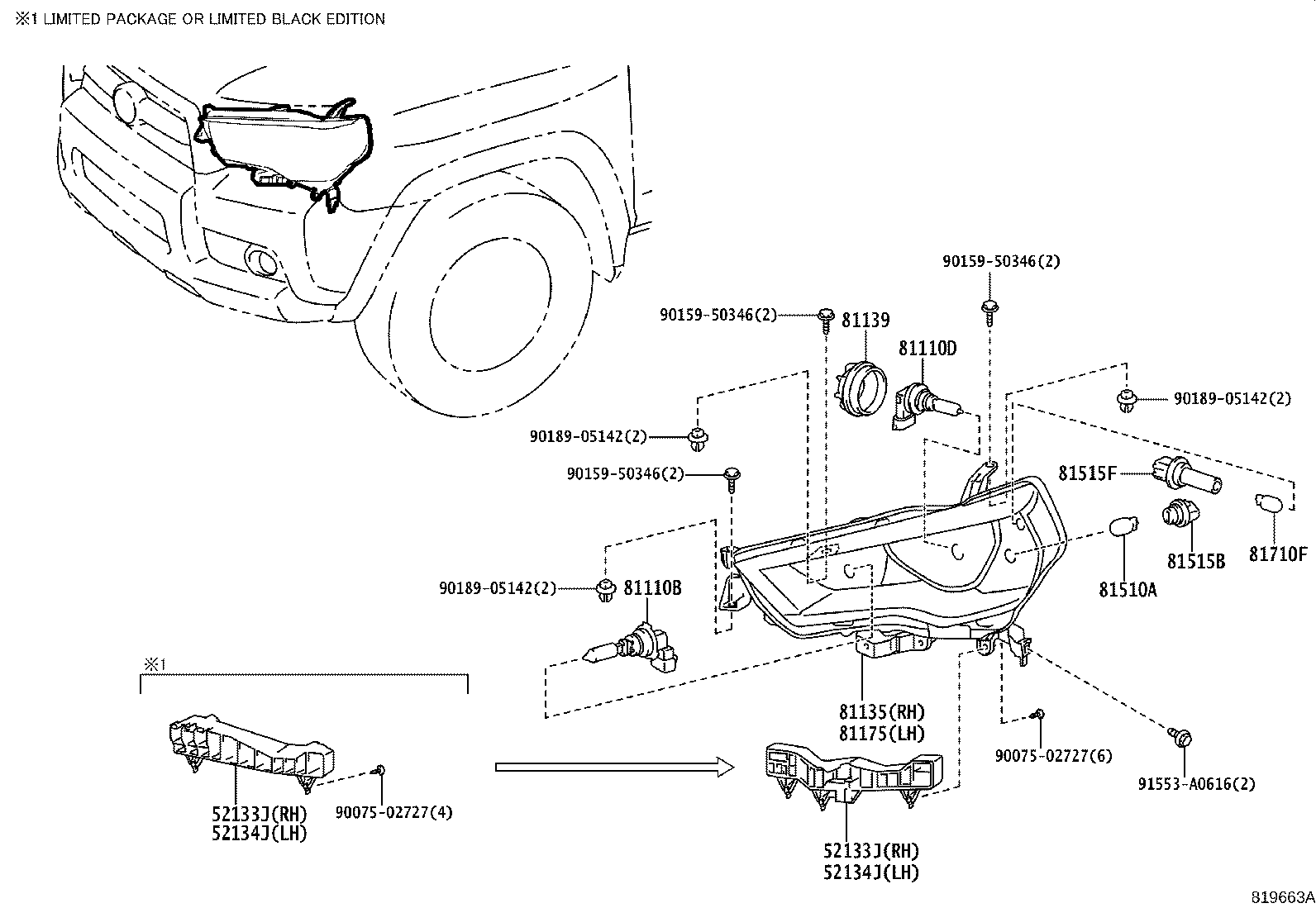

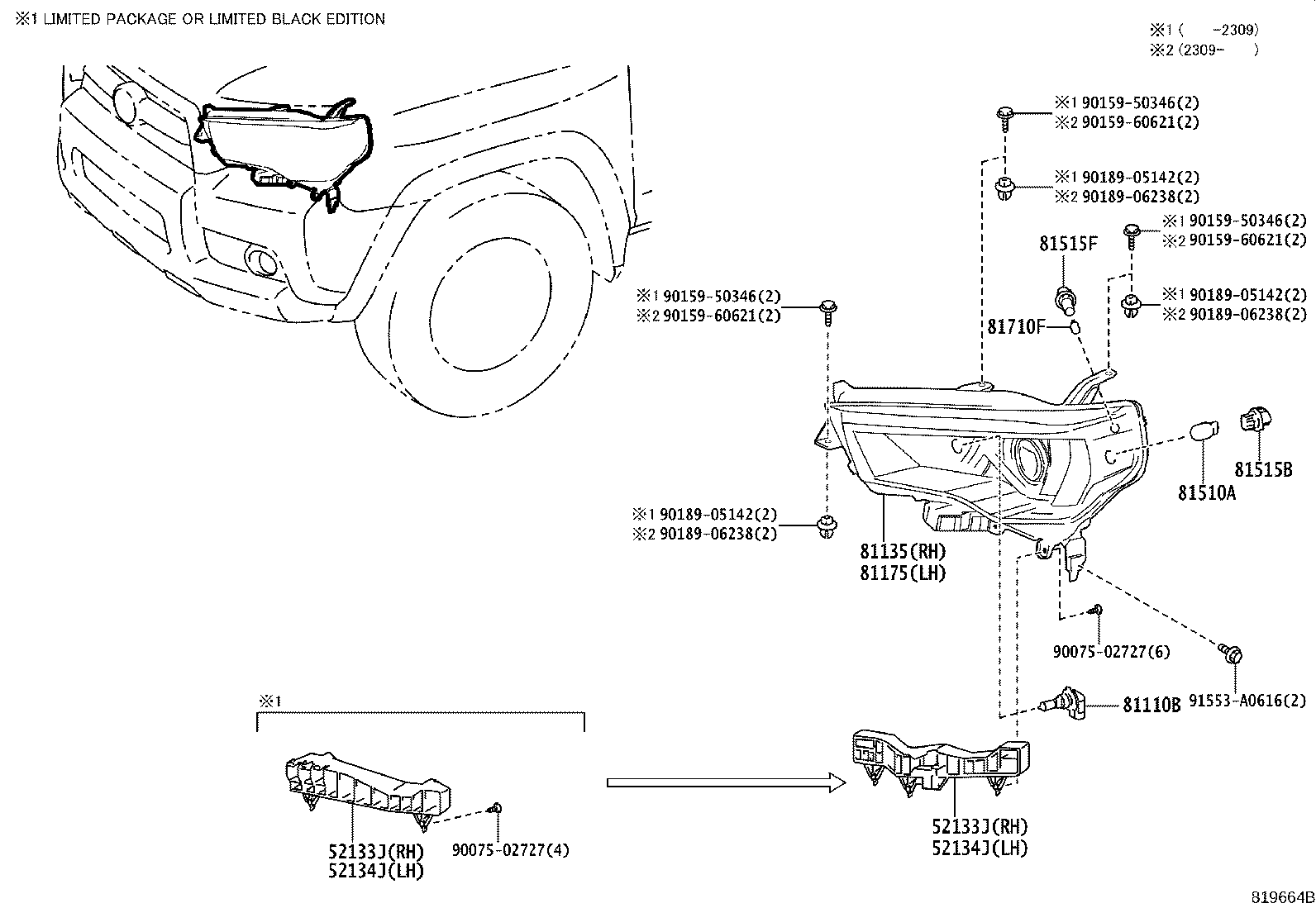

Figure 815147C 815147C 2009-08 → 2013-08 Figure 819663A 819663A 2013-08 → 2020-08 Figure 819664B 819664B 2020-08 → —

Part groups

PNCDescription
52133J Reinforcement, Front Bumper Bar, RH
52134J Reinforcement, Front Bumper Bar, LH
53271A Bracket, Headlamp Mounting
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81175 Unit Assy, Headlamp, LH
81510A Bulb, Front Turn Signal & Parking Lamp
81515B Socket, Front Turn Signal Lamp
81515F Socket Plug Assy
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
81710F Bulb, Front Side Maker Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
