Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

78 part groups · 13 illustrations

Illustrations

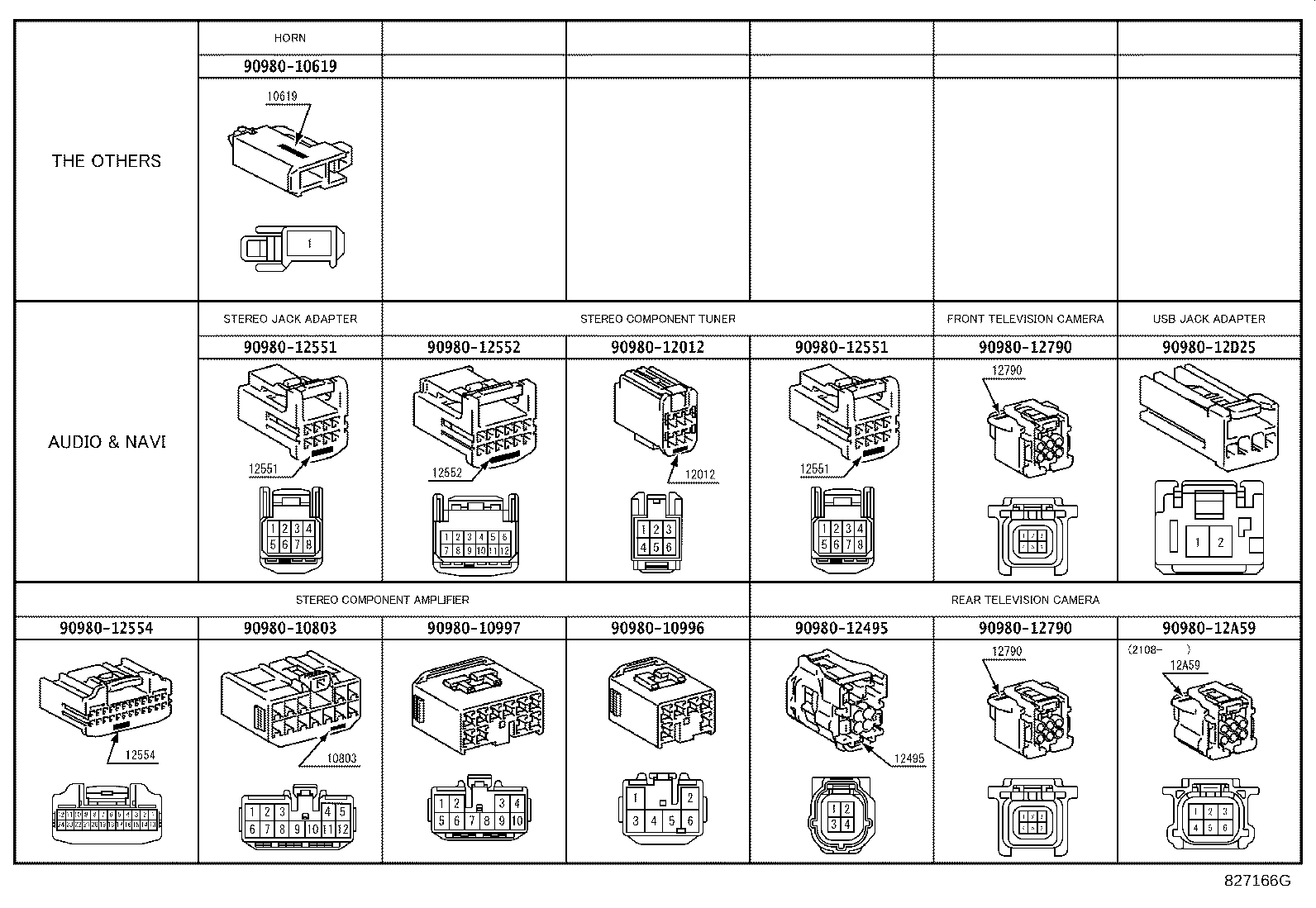

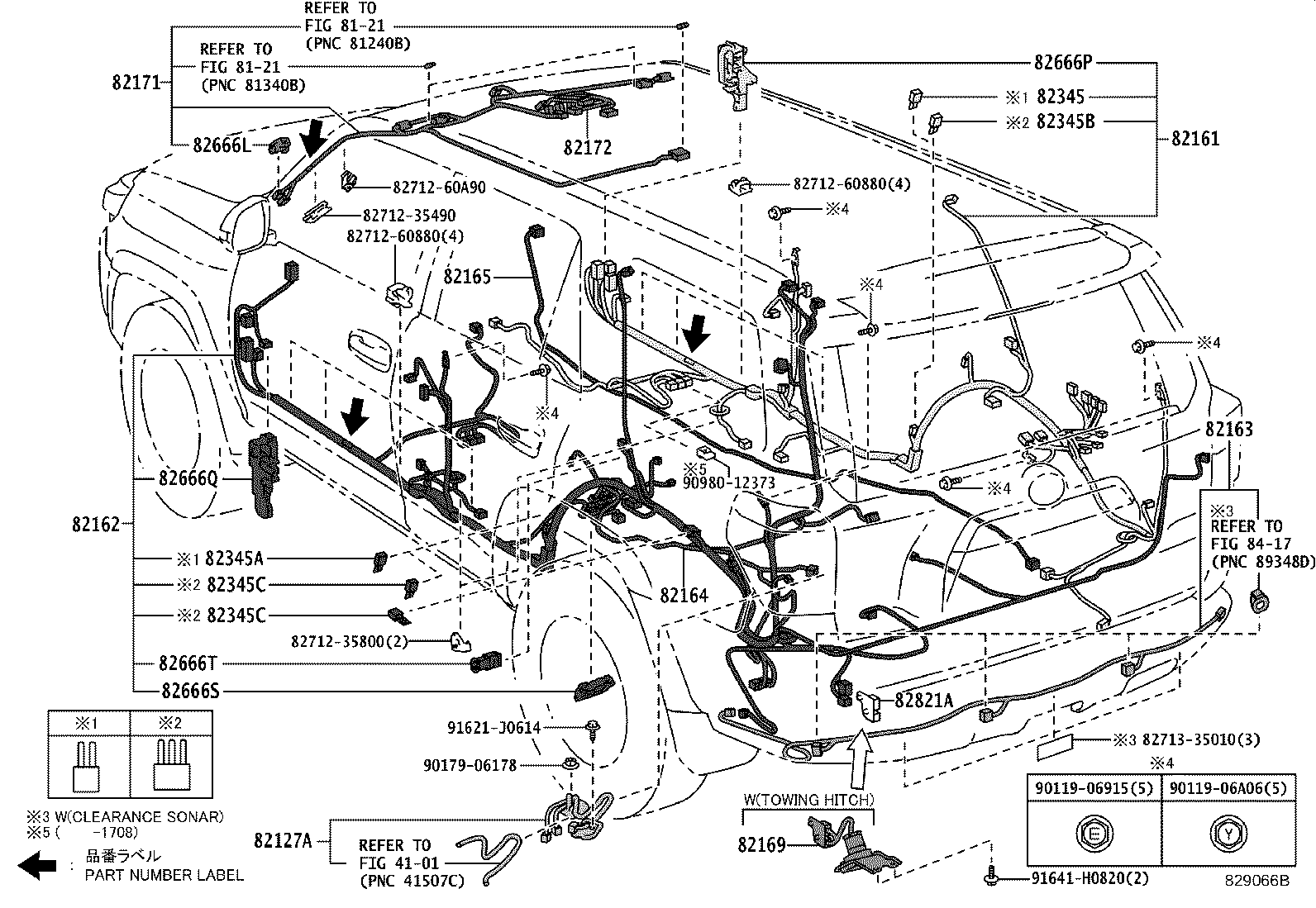

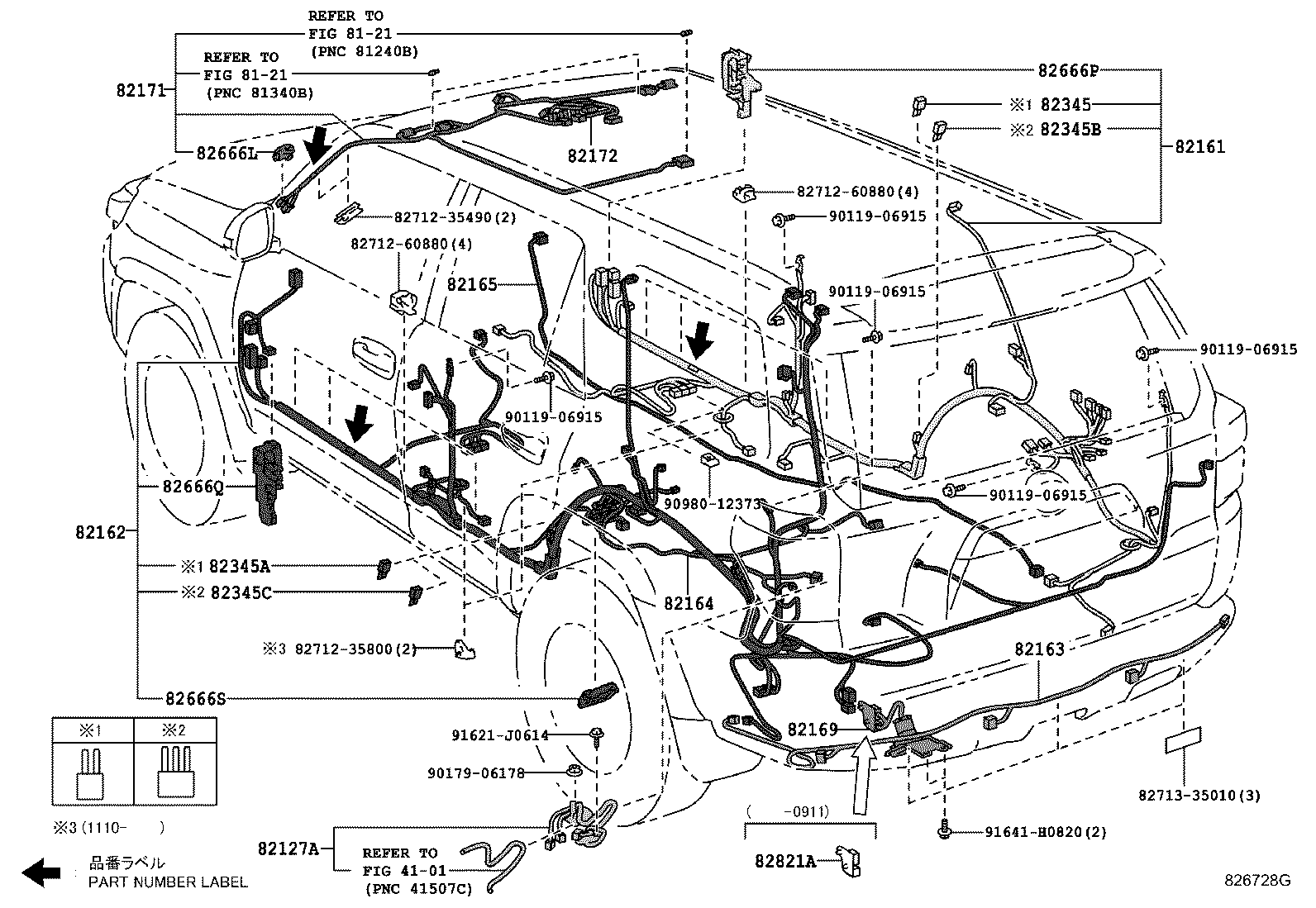

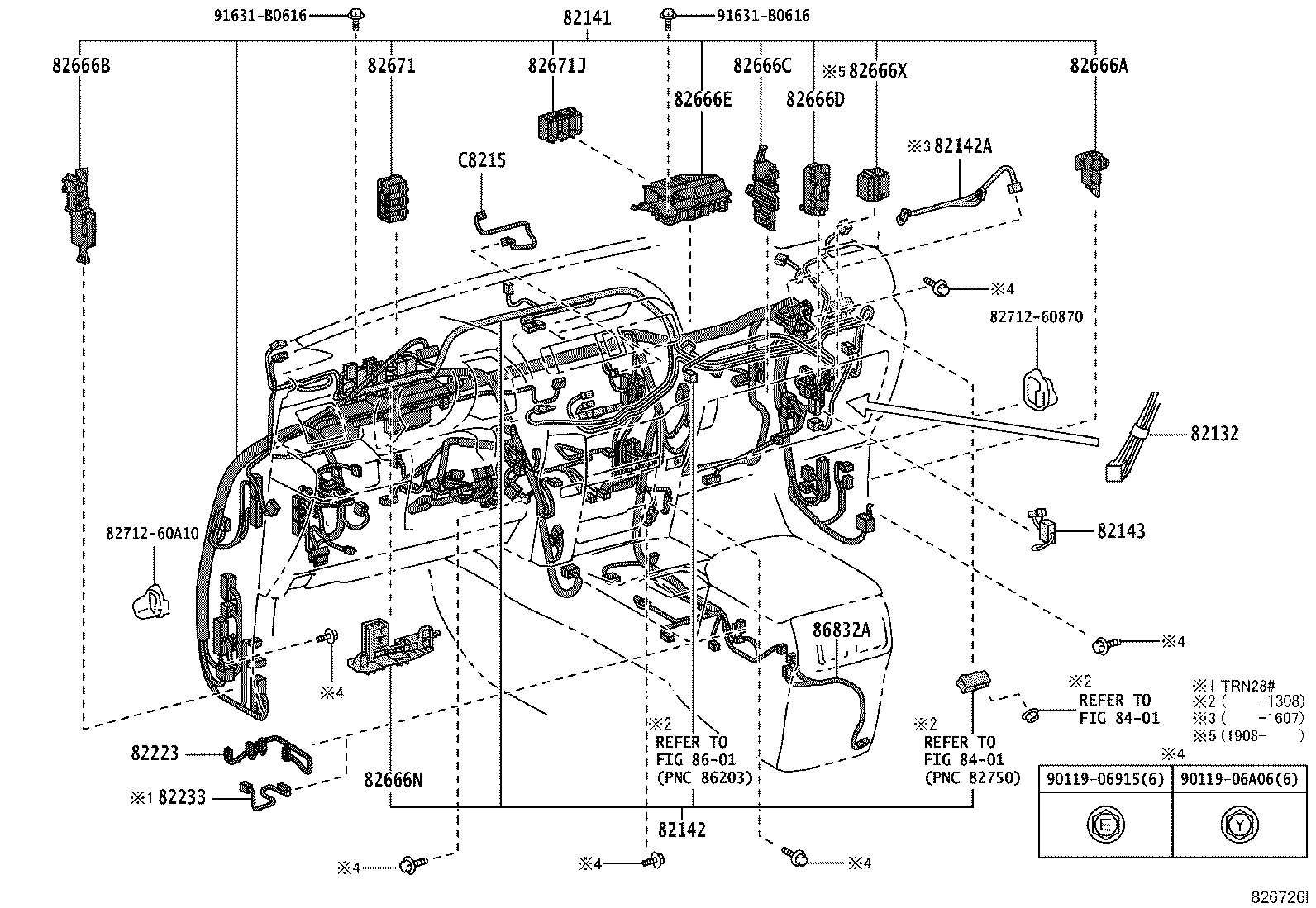

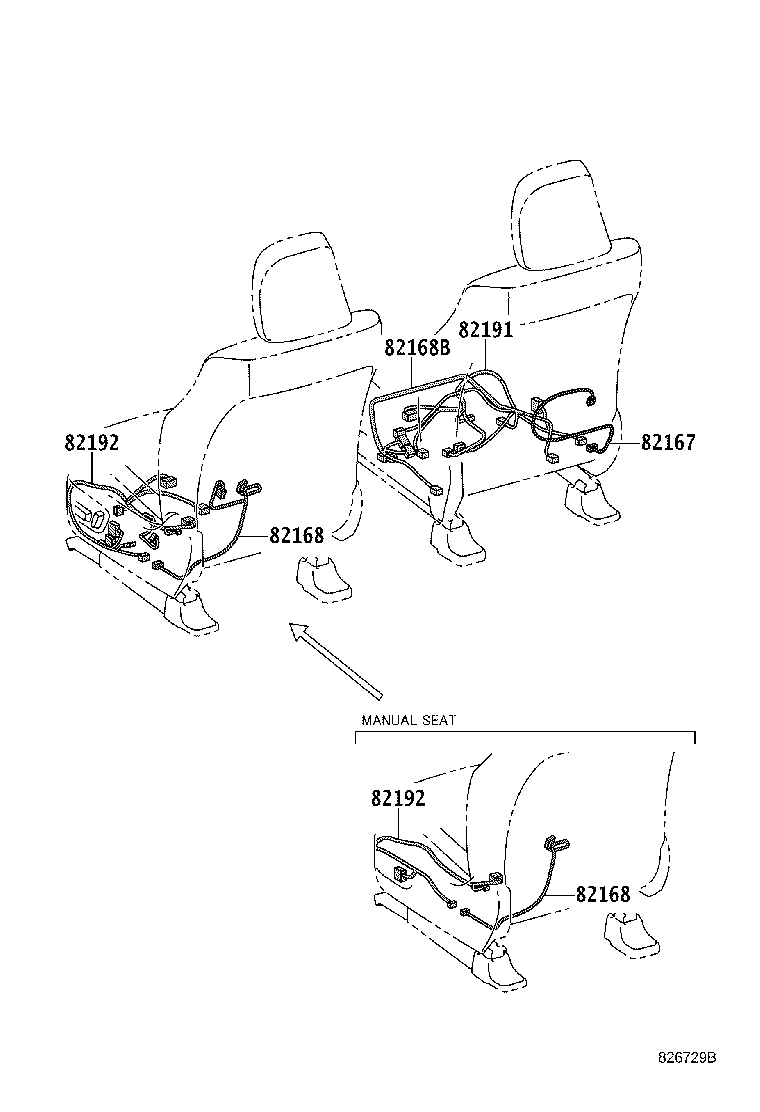

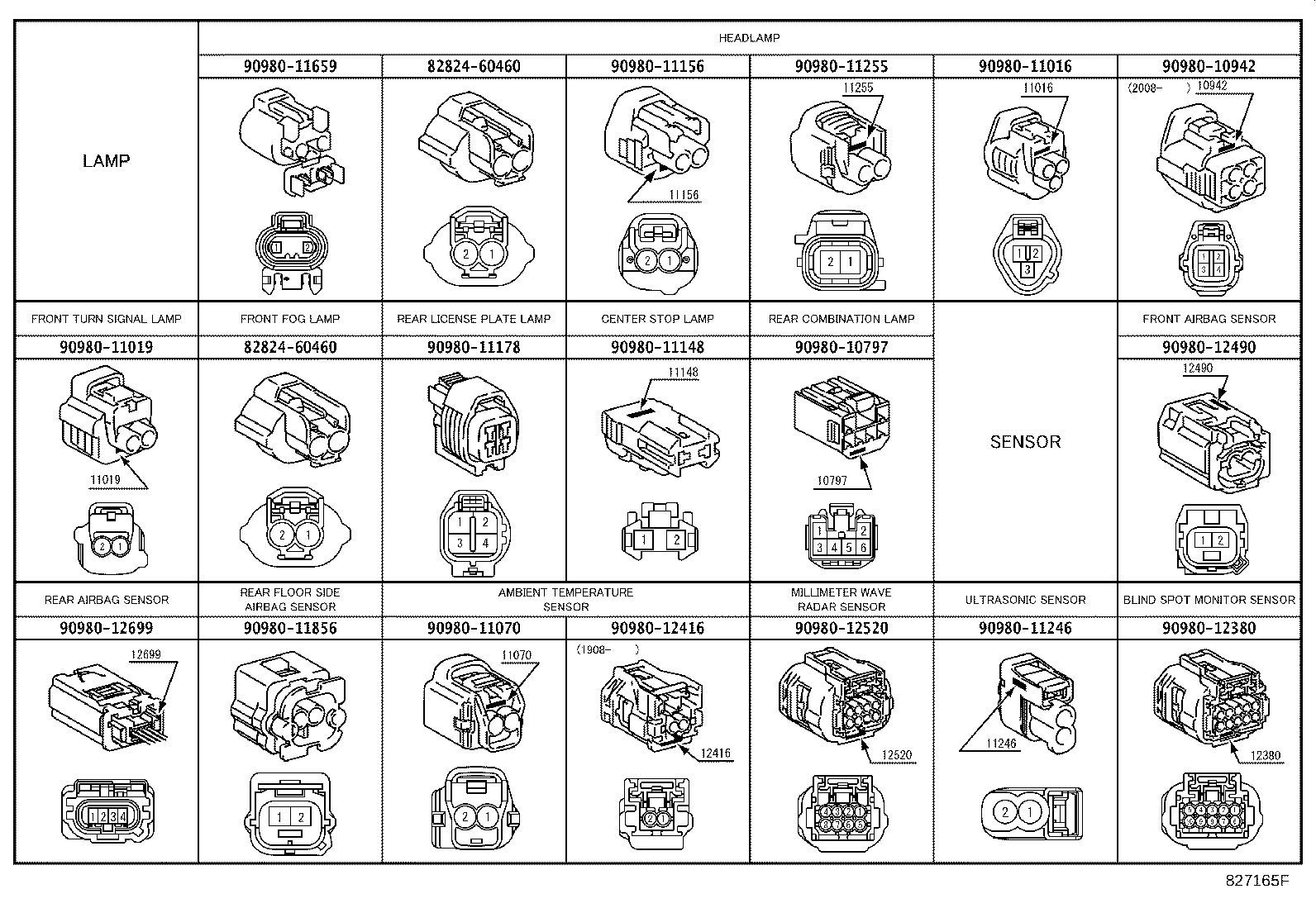

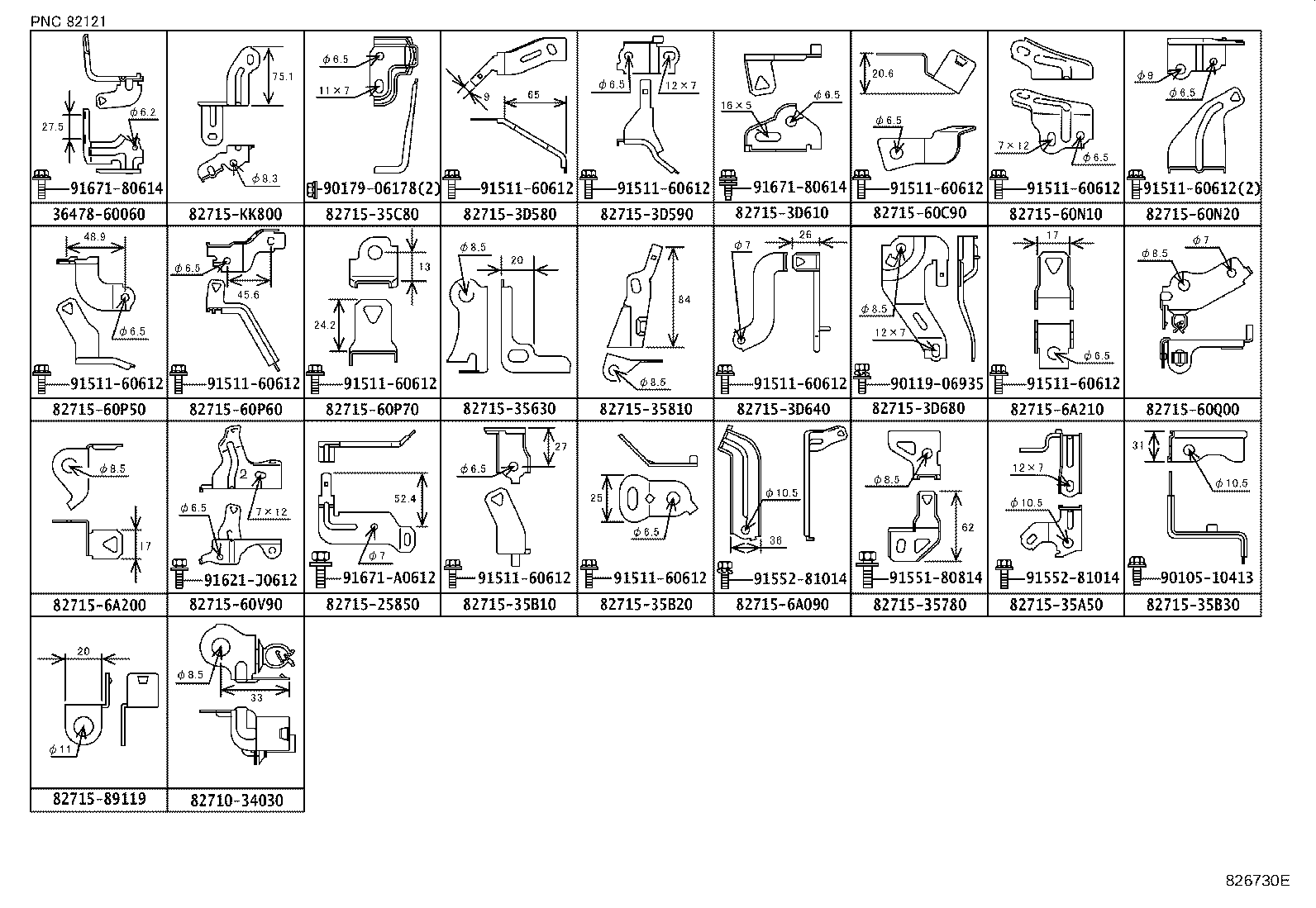

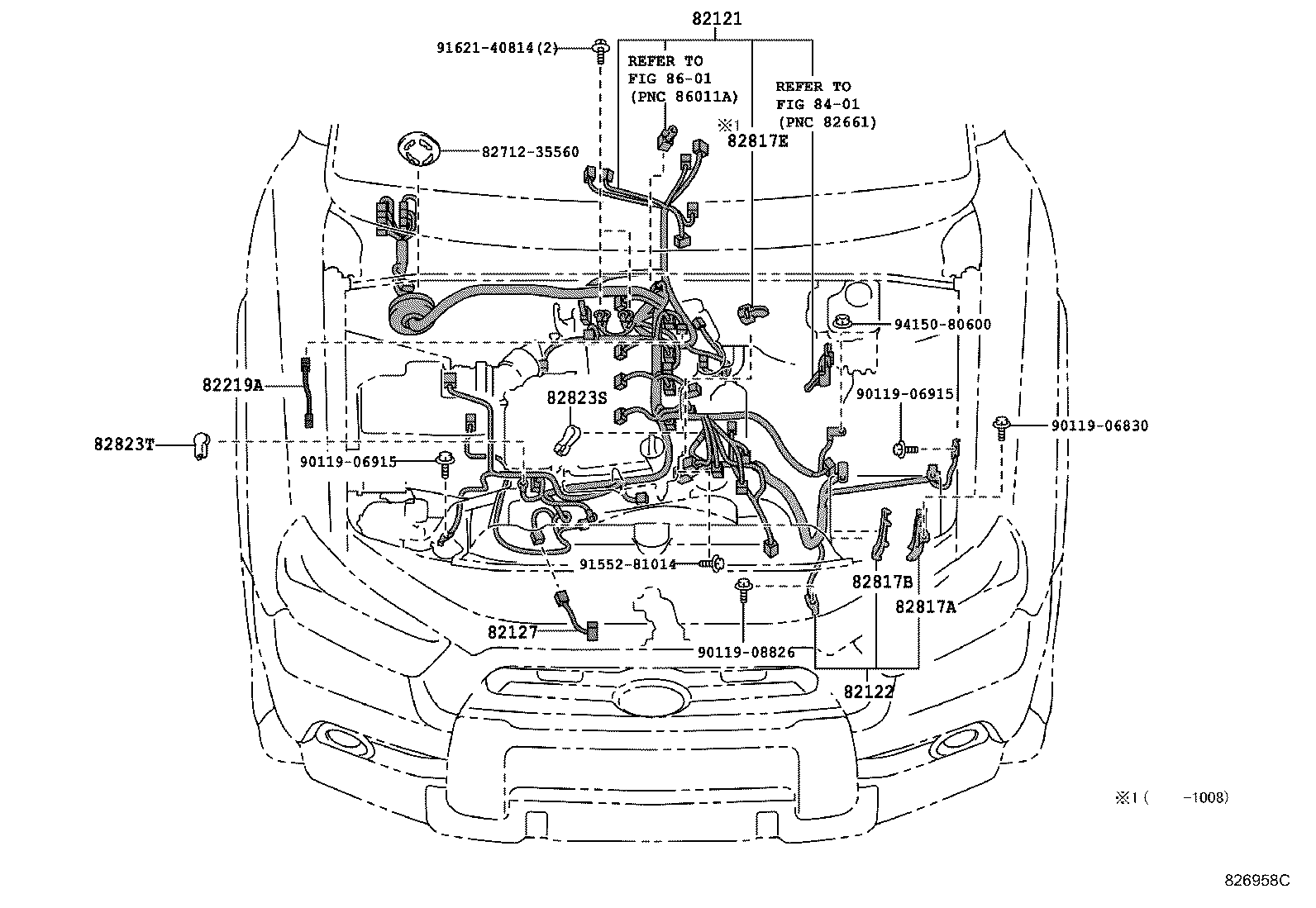

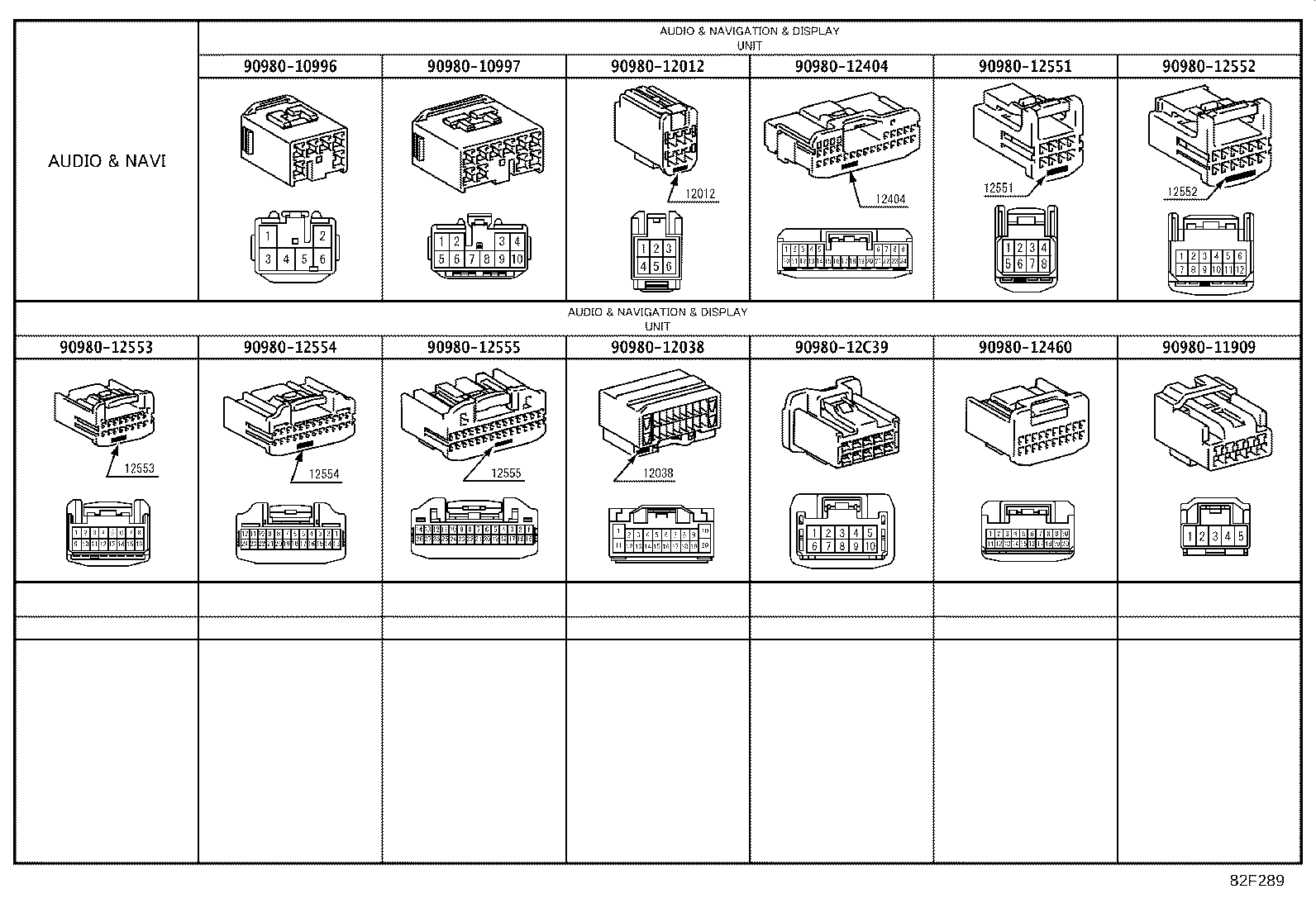

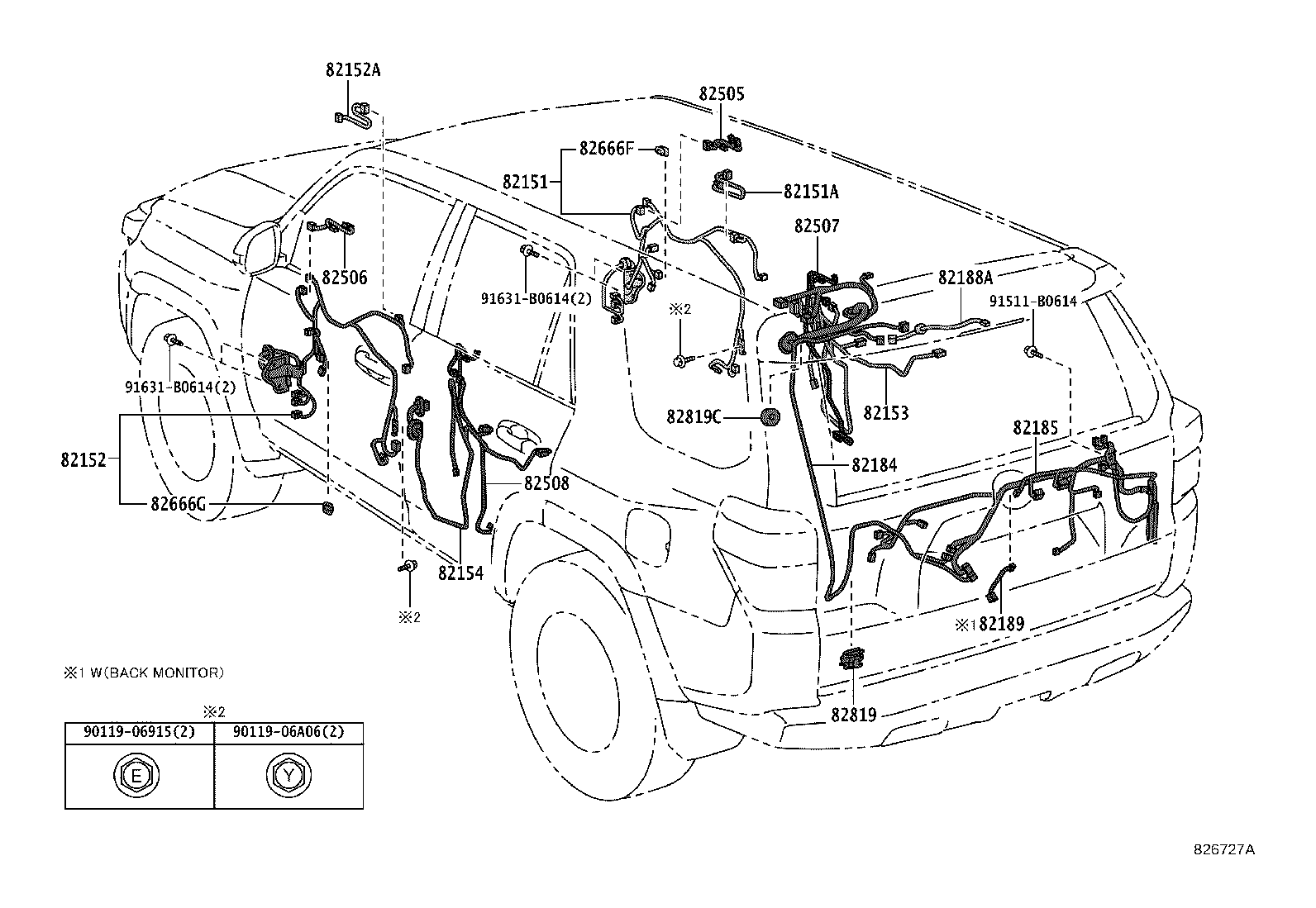

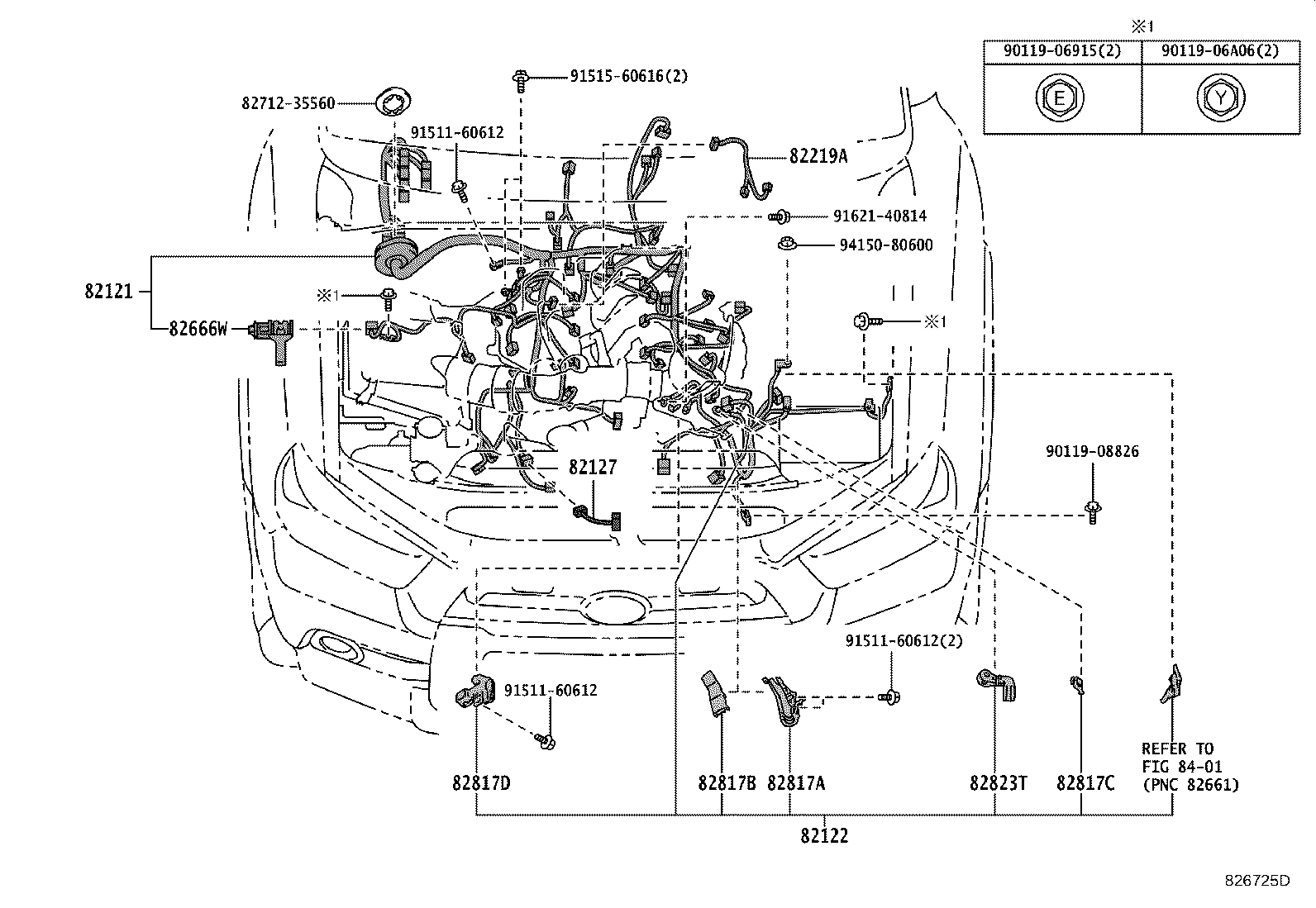

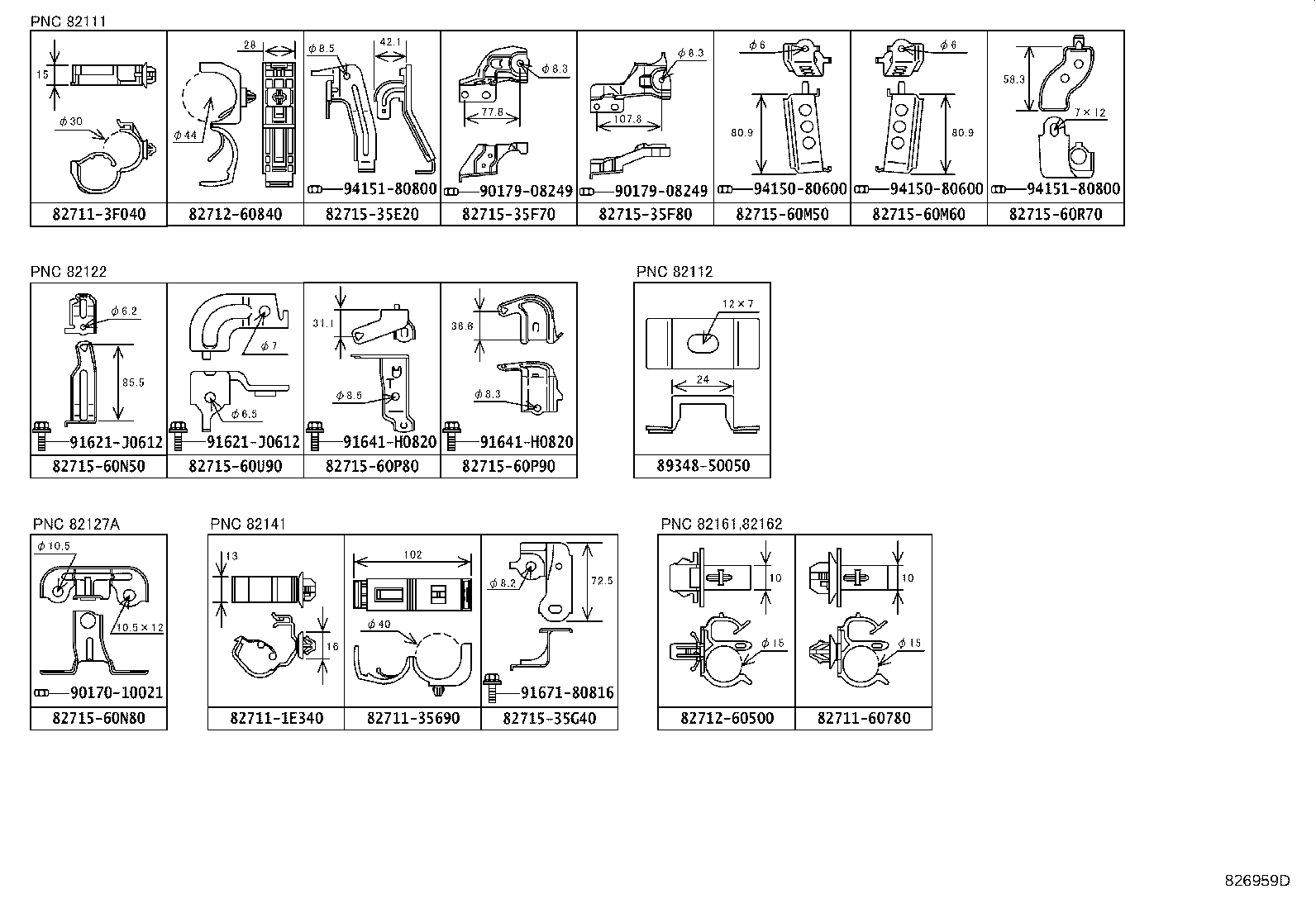

Figure 826724F 826724F 2009-08 → — Figure 826725D 826725D 2009-08 → — Figure 826958C 826958C 2009-11 → — Figure 826726I 826726I 2009-08 → — Figure 826727A 826727A 2009-08 → — Figure 826728G 826728G 2009-08 → 2013-08 Figure 829066B 829066B 2013-08 → — Figure 826729B 826729B 2009-08 → — Figure 826730E 826730E 2009-08 → — Figure 826959D 826959D 2009-08 → — Figure 827165F 827165F 2009-08 → — Figure 827166G 827166G 2009-08 → — Figure 82F289 82F289 2009-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82127 Wire, Differential
82127A Wire, Differential (TO WIRE FRAME)
82132 Wire, Cowl, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82168B Wire, Seat, NO.2 (SUB WIRE)
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82223 Wire, Switch
82233 Wire, Computer
82345 Diode
82345A Diode
82345B Diode
82345C Diode
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82507 Wiring Sub-assy, Rear Door, RH
82508 Wiring Sub-assy, Rear Door, LH
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82671 Block, Junction
82671J Block, Junction, NO.2
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82819 Grommet, Wiring Harness
82819C Grommet, Wiring Harness
82821A Cover, Connector
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
86832A Wire, Accessory Socket
C8215 Wire, Hazard Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
