Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08
Switch & Relay & Computer
143 part groups · 19 illustrations
Illustrations
Part groups

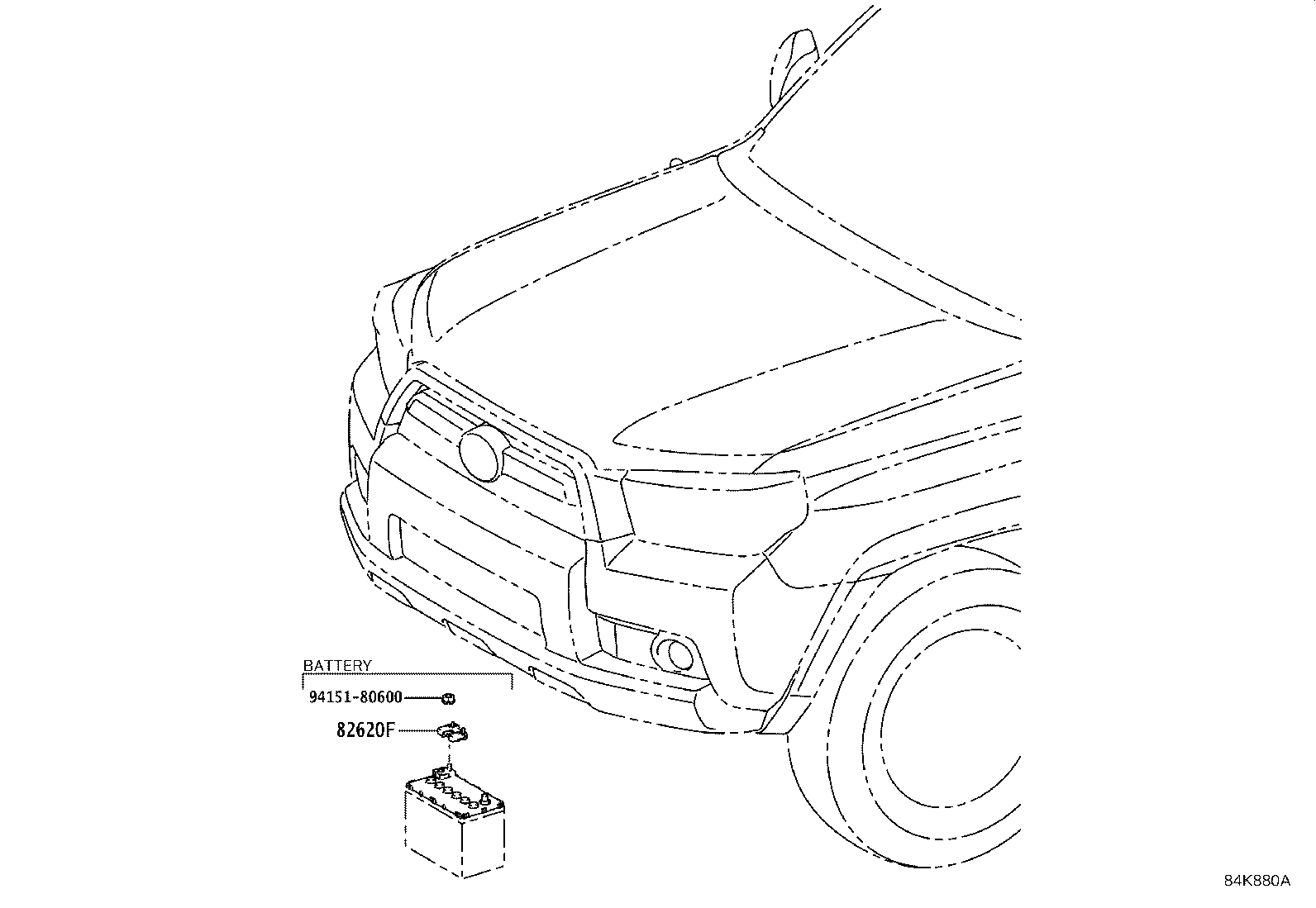

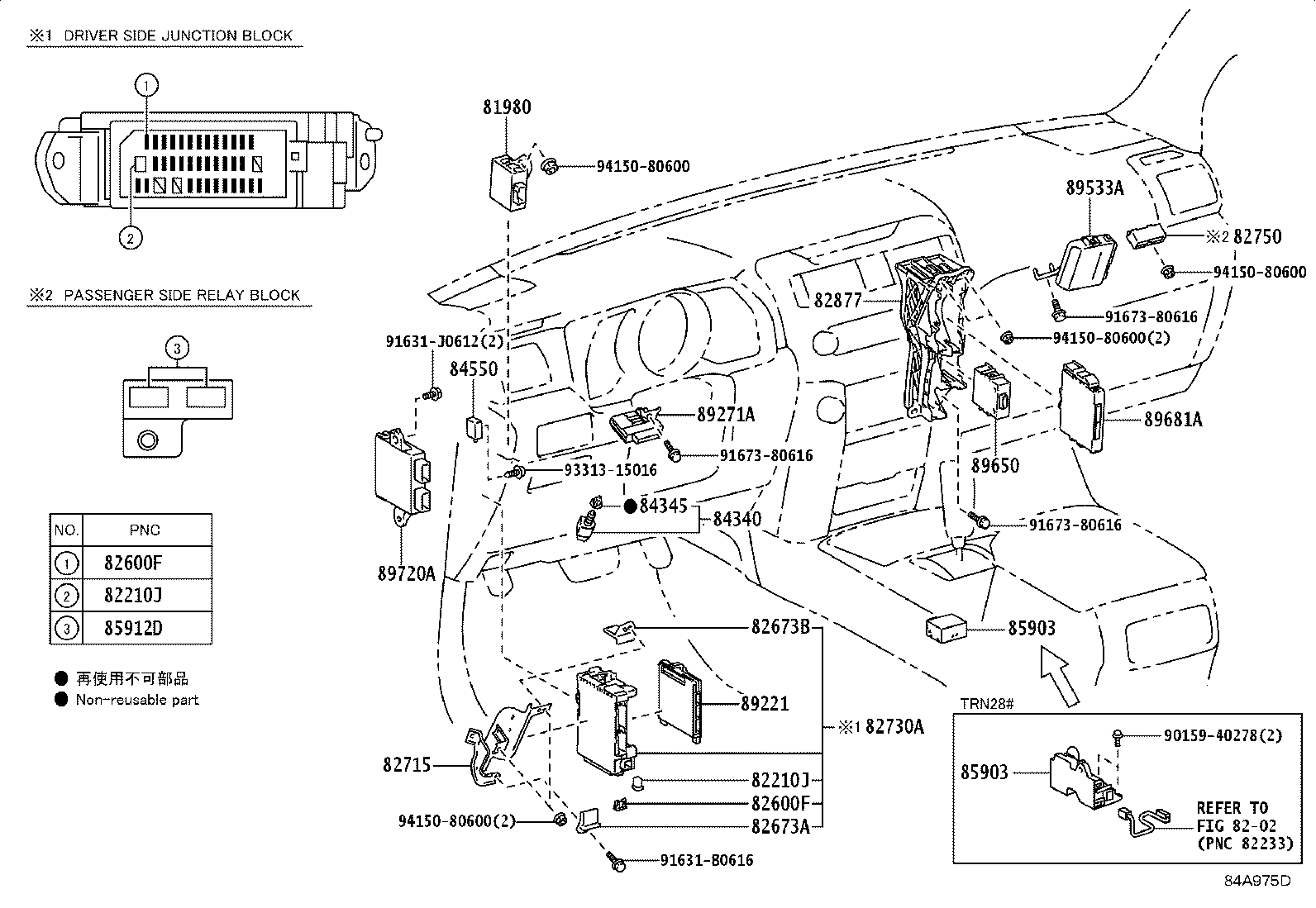

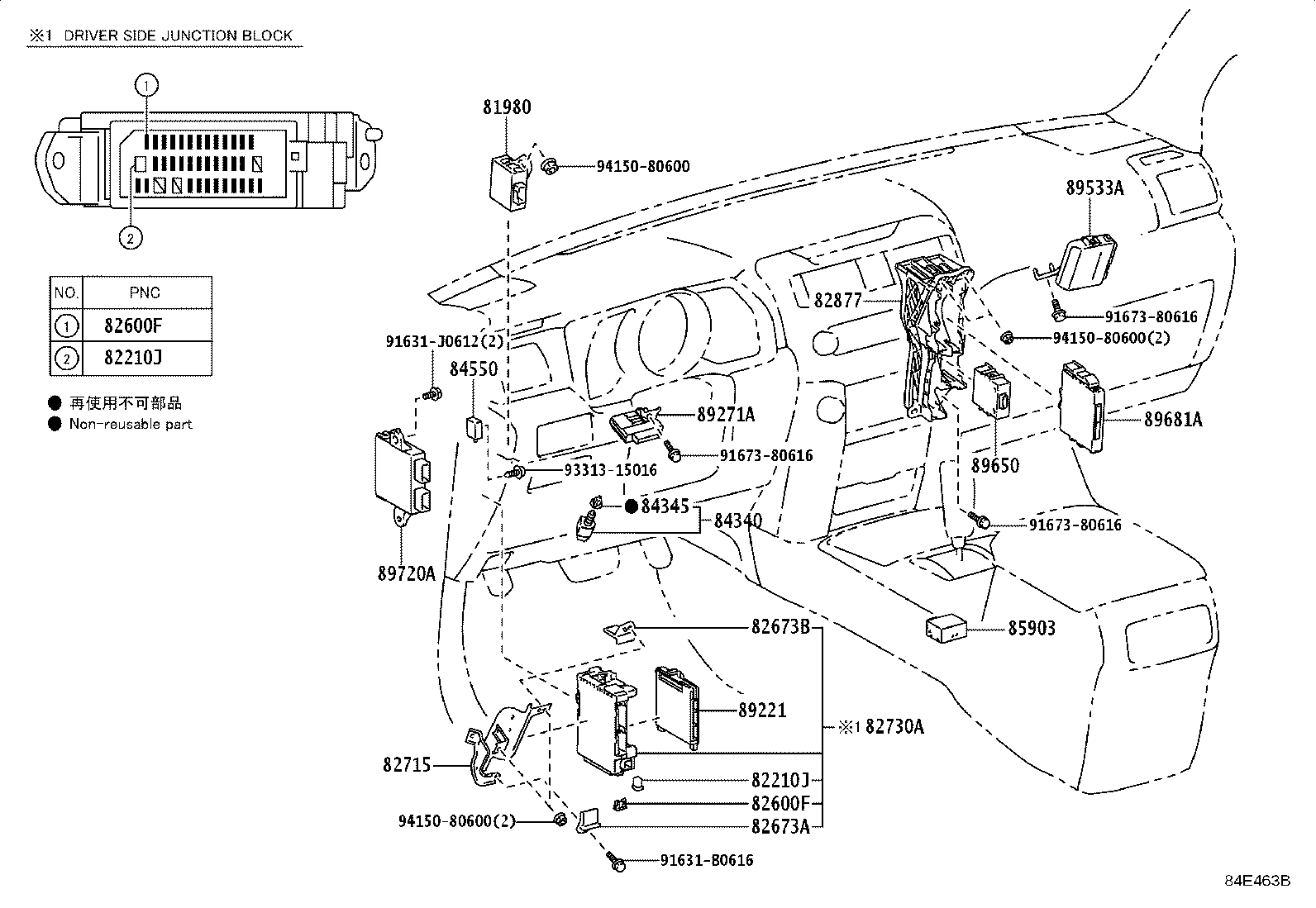

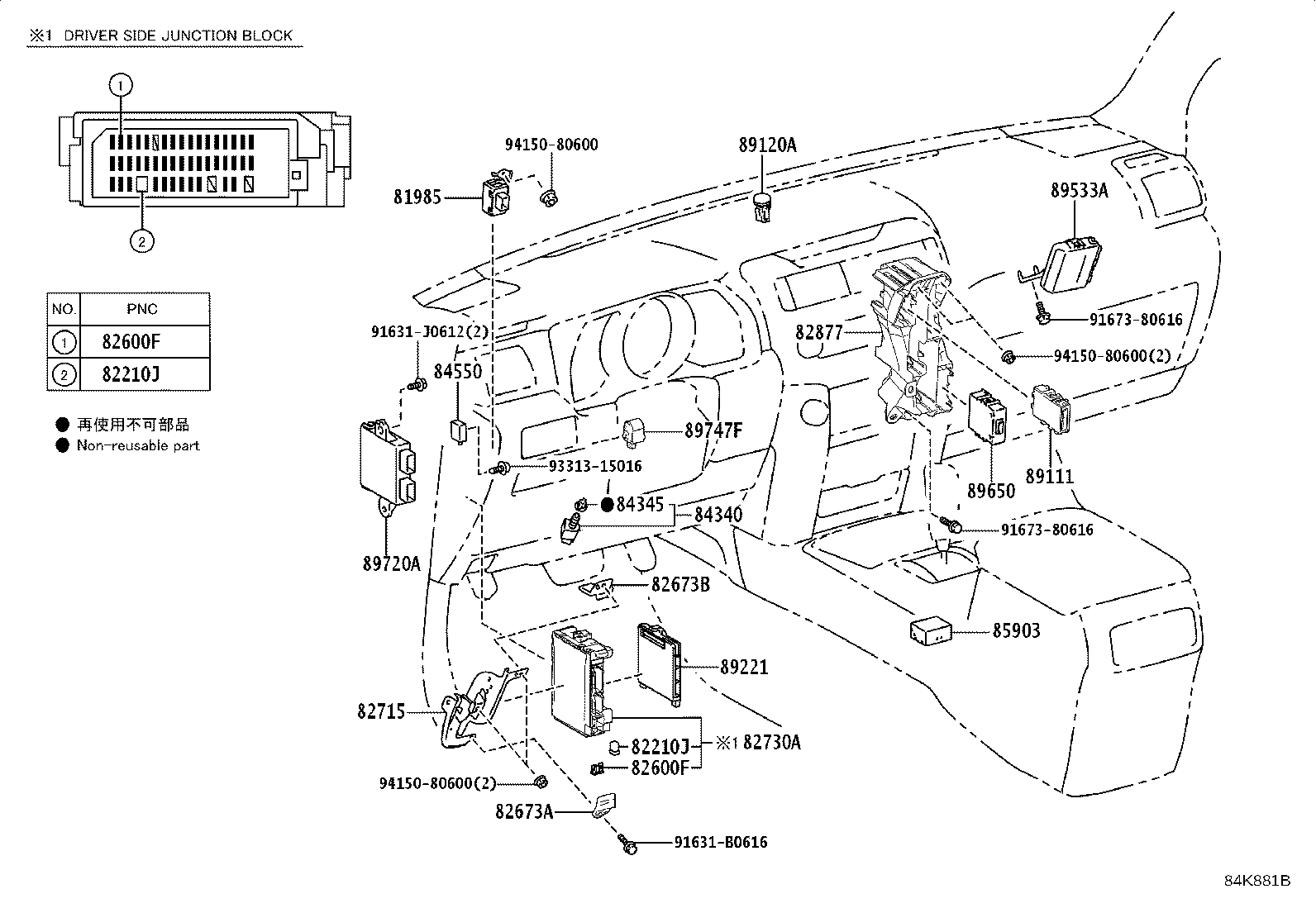

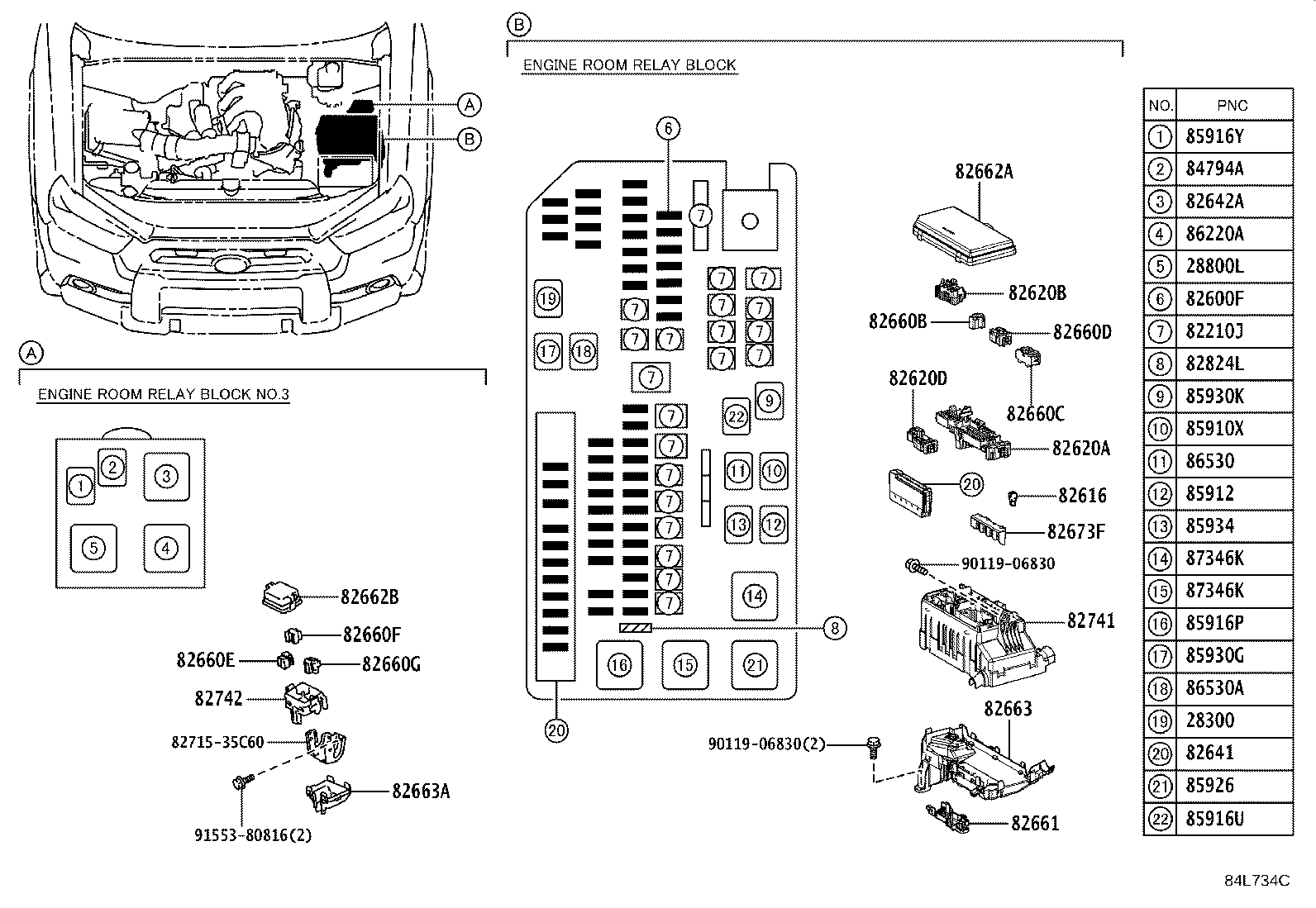

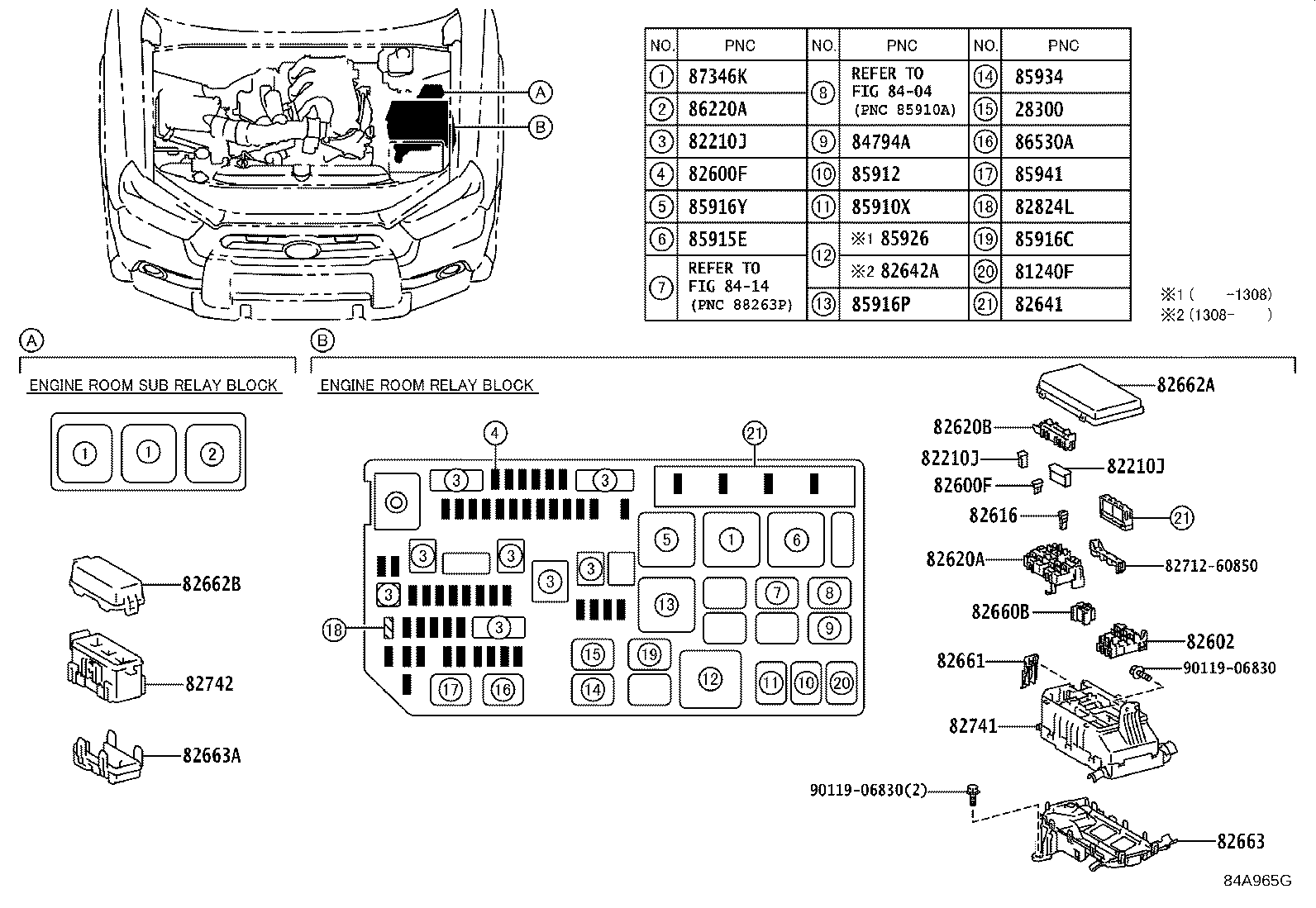

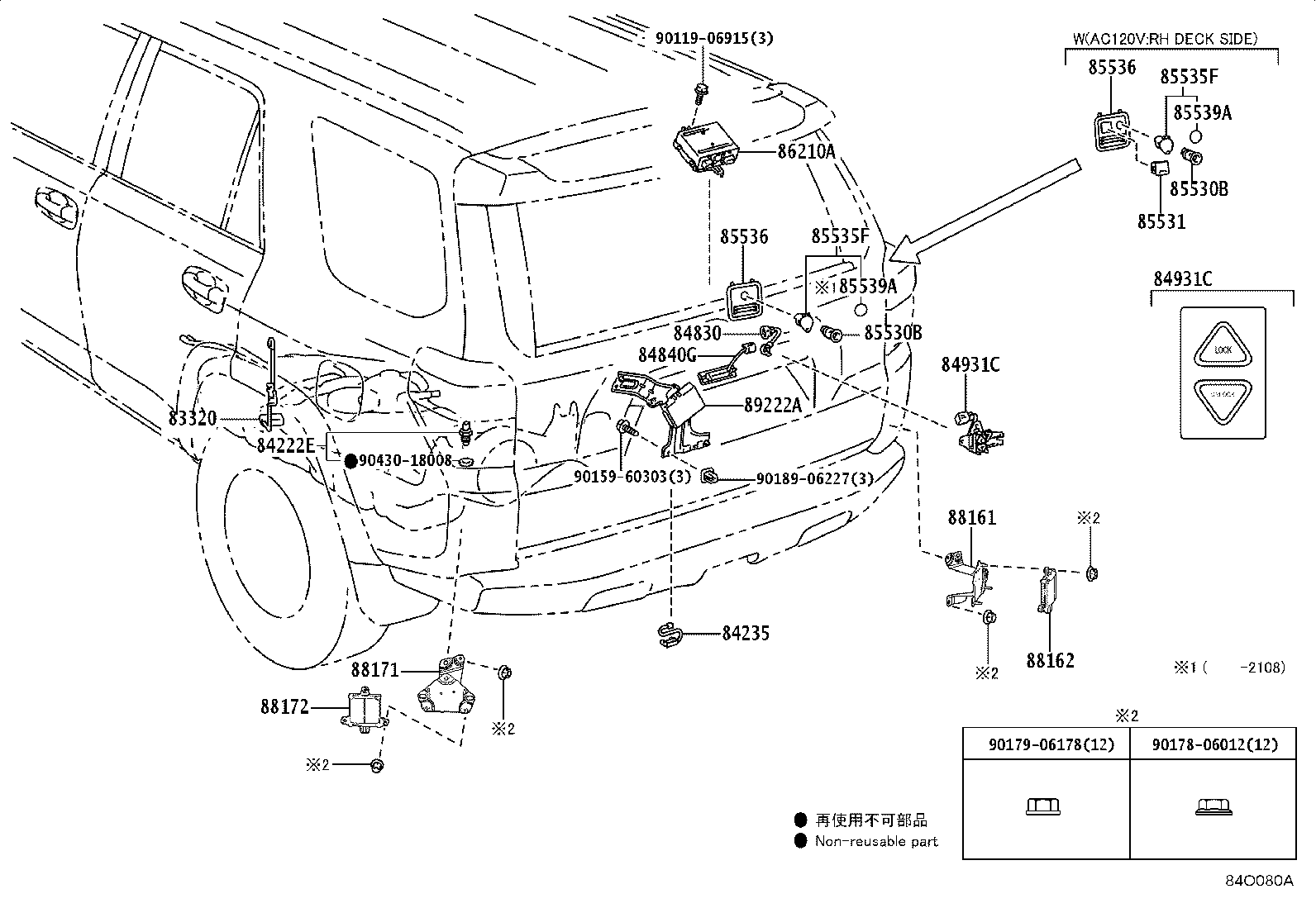

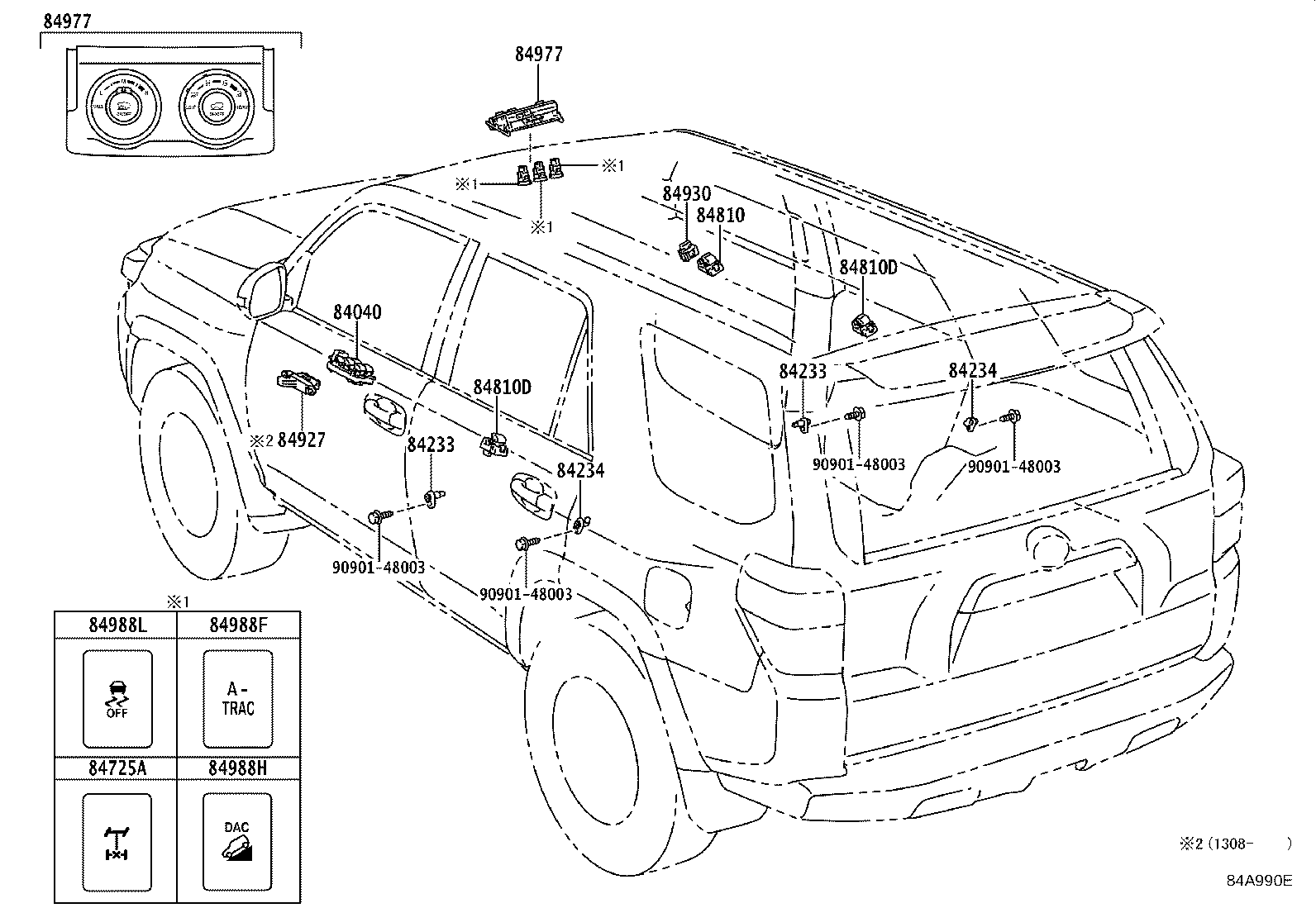

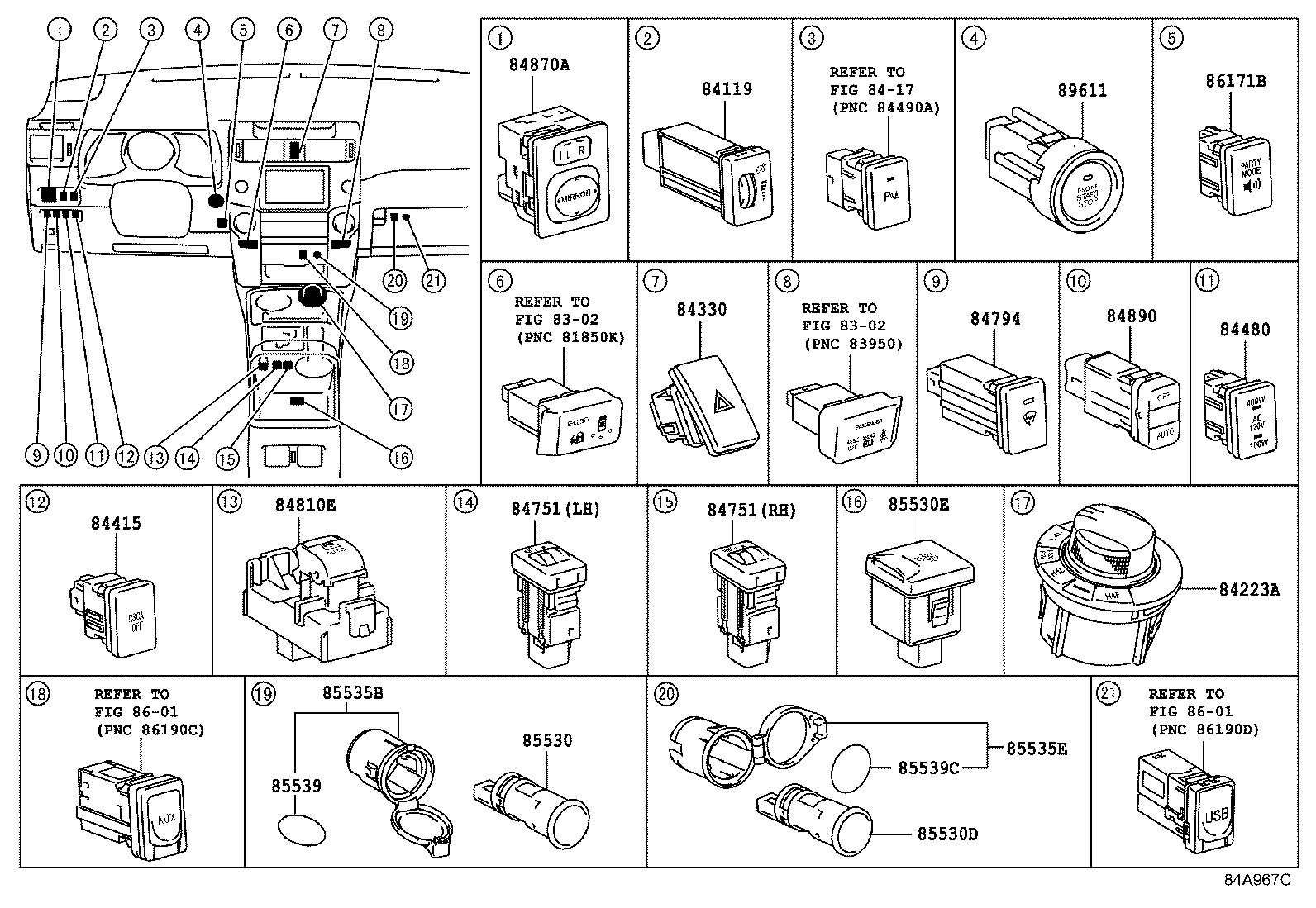

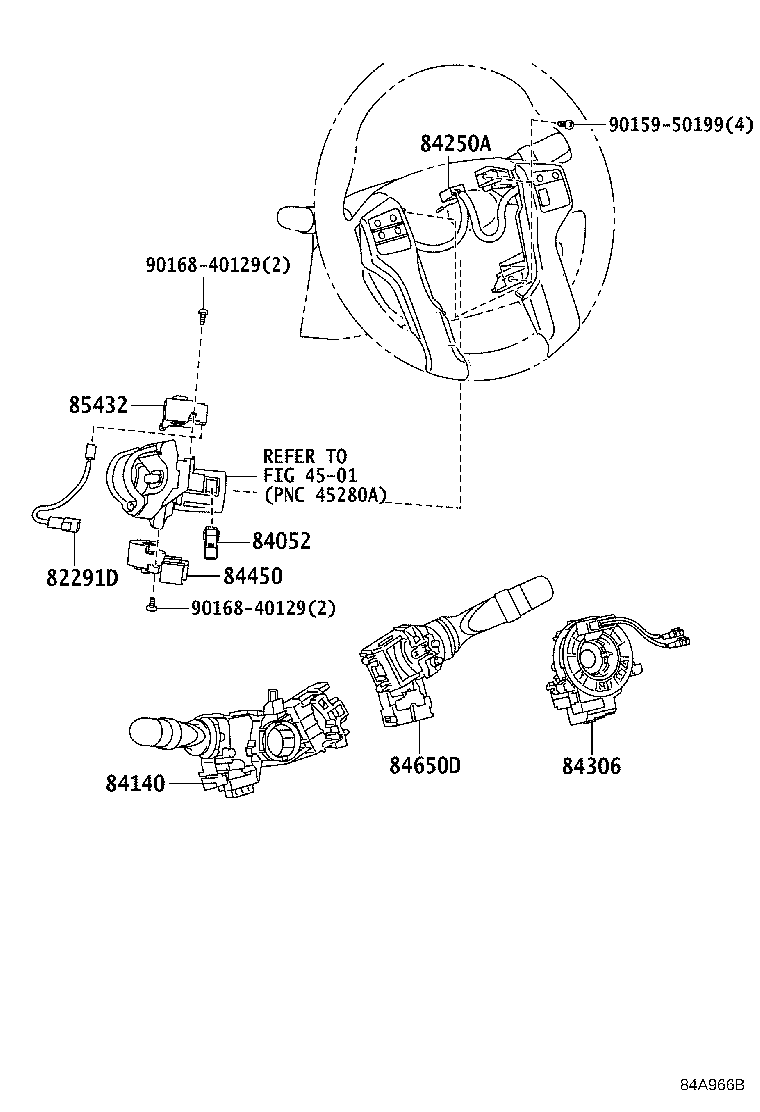

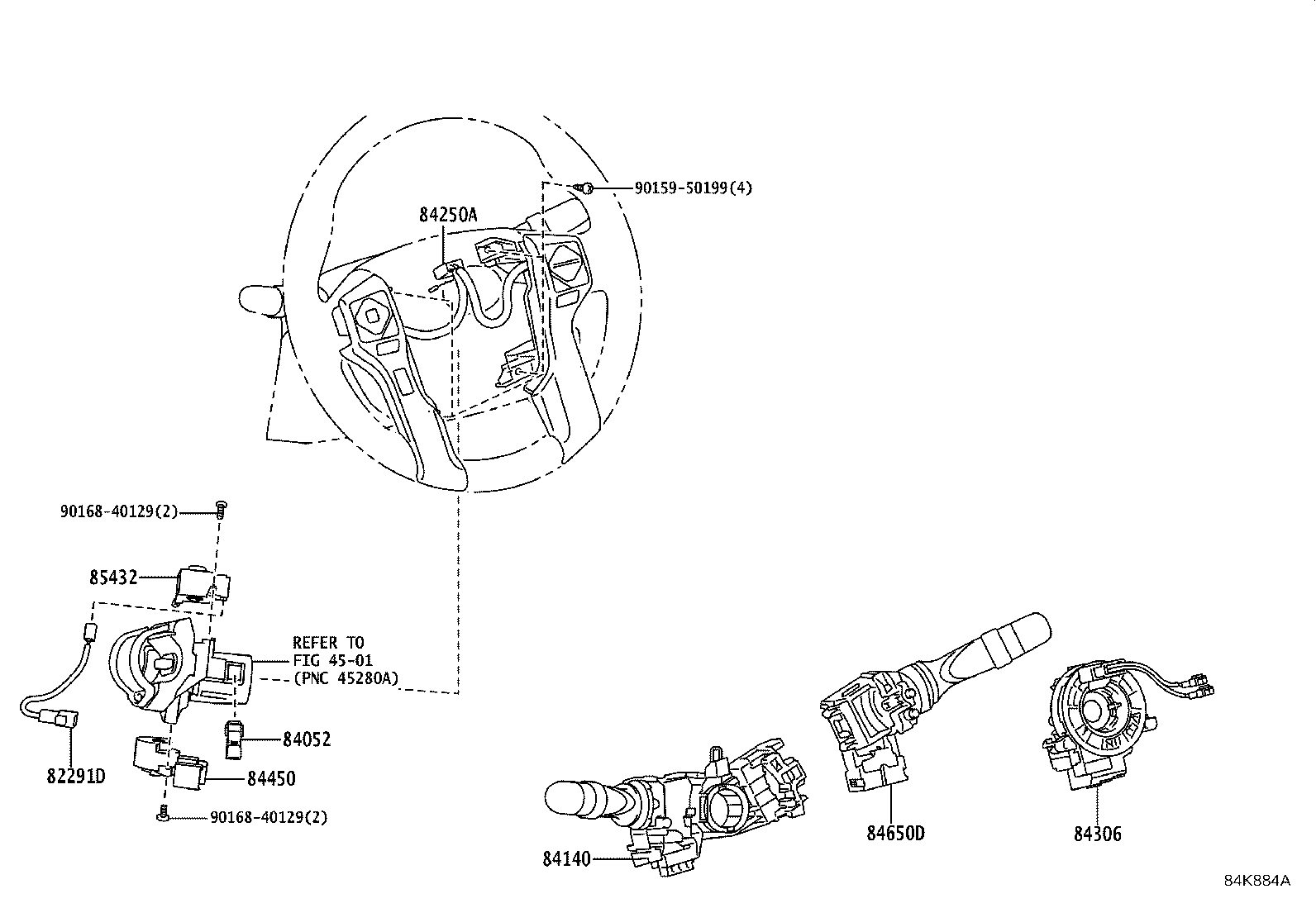

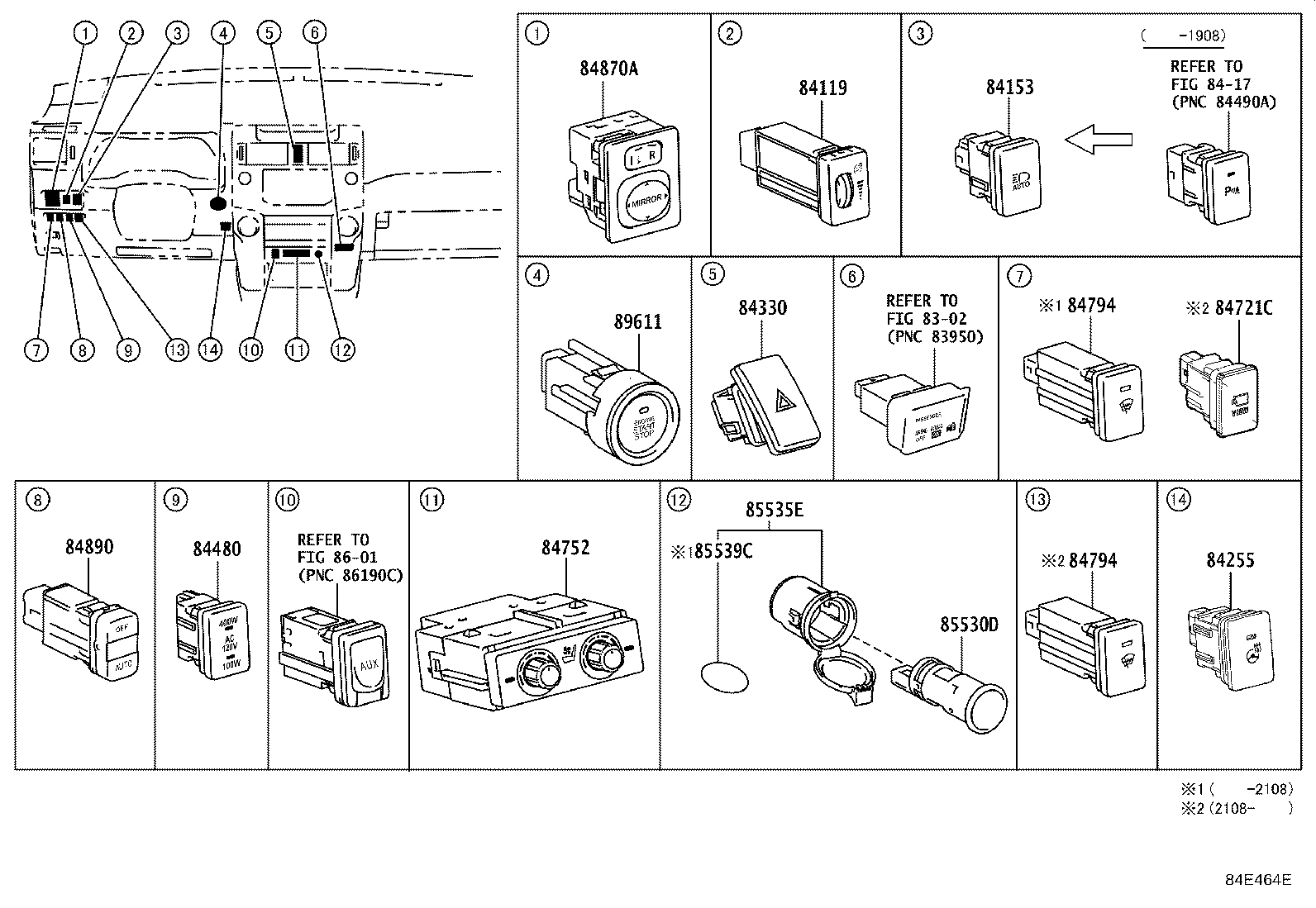

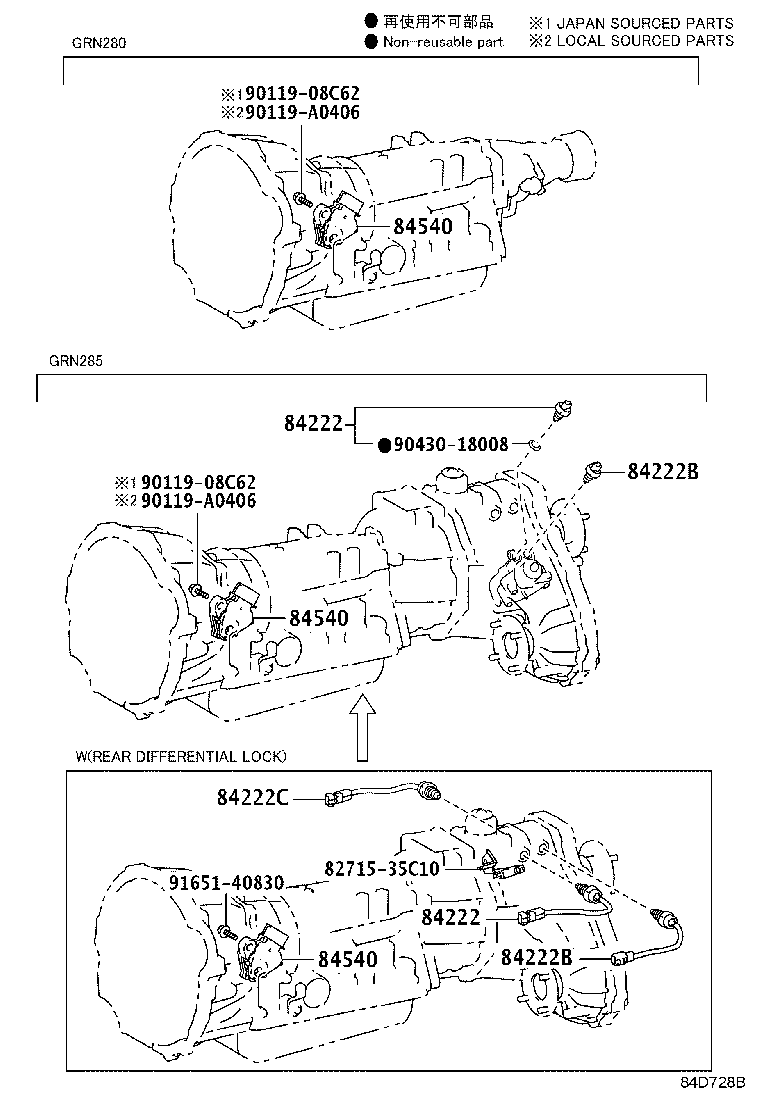

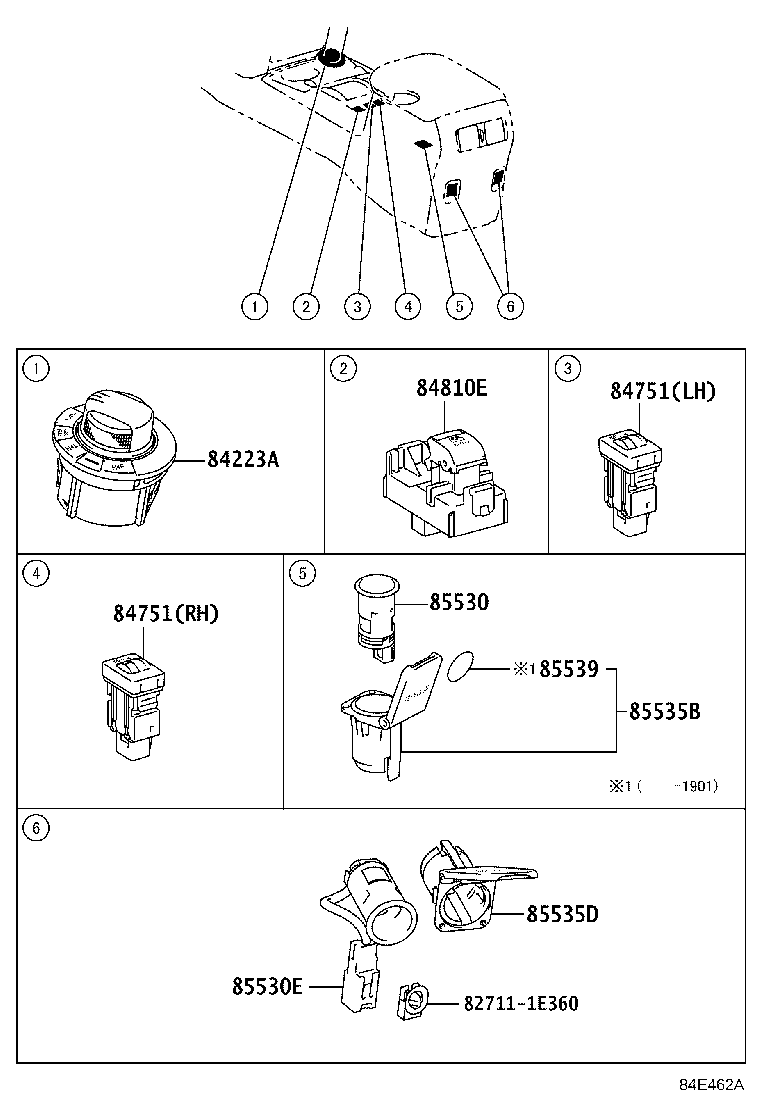

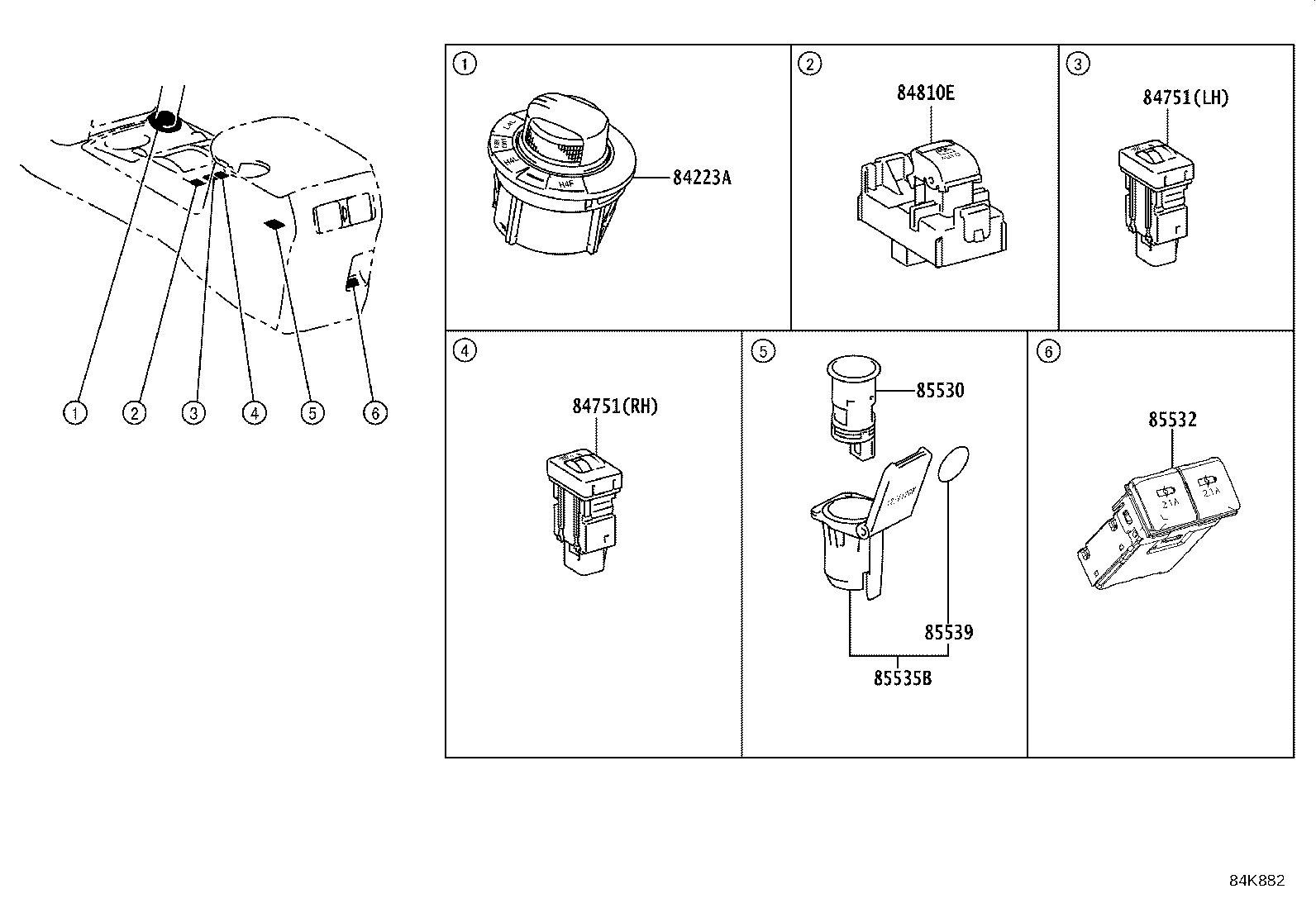

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28800L | Relay, Sub Battery |
| 81240F | Relay, Dome Lamp |
| 81980 | Flasher Assy, Turn Signal |
| 81985 | Relay, Towing Converter |
| 82210J | Fusible Link |
| 82291D | Wire, TO Solenoid |
| 82600F | Fuse, Fuse Block |
| 82602 | Block Sub-assy, Relay |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82620F | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82642A | Relay, Running Light |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82660G | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673F | Bracket, Junction Block |
| 82715 | Bracket,Wiring Harness Clamp |
| 82730A | Block Assy, Driver Side Junction |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82750 | Block Assy, Passenger Side Relay |
| 82824L | Pin, Short |
| 82877 | Box, Computer Integration, RH |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84040 | Master Switch Assy,Multiplex Network |
| 84052 | Switch Assy, Un-lock Warning |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84153 | Switch, Auto High Beam |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84222B | Switch, Transfer Indicator, NO.2 |
| 84222C | Switch, Transfer Indicator, NO.3 |
| 84222E | Switch, Differential Lock Indicator |
| 84223A | Switch, Transfer Position |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84255 | Switch, Steering Heater |
| 84306 | Cable Sub-assy, Spiral |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84415 | Switch, Curtain Airbag Cutoff |
| 84450 | Switch Assy, Ignition OR Starter |
| 84480 | Switch Assy, Main |

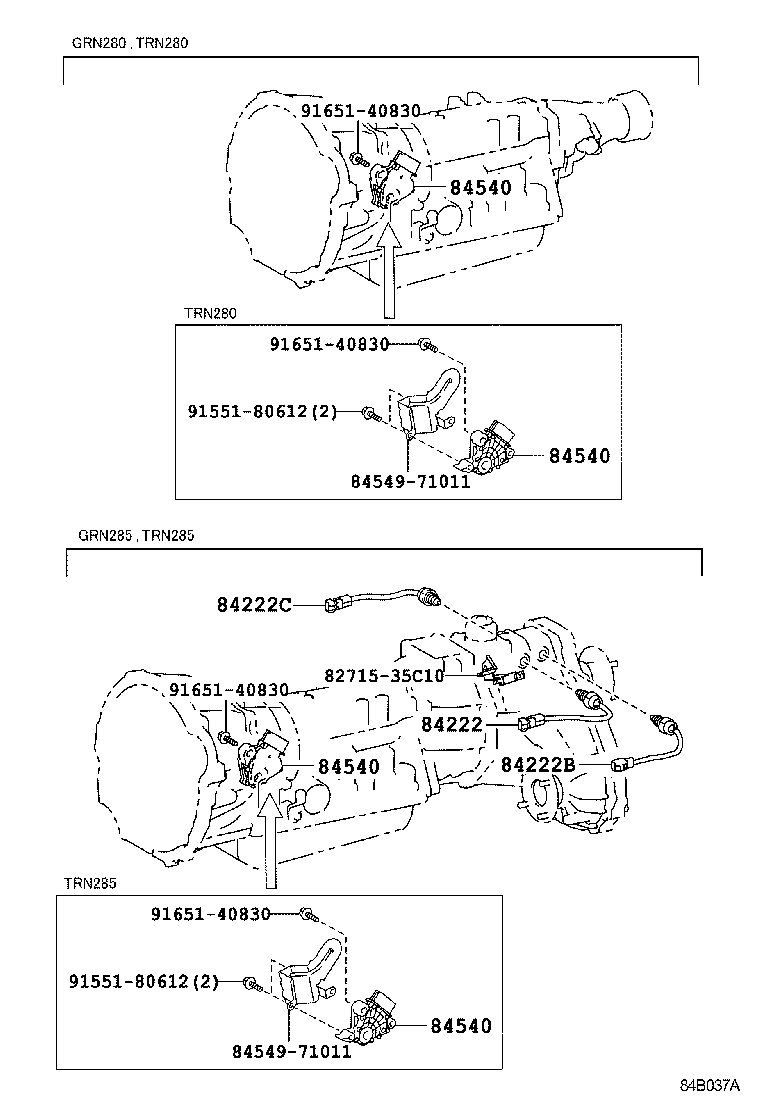

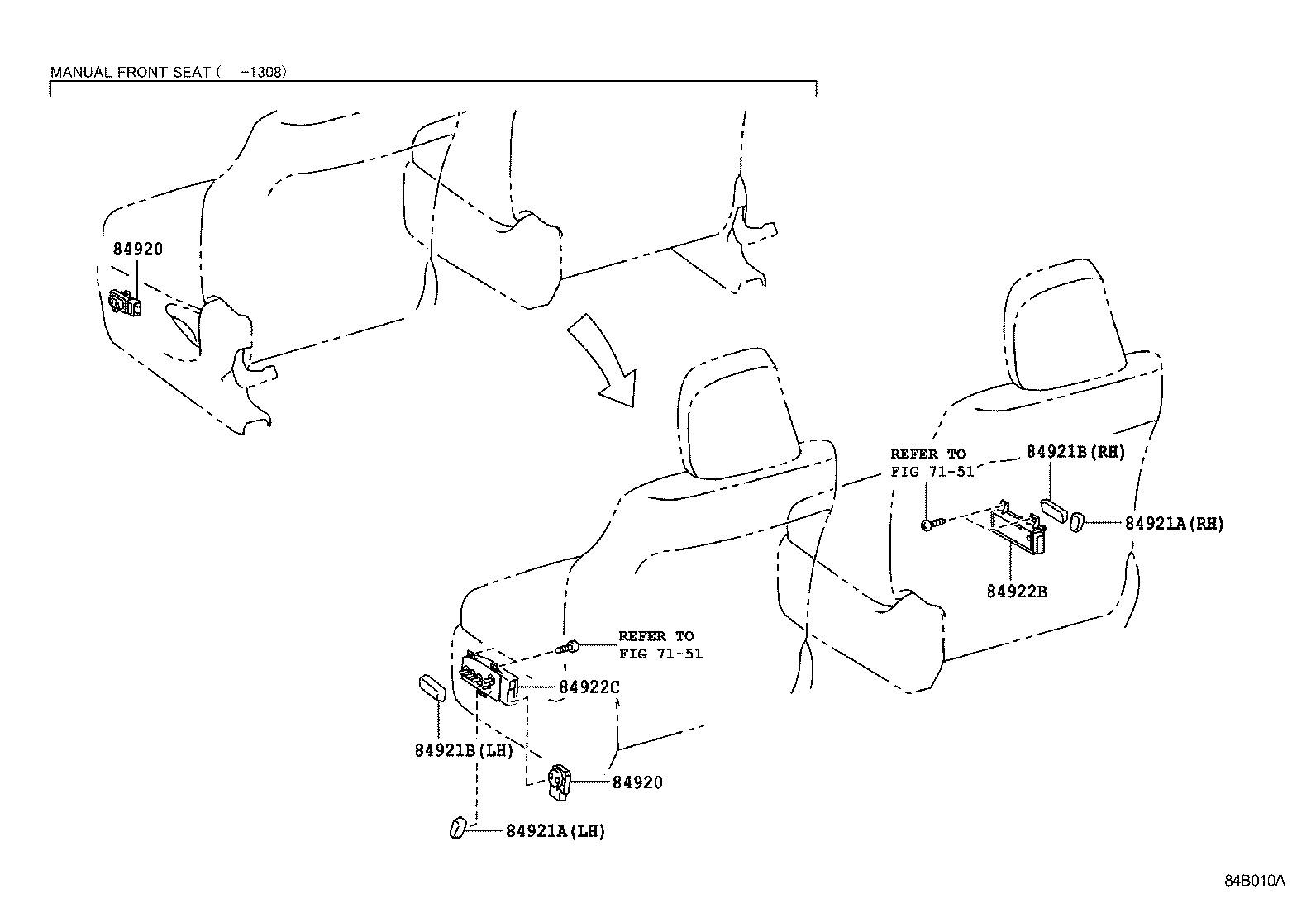

| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84721C | Switch, Pattern Select |
| 84725A | Switch, Differential Lock |
| 84751 | Switch, Seat Heater |
| 84752 | Switch, Refreshing Seat |
| 84794 | Switch, FR Wiper Deicer |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84810E | Switch Assy, Back Door Power Window Regulator |
| 84830 | Switch Assy, Tail Gate Control |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84890 | Switch Assy, Side Auto Step |
| 84920 | Switch Assy, Power Seat |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84930 | Switch Assy, Door Control |
| 84931C | Switch, Back Door Control |
| 84977 | Switch, Drive Monitor |
| 84988F | Switch, Traction Control |
| 84988H | Switch, Downhill Assist Control |
| 84988L | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85531 | Socket, Power Outlet |
| 85532 | Socket, Usb Charger |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535D | Cover, Power Outlet Socket, Center |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85535F | Cover, Power Outlet Socket, Rear |
| 85536 | Bezel, Power Outlet Socket |
| 85539 | Label, Power Outlet Notice |
| 85539A | Label, Power Outlet Notice, Rear |
| 85539C | Label, Power Outlet Notice |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85910X | Relay, Heater Mirror |
| 85912 | Relay, Defogger |
| 85912D | Relay |
| 85915E | Relay |
| 85916C | Relay, Back UP Lamp |
| 85916P | Relay, Headlamp |
| 85916U | Relay, Headlamp, NO.2 |
| 85916Y | Relay, Towing Tail |
| 85926 | Relay, Headlamp Dimmer |
| 85930G | Relay, Acc |
| 85930K | Relay, Acc, NO.2 |
| 85934 | Relay, Magnet-clutch |
| 85941 | Relay, Windshield Washer |
| 86171B | Switch, Woofer Speaker |
| 86210A | Inverter Assy, Voltage |
| 86220A | Relay, Inverter |
| 86530 | Relay Assy, Horn |
| 86530A | Relay, Horn |
| 87346K | Relay, Ptc Heater |
| 88161 | Bracket, Blind Spot Monitor, RH |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88171 | Bracket, Blind Spot Monitor, LH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89222A | Computer, Multiplex Network Door |
| 89271A | Computer, Stabilizer Control |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89533A | Computer, 4 Wheel Drive Control, NO.2 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89681A | Computer, Power Management Control |
| 89720A | Computer Assy, Side Auto Step Controller |
| 89747F | Buzzer, Blind Spot Monitor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
