Toyota 4Runner
2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States
Supported model
Data version 2019-08

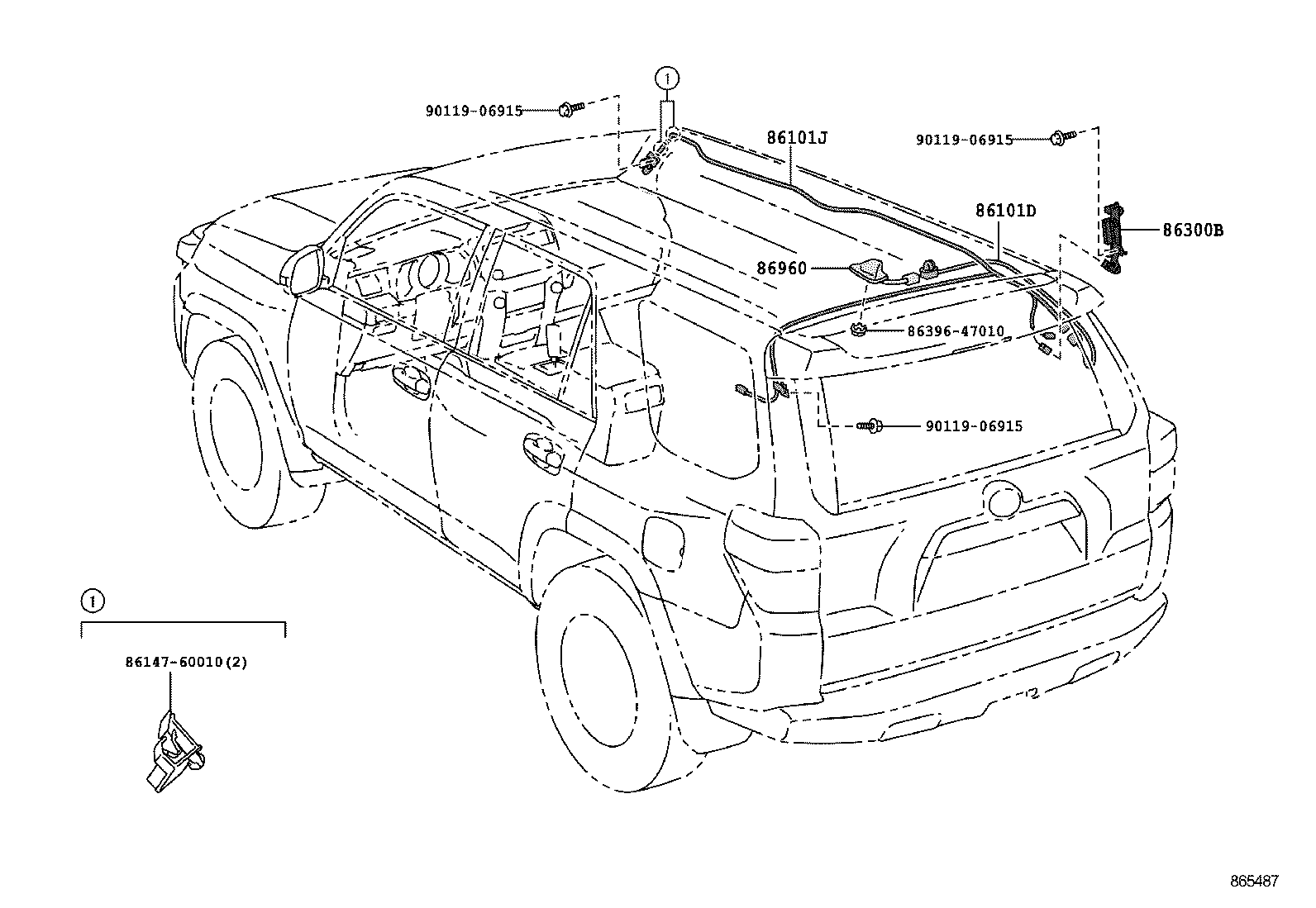

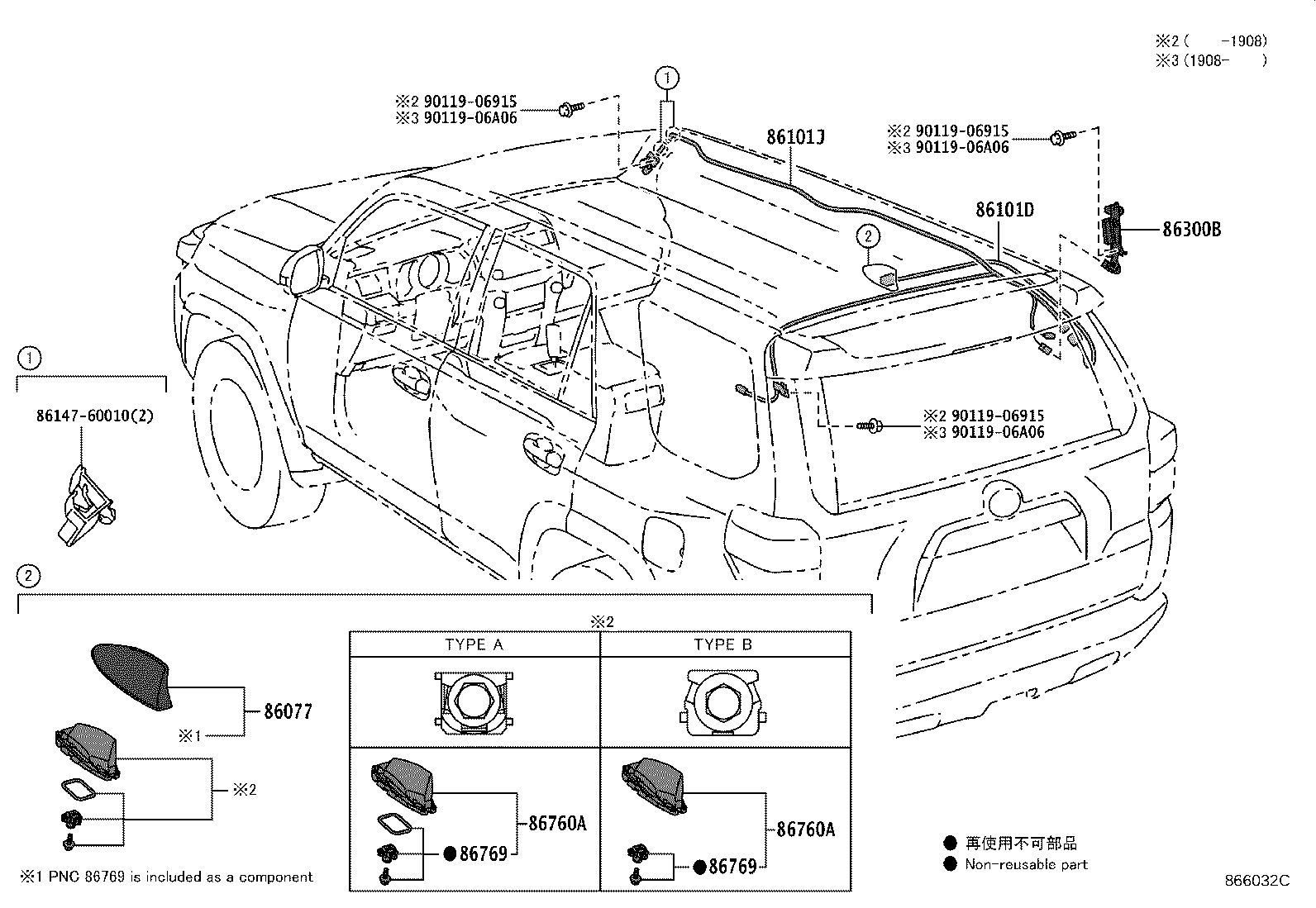

Antenna
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86309B | Pole Sub-assy, Pull Top Antenna |
| 86309E | Pole Sub-assy, Roof Antenna |
| 86392 | Ornament, Antenna |
| 863A2 | Tool, Pole Antenna |
| 86760A | Antenna Assy, Telephone |
| 86769 | Housing, Roof Antenna |
| 86960 | Antenna Assy, Satellite Radio |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
