Toyota 4Runner

2009-08 → present · chassis GRN28#,TRN28# · catalogue 671490 · United States

Supported model Data version 2019-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

8 part groups · 2 illustrations

Illustrations

Figure 87B117B

87B117B 2009-08 → —

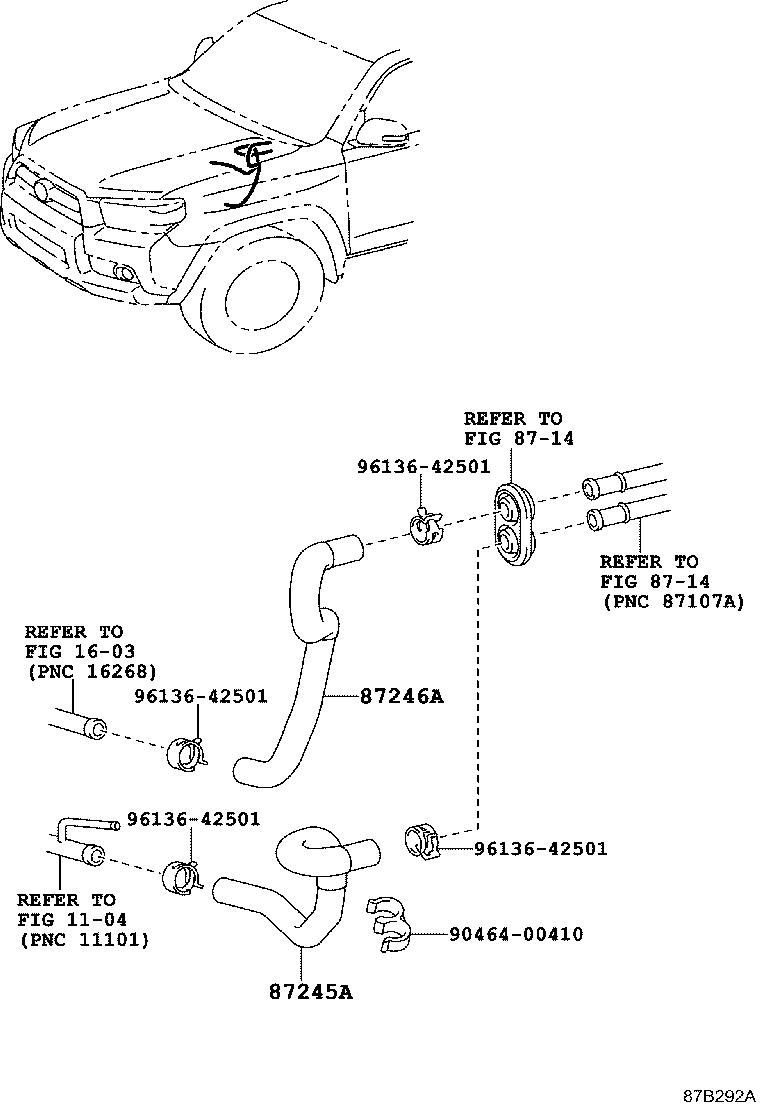

Figure 87B292A

87B292A 2009-11 → —

Part groups

PNC	Description
87209	Hose Sub-assy, Water
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87251D	Joint, Water, NO.1
87452Q	Bracket, Heater, NO.1
87452S	Bracket, Heater, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
