Toyota 4Runner
2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States
Supported model
Data version 2024-12

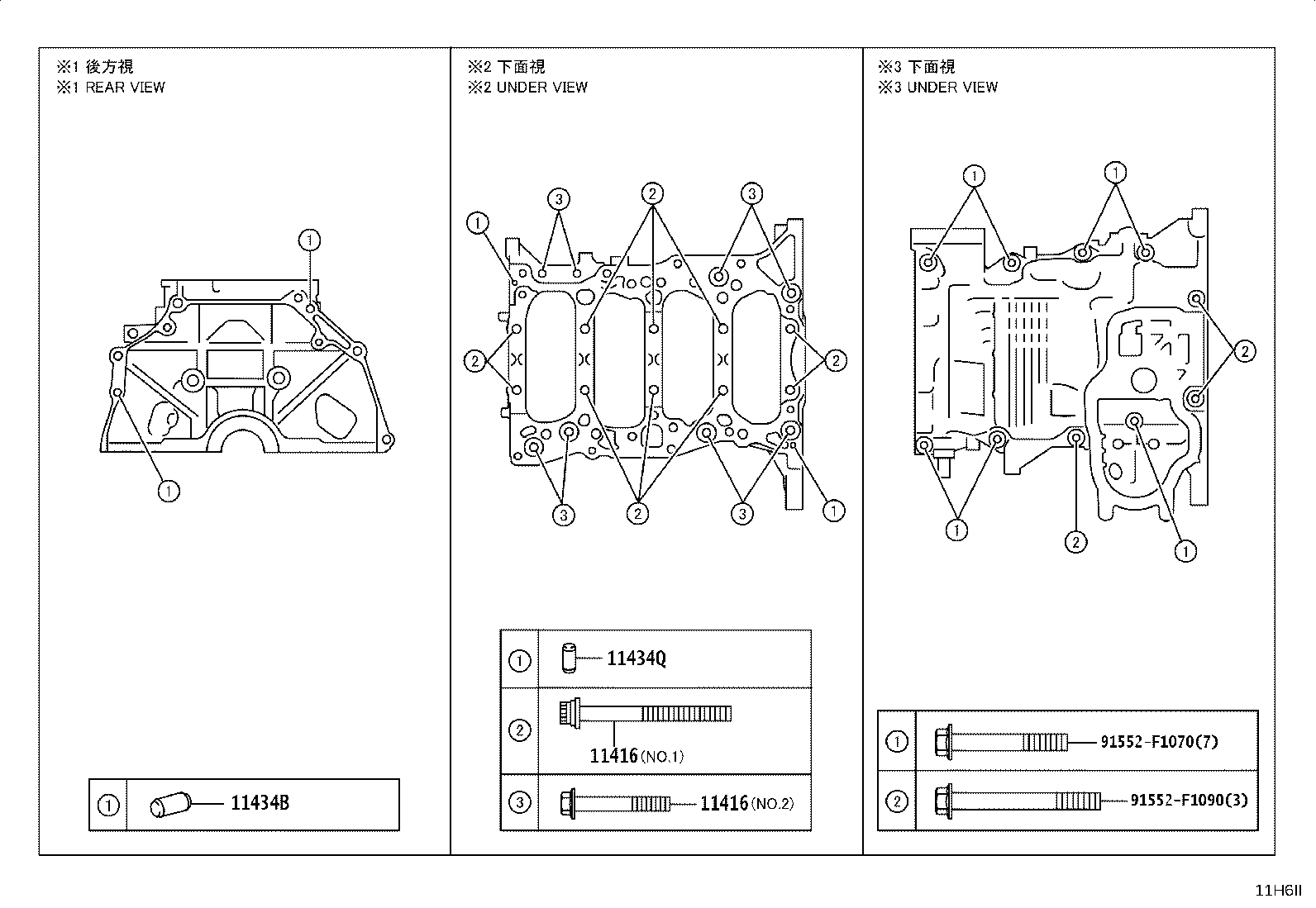

Cylinder Block
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11361J | Cover, Flywheel Housing Under |
| 11363A | Cover, Flywheel Housing Side |
| 11401G | Sensor, Crank Position |
| 11401L | Seal, Engine Rear Oil |
| 11401V | O-ring, Crank Position Sensor |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11416A | Pin, Ring(FOR CRANKSHAFT BEARING CAP SET) |
| 11420 | Crankcase Assy, Stiffening |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434N | Pin, Straight(FOR WATER INLET HOUSING) |
| 11434Q | Pin, Straight(FOR CRANKCASE) |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15401 | Pipe Sub-assy, Oil Pump Inlet |
| 15703A | Valve Sub-assy, Oil Nozzle |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
| 15709 | Nozzle Sub-assy, Oil, NO.2 |
| 15770H | Gasket(FOR OIL PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
