Toyota 4Runner
2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States
Supported model
Data version 2024-12

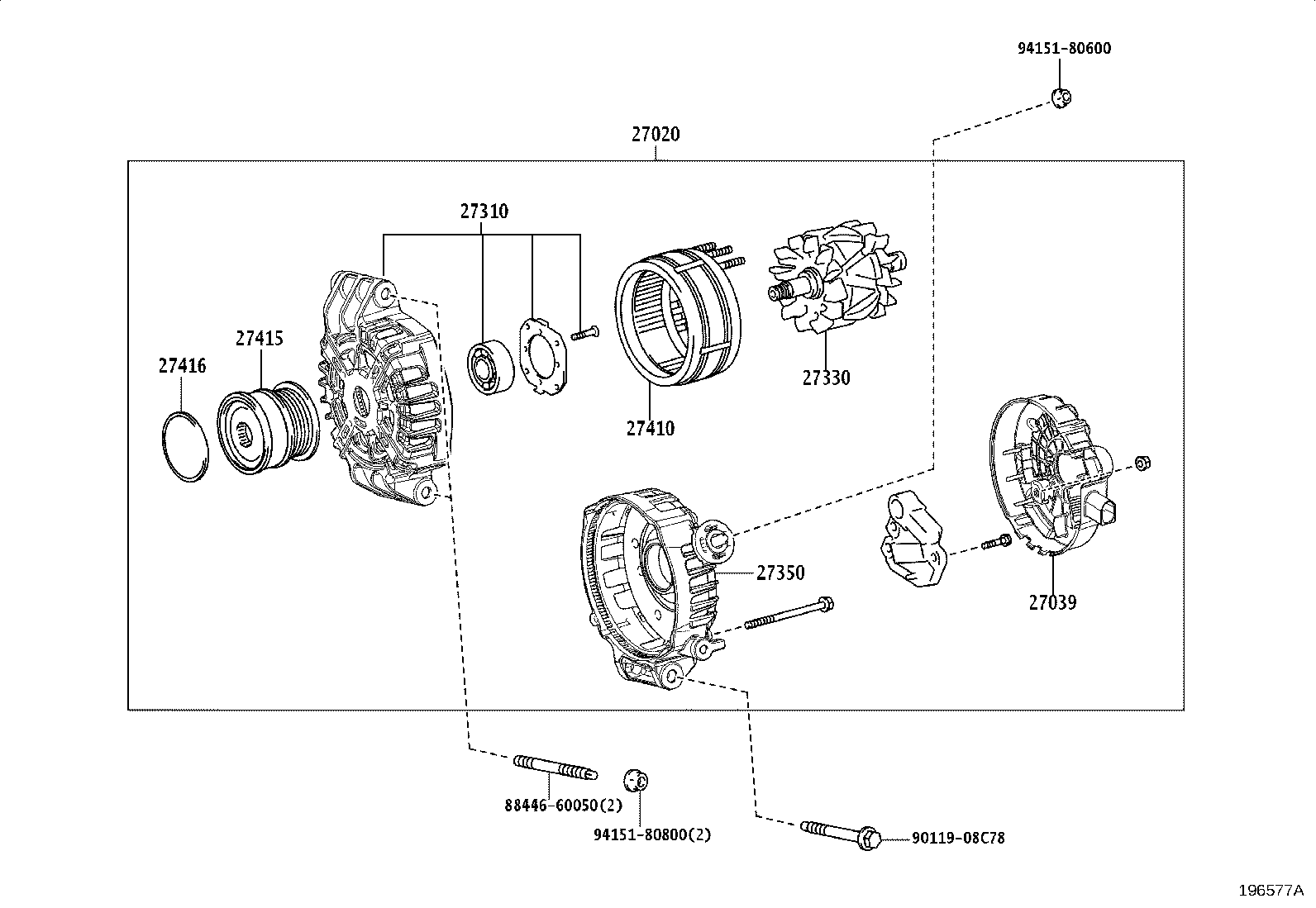

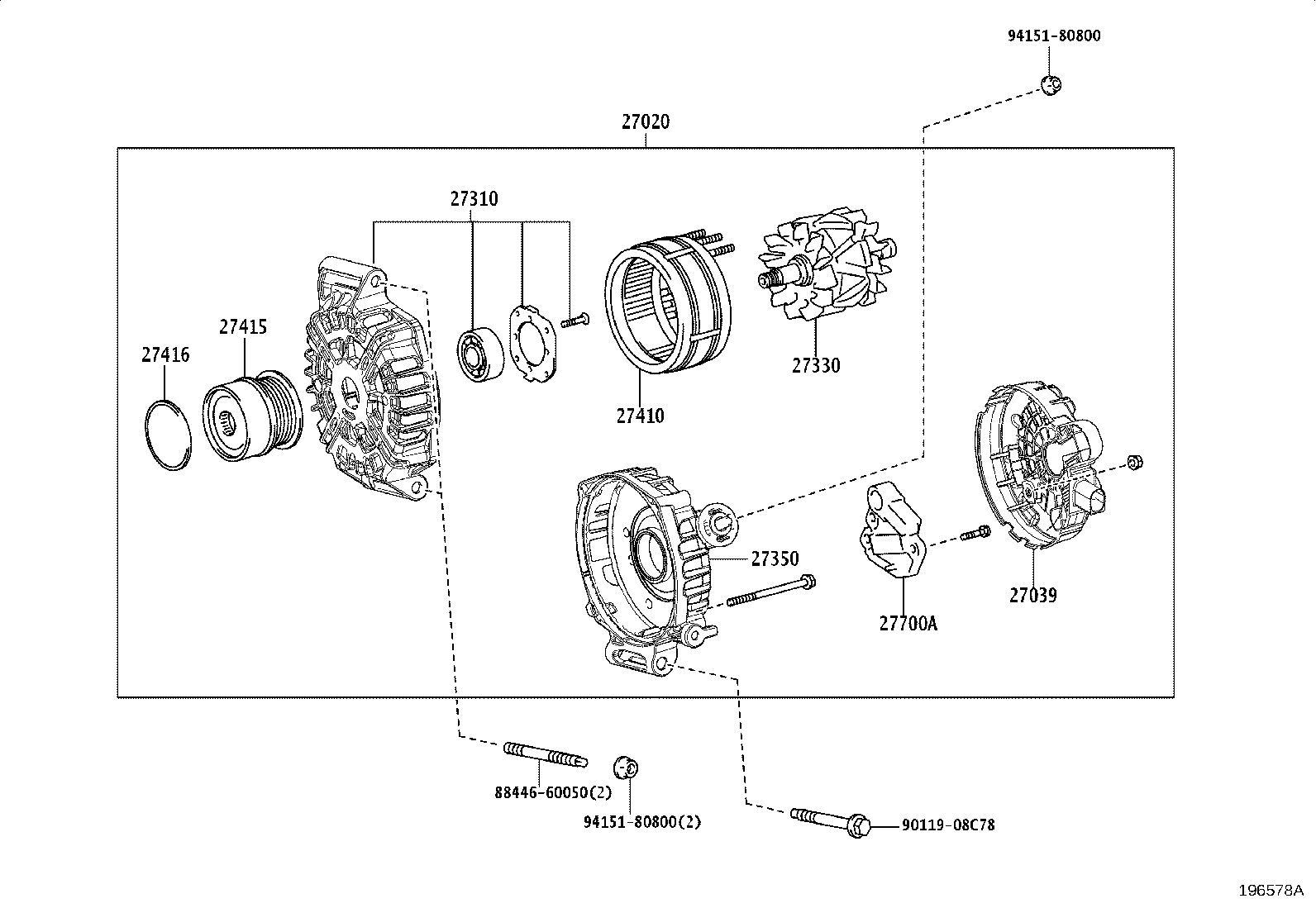

Alternator
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27039 | Cover, Alternator Rear End |
| 27310 | Frame Assy, Drive End, Alternator |
| 27330 | Rotor Assy, Alternator |
| 27350 | Frame Assy, Rectifier End |
| 27410 | Stator Assy, Alternator |
| 27415 | Pulley, Alternator W/Clutch |
| 27416 | Cap, Alternator Pulley |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
