Toyota 4Runner

2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

7 part groups · 2 illustrations

Illustrations

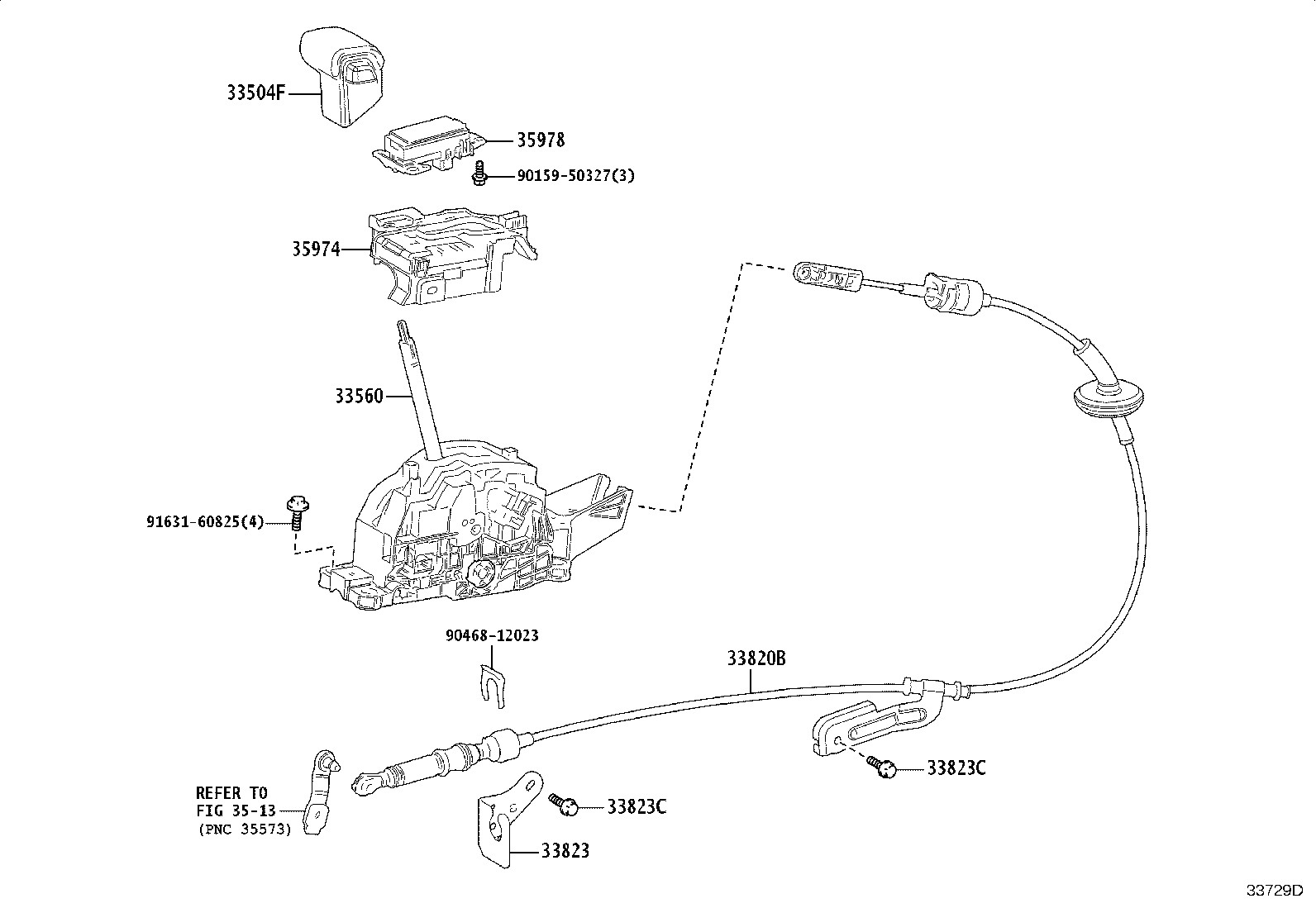

Figure 33729C 33729C 2024-12 → — Figure 33729D 33729D 2024-12 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
35974 Housing, Position Indicator, Lower
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
