Toyota 4Runner

2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

16 part groups · 2 illustrations

Illustrations

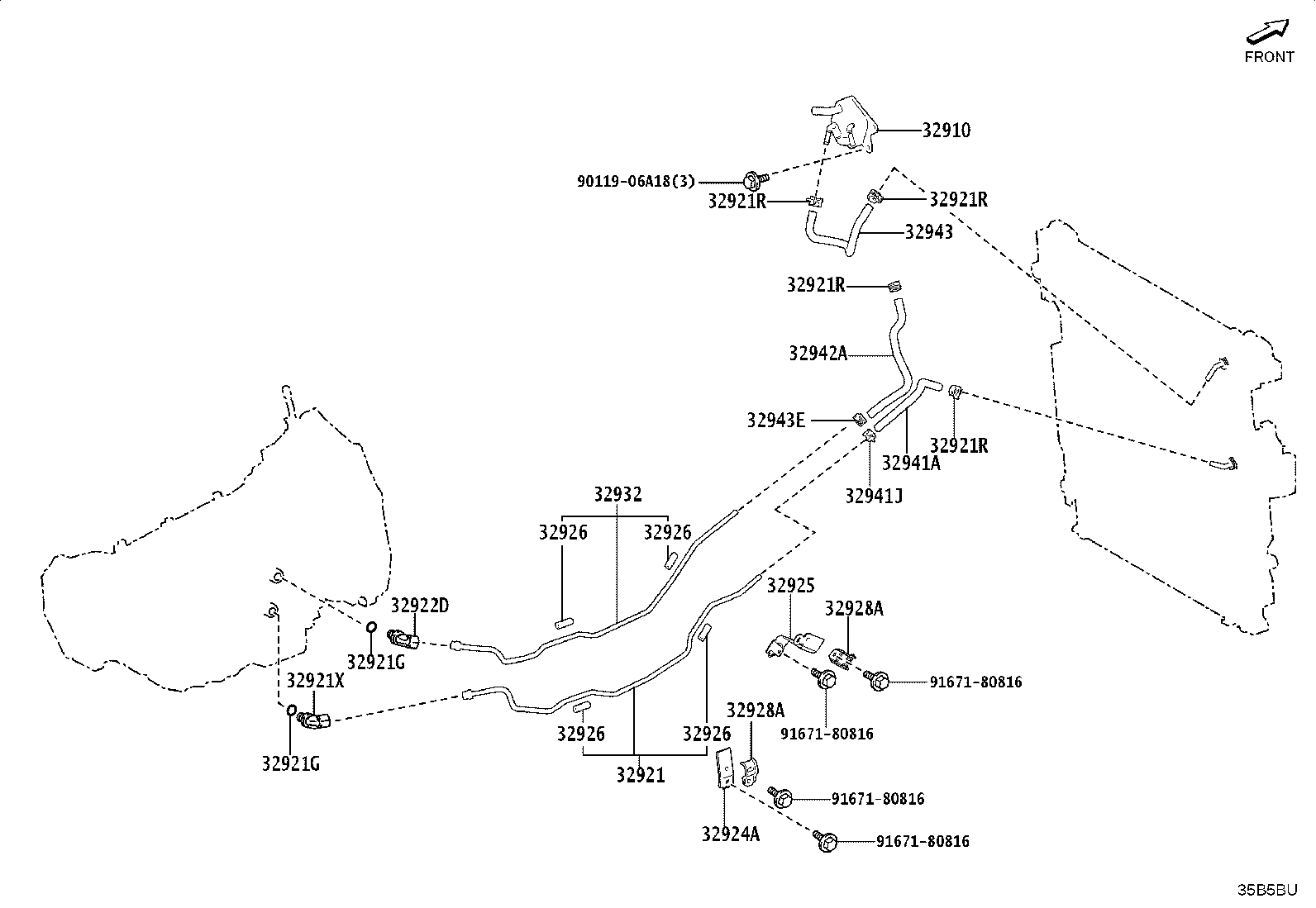

Figure 35B5BS 35B5BS 2024-12 → — Figure 35B5BU 35B5BU 2024-12 → —

Part groups

PNCDescription
32910 Cooler Assy, Oil
32921 Tube, Oil Cooler Inlet, NO.1
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921R Clip, NO.2(FOR OIL COOLER HOSE)
32921X Union OR Elbow, Oil Cooler Inlet
32922D Union OR Elbow, Oil Cooler Outlet
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32925 Clamp, Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
32928A Clamp(FOR FLEXIBLE HOSE CLAMP)
32932 Tube, Oil Cooler Outlet
32941A Hose, Oil Cooler Inlet, NO.2
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942A Hose, Oil Cooler Outlet, NO.2
32943 Hose, Transmission Oil Cooler, NO.1
32943E Clip, NO.3(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
