Toyota 4Runner
2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States
Supported model
Data version 2024-12
Transfer Case & Extension Housing
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33309B | Flange Sub-assy, Output Shaft Companion |
| 33309C | Flange Sub-assy, Output Shaft Companion |
| 33309D | Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) |
| 33309H | Washer, Transfer Output Shaft |
| 33449D | Magnet (FOR TRANSFER CASE) |
| 35015G | Adapter, Transfer, Rear |
| 35015W | Ring, O(FOR TRANSMISSION CASE ADAPTER REFILL PLUG) |
| 35015X | Plug, Refill(FOR TRANSMISSION CASE ADAPTER) |
| 36101 | Case Sub-assy, Transfer |
| 36102G | Retainer Sub-assy, Transfer Front Bearing |
| 36102L | Seal, Type T Oil(FOR TRANSFER FRONT BEARING) |
| 36103A | Bolt (FOR TRANSFER CASE) |
| 36104D | Nut (FOR TRANSFER OUTPUT SHAFT) |
| 36111A | Spring, Compression (FOR TRANSFER CASE) |
| 36111B | Seal, Oil (FOR TRANSFER CASE) |
| 36111C | Plug (FOR TRANSFER CASE) |
| 36111G | Pin, Straight (FOR TRANSFER CASE) |
| 36112 | Case, Transfer, Rear |
| 36114B | Plug, NO.1 (FOR TRANSFER CASE) |
| 36114C | Gasket, NO.1 (FOR TRANSFER CASE) |
| 36115 | Housing, Transfer Extension |
| 36115C | Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING) |
| 36117A | Seal, Oil(FOR TRANSFER ADAPTER) |
| 36179 | Protector, Transfer Case Lower |
| 36179A | Bolt (FOR TRANSFER CASE LOWER PROTECTOR) |

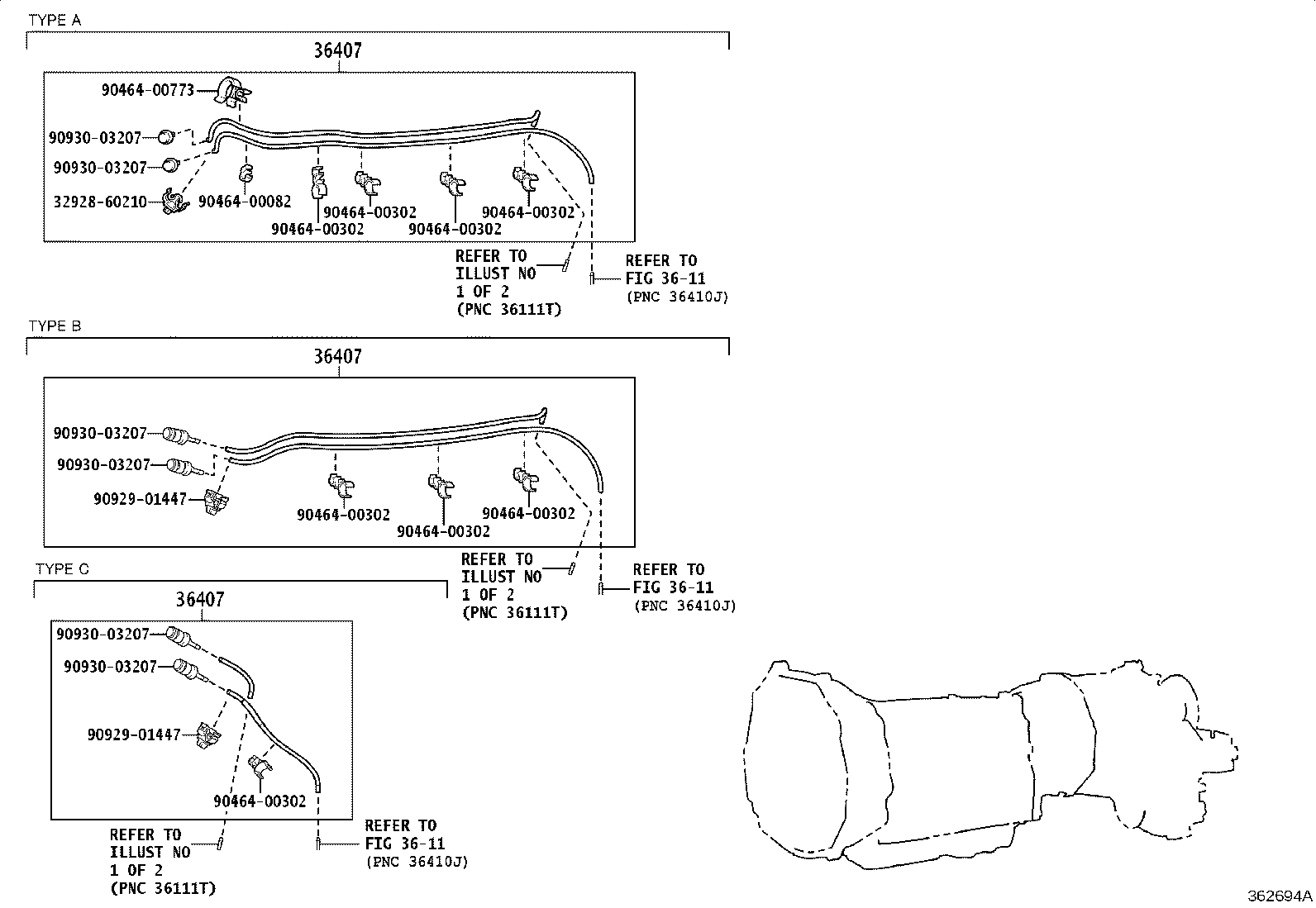

| 36407 | Hose Sub-assy, Transfer Breather |
| 36478 | Bracket, Transfer Breather |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
