Toyota 4Runner
2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States
Supported model
Data version 2024-12

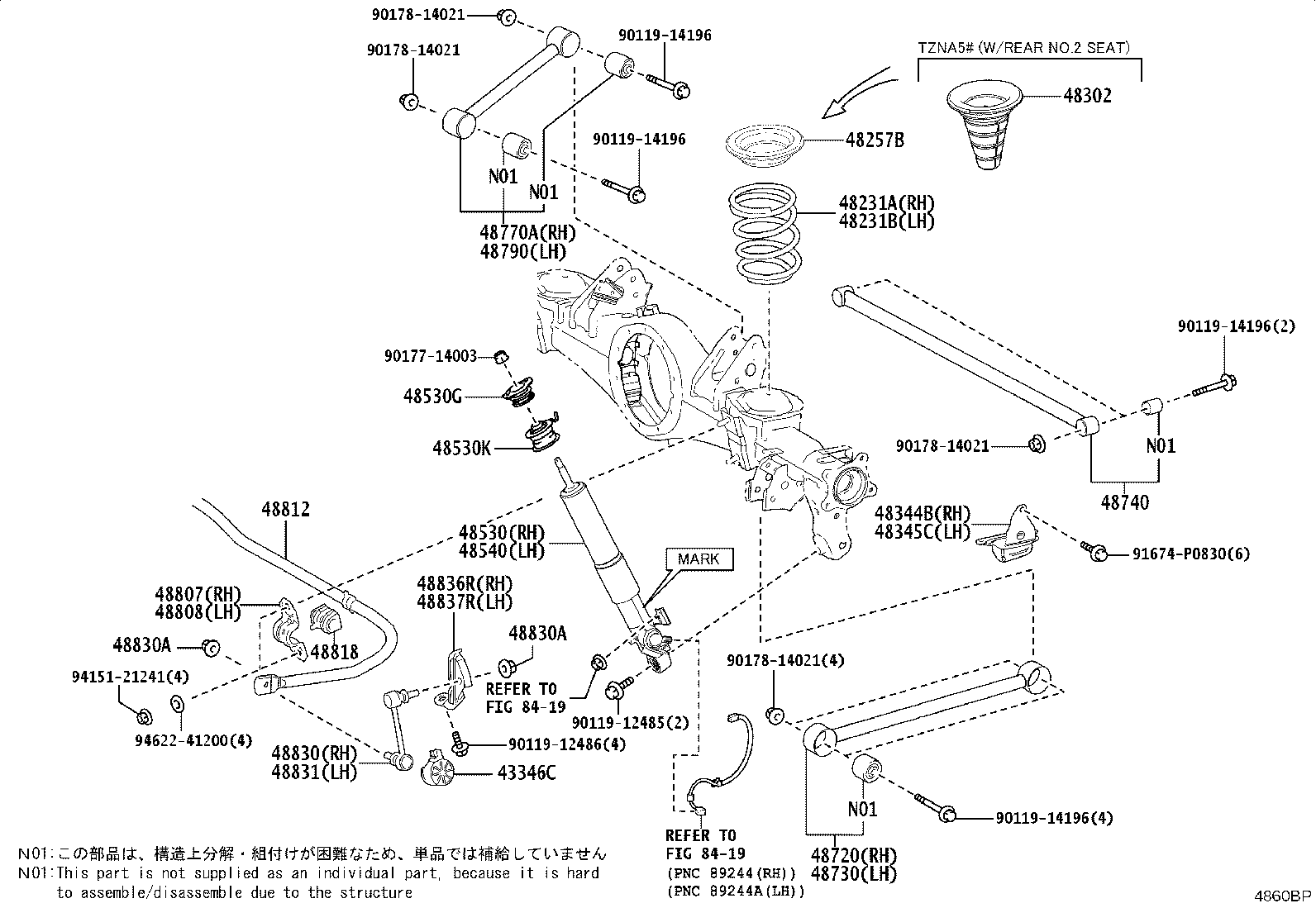

Rear Spring & Shock Absorber
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 43346C | Protector, Lower Ball Joint Dust Cover |
| 48231A | Spring, Coil, Rear RH |
| 48231B | Spring, Coil, Rear LH |
| 48257B | Insulator, Rear Coil Spring, Upper |
| 48302 | Spring Sub-assy, Hollow |
| 48344B | Stopper, Bumper, Rear RH |
| 48345C | Stopper, Bumper, Rear LH |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530G | Cushion, Rear Shock Absorber, NO.1 |
| 48530K | Cushion, Rear Shock Absorber, NO.2 |
| 48540 | Absorber Assy, Shock, Rear LH |
| 48720 | Arm Assy, Lower Control, RH |
| 48730 | Arm Assy, Lower Control, LH |
| 48740 | Rod Assy, Rear Lateral Control |
| 48770A | Arm Assy, Upper Control, Rear RH |
| 48790 | Arm Assy, Upper Control, Rear LH |
| 48807 | Bracket, Rear Stabilizer Bar, RH |
| 48808 | Bracket, Rear Stabilizer Bar, LH |
| 48812 | Bar, Stabilizer, Rear |
| 48818 | Bush, Stabilizer, Rear |
| 48830 | Link Assy, Rear Stabilizer |
| 48830A | Nut(FOR REAR STABILIZER LINK) |
| 48831 | Link, Rear Stabilizer, NO.2 |
| 48836R | Bracket, Rear Stabilizer End, RH |
| 48837R | Bracket, Rear Stabilizer End, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
