Toyota 4Runner
2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States
Supported model
Data version 2024-12

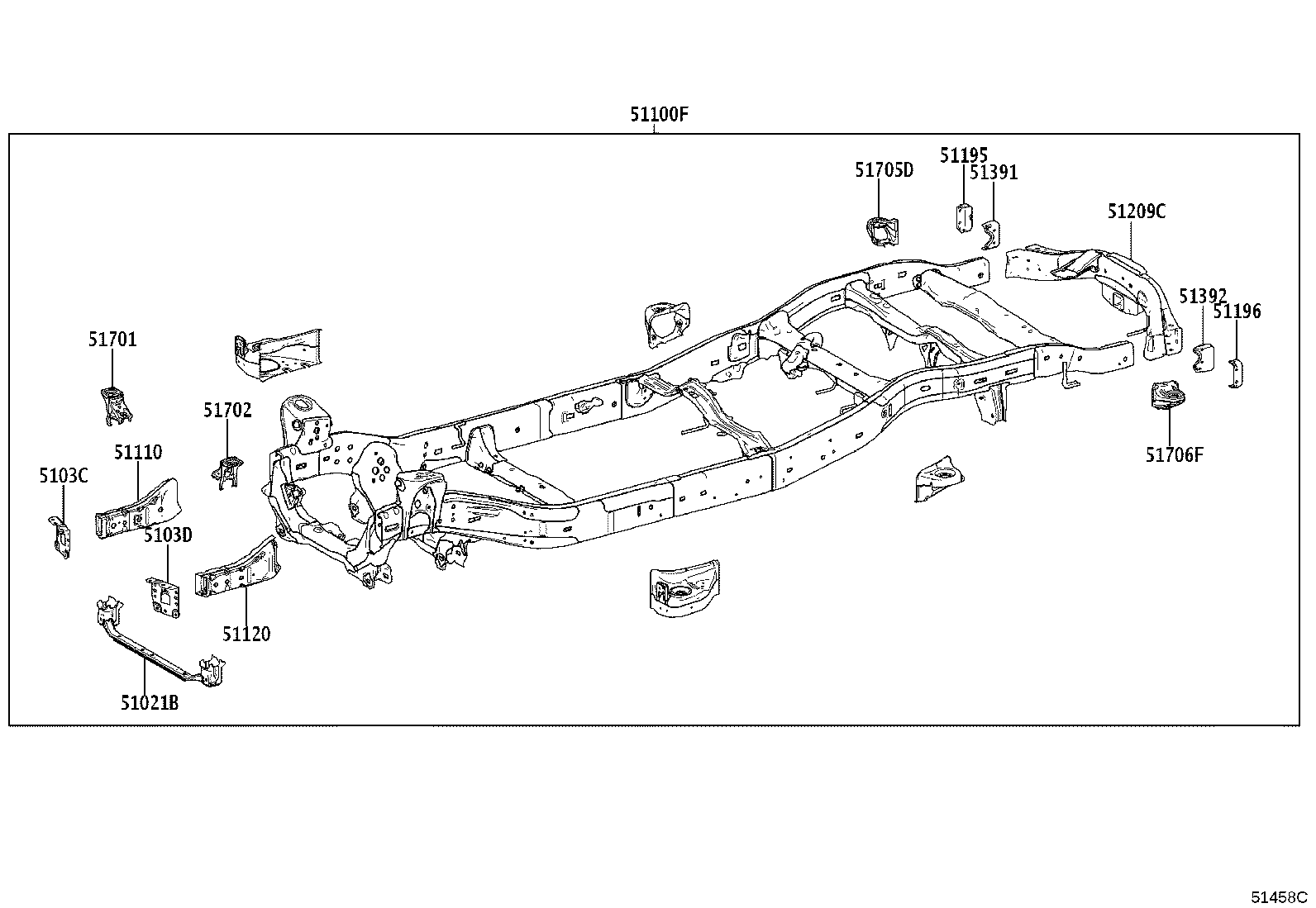

Frame
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51021B | Crossmember Sub-assy, Frame Auxiliary |
| 5103C | Plate Sub-assy, Side Rail Extension, RH |
| 5103D | Plate Sub-assy, Side Rail Extension, LH |
| 51095A | Hook Sub-assy, Transport, Rear RH |
| 51100F | Frame Sub-assy |
| 51110 | Extension Assy, Side Rail, RH |
| 51120 | Extension Assy, Side Rail, LH |
| 51195 | Patch, Rear Frame Rail, RH |
| 51196 | Patch, Rear Frame Rail, LH |
| 51209C | Crossmember Sub-assy, Frame, Rear |
| 51391 | Gusset, Frame Rear Crossmember, RH |
| 51392 | Gusset, Frame Rear Crossmember, LH |
| 5159C | Insulator, Frame Crossmember Heat |
| 51701 | Bracket Sub-assy, Cab Mounting, NO.1 RH |
| 51702 | Bracket Sub-assy, Cab Mounting, NO.1 LH |
| 51705D | Bracket Sub-assy, Cab Rear Mounting, RH |
| 51706F | Bracket Sub-assy, Cab Rear Mounting, LH |
| 5170B | Reinforce Sub-assy, Cab Mounting Bracket, NO.1 RH |
| 5170BA | Reinforce Sub-assy, Cab Mounting Bracket, NO.2 RH |
| 5170C | Reinforce Sub-assy, Cab Mounting Bracket, NO.1 LH |
| 5170CA | Reinforce Sub-assy, Cab Mounting Bracket, NO.2 LH |
| 51729A | Cover, NO.2 Cab Mounting, RH |
| 5172A | Cover, NO.2 Cab Mounting, LH |
| 51963A | Hook, Transport, Front RH |
| 51964A | Hook, Transport, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
