Toyota 4Runner

2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

35 part groups · 3 illustrations

Illustrations

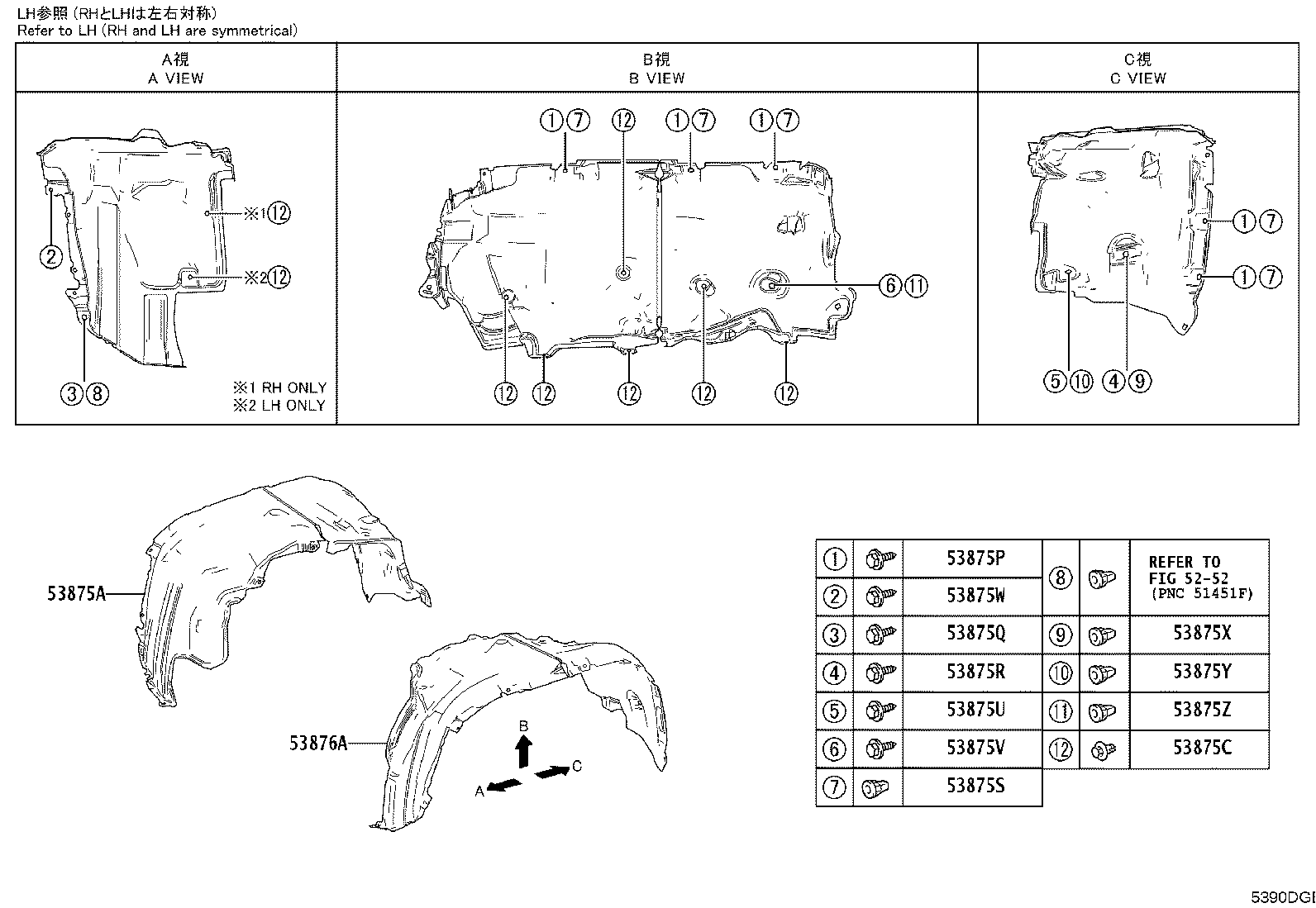

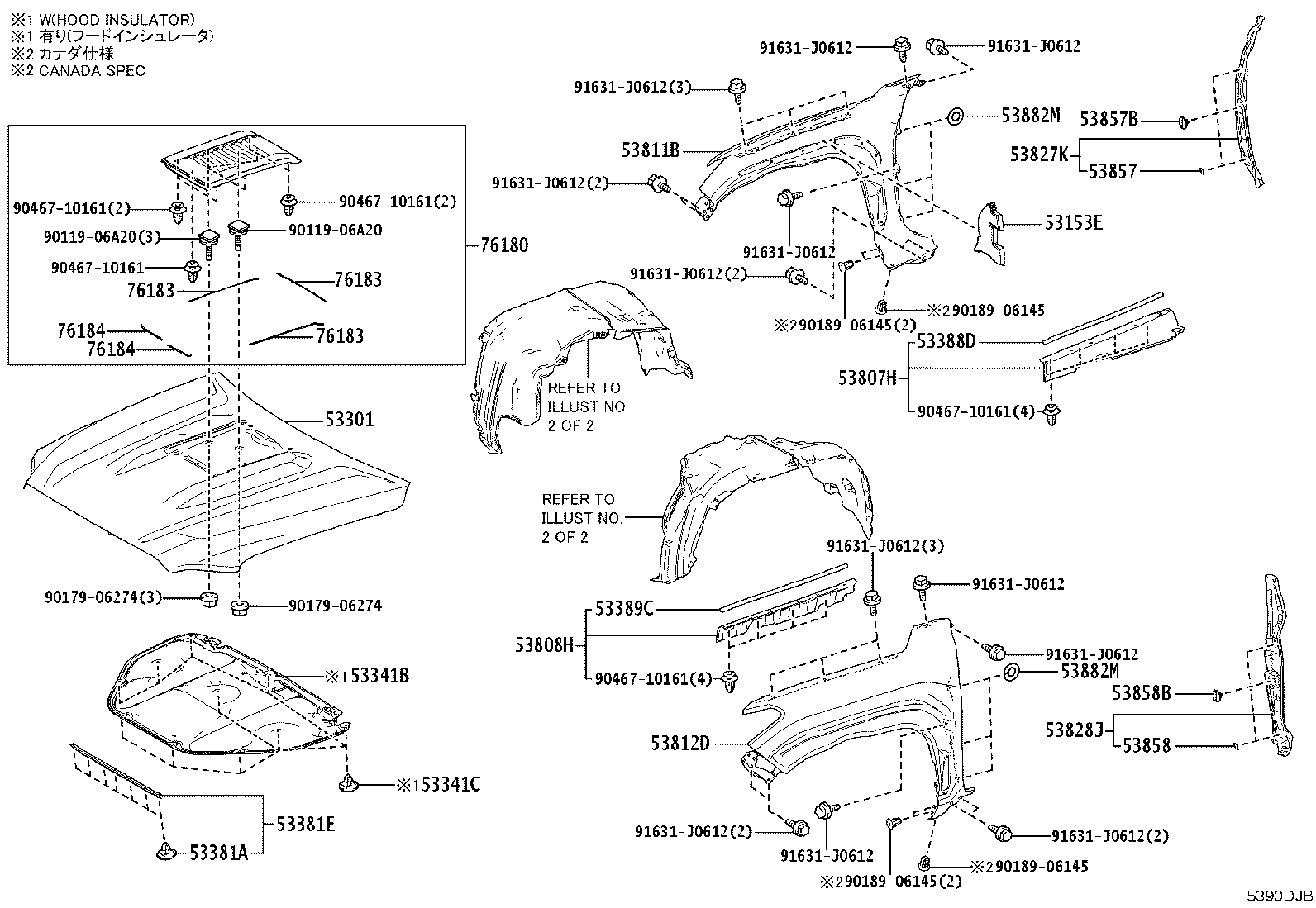

Figure 5390DFB 5390DFB 2024-12 → — Figure 5390DJB 5390DJB 2024-12 → — Figure 5390DGB 5390DGB 2024-12 → —

Part groups

PNCDescription
53153E Guide, Front Side Air
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53381E Seal, Hood TO Radiator Support
53388D Seal, Hood TO Front Fender, RH
53389C Seal, Hood TO Front Fender, LH
53807H Protector Sub-assy, Front Fender, Upper RH
53808H Protector Sub-assy, Front Fender, Upper LH
53811B Panel, Front Fender, RH
53812D Panel, Front Fender, LH
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53857 Retainer, Front Wheel Opening Extension, RH
53857B Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53858B Retainer, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53875Q Screw, NO.2
53875R Screw, NO.3
53875S Grommet, NO.1
53875U Screw, NO.4
53875V Screw, NO.5
53875W Screw, NO.6
53875X Grommet, NO.3
53875Y Grommet, NO.4
53875Z Grommet, NO.5
53876A Liner, Front Fender, LH
53882M Seal, Front Fender
76180 Bulge Assy, Hood
76183 Protector, Hood Bulge, NO.1
76184 Protector, Hood Bulge, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
