Toyota 4Runner
2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States
Supported model
Data version 2024-12
Instrument Panel & Glove Compartment

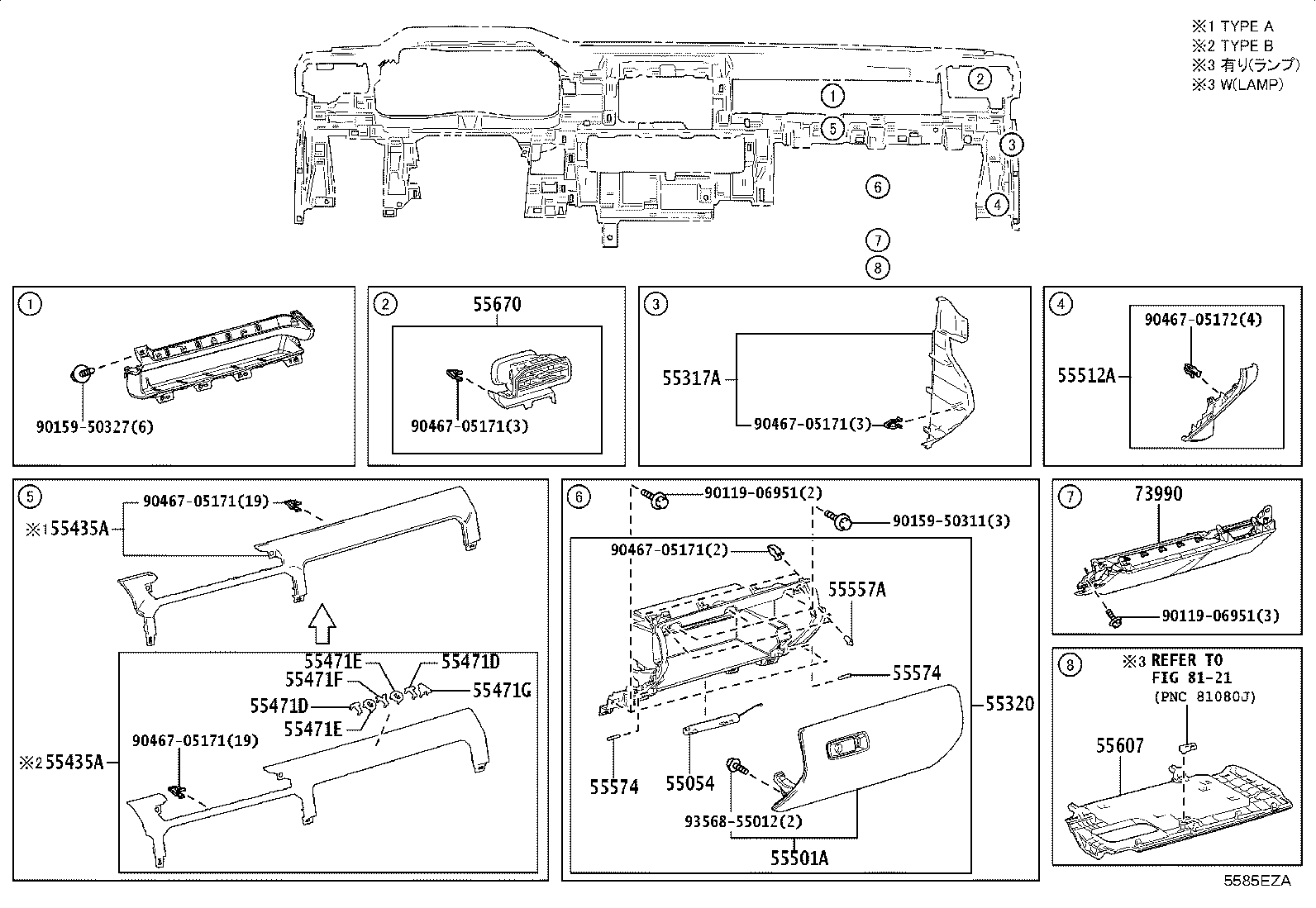

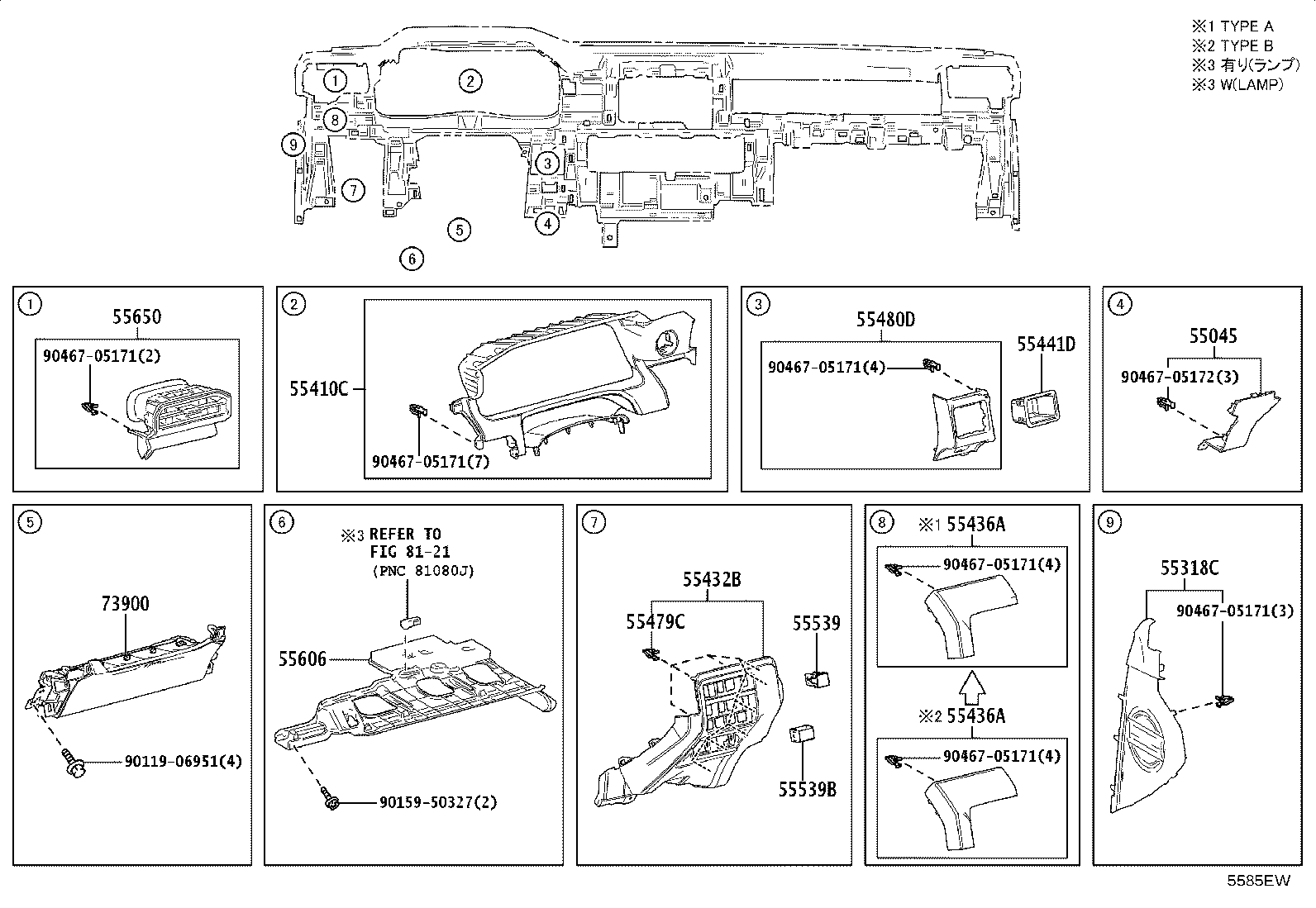

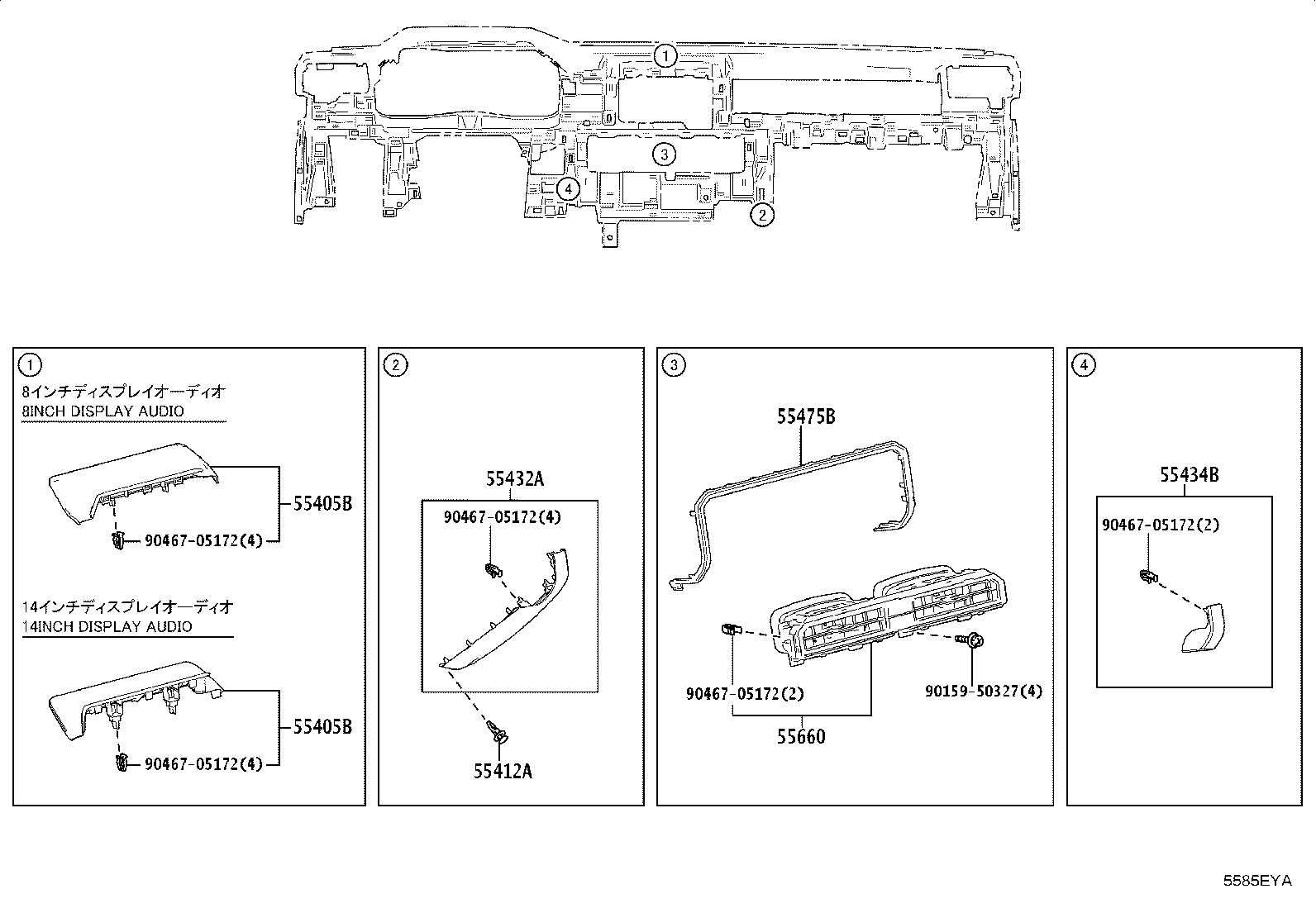

38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161V | Piece, Instrument Panel |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308B | Brace Sub-assy, Instrument Panel TO Cowl, NO.3 |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55320 | Panel Assy, Instrument, Lower NO.2 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55412A | Clip, Panel, Instrument Cluster Finish, End |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55441D | Box, Instrument Panel Coin |
| 55474E | Panel Sub-assy, Instrument Panel Speaker, NO.3 |
| 55475B | Garnish, Instrument Cluster Finish Panel, Center |
| 55479C | Clip(FOR INSTRUMENT LOWER COVER) |
| 55480D | Panel Assy, Instrument Panel Finish, Lwr |
| 55501A | Door Sub-assy, Glove Compartment |
| 55512A | Plate, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 73990 | Airbag Assy, Instrument Panel, Lower NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
