Toyota 4Runner
2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States
Supported model
Data version 2024-12

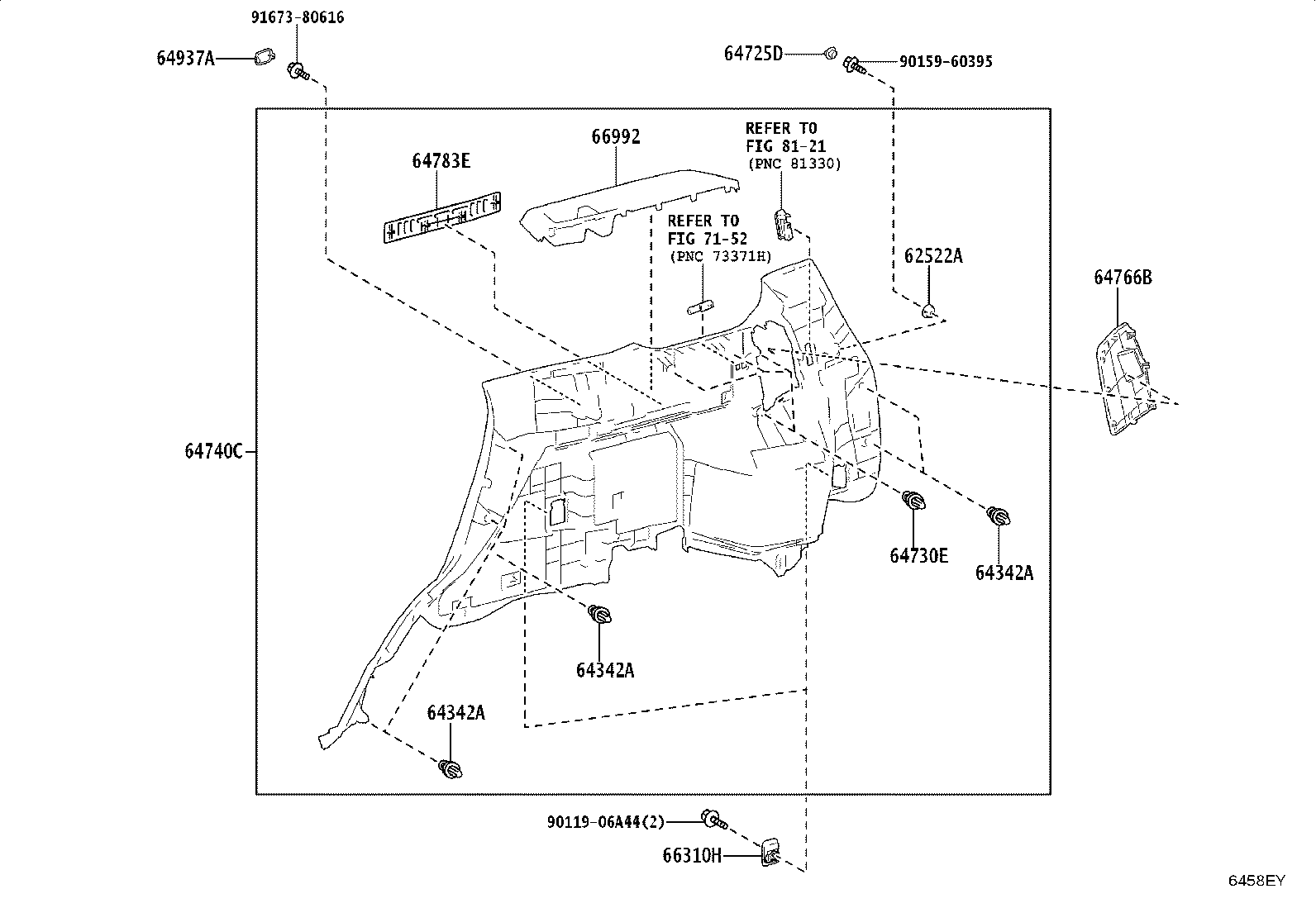

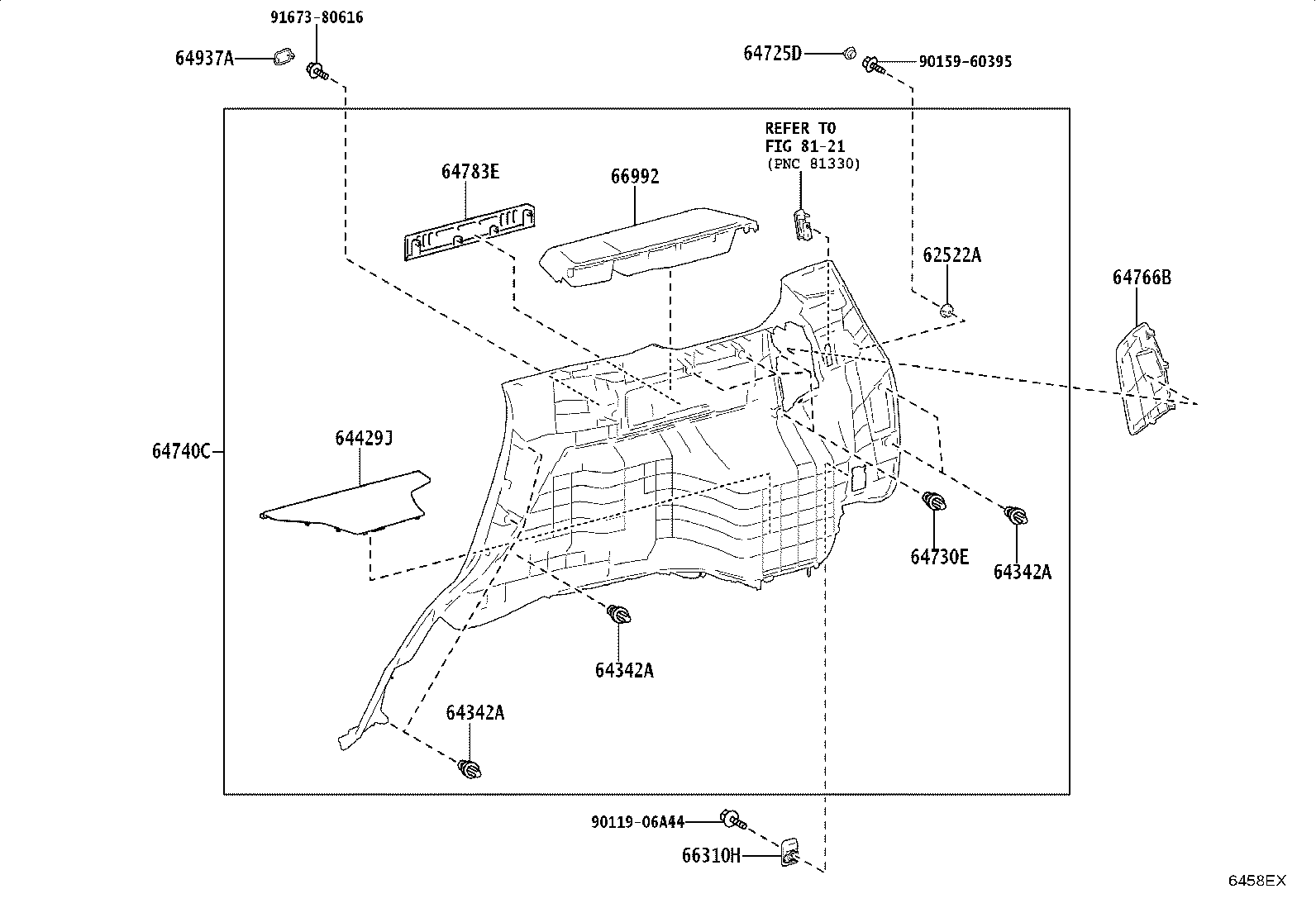

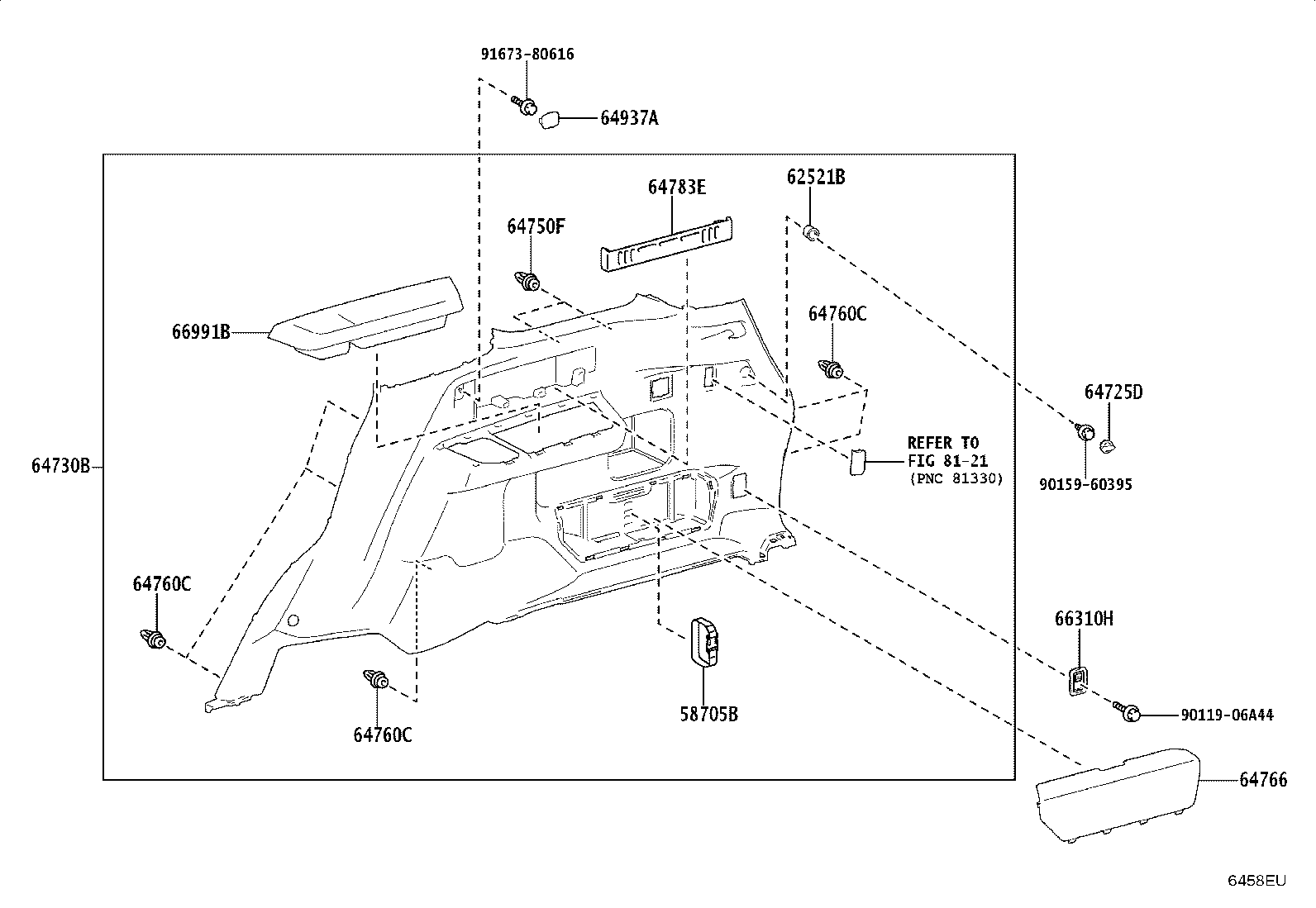

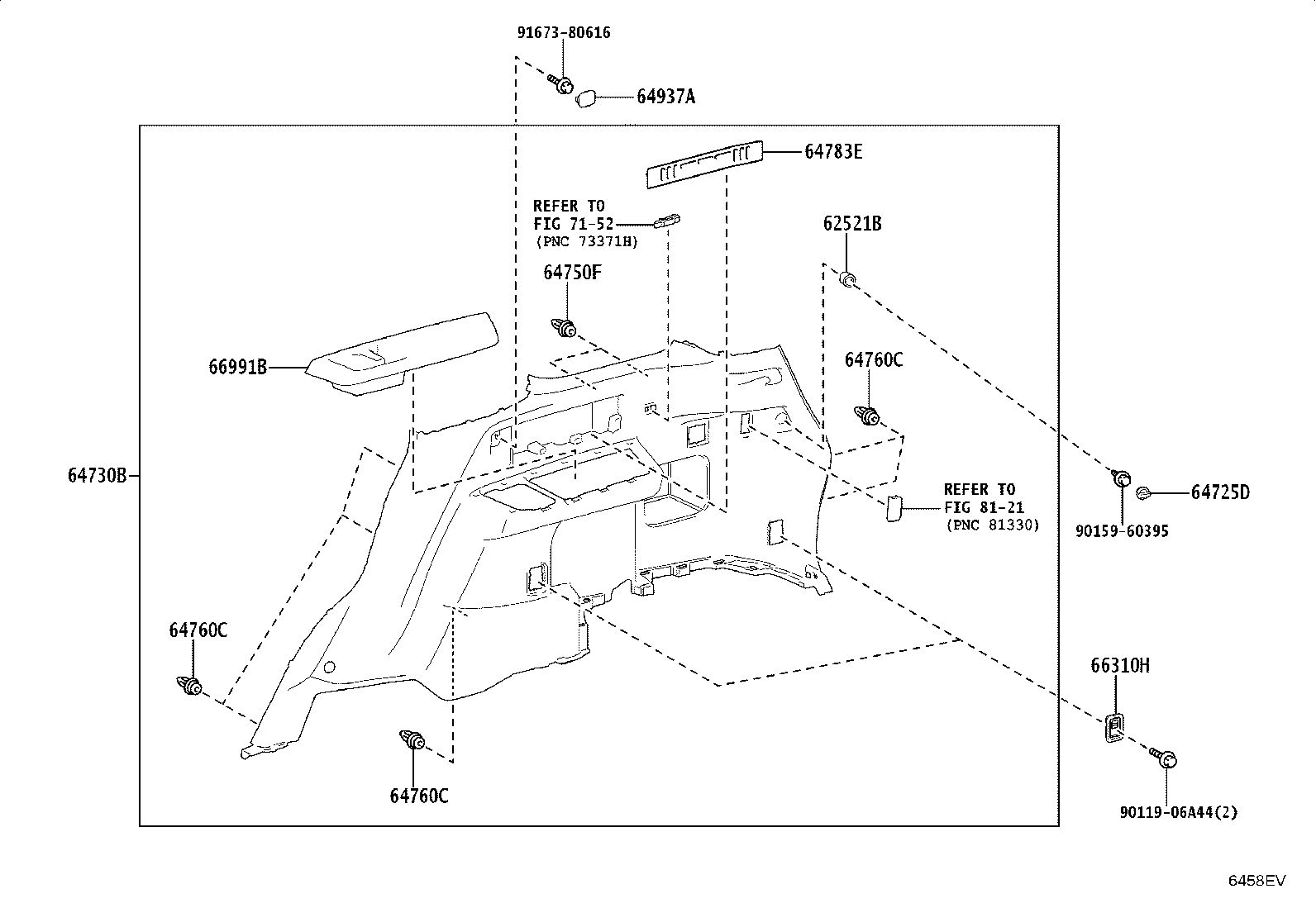

Inside Trim Board
63 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58705B | Band Sub-assy, Tool Bag |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62180C | Clip, Curtain Shield Airbag |
| 62211U | Garnish Assy, Front Pillar, RH |
| 62212B | Garnish Assy, Front Pillar, LH |
| 62216B | Cover, Front Pillar Garnish, NO.1 LH |
| 62217G | Clip, Front Pillar Garnish |
| 62217H | Clip, Center Piller Garnish |
| 62217J | Clip, Center Piller Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62431B | Garnish, Roof Side Rail, NO.1 RH |
| 62431D | Garnish, Quarter Panel, RH |
| 62432B | Garnish, Roof Side Rail, NO.1 LH |
| 62432D | Garnish, Quarter Panel, LH |
| 62472G | Clip (FOR ROOF SIDE GARNISH) |
| 62489A | Clip, Roof Side Inner Garnish |
| 62510K | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62521B | Cover, Quarter Trim, RH |
| 62522A | Cover, Quarter Trim, LH |
| 62550F | Garnish Assy, Rear Window Side, RH |
| 62560C | Garnish Assy, Rear Window Side, LH |
| 62597D | Clip |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62633C | Clip (FOR QUARTER TRIM GARNISH) |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62640Q | Clip (FOR QUARTER TRIM REAR PANEL) |
| 64342A | Clip |
| 64429J | Tray, Luggage Compartment Side |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64760C | Clip(FOR DECK SIDE TRIM PANEL) |
| 64766 | Cover Sub-assy, Quarter Trim Jack |
| 64766B | Cover, Quarter Trim Jack |
| 64783E | Plate, Deck Trim Pocket Cover |
| 64937A | Cap, Tonneau Cover Holder, NO.1 |
| 66310H | Hook Assy, Rope |
| 66991B | Holder, Cup, NO.1 |
| 66992 | Holder, Cup, NO.2 |
| 67911A | Plate, Rear Door Scuff, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918E | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
