Toyota 4Runner

2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 2 illustrations

Illustrations

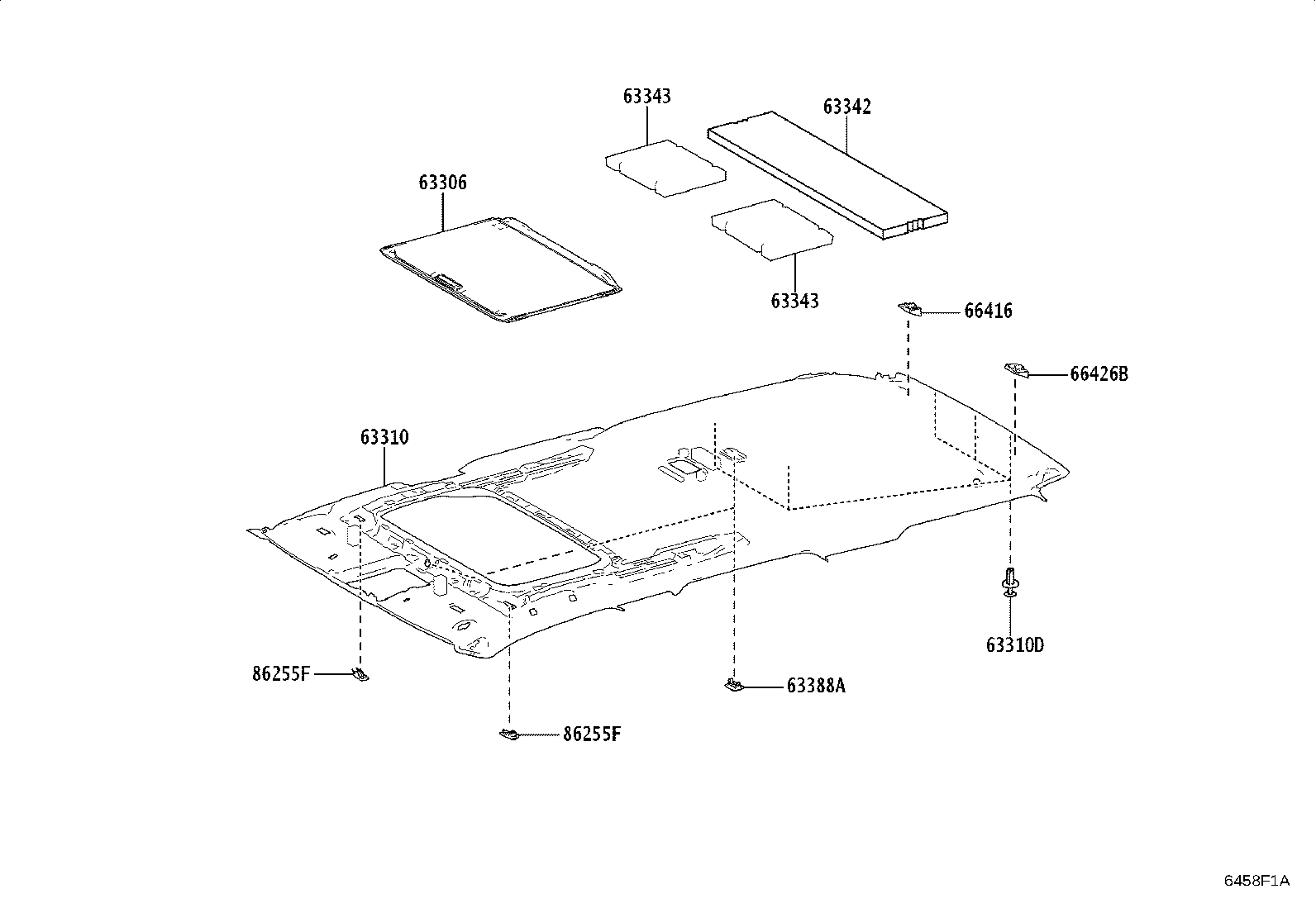

Figure 6458F0A 6458F0A 2024-12 → — Figure 6458F1A 6458F1A 2024-12 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63388A Cover, Roof Headlining Holder
66416 Spacer, Side Rail, Rear NO.3 RH
66426B Spacer, Side Rail, Rear NO.3 LH
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
