Toyota 4Runner
2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States
Supported model
Data version 2024-12

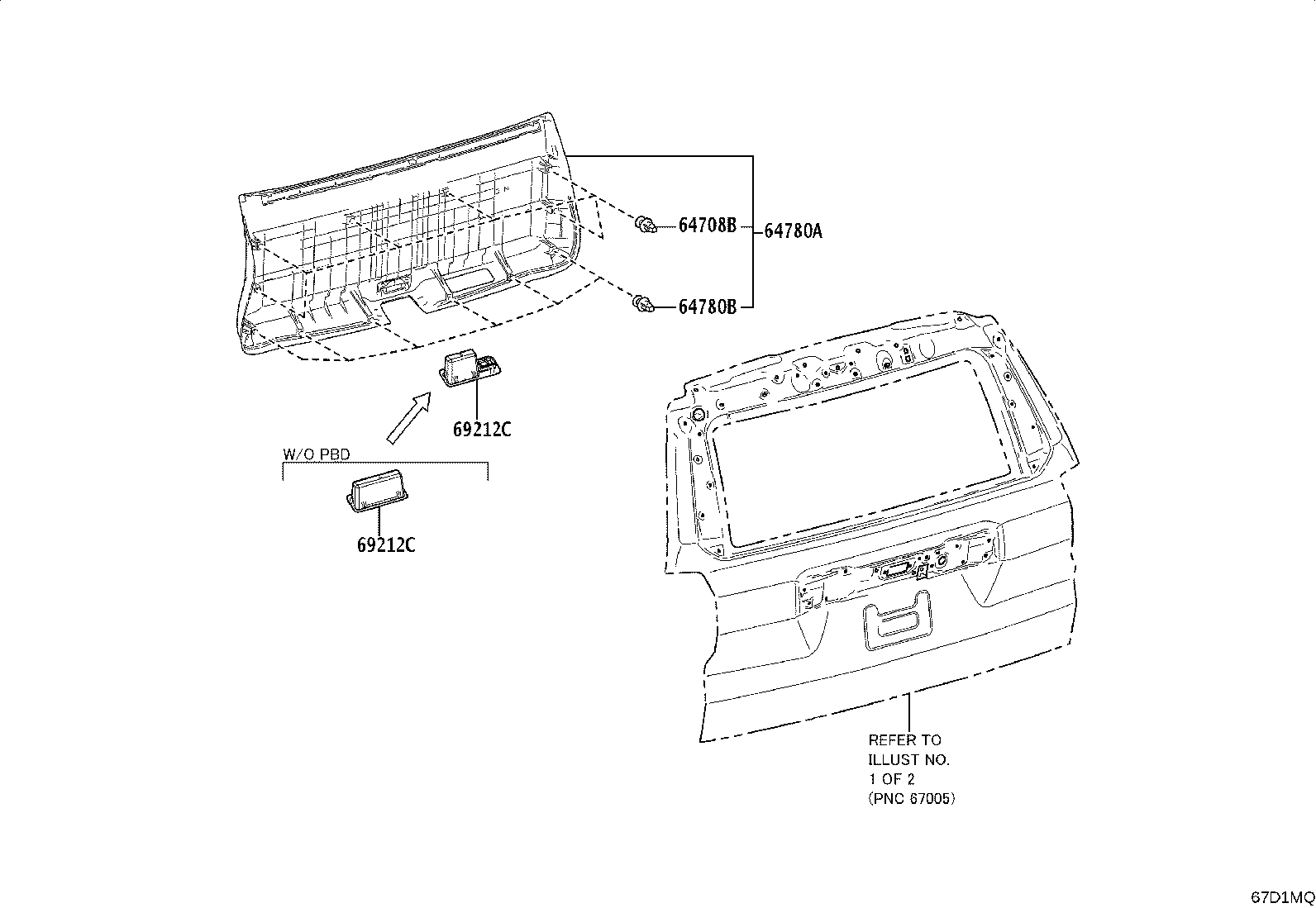

Back Door Panel & Glass
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64708B | Clip, Back Door Trim |
| 64780A | Panel Assy, Back Door Trim |
| 64780B | Clip(FOR BACK DOOR TRIM PANEL) |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67199C | Retainer, Back Door Inside Panel |
| 67281G | Stopper, Back Door, Lower RH |
| 67282F | Stopper, Back Door, Lwr LH |
| 67293C | Cushion, Back Door Stopper |
| 67294D | Cushion, Back Door Stopper, LH |
| 67381A | Bracket, Back Window Wiper Motor, NO.1 |
| 67396C | Bracket, Back Door Inside Handle |
| 67837N | Seal, Back Door Dust Proof |
| 67847E | Cover, Back Door Service Hole, RH |
| 67848E | Cover, Back Door Service Hole, LH |
| 67853C | Cover, Back Door Service Hole, NO.3 |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
| 68275 | Run, Back Door Glass |
| 68291 | Weatherstrip, Back Door Glass |
| 69212C | Handle, Back Door Inside |
| 75129C | Cushion, Rear Licence Plate |
| 76801D | Garnish Sub-assy, Back Door, Outside |
| 76817 | Clip, Back Door Outside Garnish |
| 76821B | Protector, Back Door Garnish Side, RH |
| 76822B | Protector, Back Door Garnish Side, LH |
| 76825 | Protector, Back Door Outside Garnish |
| 76825C | Protector, Back Door Outside Garnish |
| 76825J | Protector, Back Door Outside Garnish, NO.2 |
| 76835A | Protector, Back Door Finish Panel, NO.1 |
| 76881B | Protector, Back Door Lower Moulding, RH |
| 76882B | Protector, Back Door Lower Moulding, LH |
| 89437V | Cover, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
