Toyota 4Runner
2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States
Supported model
Data version 2024-12

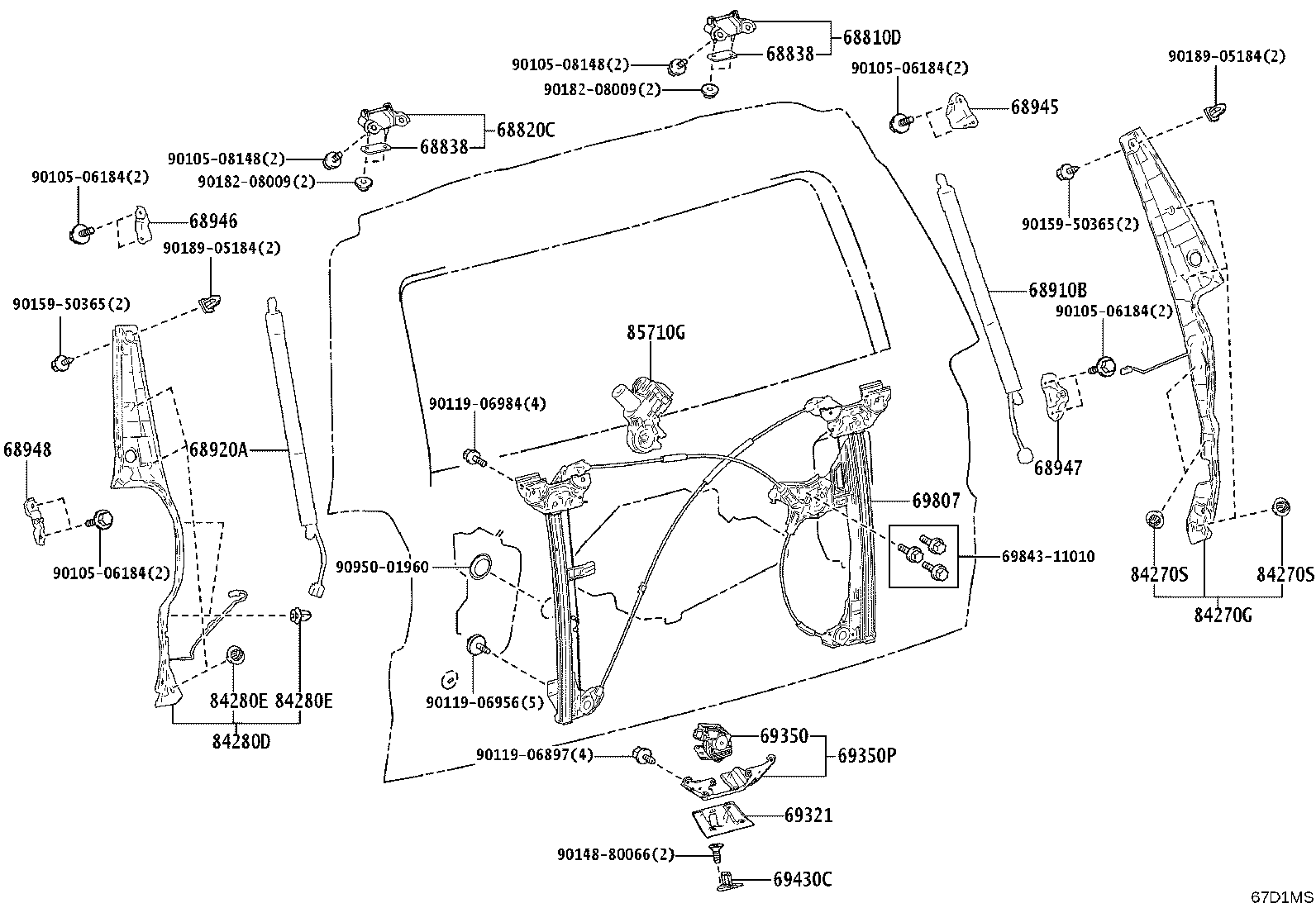

Back Door Lock & Hinge
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 68810D | Hinge Assy, Back Door, RH |
| 68820C | Hinge Assy, Back Door, LH |
| 68838 | Pad, Back Door Hinge, NO.1 |
| 68910B | Unit Assy, Power Back Door, RH |
| 68920A | Unit Assy, Power Back Door, LH |
| 68945 | Bracket, Back Door Damper Stay, Upper RH |
| 68946 | Bracket, Back Door Damper Stay, Upper LH |
| 68947 | Bracket, Back Door Damper Stay, Lower RH |
| 68948 | Bracket, Back Door Damper Stay, Lower LH |
| 68950C | Stay Assy, Back Door, RH |
| 68960 | Stay Assy, Back Door, LH |
| 69321 | Cover, Back Door Lock |
| 69350 | Lock Assy, Back Door |
| 69350P | Lock Assy, Back Door, W/Courtesy Lamp Switch |
| 69430C | Striker Assy, Back Door Lock |
| 69807 | Regulator Sub-assy, Back Door Power Window |
| 84270G | Sensor Assy, Power Back Door, RH |
| 84270S | Clip(POWER BACK DOOR SENSOR, RH) |
| 84280D | Sensor Assy, Power Back Door, LH |
| 84280E | Clip (FOR POWER BACK DOOR SENSOR, LH) |
| 85710G | Motor Assy, Power Window Regulator, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
