Toyota 4Runner

2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

147 part groups · 9 illustrations

Illustrations

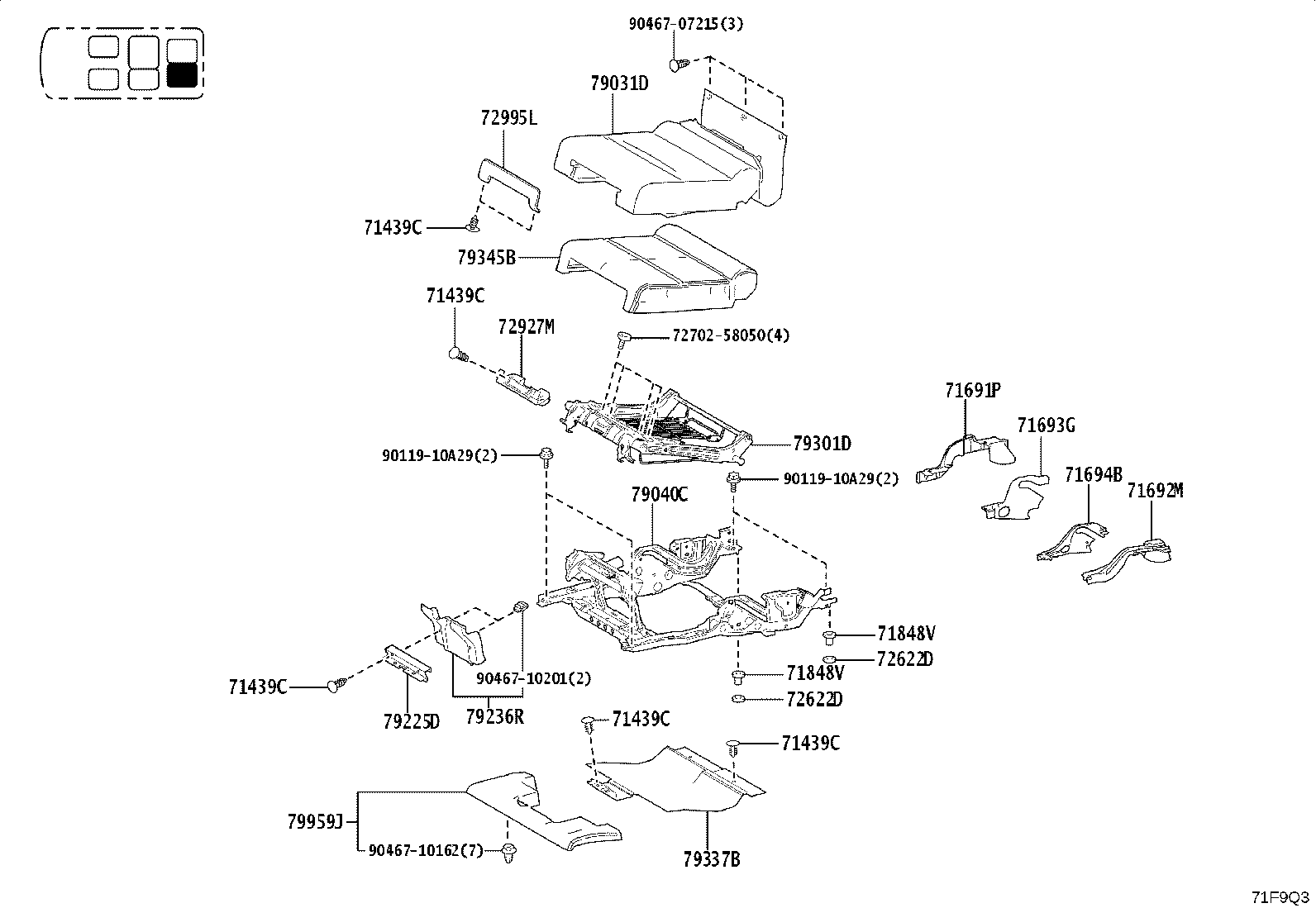

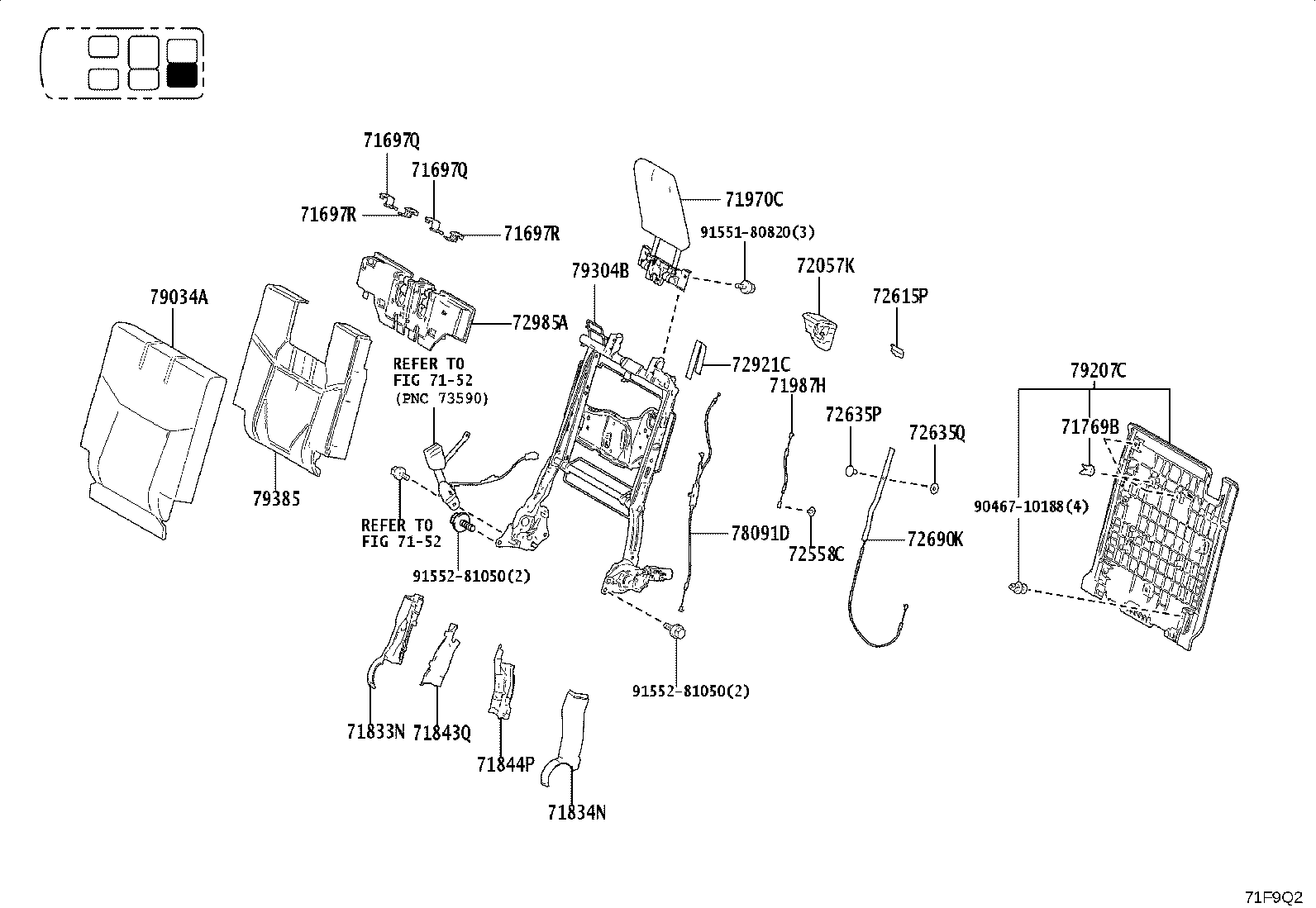

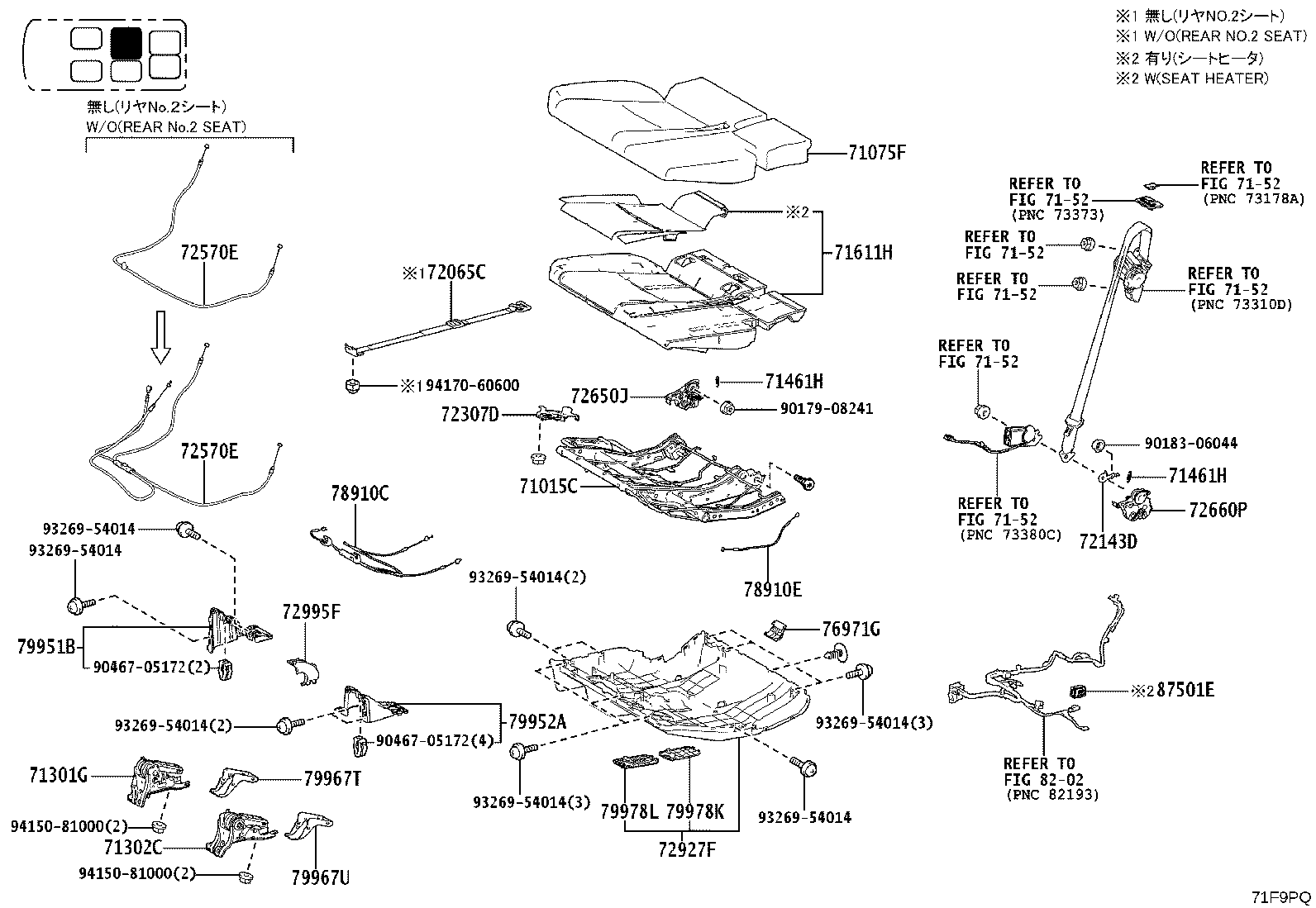

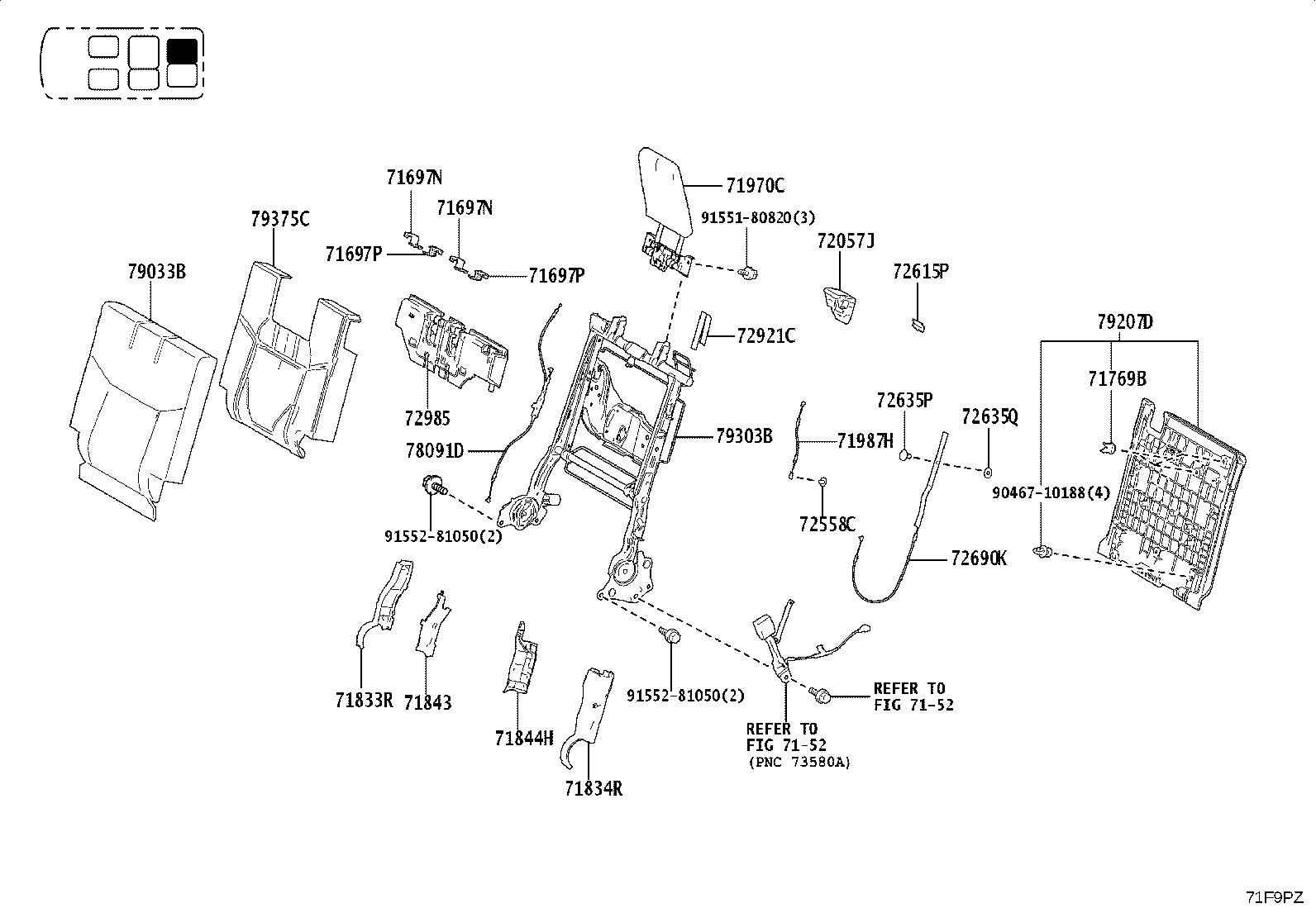

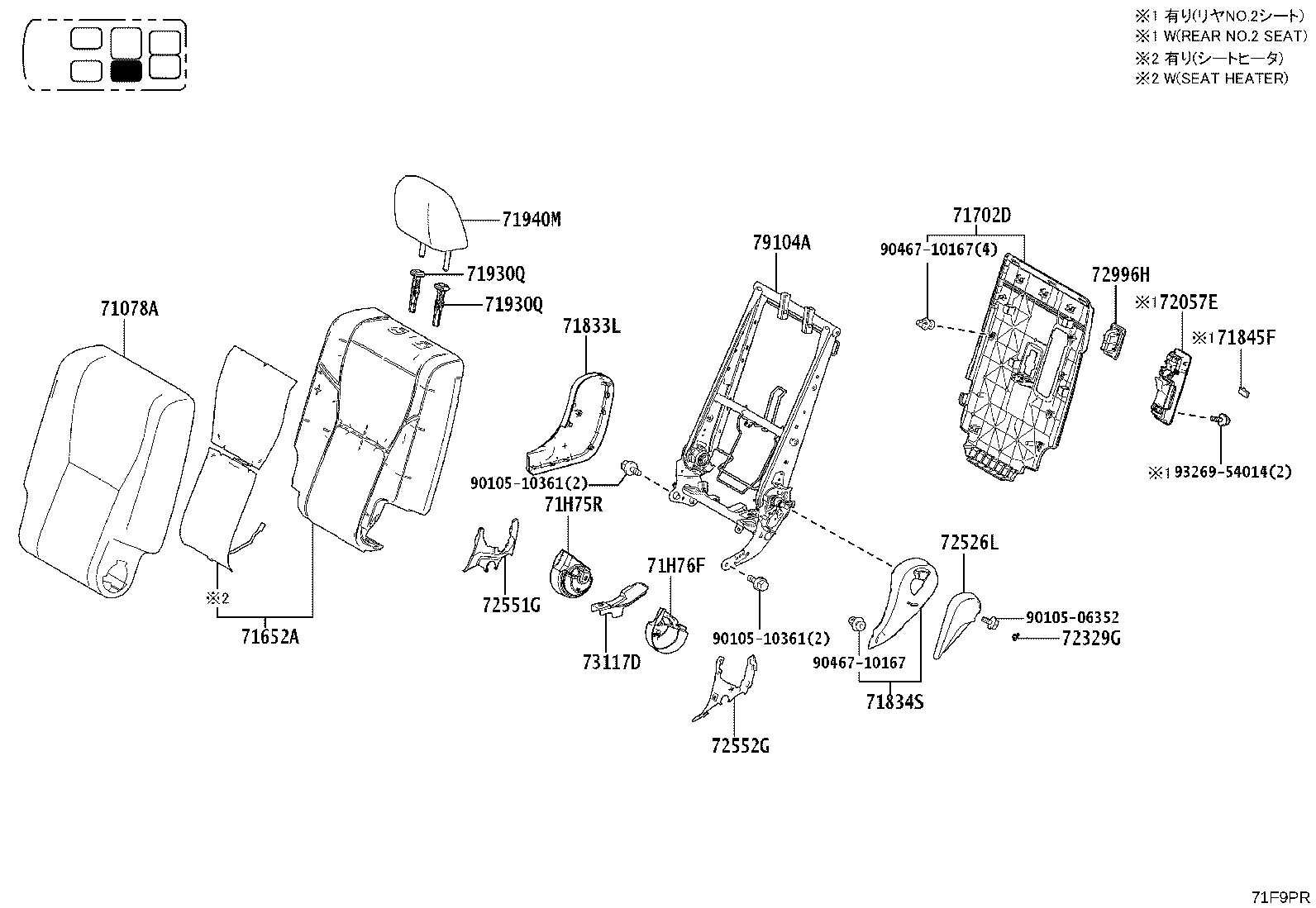

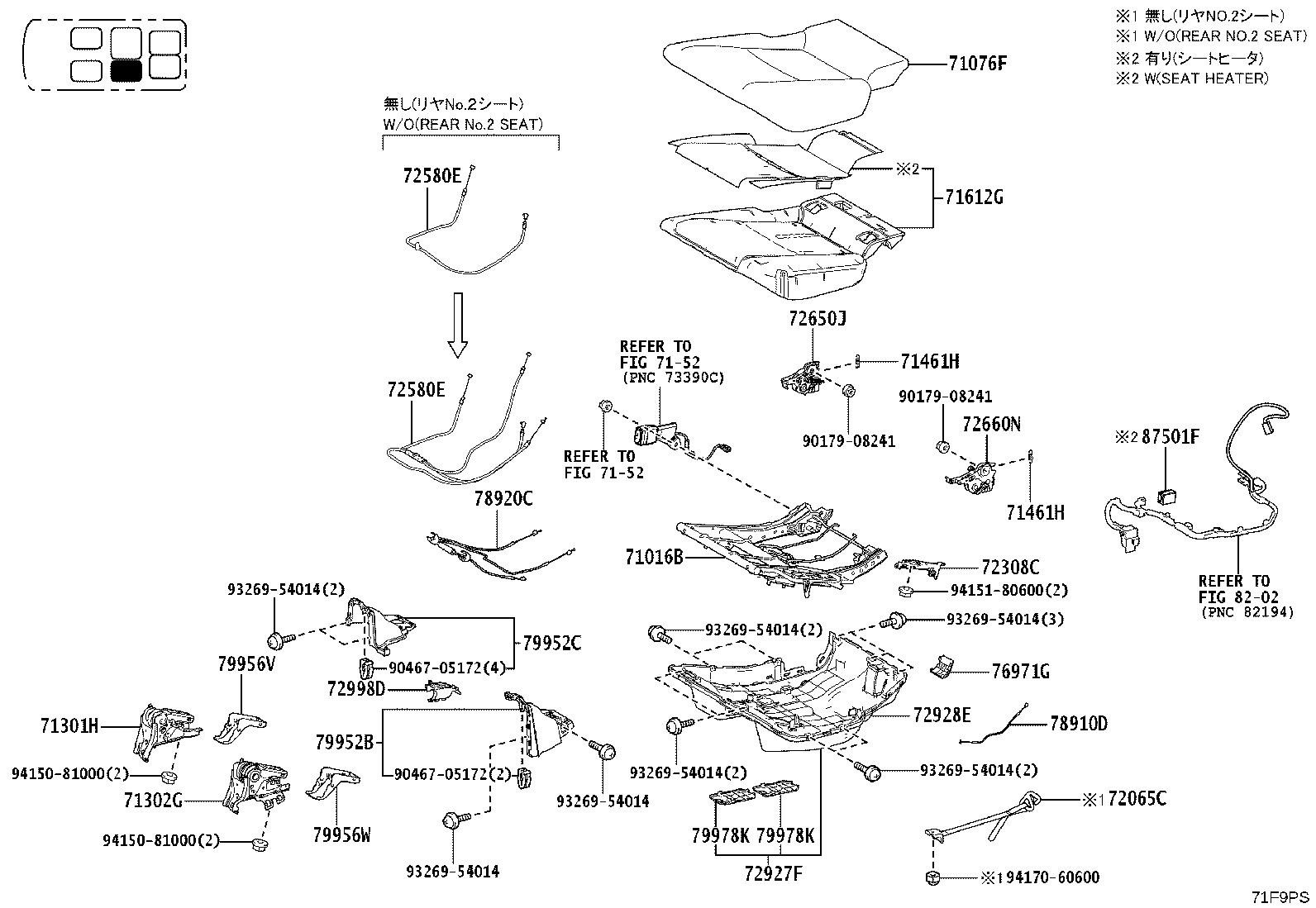

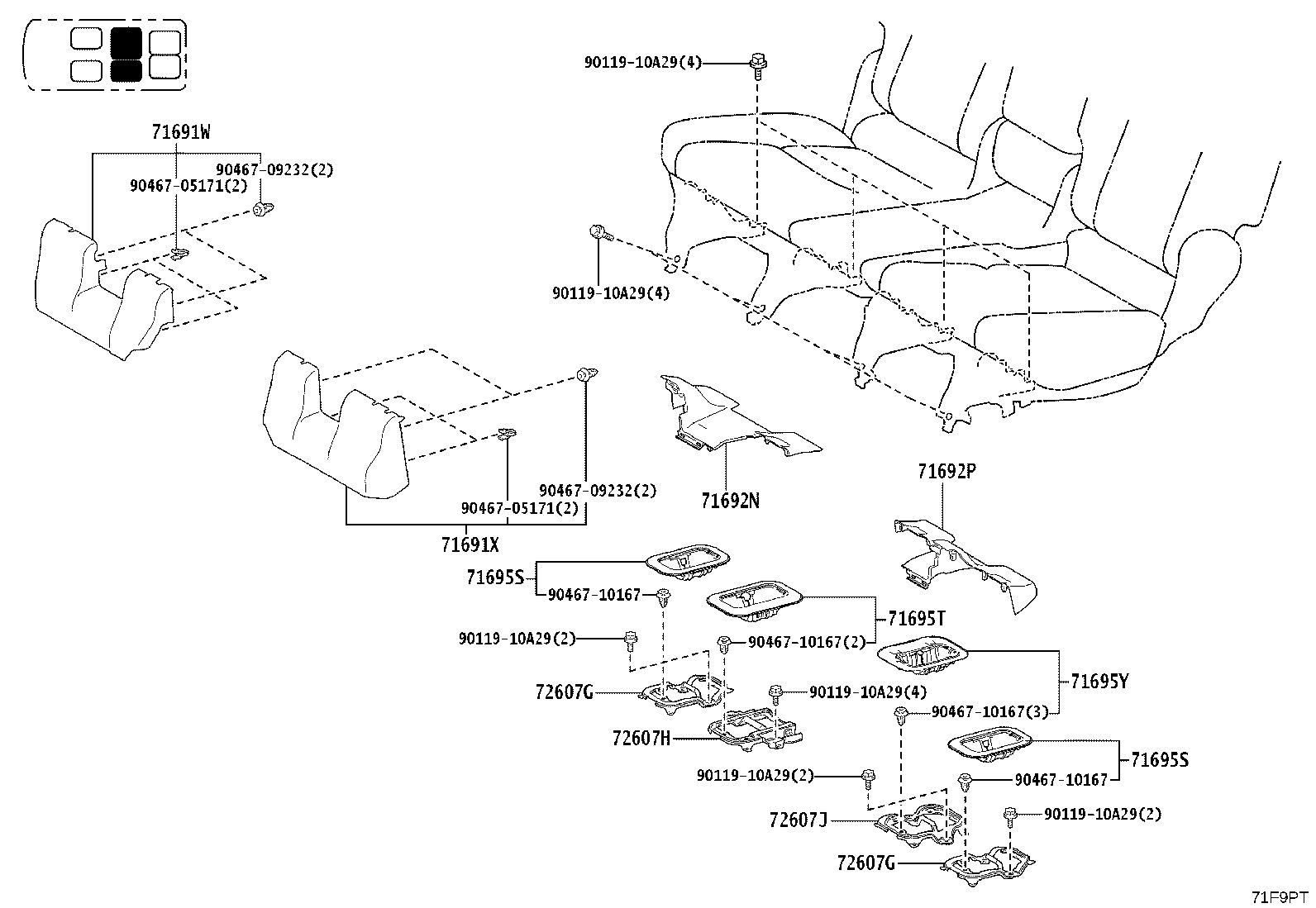

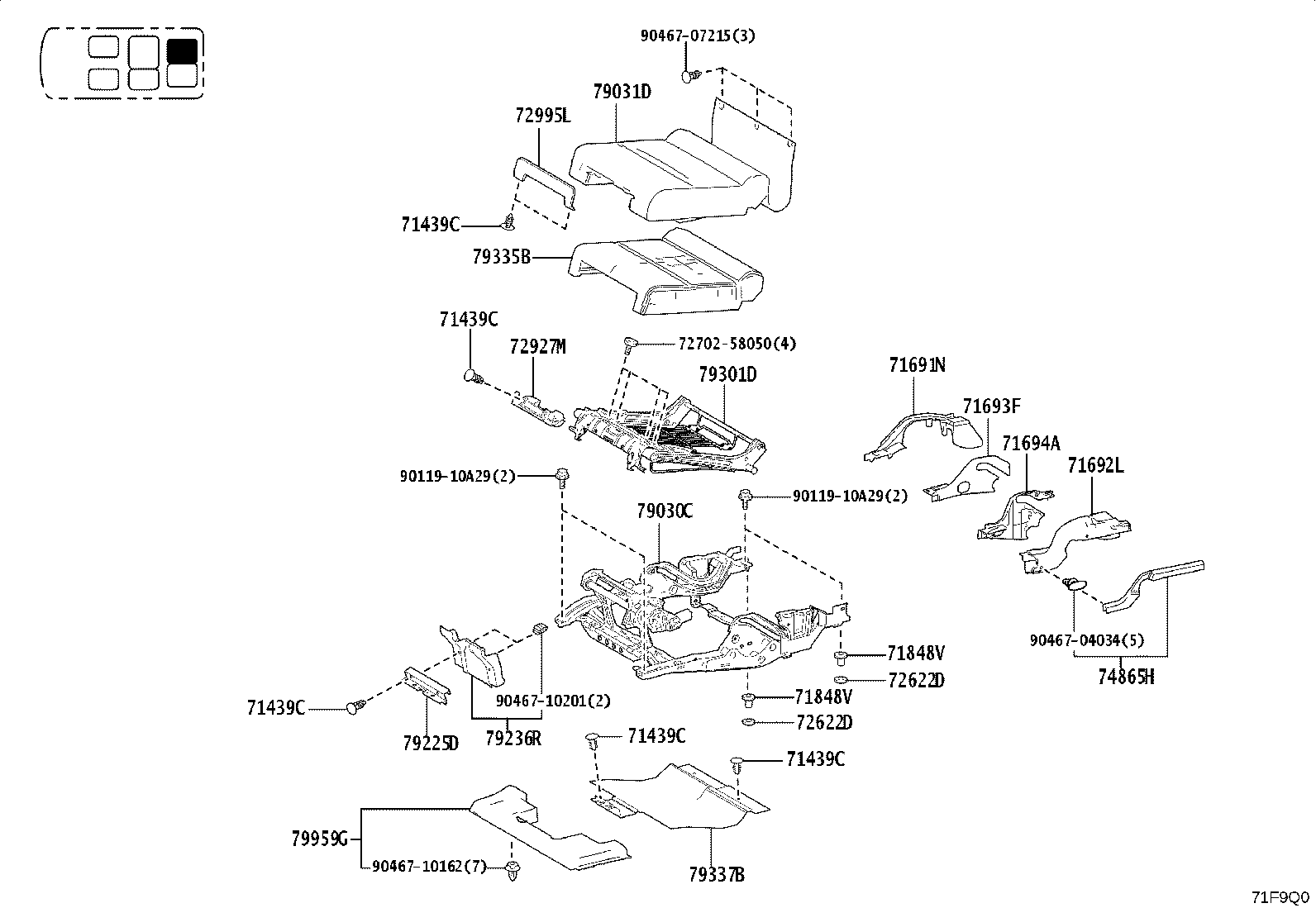

Figure 71F9PPA 71F9PPA 2024-12 → — Figure 71F9PQ 71F9PQ 2024-12 → — Figure 71F9PR 71F9PR 2024-12 → — Figure 71F9PS 71F9PS 2024-12 → — Figure 71F9PT 71F9PT 2024-12 → — Figure 71F9PZ 71F9PZ 2024-12 → — Figure 71F9Q0 71F9Q0 2024-12 → — Figure 71F9Q2 71F9Q2 2024-12 → — Figure 71F9Q3 71F9Q3 2024-12 → —

Part groups

PNCDescription
71015C Frame Sub-assy, NO.1 Seat Cushion, RH
71016B Frame Sub-assy, NO.1 Seat Cushion, LH
71075F Cover Sub-assy, NO.1 Seat Cushion, RH
71076F Cover Sub-assy, NO.1 Seat Cushion, LH
71077 Cover Sub-assy, Rear NO.1 Seatback, RH
71078A Cover Sub-assy, Rear NO.1 Seatback, LH
71301G Hinge Sub-assy, Rear NO.1 Seat, RH(FOR RH SEAT)
71301H Hinge Sub-assy, Rear NO.1 Seat, RH(FOR LH SEAT)
71302C Hinge Sub-assy, Rear NO.1 Seat, LH(FOR RH SEAT)
71302G Hinge Sub-assy, Rear NO.1 Seat, LH(FOR LH SEAT)
71439C Clip
71461H Spring, Rear Seat Cushion
71485E Cover, Rear Seat Hinge
71486F Cover, Rear Seat Hinge, LH
71611H Pad, Rear NO.1 Seat Cushion, RH
71612G Pad, Rear NO.1 Seat Cushion, LH
71651A Pad, Rear NO.1 Seatback, RH
71652A Pad, Rear NO.1 Seatback, LH
71691N Cover, Rear Seat Cushion Hinge, Upper RH NO.1
71691P Cover, Rear Seat Cushion Hinge, Upper RH NO.2
71691W Cover, Rear Seat Cushion Hinge, NO.1
71691X Cover, Rear Seat Cushion Hinge, NO.2
71692L Cover, Rear Seat Cushion Hinge, Upper LH NO.1
71692M Cover, Rear Seat Cushion Hinge, Upper LH NO.2
71692N Cover, Rear Seat Cushion Hinge, NO.3
71692P Cover, Rear Seat Cushion Hinge, NO.4
71693F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71693G Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.2
71694A Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71694B Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.2
71695S Protector, Rear Seat, NO.1
71695T Protector, Rear Seat, NO.2
71695Y Protector, Rear Seat, NO.3
71697N Protector, Rear Seatback NO.1
71697P Protector, Rear Seatback NO.2
71697Q Protector, Rear Seatback NO.3
71697R Protector, Rear Seatback NO.4
71701A Board Sub-assy, Rear Seatback, RH
71702D Board Sub-assy, Rear Seatback, LH
71769B Clip, Seatback Board
71833L Cover, Rear Seat Reclining, RH
71833N Cover, Rear NO.2 Seat Reclining, NO.1 RH(FOR LH SEAT)
71833R Cover, Rear Seat Reclining, RH
71833S Cover, Rear Seat Reclining, NO.1 RH
71834N Cover, Rear NO.2 Seat Reclining, NO.1 LH(FOR LH SEAT)
71834R Cover, Rear Seat Reclining, LH
71834S Cover, Rear Seat Reclining, NO.1 LH
71843 Cover, Rear Seat Reclining, NO.2 RH
71843Q Cover, Rear NO.2 Seat Reclining, NO.2 RH(FOR LH SEAT)
71844H Cover, Rear Seat Reclining, NO.2 LH
71844M Cover, Rear Seat Reclining, NO.2 LH
71844P Cover, Rear NO.2 Seat Reclining, NO.2 LH(FOR LH SEAT)
71845F Cap, Rear Seat Cover
71848V Cap, NO.3 Seat Adjuster Cover, RH
71930Q Support Assy, Rear Seat Headrest
71940M Headrest Assy, Rear Seat
71960G Headrest Assy, Rear NO.1 Seat, Center
71970C Headrest Assy, Rear Seat
71987H Cable, Rear Seat Headrest
71H75L Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
71H75R Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71H76F Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT)
71T76B Cover, Reclining Adjuster Inside, LH
72057E Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057J Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72057K Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72065C Belt Sub-assy, Rear Seat Hook
72143D Bracket, Rear Seat Track, Lower Rear RH
72307D Link Sub-assy, Reclining Control, RH NO.1
72308C Link Sub-assy, Reclining Control, LH NO.1
72329F Cover, Rear Seat Adjuster Bolt
72329G Cover, Rear Seat Adjuster Bolt, NO.2
72525R Handle, Reclining Adjuster Release, RH
72526L Handle, Reclining Adjuster Release, LH
72551F Cover, Reclining Link, RH NO.1
72551G Cover, Reclining Link, RH NO.2
72552F Cover, Reclining Link, LH NO.1
72552G Cover, Reclining Link, LH NO.2
72558C Stopper, Reclining, NO.1
72570E Cable Assy, NO.1 Seat Reclining Adjusting, RH
72580E Cable Assy, Reclining Adjusting, LH
72607G Striker Sub-assy, Rear Seat Cushion Lock, NO.1
72607H Striker Sub-assy, Rear Seat Cushion Lock, NO.2
72607J Striker Sub-assy, Rear Seat Cushion Lock, NO.3
72615P Cover, Rear Seatback Lock Striker
72622D Bush(FOR REAR NO.2 SEAT LEG)
72635P Hook, Rear Seatback Lock(MALE)
72635Q Hook, Rear Seatback Lock(FEMALE)
72650J Lock Assy, Rear Seat, RH
72660N Cable Assy, Rear NO.2 Seat Cushion Lock, LH
72660P Lock Assy, Rear Seat, LH
72690K Strap Assy, Rear Seat Lock Release
72806E Holder Sub-assy, Rear Seat Center Armrest Cup
72830X Armrest Assy, Rear Seat, Center
72839A Shim, Rear Seat Armrest Hinge
72868A Cover, Center Armrest Hinge
72921C Strap, 3RD Seat
72927F Cover, Rear Seat Cushion Under, RH
72927M Cover, Rear Seat Cushion Under
72928E Cover, Rear Seat Cushion Under, LH
72985 Cover, Rear Headrest, RH
72985A Cover, Rear Headrest, LH
72995F Cover, Rear Seat Cushion, RH
72995L Cover, Rear NO.3 Seat Cushion
72996H Cover, Rear Seatback
72996J Cover, Rear Seatback, NO.2
72998D Cover, Rear Seat Cushion, LH
73117C Protector, Seat Belt Webbing, RH
73117D Protector, Seat Belt Webbing, LH
74865H Cover, Center Protector
76971G Cover, Rear Under
78091D Cable Sub-assy, Fold Seat Lock Control
78910C Cable Assy, Fold Seat Lock Control, NO.1(FOR RH SEAT)
78910D Cable Assy, Fold Seat Lock Control, NO.1(FOR LH SEAT)
78910E Cable Assy, Fold Seat Lock Control, NO.1
78920C Cable Assy, Fold Seat Lock Control, NO.2
79030C Leg Assy, Rear NO.2 Seat, RH
79031D Cover, Sub-assy, NO.3 Seat Cushion
79033B Cover Sub-assy, NO.3 Seatback, RH
79034A Cover Sub-assy, NO.3 Seatback, LH
79040C Leg Assy, Rear NO.2 Seat, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79207C Board Sub-assy, NO.2 Seatback, LH
79207D Board Sub-assy, NO.2 Seatback, RH
79225D Carpet, Rear NO.2 Seat Cushion
79236R Cover, NO.3 Seat Leg
79301D Frame Sub-assy, NO.3 Seat Cushion
79303B Frame Sub-assy, NO.3 Seatback, RH
79304B Frame Sub-assy, NO.3 Seatback, LH
79335B Pad, NO.3 Seat Cushion, RH
79337B Carpet, NO.3 Seat Cushion Under
79345B Pad, NO.3 Seat Cushion, LH
79375C Pad, NO.3 Seatback, RH
79385 Pad, NO.3 Seatback, LH
79951B Cover, NO.1 Seat Cushion, NO.1
79952A Cover, NO.1 Seat Cushion, NO.2
79952B Cover, NO.1 Seat Cushion, NO.3
79952C Cover, NO.1 Seat Cushion, NO.4
79956V Cover, Rear Seat Leg Side, RH
79956W Cover, Rear Seat Leg Side, LH
79959G Cover, NO.2 Seat Leg, RH NO.1
79959J Cover, NO.2 Seat Leg, LH NO.1
79967T Cover, Rear NO.1 Seat Leg Side, NO.1
79967U Cover, Rear NO.1 Seat Leg Side, NO.2
79978K Cover, Rear Seat Leg Side, NO.1
79978L Cover, Rear Seat Leg Side, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
