Toyota 4Runner

2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

14 part groups · 2 illustrations

Illustrations

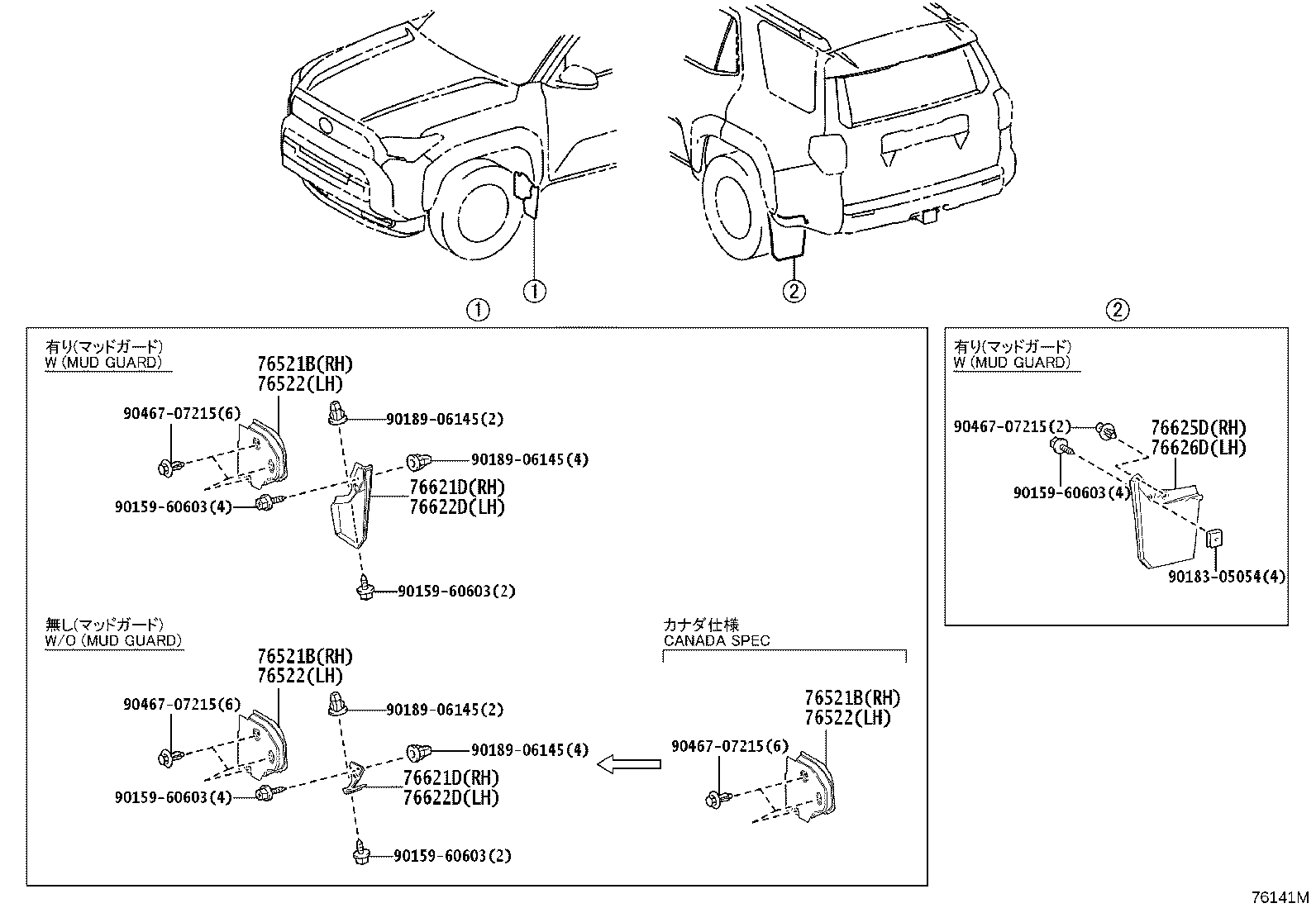

Figure 76141LA 76141LA 2024-12 → — Figure 76141M 76141M 2024-12 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76085D Clip, Rear Spoiler, NO.1
76521B Protector, Front Fender Garnish, RH
76522 Protector, Front Fender Garnish, LH
76621D Mudguard, Front Fender, RH
76622D Mudguard, Front Fender, LH
76625D Mudguard, Quarter Panel, Rear RH
76626D Mudguard, Quarter Panel, Rear LH
76851 Cover, Front Spoiler
76872A Protector, Rear Spoiler, NO.1
76873B Protector, Rear Spoiler, NO.2
76874C Protector, Rear Spoiler, NO.3
76893 Cover, Rear Spoiler, NO.1
76893H Clip, Rear Spoiler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
