Toyota 4Runner

2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

9 part groups · 2 illustrations

Illustrations

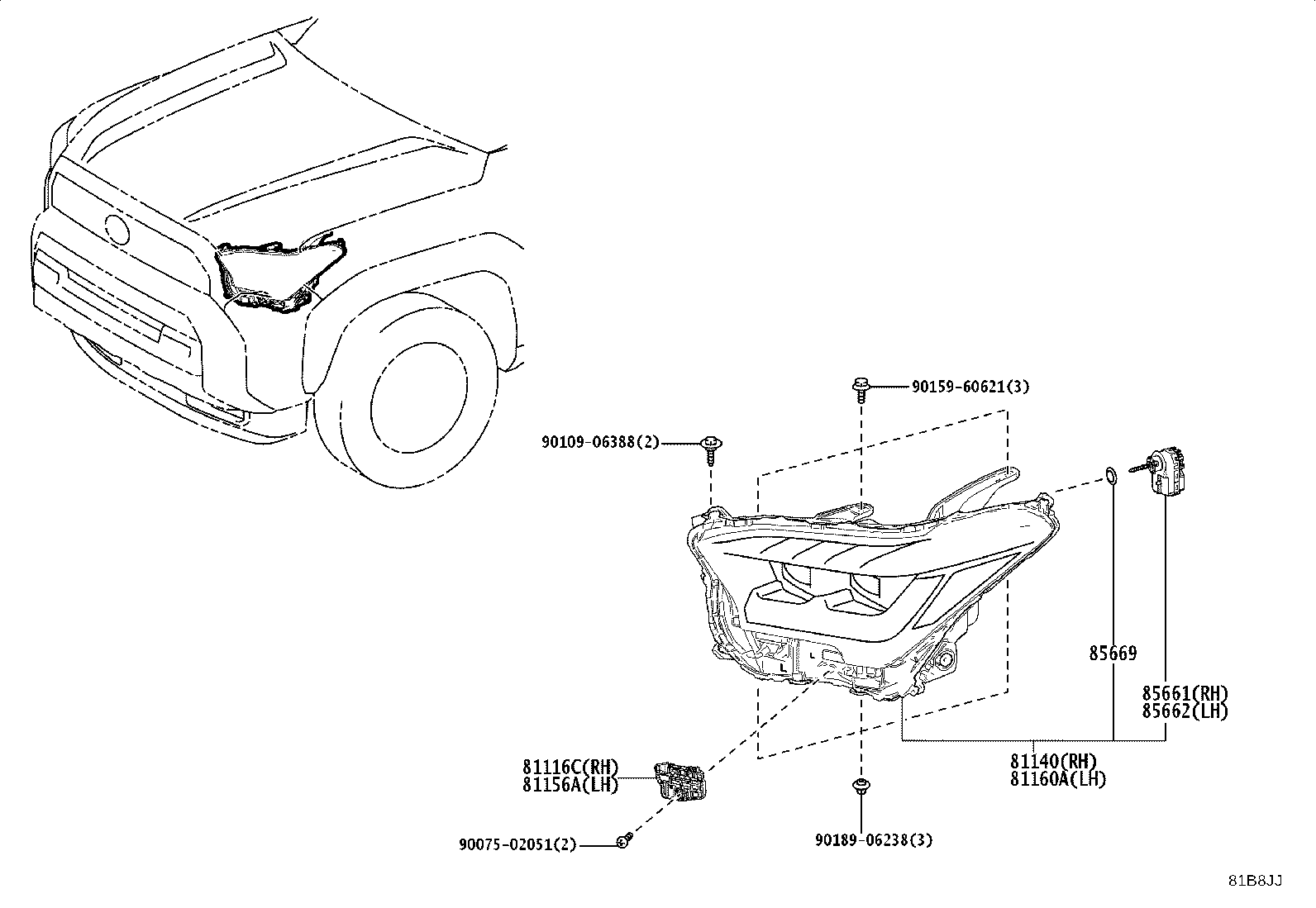

Figure 81B8JI 81B8JI 2024-12 → — Figure 81B8JJ 81B8JJ 2024-12 → —

Part groups

PNCDescription
81116C Bracket, Headlamp, RH
81140 Unit Assy, Headlamp Led, RH
81156A Bracket, Headlamp, LH
81160A Unit Assy, Headlamp Led, LH
81510A Bulb, Front Turn Signal & Parking Lamp
81515B Socket, Front Turn Signal Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
