Toyota 4Runner
2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States
Supported model
Data version 2024-12
Interior Lamp
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81230D | Lamp Assy, Front Door Courtesy, RH |
| 81230E | Lamp Assy, Front Door Courtesy, LH |
| 81230F | Lamp Assy, Rear Door Courtesy, RH |
| 81230G | Lamp Assy, Rear Door Courtesy, LH |
| 81240 | Lamp Assy, Room, NO.1 |

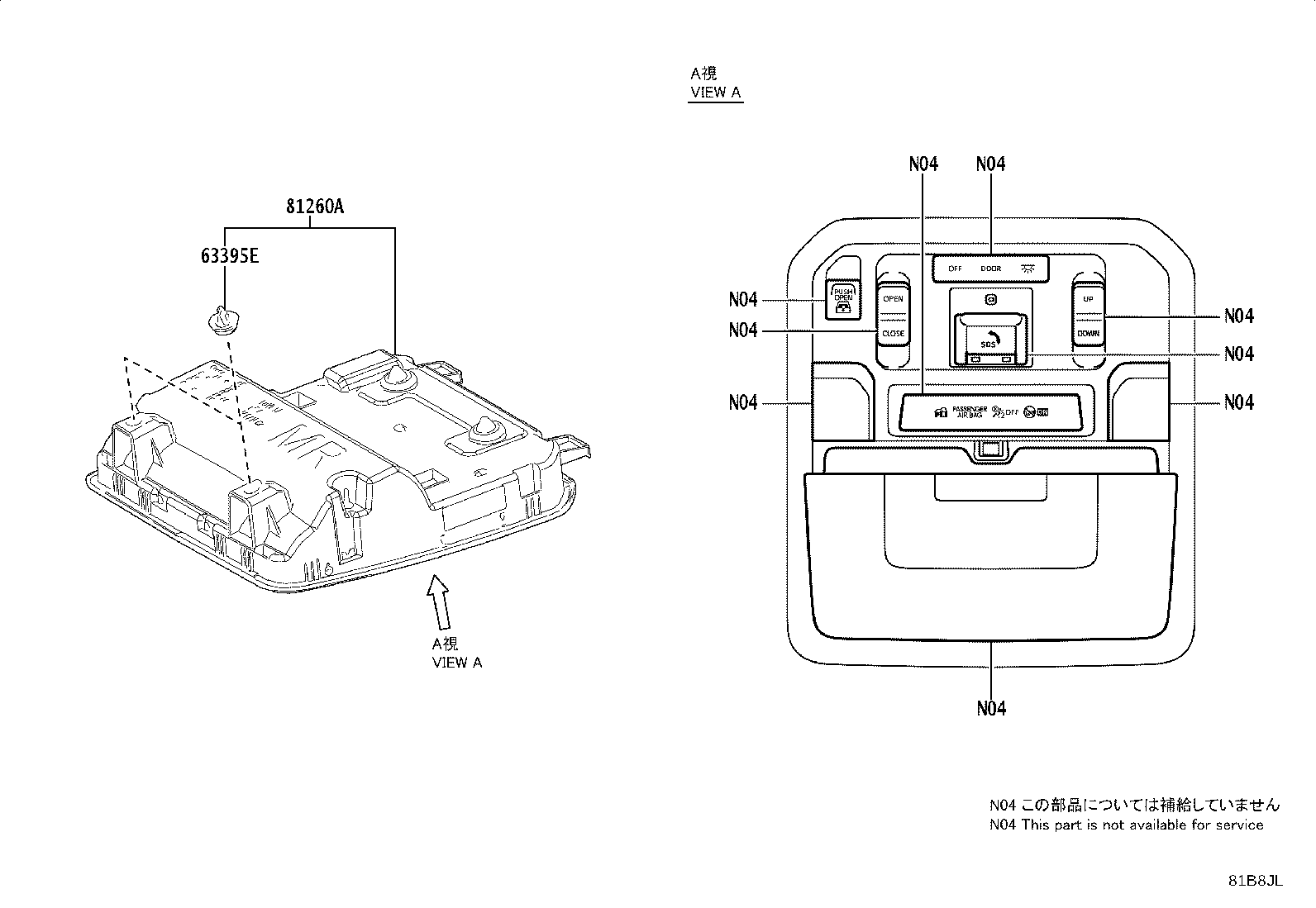

| 81260A | Lamp Assy, Map |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81340 | Lamp Assy, Vanity |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
