Toyota 4Runner
2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States
Supported model
Data version 2024-12
Wiring & Clamp
77 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82114 | Wire, Engine Room, NO.4 |
| 82119C | Wire, Engine Room, NO.5 |

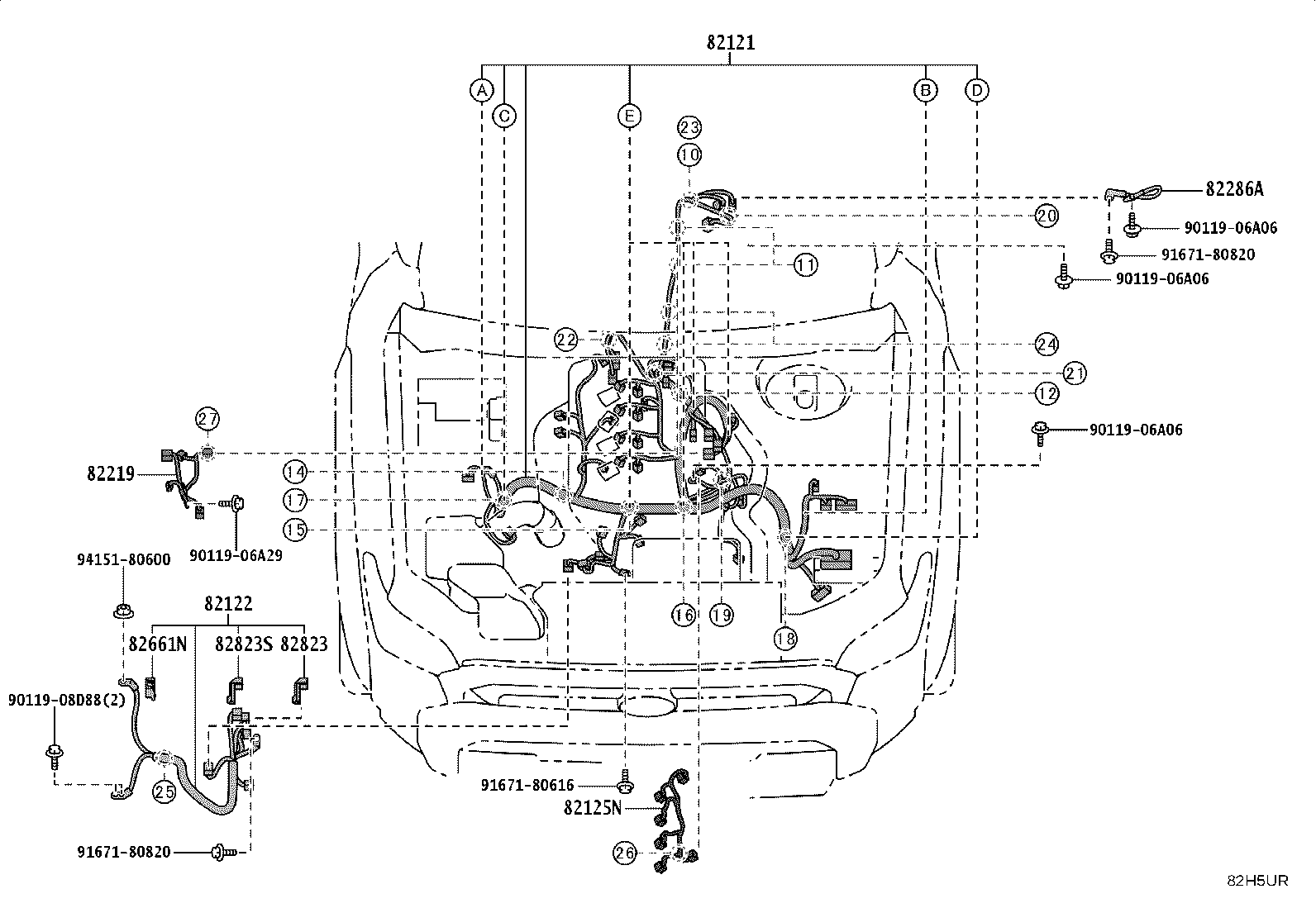

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82125N | Wire, Engine, NO.5 |

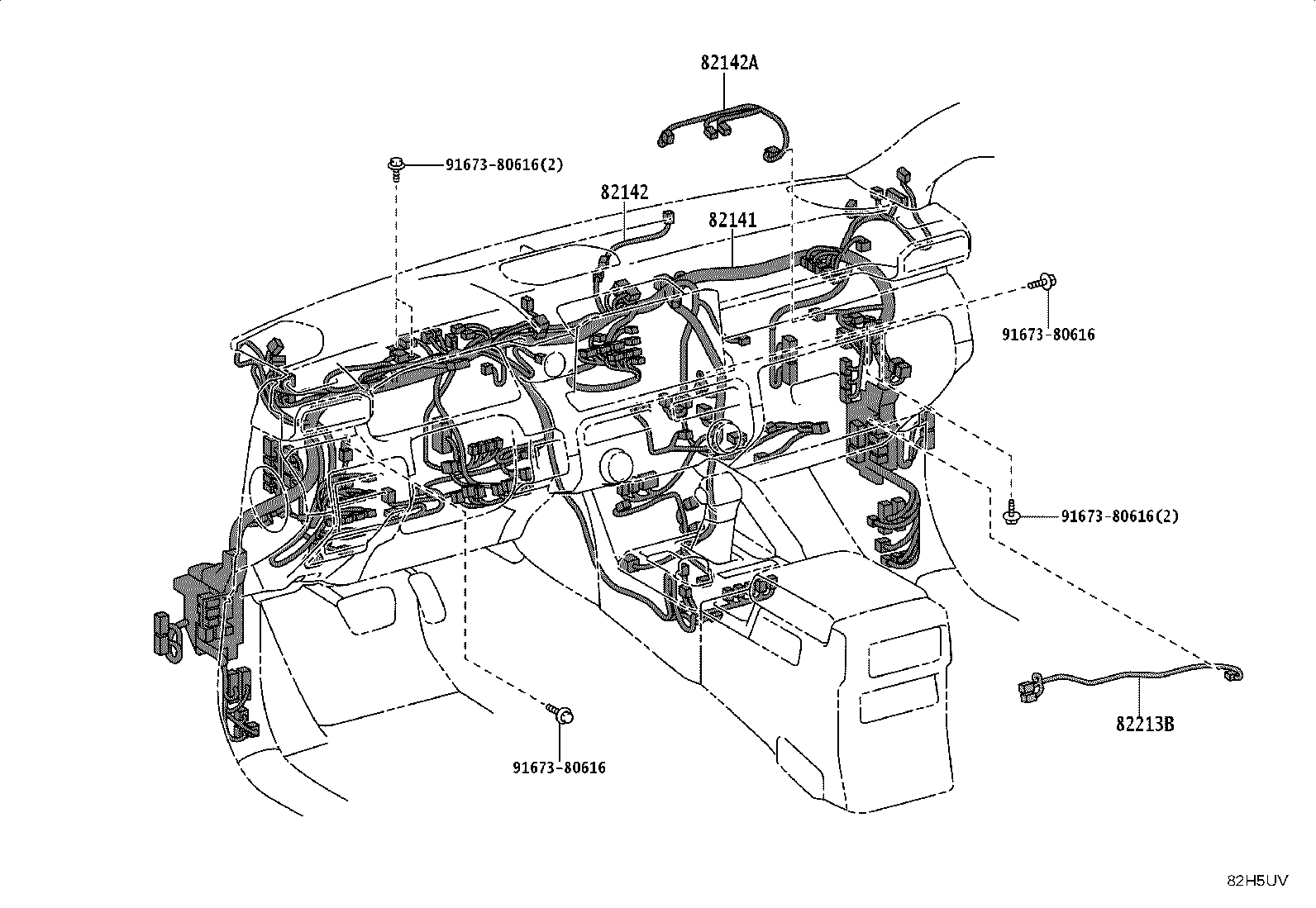

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |

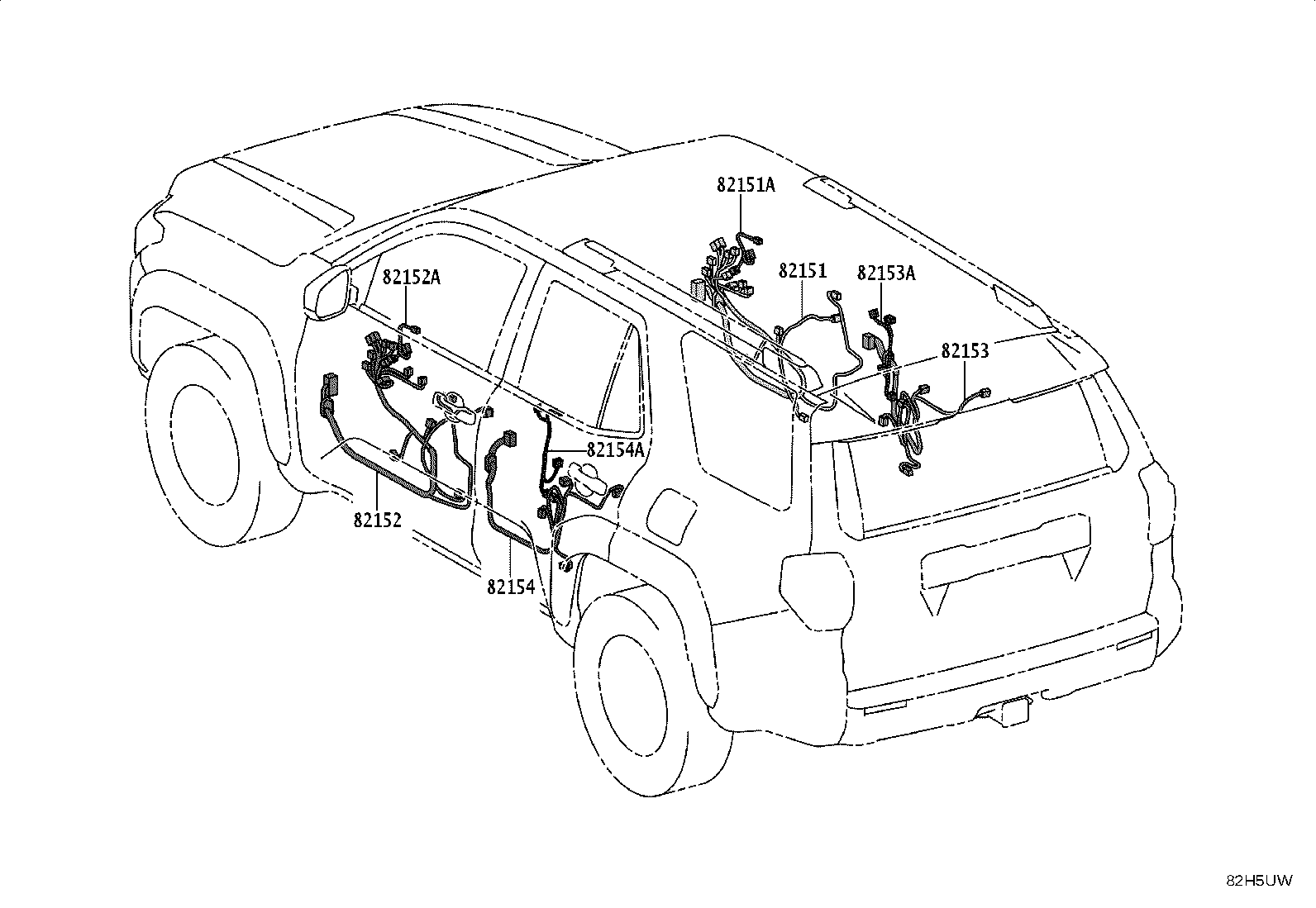

| 82151 | Wire, Front Door, RH |
| 82151A | Wire, Front Door, NO.2, RH |
| 82152 | Wire, Front Door, LH |
| 82152A | Wire, Front Door, NO.2, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82153A | Wire, Rear Door, RH |
| 82154 | Wire, Rear Door, NO.2 |
| 82154A | Wire, Rear Door, LH |

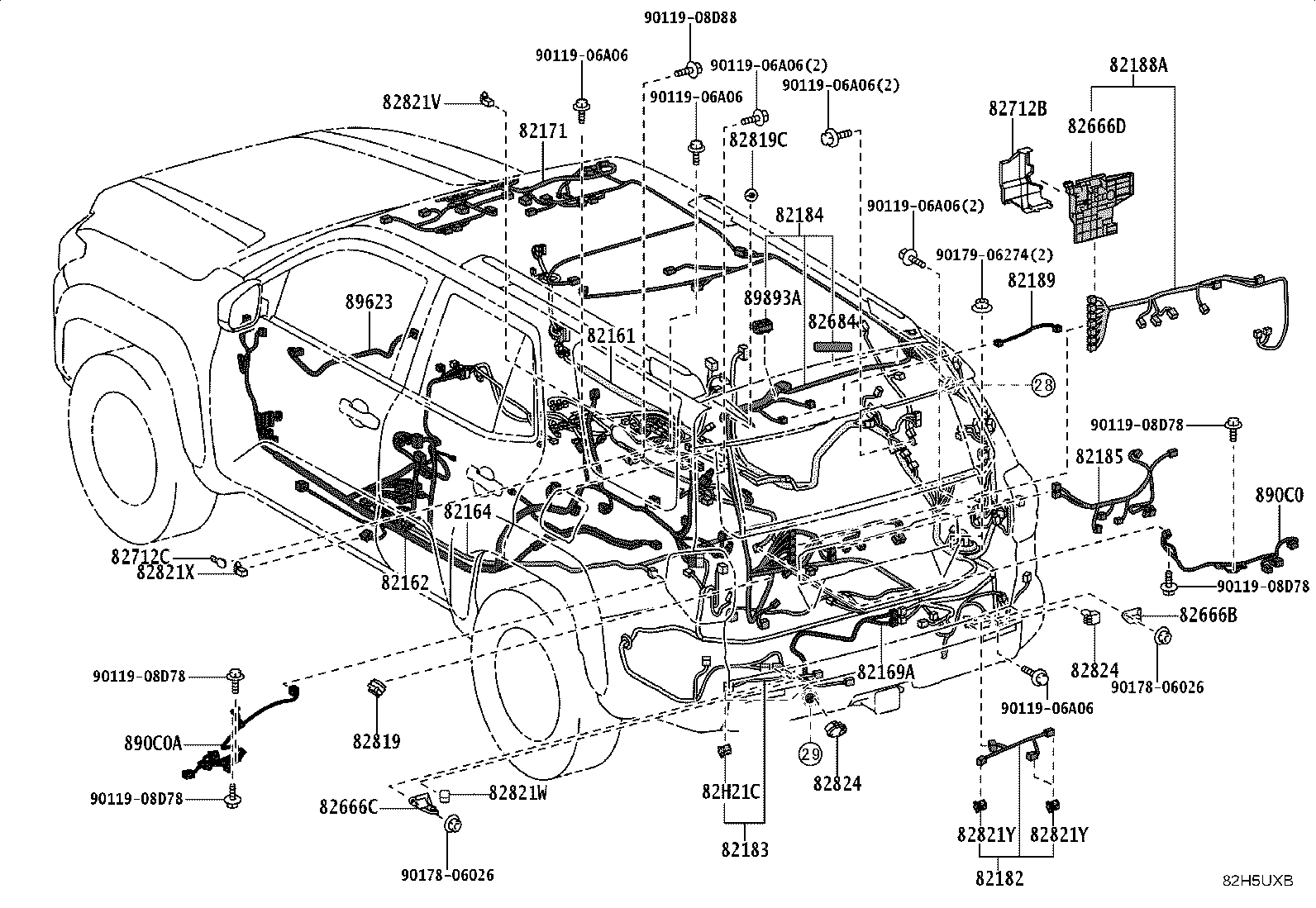

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82164 | Wire, Frame |
| 82169A | Wire, Floor, NO.6 |
| 82171 | Wire, Roof, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82188A | Wire, Back Door, NO.3 |
| 82189 | Wire, Back Door, NO.4 |

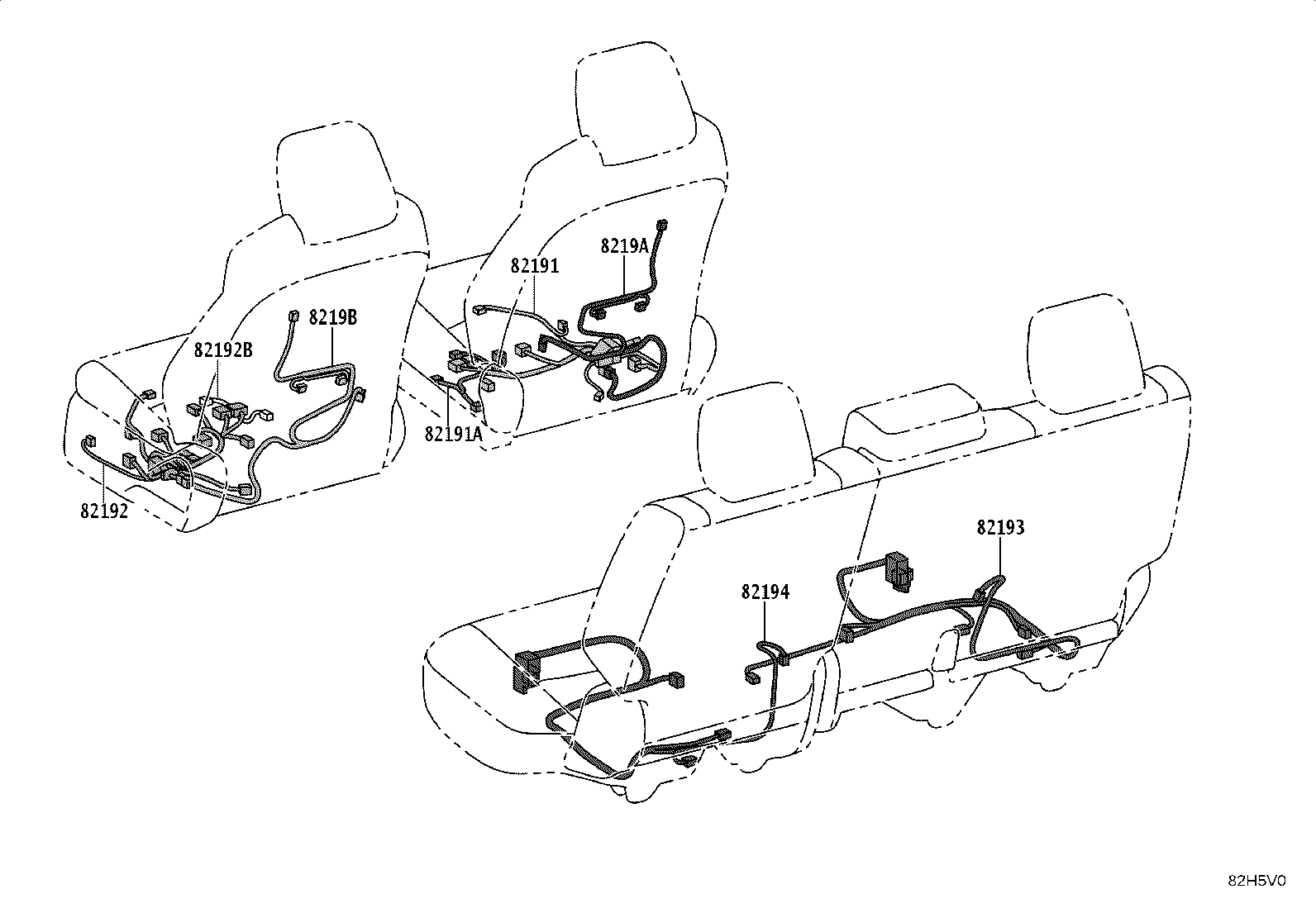

| 82191 | Wire, Front Seat, RH |
| 82191A | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82192B | Wire, Front Seat, LH NO.2 |
| 82193 | Wire, Rear Seat, RH |
| 82194 | Wire, Rear Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 82213B | Wire, Heater |
| 82219 | Wire, Thermo Sensor |
| 82286A | Wire, Earth, NO.2 |
| 82661D | Cover, Relay Block, Side NO.1 |
| 82661E | Cover, Relay Block, Side NO.2 |
| 82661H | Cover, Relay Block |
| 82661N | Cover, Relay Block, NO.4 |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82684 | Label, Cut High Voltage Electricity |
| 82712A | Support, Wiring Harness |
| 82712B | Support, Wiring Harness |
| 82712C | Support, Wiring Harness, NO.1 |

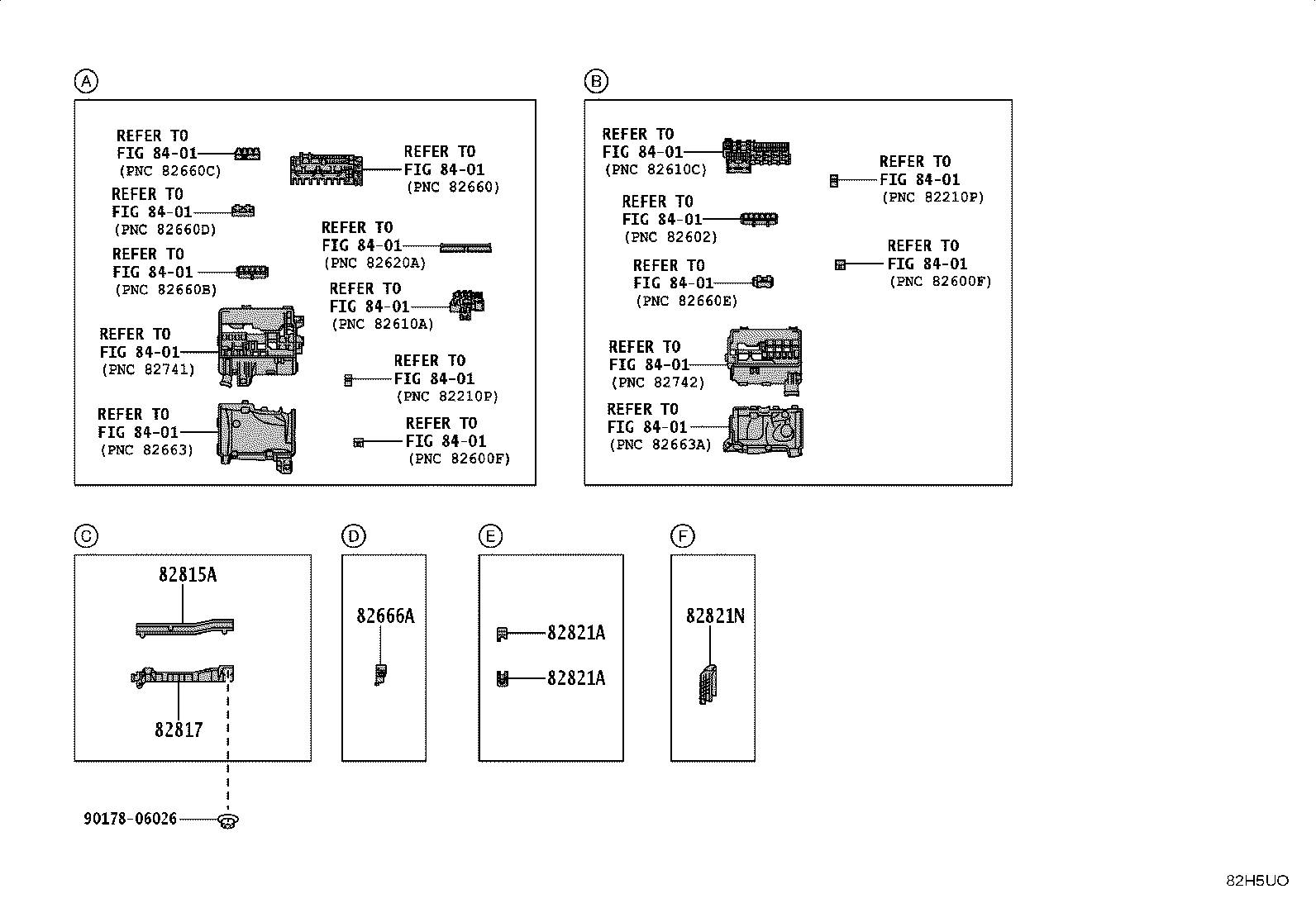

| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82819 | Grommet, Wiring Harness |
| 82819C | Grommet, Wiring Harness |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82821N | Cover, Connector |
| 82821P | Cover, Connector |
| 82821U | Cover, Connector |
| 82821V | Cover, Connector |
| 82821W | Cover, Connector |
| 82821X | Cover, Connector |
| 82821Y | Cover, Connector |
| 82823 | Cap, Terminal, NO.1 |
| 82823S | Cap, Starter Terminal |
| 82824 | Connector, Wiring Harness |
| 82824A | Connector, Wiring Harness |
| 82H21C | Cover, Connector |
| 89893A | Filter, Battery Noise |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
