Toyota 4Runner

2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

21 part groups · 2 illustrations

Illustrations

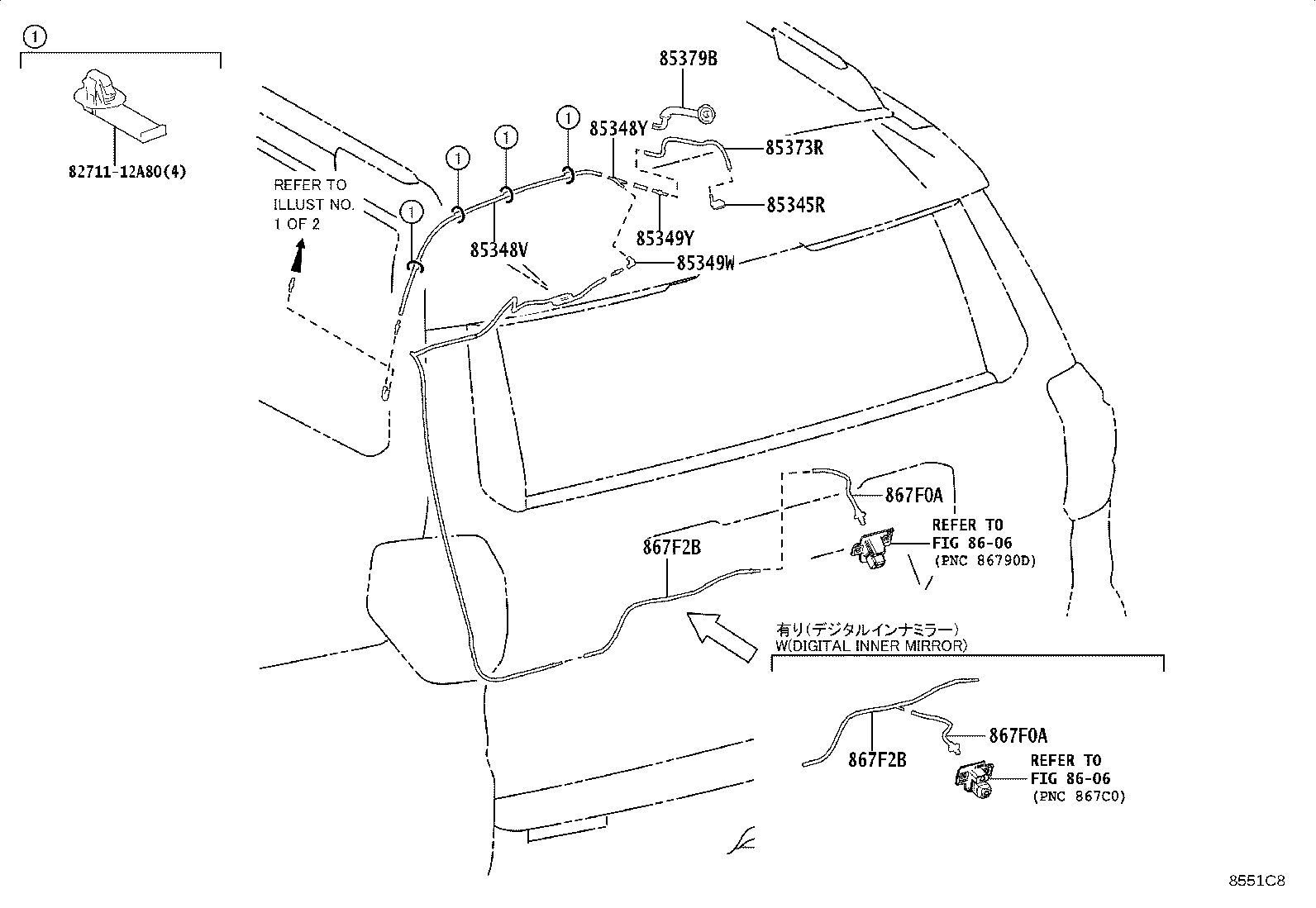

Figure 8551C7 8551C7 2024-12 → — Figure 8551C8 8551C8 2024-12 → —

Part groups

PNCDescription
85345R Nozzle, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348V Joint, Rear Washer Hose, NO.4
85348Y Joint, Rear Washer Hose, NO.5
85349H Joint, Rear Washer Hose, NO.3
85349W Joint, Rear Washer Elbow, NO.4
85349Y Joint, Rear Washer Elbow, NO.5
85371N Clamp, Rear Washer Hose
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372D Grommet, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372S Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
85372W Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85379B Grommet, Washer, A
85389C Protector, Washer
867F0A Nozzle Assy, Camera Cleaner, NO.1
867F2B Hose, Camera Cleaner, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
