Toyota 4Runner

2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

12 part groups · 3 illustrations

Illustrations

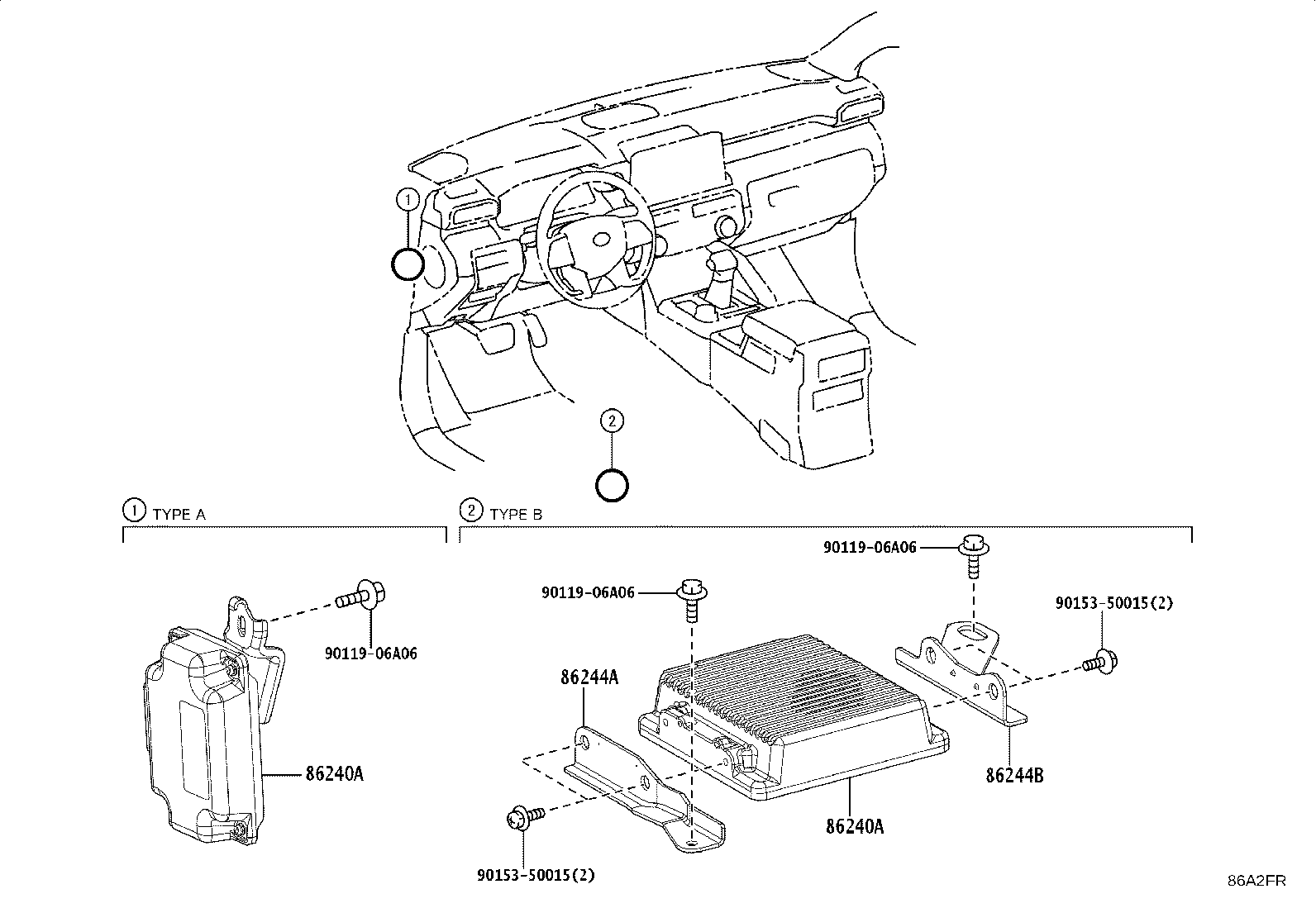

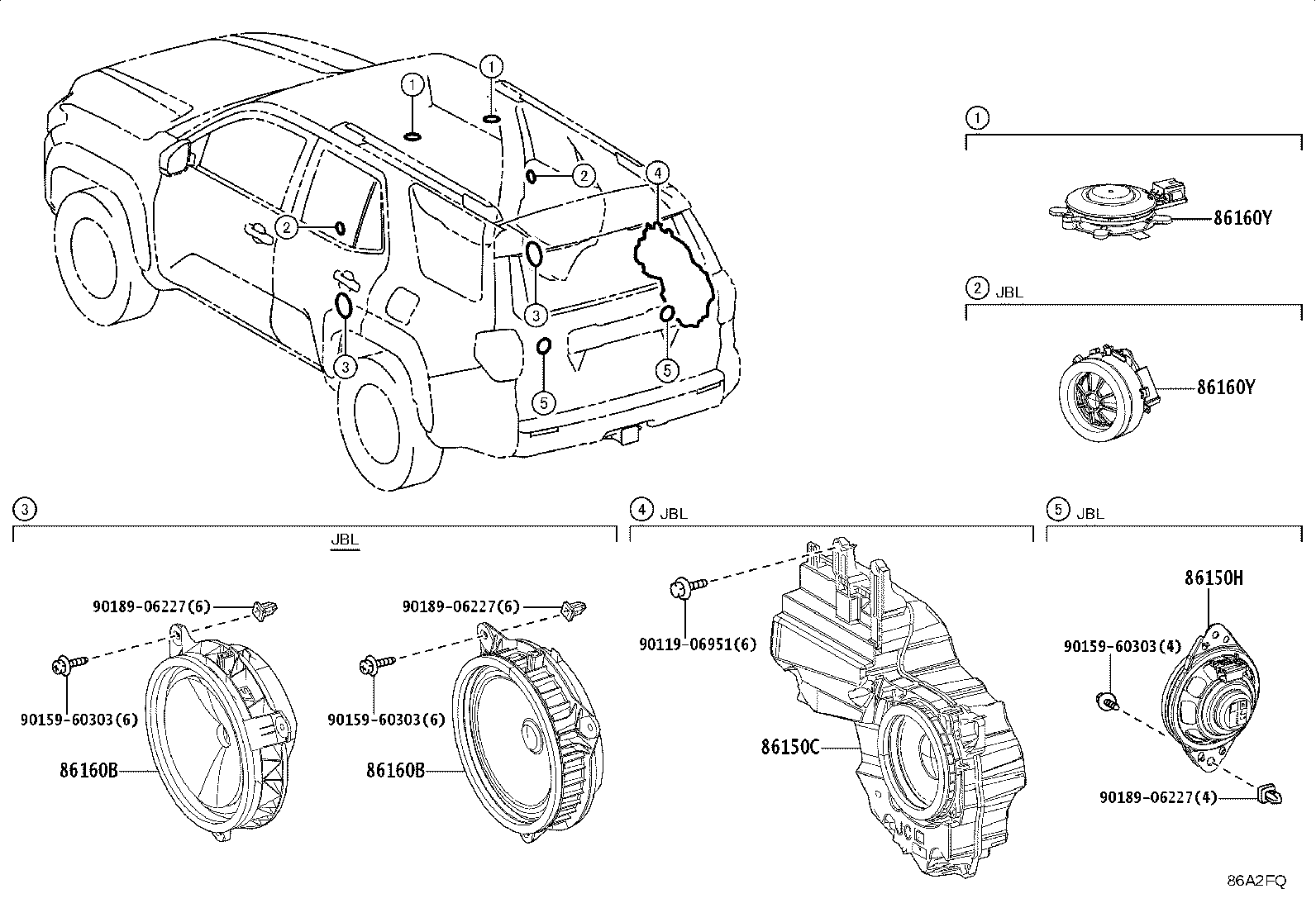

Figure 86A2FP 86A2FP 2024-12 → — Figure 86A2FQ 86A2FQ 2024-12 → — Figure 86A2FR 86A2FR 2024-12 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86150B Speaker Assy, W/Box, NO.2
86150C Speaker Assy, W/Box, NO.3
86150H Speaker Assy, W/Bracket
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
86240A Equalizer Assy,Stereo Component
86244A Bracket, Equalizer Stereo Component, NO.1
86244B Bracket, Equalizer Stereo Component, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
