Toyota 4Runner

2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States

Supported model Data version 2024-12

Heating & Air Conditioning - Cooler Unit

39 part groups · 2 illustrations

PNC	Description
82210K	Harness Assy, Air Conditioner
87050	Radiator Assy, Air Conditioner

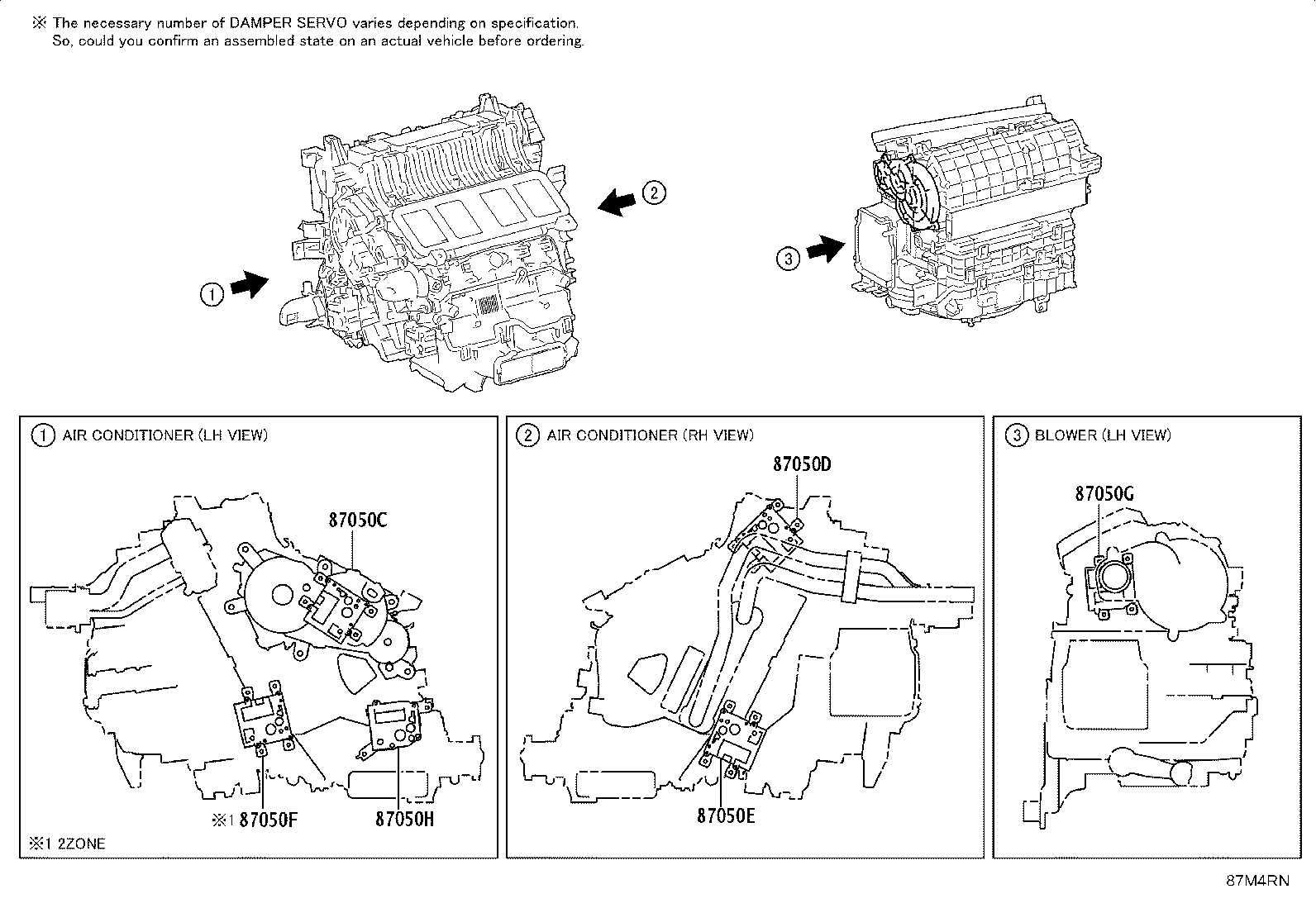

87050C	Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D	Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87050E	Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
87050G	Damper Servo Sub-assy, Air Conditioner Radiator, NO.5
87050H	Damper Servo Sub-assy, Air Conditioner Radiator, NO.6
87103B	Motor Sub-assy, Blower W/Fan
87107A	Unit Sub-assy, Heater Radiator
87114B	Cover, Heater
87124B	Clamp, Heater
87127C	Packing, Blower Motor Sub-assy, NO.1
87128	Grommet, Heater
87130D	Blower Assy
87139C	Filter, Clean Air
87429B	Packing, Cooler Unit, NO.1
87710G	Quick Heater Assy
88482A	Cover
88501	Evaporator Sub-assy, Cooler, NO.1
88501F	O-ring, Cooler Evaporator NO.1(DISCHARGE)
88501G	O-ring, Cooler Evaporator NO.1(SUCTION)
88515	Valve, Cooler Expansion
88539	Hose, Cooler Unit Drain, NO.1
88539C	Hose, Cooler Unit Drain, NO.2
88539E	Hose, Cooler Unit Drain, NO.3
88539G	Grommet (FOR COOLER UNIT DRAIN HOSE)
88539J	Hose, Drain Cooler
88539W	Hose, Drain Cooler, NO.2
88625	Thermistor, Cooler, NO.1
88710B	Tube Assy, Air Conditioner
88891S	Cover, Cooler, NO.1
88892N	Cover, Cooler, NO.2
88897K	Grommet, (FOR COOLER PIPE)
88897M	Grommet (FOR HEATER PIPE)
88898D	Grommet
88899L	Parts, Cooling Unit
88899M	Plate, Cover(FOR AIR FILTER)
88G10F	Ring, O, NO.3 (FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88G10G	Ring, O, NO.4 (FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
