Heating & Air Conditioning - Water Piping

9 part groups · 2 illustrations

Illustrations

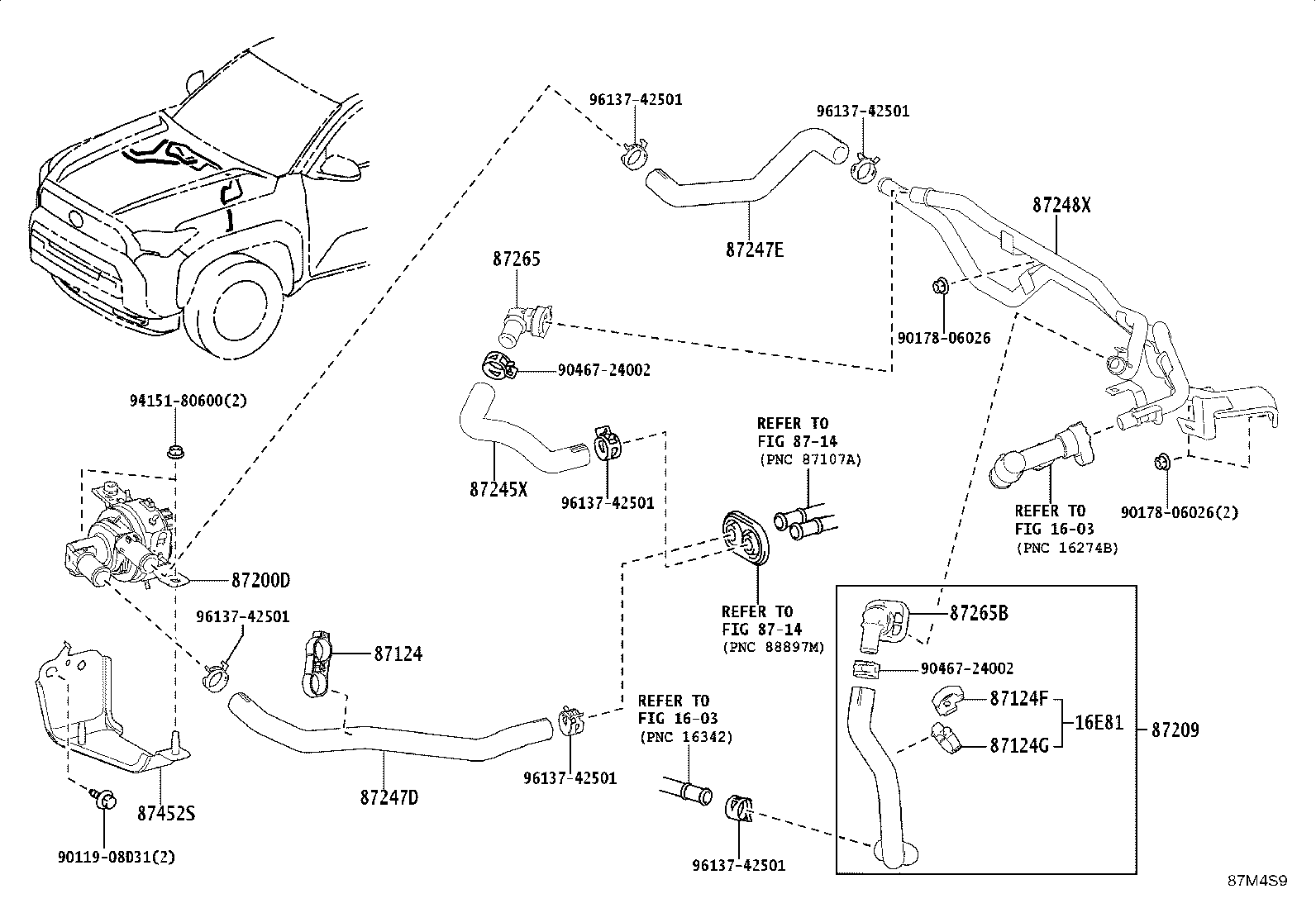

Figure 87M4S8 87M4S8 2024-12 → — Figure 87M4S9 87M4S9 2024-12 → —

Part groups

PNCDescription
16E81 Clamp, Hose(FOR WATER HOSE)
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87209 Hose Sub-assy, Water
87245X Hose, Heater Water
87245Y Hose, Heater Water
87248X Pipe, Heater Water
87265 Connector, Heater Water Hose
87265B Connector, Heater Water Hose, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
