Toyota 4Runner

2024-12 → present · chassis TZNA5#,TZNH55 · catalogue 6714A0 · United States

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 2 illustrations

Illustrations

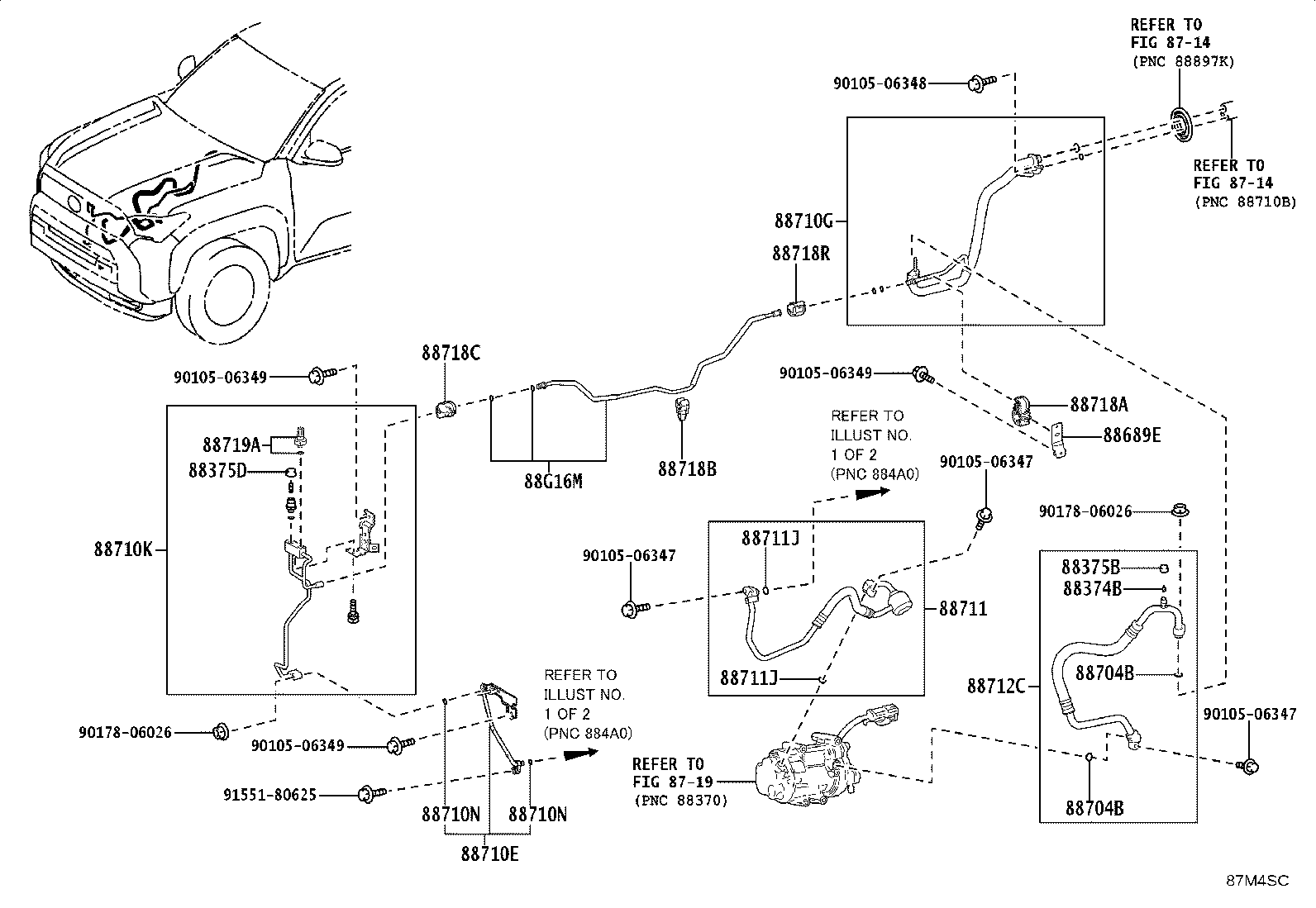

Figure 87M4SB 87M4SB 2024-12 → — Figure 87M4SC 87M4SC 2024-12 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
884A0 Condenser Assy, Cooler
88689E Bracket, Cooler, NO.1
88704B Ring, O(FOR SUCTION HOSE)
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710K Tube & Accessory Assy, Air Conditioner, NO.3
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711J Ring, O, NO.1(FOR DISCHARGE HOSE)
88712C Hose, Suction
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718R Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88895G Bush
88F88 Bracket, Condenser, NO.1
88F88A Bracket, Condenser, NO.2
88F88B Bracket, Condenser, NO.3
88F88C Bracket, Condenser, NO.4
88F88D Bracket, Condenser, NO.5
88G16M Tube, Liquid, NO.1
88H99A Bush, Condenser Bracket, NO.1
88H99B Bush, Condenser Bracket, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
