Toyota Hilux 2WD

1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

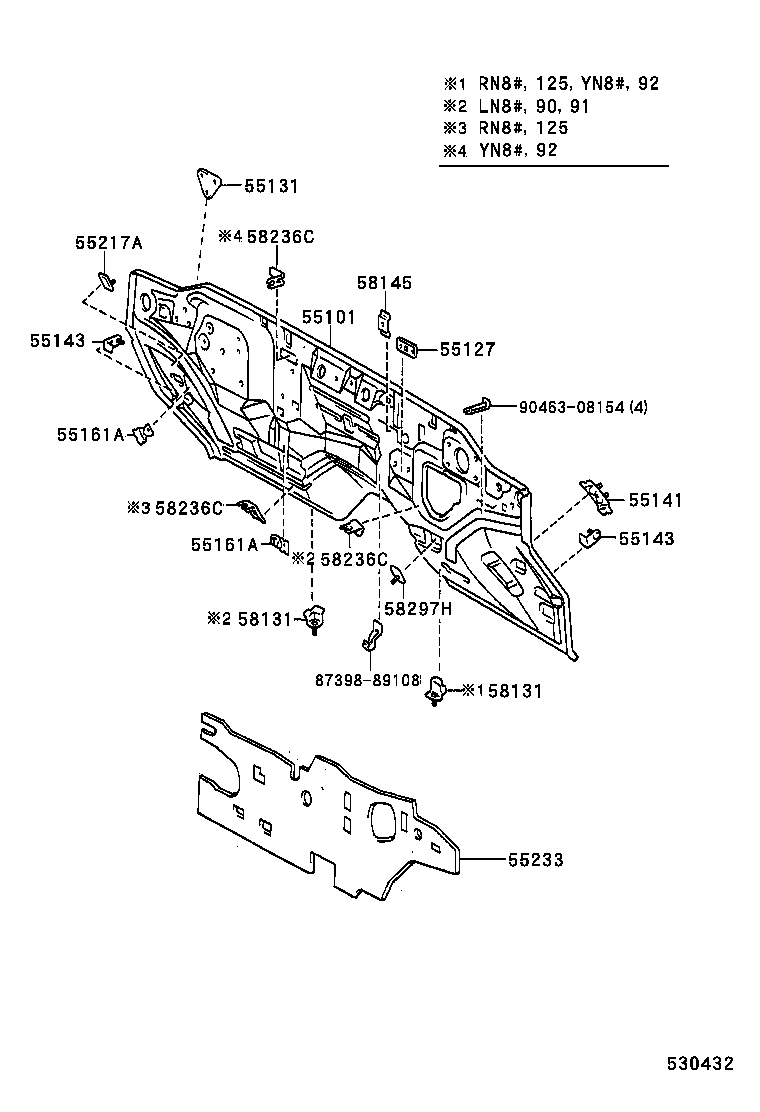

Exploded illustration 530432 55131 — REINFORCEMENT, DASH PANEL (3 parts) 58236C — BRACKET, CLUTCH TUBE (7 parts) 55217A — RETAINER, DASH PANEL SILENCER (4 parts) 58145 — RETAINER, FRONT FLOOR HEAT INSULATOR SUPPORT, NO.1 (1 parts) 55101 — PANEL SUB-ASSY, DASH (4 parts) 55143 — BRACKET, COWL SIDE TRIM MOUNTING, NO.1 (16 parts) 55127 — REINFORCEMENT, PARKING BRAKE (3 parts) 9046308154 — not listed in this catalogue 55161A — BRACKET, HEATER MOUNTING, RH (23 parts) 55141 — BRACKET, FOOT REST MOUNTING (8 parts) 58236C — BRACKET, CLUTCH TUBE (7 parts) 55143 — BRACKET, COWL SIDE TRIM MOUNTING, NO.1 (16 parts) 55161A — BRACKET, HEATER MOUNTING, RH (23 parts) 58236C — BRACKET, CLUTCH TUBE (7 parts) 58297H — RETAINER, FLOOR CLAMP (3 parts) 58131 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 (4 parts) 8739889108 — not listed in this catalogue 58131 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 (4 parts) 55233 — SHEET, DASH PANEL INSULATOR (4 parts)
530432 · 17 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
55101 — Panel Sub-assy, Dash
55111-89236 Panel Sub-assy, Dash
1997-05 → 1998-01 ended
RN85 LHD CBU;RN85 EFI +2 —
55111-89236 Panel Sub-assy, Dash
1998-01 → 2001-06 ended
RN85 TW1 EFI;RN85 EFI +3 —
55111-89236 Panel Sub-assy, Dash
1989-12 → 1997-05 ended
LN81,85,86,90,RN125,8#,90,YN8#,92 LHD —
55111-89242 Panel Sub-assy, Dash
1989-12 → 1999-09 ended
LN80,85,86,9#,RN85,90,YN80,85,87,9# RHD —
55127 — Reinforcement, Parking Brake
55127-89102 Reinforcement, Parking Brake
1989-12 → 1997-05 ended
LN81,85,86,90,RN125,8#,90,YN8#,92 LHD —
55127-89102 Reinforcement, Parking Brake
1997-05 → 1998-01 ended
RN85 LHD CBU;RN85 EFI +2 —
55127-89102 Reinforcement, Parking Brake
1998-01 → 2001-06 ended
RN85 TW1 EFI;RN85 EFI +3 —
55131 — Reinforcement, Dash Panel
55131-89104 Reinforcement, Dash Panel
1989-12 → 1991-08 ended
YN85 ARL —
55131-89104 Reinforcement, Dash Panel
1991-08 → 1998-01 ended
YN81,86;RN85 RHD;RN85 EFI;RN90,YN85 ARL —
55131-89104 Reinforcement, Dash Panel
1998-01 → 1999-09 ended
RN85 RHD;RN85 TW1 EFI;RN85 +2 —
55141 — Bracket, Foot Rest Mounting
55141-89103 Bracket, Foot Rest Mounting
1997-05 → 1999-09 ended
RN90 V;RN85 SR5;RN85 LHD +5 —
55141-89103 Bracket, Foot Rest Mounting
1990-08 → 1994-08 ended
RN90 V;RN85 EFI;LN85,RN8# LHD +2 —
55141-89103 note Bracket, Foot Rest Mounting
1994-09 → 1995-08 ended
YN86 TW1 DLX —
55141-89103 Bracket, Foot Rest Mounting
1994-08 → 1996-08 ended
RN8# SR5;LN85,RN90 LHD (TH,V) —
55141-89103 Bracket, Foot Rest Mounting
1996-08 → 1997-05 ended
RN90 V;RN85 SR5;RN85 LHD +6 —
55141-89106 Bracket, Foot Rest Mounting
1990-01 → 1992-01 ended
LN85 RHD TH;LN80,90,RN90 ARL,TH;LN85,86,RN85 +2 —
55141-89106 Bracket, Foot Rest Mounting
1992-01 → 1999-09 ended
RN85 DLX ARL;LN85,86 RHD +4 —
55141-89106 Bracket, Foot Rest Mounting
1989-12 → 1990-01 ended
LN8#,90 TH;RN85,90 (DLX,SR5) ARL —
55143 — Bracket, Cowl Side Trim Mounting, NO.1
55143-89102 note Bracket, Cowl Side Trim Mounting, NO.1
1992-08 → 1993-08 ended
RN85 ) LHD (DLX,STD);LN85,86 +5 —
55143-89102 note Bracket, Cowl Side Trim Mounting, NO.1
1998-01 → 2001-06 ended
RN85 TW1 EFI;LN8#,9#,RN85,YN85 CBR,DSL —
55143-89102 note Bracket, Cowl Side Trim Mounting, NO.1
1997-09 → 1999-09 ended
RN85 EFI IV3 —
55143-89102 note Bracket, Cowl Side Trim Mounting, NO.1
1997-05 → 1998-01 ended
RN85 CBU;RN85 RHD IV3;LN8#,9#,RN80,90,YN8#,92 —
55143-89102 note Bracket, Cowl Side Trim Mounting, NO.1
1989-12 → 1997-05 ended
LN8#,9#,RN125,8#,90,YN8#,9# —
55143-89102 note Bracket, Cowl Side Trim Mounting, NO.1
1989-12 → 1991-08 ended
LN8#,90,RN125,8#,90,YN8#,92 —
55143-89102 note Bracket, Cowl Side Trim Mounting, NO.1
1991-08 → 1992-08 ended
LN81,85,86 LHD (GEN,V) —
55143-89102 note Bracket, Cowl Side Trim Mounting, NO.1
1991-08 → 1992-08 ended
RN85 LHD;LN85 RHD GEN;LN86,YN85 +3 —
55143-89103 note Bracket, Cowl Side Trim Mounting, NO.1
1997-09 → 1999-09 ended
RN85 EFI IV3 —
55143-89103 note Bracket, Cowl Side Trim Mounting, NO.1
1991-08 → 1992-08 ended
LN81,85,86 LHD (GEN,V) —
55143-89103 note Bracket, Cowl Side Trim Mounting, NO.1
1998-01 → 2001-06 ended
RN85 TW1 EFI;LN8#,9#,RN85,YN85 CBR,DSL —
55143-89103 note Bracket, Cowl Side Trim Mounting, NO.1
1989-12 → 1991-08 ended
LN8#,90,RN125,8#,90,YN8#,92 —
55143-89103 note Bracket, Cowl Side Trim Mounting, NO.1
1997-05 → 1998-01 ended
RN85 CBU;RN85 RHD IV3;LN8#,9#,RN80,90,YN8#,92 —
55143-89103 note Bracket, Cowl Side Trim Mounting, NO.1
1989-12 → 1997-05 ended
LN8#,9#,RN125,8#,90,YN8#,9# —
55143-89103 note Bracket, Cowl Side Trim Mounting, NO.1
1991-08 → 1992-08 ended
RN85 LHD;LN85 RHD GEN;LN86,YN85 +3 —
55143-89103 note Bracket, Cowl Side Trim Mounting, NO.1
1992-08 → 1993-08 ended
RN85 ) LHD (DLX,STD);LN85,86 +5 —
55161A — Bracket, Heater Mounting, RH
55161-89106 note Bracket, Heater Mounting, RH
1989-12 → 1994-08 ended
LN80,85,86,90,RN85,90,YN80,85,87,9# RHD —
55161-89106 note Bracket, Heater Mounting, RH
1995-08 → 1997-08 ended
LN85 LHD TW1 —
55161-89106 note Bracket, Heater Mounting, RH
1995-08 → 1997-08 ended
LN85 LHD T1 5F +1 —
55161-89106 note Bracket, Heater Mounting, RH
1997-05 → 1998-01 ended
RN85 LHD CBU;RN85 EFI +2 —
55161-89106 note Bracket, Heater Mounting, RH
1994-08 → 1997-05 ended
RN8#,90,YN8#,92 LHD —
55161-89106 note Bracket, Heater Mounting, RH
1994-08 → 2001-05 ended
LN8#,9#,YN90;RN85,90,YN80,85 RHD —
55161-89106 note Bracket, Heater Mounting, RH
1994-09 → 1995-08 ended
YN86 TW1 DLX —
55161-89106 note Bracket, Heater Mounting, RH
1994-08 → 2001-06 ended
LN81,86 LHD;LN85 LHD 4F —
55161-89106 note Bracket, Heater Mounting, RH
1994-08 → 1995-08 ended
LN85 LHD 5F GEN —
55161-89106 note Bracket, Heater Mounting, RH
1989-12 → 1994-08 ended
LN81,85,86,90,RN125,8#,90,YN8#,92 LHD —
55161-89106 note Bracket, Heater Mounting, RH
1998-01 → 1999-09 ended
RN85 LHD CBR;RN85 TW1 +3 —
55161-89107 note Bracket, Heater Mounting, RH
1994-08 → 2001-06 ended
LN81,85,86 LHD —
55161-89107 note Bracket, Heater Mounting, RH
1998-01 → 1999-09 ended
RN85 LHD CBR;RN85 TW1 +3 —
55161-89107 note Bracket, Heater Mounting, RH
1994-08 → 2001-05 ended
LN85 LHD 4F;LN81,86,YN81,86 LHD —
55161-89107 note Bracket, Heater Mounting, RH
1994-09 → 1995-08 ended
YN86 TW1 DLX —
55161-89107 note Bracket, Heater Mounting, RH
1997-05 → 1998-01 ended
RN85 LHD CBU;RN85 EFI +2 —
55161-89107 note Bracket, Heater Mounting, RH
1995-08 → 1997-08 ended
LN85 LHD T1 5F +1 —
55161-89107 note Bracket, Heater Mounting, RH
1995-08 → 1997-08 ended
LN85 LHD TW1 —
55161-89107 note Bracket, Heater Mounting, RH
1994-08 → 1997-05 ended
RN8#,90,YN8#,92 LHD —
55161-89107 note Bracket, Heater Mounting, RH
1994-08 → 1995-08 ended
LN85 LHD 5F GEN —
55161-89107 note Bracket, Heater Mounting, RH
1989-12 → 1994-08 ended
LN81,85,86,90,RN125,8#,90,YN8#,92 LHD —
55161-89108 note Bracket, Heater Mounting, RH
1989-12 → 1999-09 ended
LN80,85,86,9#,RN85,90,YN80,85,87,9# RHD —
55161-89109 note Bracket, Heater Mounting, RH
1989-12 → 1999-09 ended
LN80,85,86,9#,RN85,90,YN80,85,87,9# RHD —
55217A — Retainer, Dash Panel Silencer
55217-89103 Retainer, Dash Panel Silencer
1989-12 → 1997-05 ended
LN81,85,86,90,RN125,8#,90,YN8#,92 LHD —
55217-89103 Retainer, Dash Panel Silencer
1997-05 → 1998-01 ended
RN85 LHD CBU;RN85 EFI +2 —
55217-89103 Retainer, Dash Panel Silencer
1989-12 → 1999-09 ended
LN80,85,86,9#,RN85,90,YN80,85,87,9# RHD —
55217-89103 Retainer, Dash Panel Silencer
1998-01 → 2001-06 ended
RN85 TW1 EFI;RN85 EFI +3 —
55233 — Sheet, Dash Panel Insulator
55233-89110 Sheet, Dash Panel Insulator
1991-08 → 1992-08 ended
YN8#,92 LHD —
55233-89111 Sheet, Dash Panel Insulator
1991-08 → 1992-08 ended
LN81,85,86,RN125,8# LHD —
55233-89112 Sheet, Dash Panel Insulator
1991-08 → 1992-08 ended
YN80,85 RHD —
55233-89113 Sheet, Dash Panel Insulator
1991-08 → 1992-08 ended
LN80,85,86,90,RN85,90 RHD —
58131 — Bracket, Front Floor Heat Insulator, NO.1
58131-89116 Bracket, Front Floor Heat Insulator, NO.1
1989-12 → 1997-05 ended
RN125,8#,90,YN8#,9# —
58131-89116 Bracket, Front Floor Heat Insulator, NO.1
1997-05 → 1998-01 ended
RN85 CBU;RN85 RHD IV3;RN85 +2 —
58131-89116 Bracket, Front Floor Heat Insulator, NO.1
1998-01 → 1999-09 ended
RN85,YN85 CBR;RN85 TW1 EFI;RN85 +2 —
58131-89117 Bracket, Front Floor Heat Insulator, NO.1
1989-12 → 2001-06 ended
LN8#,9# —
58145 — Retainer, Front Floor Heat Insulator Support, NO.1
58145-89101 Retainer, Front Floor Heat Insulator Support, NO.1
1989-12 → 2001-06 ended
LN8#,9# —
58236C — Bracket, Clutch Tube
58236-89104 Bracket, Clutch Tube
1989-12 → 2001-06 ended
LN81,85,86,90 LHD MTM —
58236-89105 Bracket, Clutch Tube
1989-12 → 1997-05 ended
RN125,8#,90 LHD —
58236-89105 Bracket, Clutch Tube
1997-05 → 1998-01 ended
RN85 EFI IV3;RN8#,90 LHD +1 —
58236-89105 Bracket, Clutch Tube
1998-01 → 1999-09 ended
RN85 LHD CBR;RN85 TW1 +3 —
58236-89106 Bracket, Clutch Tube
1989-12 → 1998-12 ended
RN85,90 RHD 5F —
58236-89107 Bracket, Clutch Tube
1989-12 → 1999-09 ended
LN80,9# RHD;LN85,86 RHD MTM —
58236-89108 Bracket, Clutch Tube
1989-12 → 1997-08 ended
YN8#,92 LHD —
58297H — Retainer, Floor Clamp
58297-89107 Retainer, Floor Clamp
1989-12 → 1997-05 ended
LN8#,9#,RN125,8#,90,YN8#,9# —
58297-89107 Retainer, Floor Clamp
1997-05 → 1998-01 ended
RN85 CBU;RN85 RHD IV3;RN85 +2 —
58297-89107 Retainer, Floor Clamp
1998-01 → 2001-06 ended
RN85 TW1 EFI;RN85 EFI +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
