Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States
Discontinued model
Data version 2005-07

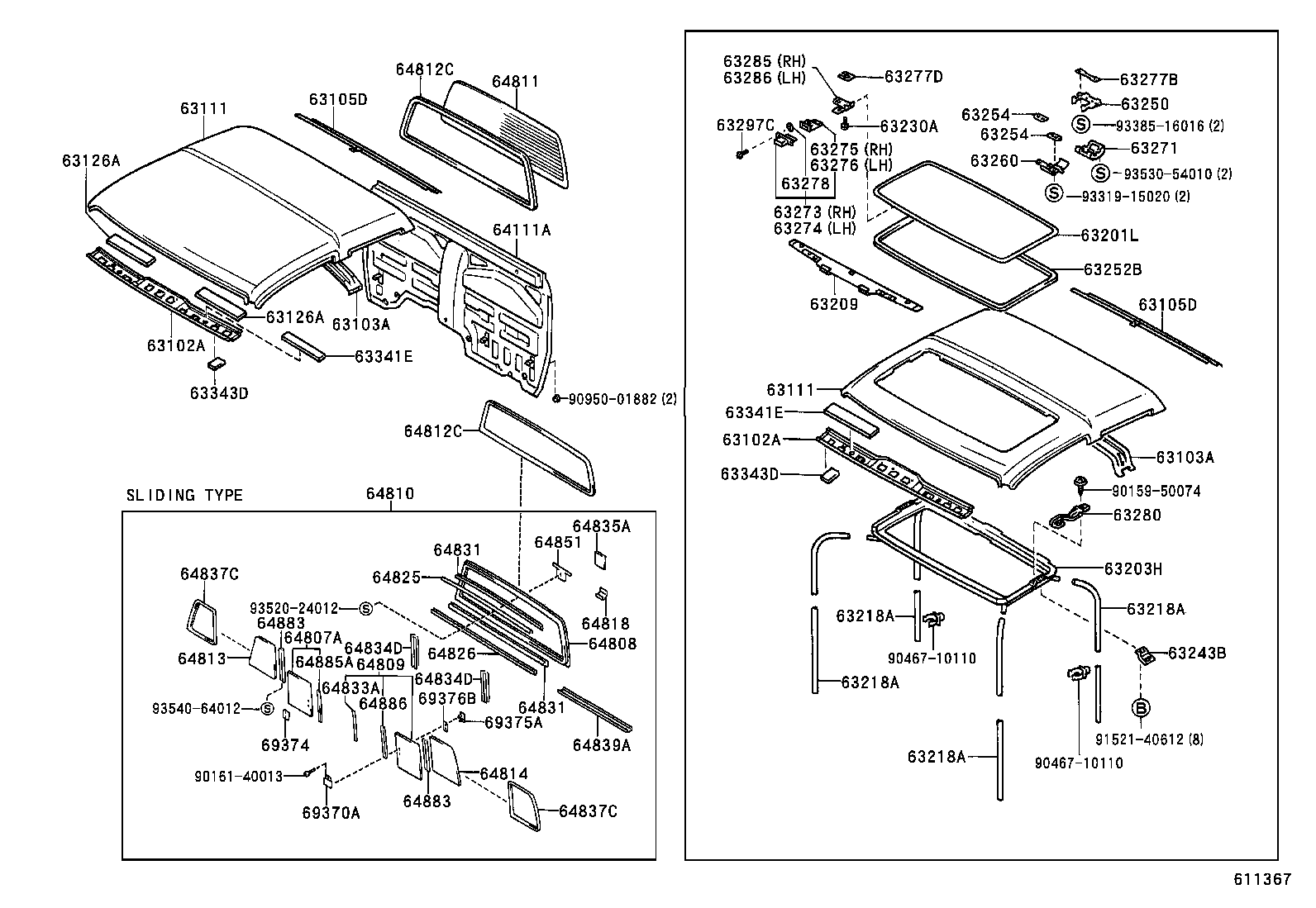

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63102A — Panel Sub-assy, Windshield Header | ||||
| 63102-89107 |
Panel Sub-assy, Windshield Header
1988-08 → 1997-05
ended
|
LN8#,9#,RN8#,90,YN8#,9# T1 | — | |
| 63102-89107 |
Panel Sub-assy, Windshield Header
1997-05 → 2001-06
ended
|
RN85 80,90,YN8#,92 EFI T1 +9 | — | |
| 63102-89108 |
Panel Sub-assy, Windshield Header
1988-08 → 2001-06
ended
|
LN85,86,RN85,YN85,86,87 TW1 | — | |
| 63102-89109 |
Panel Sub-assy, Windshield Header
1989-07 → 1993-08
ended
|
RN125 | — | |
| 63103A — Reinforcement Sub-assy, Roof Panel | ||||
| 63103-89106 |
Reinforcement Sub-assy, Roof Panel
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 63103-89107 |
Reinforcement Sub-assy, Roof Panel
1988-08 → 2001-06
ended
|
LN85,86,RN85,YN85,86,87 TW1 | — | |
| 63103-89107 |
Reinforcement Sub-assy, Roof Panel
2001-06 → —
|
LN200,RZN200 TW1 | — | |
| 63105D — Frame Sub-assy, Back Window, Upper | ||||
| 63105-35020 |
Frame Sub-assy, Back Window, Upper
1993-08 → 1997-05
ended
|
LN8#,RN8#,YN8# T1 | — | |
| 63105-35020 |
Frame Sub-assy, Back Window, Upper
1997-05 → 2001-06
ended
|
RN85 GEN EFI IV3 +8 | — | |
| 63105-35050 |
Frame Sub-assy, Back Window, Upper
1993-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 63105-89106 |
Frame Sub-assy, Back Window, Upper
1988-08 → 1993-08
ended
|
LN8#,RN8#,YN8# T1 | — | |
| 63105-89109 |
Frame Sub-assy, Back Window, Upper
1988-08 → 1993-08
ended
|
LN90,RN90,YN92 | — | |
| 63105-89110 |
Frame Sub-assy, Back Window, Upper
1988-08 → 2001-06
ended
|
LN85,86,RN85,YN85,86,87 TW1 | — | |
| 63111 — Panel, Roof | ||||
| 63111-89118 |
Panel, Roof
1997-05 → 2001-06
ended
|
RN85 GEN EFI IV3 +8 | — | |
| 63111-89118 |
Panel, Roof
1988-08 → 1997-05
ended
|
LN8#,RN8#,YN8# T1 | — | |
| 63111-89120 |
Panel, Roof
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 63111-89121 note |
Panel, Roof
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63111-89122 |
Panel, Roof
1988-08 → 2001-06
ended
|
LN85,86,RN85,YN85,86,87 TW1 | — | |
| 63111-89123 |
Panel, Roof
1989-07 → 1993-08
ended
|
RN125 | — | |
| 63111-89124 note |
Panel, Roof
1989-07 → 1993-08
ended
|
RN125 | — | |
| 63111-89125 note |
Panel, Roof
1989-07 → 1993-08
ended
|
RN125 | — | |
| 63111-89126 note |
Panel, Roof
1989-07 → 1993-08
ended
|
RN125 | — | |
| 63111-89122 |
Panel, Roof
2001-06 → —
|
LN200,RZN200 TW1 | — | |
| 63126A — Damper, Windshield Header Panel | ||||
| 63126-16010 |
Damper, Windshield Header Panel
1989-07 → 1993-08
ended
|
RN125 | — | |
| 63201L — Glass Sub-assy, Removable Roof | ||||
| 63201-89106 |
Glass Sub-assy, Removable Roof
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63203H — Housing Sub-assy, Removable Roof | ||||
| 63203-89108 |
Housing Sub-assy, Removable Roof
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63209 — Panel Sub-assy, Roof Wind Deflector | ||||
| 63209-89102 |
Panel Sub-assy, Roof Wind Deflector
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63209-89103 |
Panel Sub-assy, Roof Wind Deflector
1989-07 → 1993-08
ended
|
RN125 | — | |
| 63218A — Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-16070 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1992-08 → 1993-08
ended
|
RN125 | — | |
| 63249-89101 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63249-89102 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1988-08 → 1989-11
ended
|
RN90 | — | |
| 63249-89104 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-07 → 1992-08
ended
|
RN125 | — | |
| 63249-89105 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-07 → 1993-08
ended
|
RN125 | — | |
| 63249-89109 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-11 → 1991-08
ended
|
RN90 | — | |
| 63230A — Bolt Assy, Removable Roof | ||||
| 63230-89101 |
Bolt Assy, Removable Roof
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63243B — Bracket, Removable Roof Housing Side Mounting, RH | ||||
| 63243-89105 |
Bracket, Removable Roof Housing Side Mounting, RH
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63250 — Base Assy, Removable Roof Lock | ||||
| 63250-12010 |
Base Assy, Removable Roof Lock
1988-08 → 1989-10
ended
|
RN90 | — | |
| 63250-17011 |
Base Assy, Removable Roof Lock
1989-10 → 1991-08
ended
|
RN90 | — | |
| 63252B — Weatherstrip, Removable Roof, Rear | ||||
| 63252-89103 |
Weatherstrip, Removable Roof, Rear
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63254 — Holder, Removable Roof Glass, Inner Rear | ||||
| 63254-89103 note |
Holder, Removable Roof Glass, Inner Rear
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63254-89104 note |
Holder, Removable Roof Glass, Inner Rear
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63260 — Handle Assy, Removable Roof Lock | ||||
| 63260-17020-06 note |
Handle Assy, Removable Roof Lock
1989-10 → 1990-10
ended
|
RN90 | — | |
| 63260-17020-13 note |
Handle Assy, Removable Roof Lock
1989-10 → 1990-10
ended
|
RN90 | — | |
| 63260-17020-14 note |
Handle Assy, Removable Roof Lock
1989-10 → 1990-10
ended
|
RN90 | — | |
| 63260-17021-03 note |
Handle Assy, Removable Roof Lock
1990-10 → 1991-04
ended
|
RN90 | — | |
| 63260-17021-06 note |
Handle Assy, Removable Roof Lock
1990-10 → 1991-04
ended
|
RN90 | — | |
| 63260-17021-14 note |
Handle Assy, Removable Roof Lock
1990-10 → 1991-04
ended
|
RN90 | — | |
| 63260-17022-E0 note |
Handle Assy, Removable Roof Lock
1991-04 → 1991-08
ended
|
RN90 | — | |
| 63260-17022-S7 note |
Handle Assy, Removable Roof Lock
1991-04 → 1991-08
ended
|
RN90 | — | |
| 63260-17022-W1 note |
Handle Assy, Removable Roof Lock
1991-04 → 1991-08
ended
|
RN90 | — | |
| 63260-89105-03 note |
Handle Assy, Removable Roof Lock
1988-08 → 1989-10
ended
|
RN90 | — | |
| 63260-89105-04 note |
Handle Assy, Removable Roof Lock
1988-08 → 1989-10
ended
|
RN90 | — | |
| 63260-89105-06 note |
Handle Assy, Removable Roof Lock
1988-08 → 1989-10
ended
|
RN90 | — | |
| 63271 — Garnish, Removable Roof Lock | ||||
| 63271-89102-03 note |
Garnish, Removable Roof Lock
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63271-89102-04 note |
Garnish, Removable Roof Lock
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63271-89102-06 note |
Garnish, Removable Roof Lock
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63273 — Case, Removable Roof Hinge, RH | ||||
| 63273-12010 |
Case, Removable Roof Hinge, RH
1988-08 → 1989-10
ended
|
RN90 | — | |
| 63273-17010 |
Case, Removable Roof Hinge, RH
1989-10 → 1991-08
ended
|
RN90 | — | |
| 63274 — Case, Removable Roof Hinge, LH | ||||
| 63274-12010 |
Case, Removable Roof Hinge, LH
1988-08 → 1989-10
ended
|
RN90 | — | |
| 63274-17010 |
Case, Removable Roof Hinge, LH
1989-10 → 1991-08
ended
|
RN90 | — | |
| 63275 — Holder, Removable Roof Hinge, RH | ||||
| 63275-12010 |
Holder, Removable Roof Hinge, RH
1988-08 → 1989-10
ended
|
RN90 | — | |
| 63275-17010 |
Holder, Removable Roof Hinge, RH
1989-10 → 1991-08
ended
|
RN90 | — | |
| 63276 — Holder, Removable Roof Hinge, LH | ||||
| 63276-12010 |
Holder, Removable Roof Hinge, LH
1988-08 → 1989-10
ended
|
RN90 | — | |
| 63276-17010 |
Holder, Removable Roof Hinge, LH
1989-10 → 1991-08
ended
|
RN90 | — | |
| 63277B — Spacer, Removable Roof Lock Base | ||||
| 63277-89101 |
Spacer, Removable Roof Lock Base
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63277D — Spacer, Removable Roof Hinge | ||||
| 63277-89102 |
Spacer, Removable Roof Hinge
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63278 — Seal, Removable Roof Hinge Case | ||||
| 63278-12010 |
Seal, Removable Roof Hinge Case
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63280 — Catch Assy, Removable Roof Auxiliary, LH | ||||
| 63280-89101 |
Catch Assy, Removable Roof Auxiliary, LH
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63285 — Hinge, Removable Roof, RH | ||||
| 63285-89102 |
Hinge, Removable Roof, RH
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63286 — Hinge, Removable Roof, LH | ||||
| 63286-89102 |
Hinge, Removable Roof, LH
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63297C — Bolt, Removable Roof Hinge Case | ||||
| 63297-12010 |
Bolt, Removable Roof Hinge Case
1988-08 → 1991-08
ended
|
RN90 | — | |
| 63341E — Silencer, Roof, RH | ||||
| 63341-89125 |
Silencer, Roof, RH
1991-03 → 1991-08
ended
|
RN125 | — | |
| 63341-89125 |
Silencer, Roof, RH
1989-09 → 1991-03
ended
|
LN8#,90,RN125,8#,90,YN8#,92 4D,T1 | — | |
| 63341-89125 |
Silencer, Roof, RH
1989-07 → 1989-09
ended
|
RN125 | — | |
| 63343D — Pad, Roof Silencer, NO.3 | ||||
| 63343-89106 |
Pad, Roof Silencer, NO.3
1989-09 → 1991-03
ended
|
LN8#,90,RN8#,90,YN8#,92 T1 | — | |
| 64111A — Panel, Back | ||||
| 64101-35160 note |
Panel, Back
1998-03 → 1999-09
ended
|
RN85 TW1 EFI | — | |
| 64101-35160 |
Panel, Back
1998-03 → 2001-06
ended
|
LN86,RN85 LHD TW1 (CBR,DSL) | — | |
| 64101-89133 note |
Panel, Back
1988-08 → 1990-01
ended
|
LN85,YN80,85 T1 GEN;LN80,RN80,YN86,87 T1 +2 | — | |
| 64101-89133 |
Panel, Back
1989-10 → 1998-06
ended
|
LN85 SR5 | — | |
| 64101-89133 note |
Panel, Back
1990-01 → 2001-06
ended
|
RN85 T1 EFI CBU;LN80,85,86,YN80,85,86,87 +2 | — | |
| 64101-89135 |
Panel, Back
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# GEN,TH,V | — | |
| 64101-89136 |
Panel, Back
1988-08 → 1997-08
ended
|
RN90 ARL | — | |
| 64101-89138 |
Panel, Back
1988-08 → 1990-01
ended
|
LN85,RN85,YN85,86,87 TW1 (GEN,V) | — | |
| 64101-89139 |
Panel, Back
1988-08 → 1990-01
ended
|
LN85,RN85 DLX ARL | — | |
| 64101-89140 note |
Panel, Back
1988-08 → 1991-08
ended
|
YN85 ARL | — | |
| 64101-89140 |
Panel, Back
1988-08 → 1991-08
ended
|
LN85,RN85 STD ARL | — | |
| 64101-89142 |
Panel, Back
1997-05 → 2001-06
ended
|
RN85 EN EFI IV3;RN85 +8 | — | |
| 64101-89142 |
Panel, Back
1988-08 → 1997-05
ended
|
LN80,85,86,RN85,YN80,85,86,87 T1 GEN | — | |
| 64101-89143 |
Panel, Back
1991-08 → 1997-08
ended
|
LN86,RN85,YN85 STD ARL | — | |
| 64101-89143 note |
Panel, Back
1988-08 → 1991-08
ended
|
LN85,RN85 STD ARL | — | |
| 64101-89143 |
Panel, Back
1988-08 → 1991-08
ended
|
YN85 ARL | — | |
| 64101-89144 |
Panel, Back
1988-08 → 1990-01
ended
|
LN8#,RN80,YN8# T1 (DLX,STD) (TH,V) | — | |
| 64101-89144 |
Panel, Back
1990-01 → 1998-06
ended
|
LN80,85,YN80,85,87 STD TH | — | |
| 64101-89144 note |
Panel, Back
1989-09 → 1990-01
ended
|
LN85 T1 5F GEN +1 | — | |
| 64101-89149 |
Panel, Back
1990-01 → 1998-03
ended
|
LN85,86,RN85,YN85,86,87 TW1 (GEN,V) | — | |
| 64101-89149 |
Panel, Back
1998-03 → 1999-09
ended
|
RN85 TW1 EFI;LN85,RN85 RHD +1 | — | |
| 64101-89150 |
Panel, Back
1990-01 → 1997-08
ended
|
LN85,86,RN85 DLX ARL | — | |
| 64101-89151 |
Panel, Back
1990-08 → 1997-08
ended
|
RN8# T1 SR5 | — | |
| 64101-89151 note |
Panel, Back
1990-01 → 1991-08
ended
|
RN80,YN86 T1 DLX | — | |
| 64101-89152 |
Panel, Back
1990-01 → 1997-08
ended
|
LN81,86,RN80,YN81,86 T1 (DLX,STD) V | — | |
| 64101-89152 note |
Panel, Back
1990-01 → 1991-08
ended
|
LN85 RHD T1 GEN +1 | — | |
| 64807A — Glass Sub-assy, Back Window Slide, RH | ||||
| 64807-89135 note |
Glass Sub-assy, Back Window Slide, RH
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64807-89135 note |
Glass Sub-assy, Back Window Slide, RH
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64807-89137 note |
Glass Sub-assy, Back Window Slide, RH
1988-08 → 1992-08
ended
|
RN85 V;LN8#,RN80,YN8# GEN,TH,V | — | |
| 64807-89137 note |
Glass Sub-assy, Back Window Slide, RH
1992-08 → 1999-09
ended
|
LN86 GEN,TH,V T1 V;RN85 +5 | — | |
| 64807-89141 note |
Glass Sub-assy, Back Window Slide, RH
1988-08 → 1994-08
ended
|
LN90,RN90,YN9# | — | |
| 64807-89141 note |
Glass Sub-assy, Back Window Slide, RH
1994-08 → 1997-08
ended
|
RN90,YN92 | — | |
| 64807-89147 note |
Glass Sub-assy, Back Window Slide, RH
1988-08 → 1992-08
ended
|
LN90,YN92 | — | |
| 64807-89147 note |
Glass Sub-assy, Back Window Slide, RH
1992-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64808 — Channel Sub-assy, Back Window Slide Glass | ||||
| 64808-89105 |
Channel Sub-assy, Back Window Slide Glass
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64808-89105 |
Channel Sub-assy, Back Window Slide Glass
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64808-89106 |
Channel Sub-assy, Back Window Slide Glass
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64809 — Glass Sub-assy, Back Window Slide, LH | ||||
| 64809-89101 note |
Glass Sub-assy, Back Window Slide, LH
1988-08 → 1992-08
ended
|
LN90,YN92 | — | |
| 64809-89101 note |
Glass Sub-assy, Back Window Slide, LH
1992-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64809-89102 note |
Glass Sub-assy, Back Window Slide, LH
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64809-89102 note |
Glass Sub-assy, Back Window Slide, LH
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64809-89103 note |
Glass Sub-assy, Back Window Slide, LH
1988-08 → 1992-08
ended
|
RN85 V;LN8#,RN80,YN8# GEN,TH,V | — | |
| 64809-89103 note |
Glass Sub-assy, Back Window Slide, LH
1992-08 → 1999-09
ended
|
LN86 GEN,TH,V T1 V;RN85 +5 | — | |
| 64809-89105 note |
Glass Sub-assy, Back Window Slide, LH
1988-08 → 1994-08
ended
|
LN90,RN90,YN9# | — | |
| 64809-89105 note |
Glass Sub-assy, Back Window Slide, LH
1994-08 → 1997-08
ended
|
RN90,YN92 | — | |
| 64810 — Window Assy, Back | ||||
| 64810-89109 note |
Window Assy, Back
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64810-89109 note |
Window Assy, Back
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64810-89110 note |
Window Assy, Back
1988-08 → 1992-08
ended
|
RN85 V;LN8#,RN80,YN8# GEN,TH,V | — | |
| 64810-89110 note |
Window Assy, Back
1992-08 → 1999-09
ended
|
LN86 GEN,TH,V T1 V;RN85 +5 | — | |
| 64810-89112 note |
Window Assy, Back
1994-08 → 1997-08
ended
|
RN90,YN92 | — | |
| 64810-89112 note |
Window Assy, Back
1988-08 → 1994-08
ended
|
LN90,RN90,YN9# | — | |
| 64810-89115 note |
Window Assy, Back
1992-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64810-89115 note |
Window Assy, Back
1988-08 → 1992-08
ended
|
LN90,YN92 | — | |
| 64811 — Glass, Back Window | ||||
| 64811-04030 note |
Glass, Back Window
1992-08 → 1995-11
ended
|
RN85 EFI;RN85 ARL,V;RN85 SR5 +1 | — | |
| 64811-04030 note |
Glass, Back Window
1991-08 → 1992-08
ended
|
RN85 V;LN8#,RN80,YN8# GEN,TH,V | — | |
| 64811-35020 note |
Glass, Back Window
1997-05 → 1999-09
ended
|
LN86 DLX ARL;RN85 TW1 +3 | — | |
| 64811-35020 note |
Glass, Back Window
1992-01 → 1992-08
ended
|
LN85 RHD TW1 CBU | — | |
| 64811-35020 note |
Glass, Back Window
1996-08 → 1997-05
ended
|
LN86 DLX ARL;RN85 (DLX,SR5) +1 | — | |
| 64811-35020 note |
Glass, Back Window
1992-08 → 1996-08
ended
|
LN85,86 RHD TW1 CBU;RN85 +2 | — | |
| 64811-89119 note |
Glass, Back Window
1997-05 → 1999-09
ended
|
RN85 ,RN80,YN8# EFI IV3;LN86,RN85 +7 | — | |
| 64811-89119 note |
Glass, Back Window
1988-08 → 1993-08
ended
|
LN8#,RN8#,YN8# | — | |
| 64811-89119 note |
Glass, Back Window
1996-08 → 1997-05
ended
|
RN85 T1 GEN;RN85 SR5 +4 | — | |
| 64811-89119 note |
Glass, Back Window
1993-08 → 1996-08
ended
|
RN85 ARL,V;RN85 T1 GEN;LN8#,RN80,YN8#;RN85 +3 | — | |
| 64811-89120 note |
Glass, Back Window
1988-08 → 1992-08
ended
|
RN85 V;LN8#,RN80,YN8# GEN,TH,V | — | |
| 64811-89120 note |
Glass, Back Window
1992-08 → 2001-06
ended
|
RN85 ARL,V;LN8#,RN80,YN8#;RN85 SR5 GEN;RN85 +2 | — | |
| 64811-89138 note |
Glass, Back Window
1994-08 → 1997-08
ended
|
RN90,YN92 | — | |
| 64811-89138 note |
Glass, Back Window
1988-08 → 1994-08
ended
|
LN90,RN90,YN9# | — | |
| 64811-89139 note |
Glass, Back Window
1988-08 → 1992-08
ended
|
LN90,YN92 | — | |
| 64811-89139 note |
Glass, Back Window
1992-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64811-89140 note |
Glass, Back Window
1988-08 → 1989-08
ended
|
LN90,RN90,YN92 | — | |
| 64811-89140 note |
Glass, Back Window
1989-08 → 1997-08
ended
|
YN92 LHD;LN90,RN90 ARL,GEN | — | |
| 64811-89141 note |
Glass, Back Window
1992-08 → 1997-08
ended
|
RN90,YN92 ARL,GEN | — | |
| 64811-89141 note |
Glass, Back Window
1989-08 → 1992-08
ended
|
LN90,YN92 LHD | — | |
| 64811-89141 note |
Glass, Back Window
1988-08 → 1989-08
ended
|
LN90,YN92 | — | |
| 64811-89157 note |
Glass, Back Window
1993-08 → 1996-08
ended
|
RN85 SR5 GEN;LN85,86,RN85 RHD +2 | — | |
| 64811-89157 note |
Glass, Back Window
1997-05 → 1999-09
ended
|
RN85 TW1 (ARL,GEN);LN85,86 RHD +2 | — | |
| 64811-89157 note |
Glass, Back Window
1990-08 → 1992-01
ended
|
LN85,86,RN85 DLX ARL | — | |
| 64811-89157 note |
Glass, Back Window
1996-08 → 1997-05
ended
|
LN85,86 RHD TW1 CBU;RN85 +3 | — | |
| 64811-89157 note |
Glass, Back Window
1992-01 → 1993-08
ended
|
RN85 DLX ARL;LN85,86 RHD +2 | — | |
| 64812C — Weatherstrip, Back Window Glass | ||||
| 64812-89108 |
Weatherstrip, Back Window Glass
1988-08 → 1997-05
ended
|
LN8#,RN8#,YN8# | — | |
| 64812-89108 |
Weatherstrip, Back Window Glass
1997-05 → 2001-06
ended
|
RN85 CBU;LN8#,RN80,YN8#;RN85 RHD IV3;RN85 +2 | — | |
| 64812-89109 note |
Weatherstrip, Back Window Glass
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64812-89109 note |
Weatherstrip, Back Window Glass
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64812-89110 note |
Weatherstrip, Back Window Glass
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64812-89111 |
Weatherstrip, Back Window Glass
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64812-35020 |
Weatherstrip, Back Window Glass
2001-06 → —
|
LN200 SRV;RZN200 TW1 | — | |
| 64812-89108 |
Weatherstrip, Back Window Glass
2001-06 → —
|
RZN200 T1;LN200 DLX,STD | — | |
| 64813 — Glass, Back Window Corner, RH | ||||
| 64813-89101 note |
Glass, Back Window Corner, RH
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64813-89101 note |
Glass, Back Window Corner, RH
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64813-89102 note |
Glass, Back Window Corner, RH
1988-08 → 1992-08
ended
|
RN85 V;LN8#,RN80,YN8# GEN,TH,V | — | |
| 64813-89102 note |
Glass, Back Window Corner, RH
1992-08 → 1999-09
ended
|
LN86 GEN,TH,V T1 V;RN85 +5 | — | |
| 64813-89107 note |
Glass, Back Window Corner, RH
1988-08 → 1994-08
ended
|
LN90,RN90,YN9# | — | |
| 64813-89107 note |
Glass, Back Window Corner, RH
1994-08 → 1997-08
ended
|
RN90,YN92 | — | |
| 64813-89110 note |
Glass, Back Window Corner, RH
1992-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64813-89110 note |
Glass, Back Window Corner, RH
1988-08 → 1992-08
ended
|
LN90,YN92 | — | |
| 64814 — Glass, Back Window Corner, LH | ||||
| 64814-89101 note |
Glass, Back Window Corner, LH
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64814-89101 note |
Glass, Back Window Corner, LH
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64814-89102 note |
Glass, Back Window Corner, LH
1988-08 → 1992-08
ended
|
RN85 V;LN8#,RN80,YN8# GEN,TH,V | — | |
| 64814-89102 note |
Glass, Back Window Corner, LH
1992-08 → 1999-09
ended
|
LN86 GEN,TH,V T1 V;RN85 +5 | — | |
| 64814-89108 note |
Glass, Back Window Corner, LH
1988-08 → 1994-08
ended
|
LN90,RN90,YN9# | — | |
| 64814-89108 note |
Glass, Back Window Corner, LH
1994-08 → 1997-08
ended
|
RN90,YN92 | — | |
| 64814-89111 note |
Glass, Back Window Corner, LH
1988-08 → 1992-08
ended
|
LN90,YN92 | — | |
| 64814-89111 note |
Glass, Back Window Corner, LH
1992-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64818 — Spacer, Back Window Glass | ||||
| 64818-89101 |
Spacer, Back Window Glass
1988-08 → 1993-08
ended
|
RN85 TW1 V;LN86 (ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92 +8 | — | |
| 64818-89101 |
Spacer, Back Window Glass
1993-08 → 1999-09
ended
|
LN86 GEN T1 IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9# +8 | — | |
| 64825 — Run, Back Window Channel, Upper | ||||
| 64825-89101 |
Run, Back Window Channel, Upper
1993-08 → 1999-09
ended
|
LN86 GEN T1 IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9# +8 | — | |
| 64825-89101 |
Run, Back Window Channel, Upper
1988-08 → 1993-08
ended
|
RN85 TW1 V;LN86 (ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92 +8 | — | |
| 64826 — Run, Back Window Channel, Lower | ||||
| 64826-89101 |
Run, Back Window Channel, Lower
1988-08 → 1993-08
ended
|
RN85 TW1 V;LN86 (ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92 +8 | — | |
| 64826-89101 |
Run, Back Window Channel, Lower
1993-08 → 1999-09
ended
|
LN86 GEN T1 IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9# +8 | — | |
| 64831 — Weatherstrip, Back Window Glass | ||||
| 64831-89110 |
Weatherstrip, Back Window Glass
1988-08 → 1993-08
ended
|
RN85 TW1 V;LN86 (ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92 +8 | — | |
| 64831-89110 |
Weatherstrip, Back Window Glass
1993-08 → 1999-09
ended
|
LN86 GEN T1 IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9# +8 | — | |
| 64833A — Weatherstrip, Back Window Center Channel | ||||
| 64833-89114 |
Weatherstrip, Back Window Center Channel
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64833-89114 |
Weatherstrip, Back Window Center Channel
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64833-89115 |
Weatherstrip, Back Window Center Channel
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64834D — Weatherstrip, Back Window Slide Glass | ||||
| 64834-89101 |
Weatherstrip, Back Window Slide Glass
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64834-89101 |
Weatherstrip, Back Window Slide Glass
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64834-89102 |
Weatherstrip, Back Window Slide Glass
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64835A — Weatherstrip, Back Window Glass, Center | ||||
| 64835-89101 |
Weatherstrip, Back Window Glass, Center
1993-08 → 1999-09
ended
|
LN86 GEN T1 IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9# +8 | — | |
| 64835-89101 |
Weatherstrip, Back Window Glass, Center
1988-08 → 1993-08
ended
|
RN85 TW1 V;LN86 (ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92 +8 | — | |
| 64837C — Weatherstrip, Back Window Corner Glass | ||||
| 64837-89101 |
Weatherstrip, Back Window Corner Glass
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64837-89101 |
Weatherstrip, Back Window Corner Glass
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64837-89105 |
Weatherstrip, Back Window Corner Glass
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64839A — Packing, Back Window | ||||
| 64839-89105 |
Packing, Back Window
1988-08 → 1993-08
ended
|
RN85 TW1 V;LN86 (ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92 +8 | — | |
| 64839-89105 |
Packing, Back Window
1993-08 → 1999-09
ended
|
LN86 GEN T1 IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9# +8 | — | |
| 64851 — Stop, Back Window Slide Glass | ||||
| 64851-89103 |
Stop, Back Window Slide Glass
1988-08 → 1993-08
ended
|
RN85 TW1 V;LN86 (ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92 +8 | — | |
| 64851-89103 |
Stop, Back Window Slide Glass
1993-08 → 1999-09
ended
|
LN86 GEN T1 IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9# +8 | — | |
| 64883 — Frame, Back Window | ||||
| 64881-89104 |
Frame, Back Window
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64881-89104 |
Frame, Back Window
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64881-89115 |
Frame, Back Window
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64885A — Channel, Back Window Glass, RH | ||||
| 64885-89101 |
Channel, Back Window Glass, RH
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64885-89102 |
Channel, Back Window Glass, RH
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 64885-89102 |
Channel, Back Window Glass, RH
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64886 — Channel, Back Window Glass, LH | ||||
| 64886-89101 |
Channel, Back Window Glass, LH
1988-08 → 1998-06
ended
|
LN9#,RN90,YN9# | — | |
| 64886-89102 |
Channel, Back Window Glass, LH
1988-08 → 1993-08
ended
|
RN85 81,85,RN80,YN8# V;LN86 GEN,TH,V +9 | — | |
| 64886-89102 |
Channel, Back Window Glass, LH
1993-08 → 1999-09
ended
|
LN86 80,81,85,RN80,YN8# T1 GEN,TH,V +9 | — | |
| 69370A — Lock Assy, Back Window | ||||
| 69370-35010 |
Lock Assy, Back Window
1992-06 → 1993-08
ended
|
RN85 ,81,85,90,RN80,90,YN80,81,86,92 V;LN86 TW1;LN86 +8 | — | |
| 69370-35010 |
Lock Assy, Back Window
1993-08 → 1999-09
ended
|
LN86 GEN T1 IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9# +8 | — | |
| 69370-89103 |
Lock Assy, Back Window
1988-08 → 1992-06
ended
|
RN85 TW1 V;LN86 (ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92 +8 | — | |
| 69374 — Catch, Back Window Lock | ||||
| 69374-89103 |
Catch, Back Window Lock
1988-08 → 1993-08
ended
|
RN85 TW1 V;LN86 (ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92 +8 | — | |
| 69374-89103 |
Catch, Back Window Lock
1993-08 → 1999-09
ended
|
LN86 GEN T1 IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9# +8 | — | |
| 69375A — Retainer, Back Window Lock | ||||
| 69375-89103 |
Retainer, Back Window Lock
1988-08 → 1993-08
ended
|
RN85 TW1 V;LN86 (ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92 +8 | — | |
| 69375-89103 |
Retainer, Back Window Lock
1993-08 → 1999-09
ended
|
LN86 GEN T1 IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9# +8 | — | |
| 69376B — Packing, Back Window Lock | ||||
| 69376-89103 |
Packing, Back Window Lock
1988-08 → 1993-08
ended
|
RN85 TW1 V;LN86 (ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92 +8 | — | |
| 69376-89103 |
Packing, Back Window Lock
1993-08 → 1999-09
ended
|
LN86 GEN T1 IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9# +8 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
