Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States
Discontinued model
Data version 2005-07
Timing Gear Cover & Rear End Plate

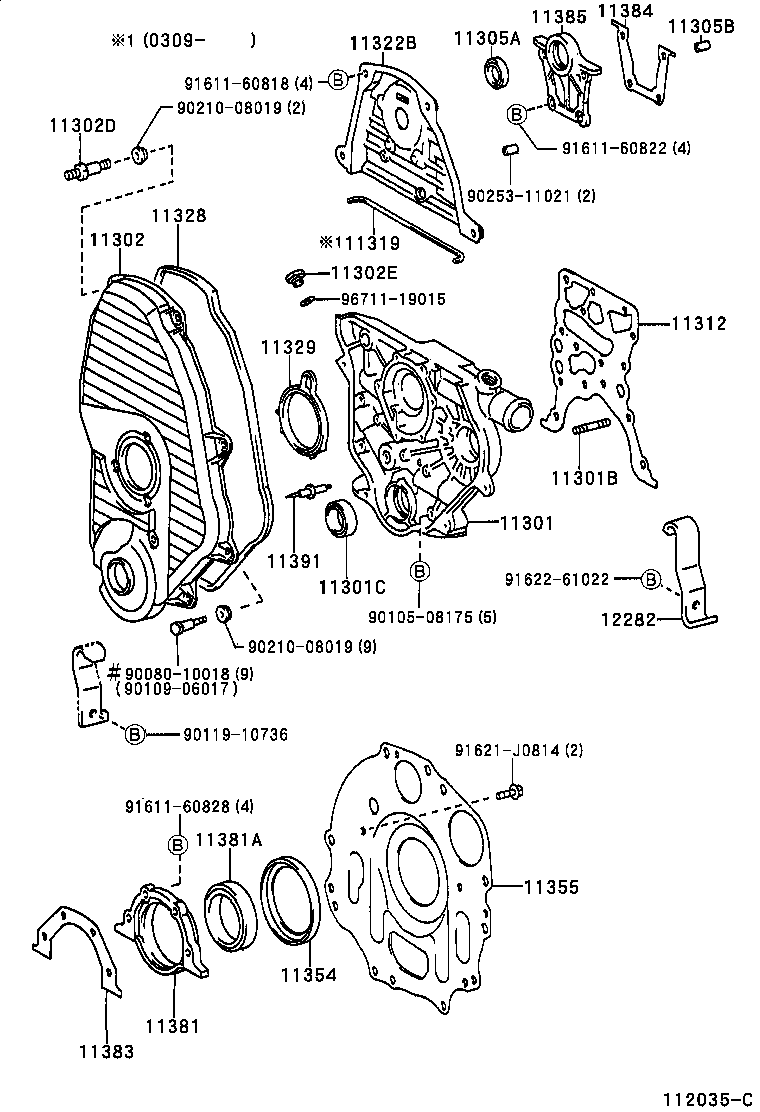

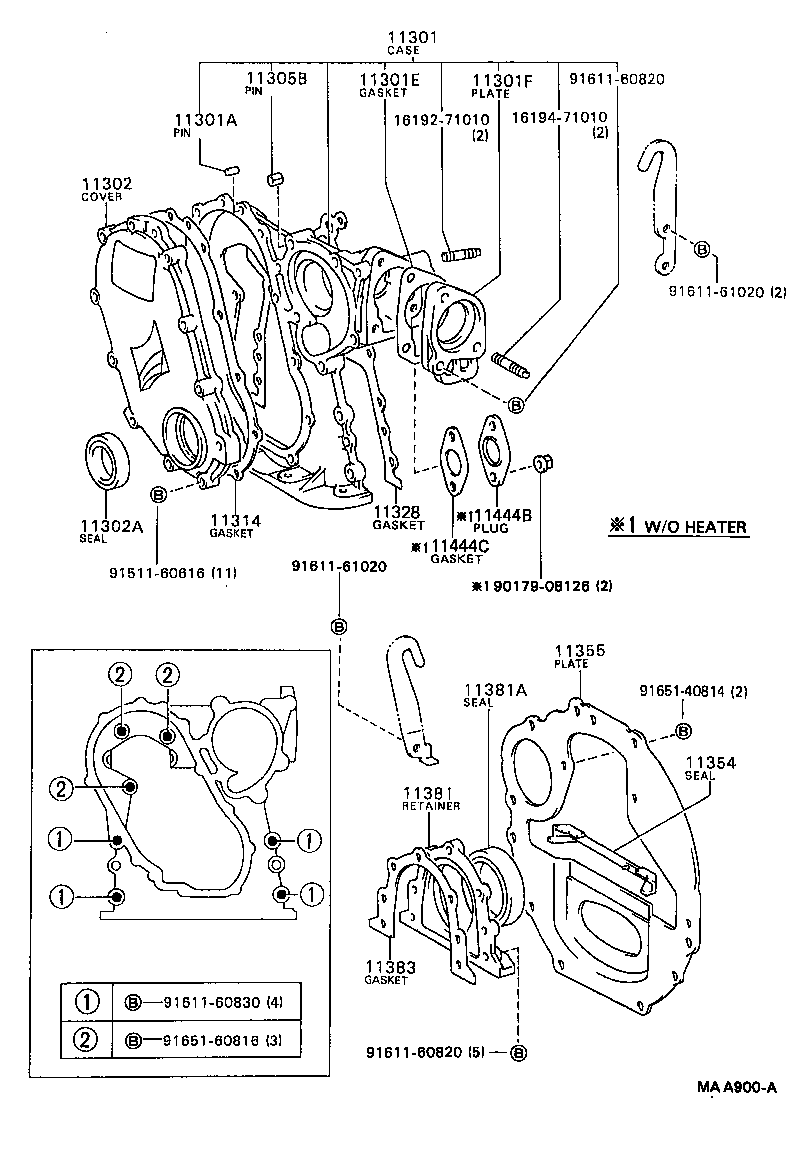

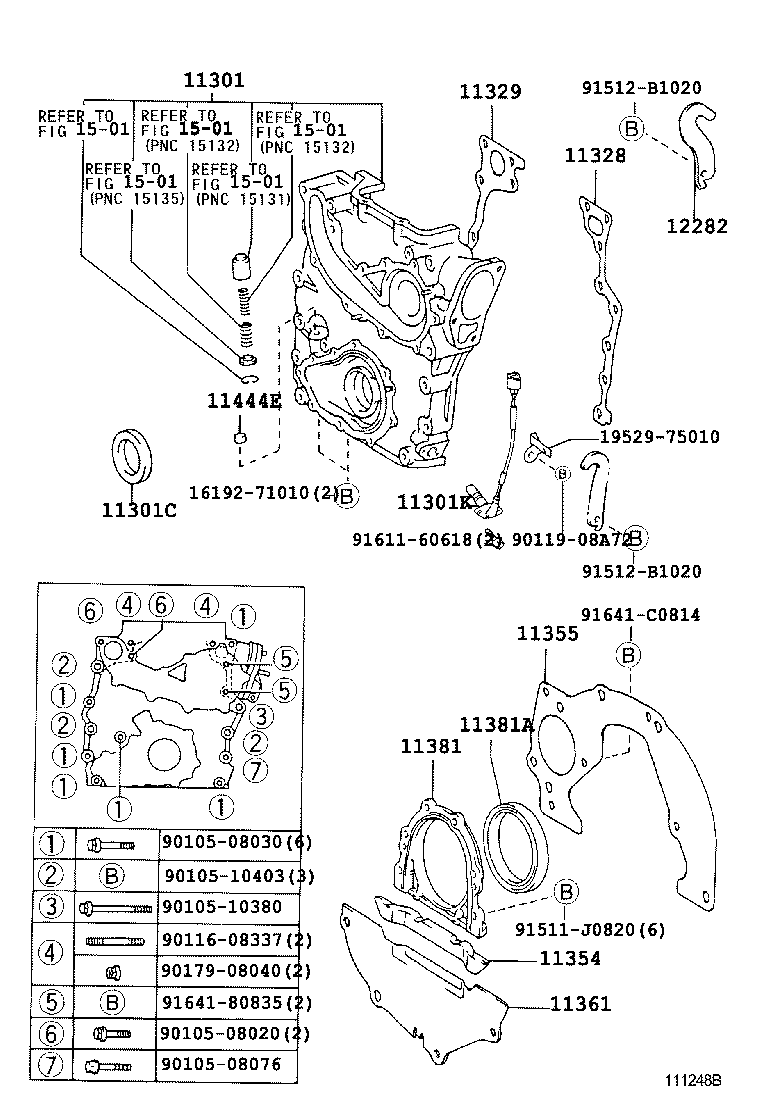

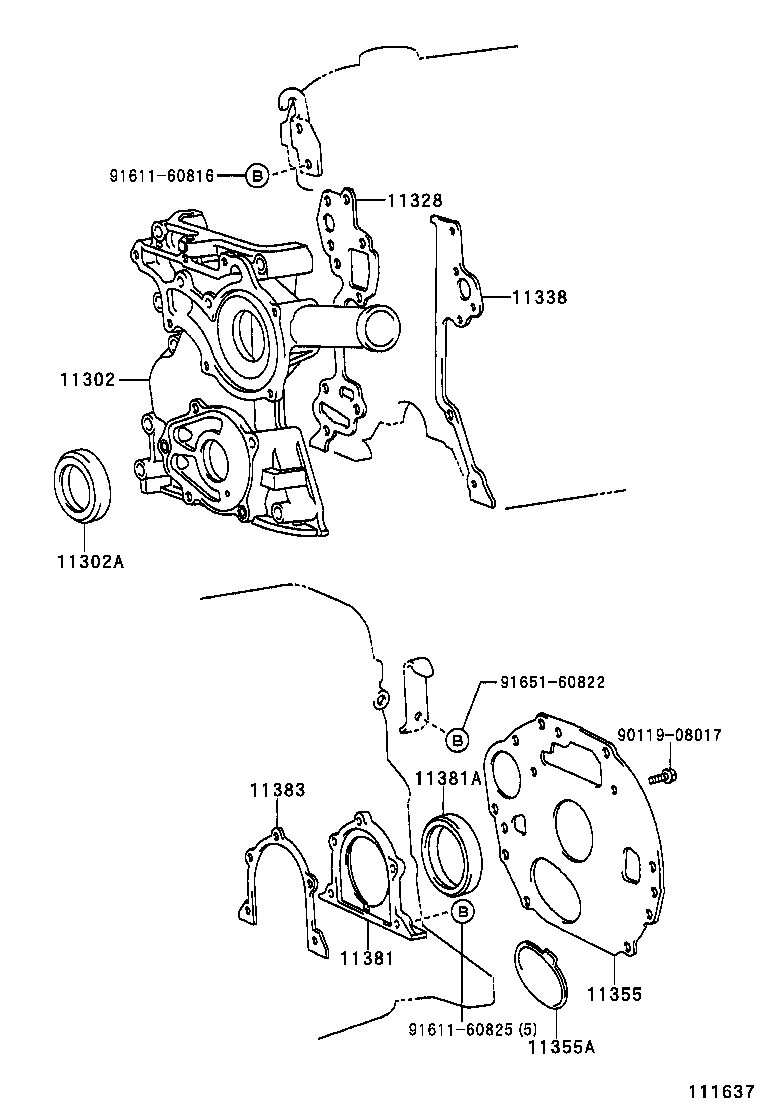

35 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301 | Case Sub-assy, Timing Gear |
| 11301A | Pin, Straight(FOR TIMING GEAR CASE) |
| 11301B | Bolt,Stud(FOR TIMING GEAR CASE) |
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301E | Gasket, Thermostat Guide |
| 11301F | Plate, Water Pump Thermostat Guide |
| 11301K | Sensor, Crank Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11302D | Bolt, Stud(FOR TIMING GEAR COVER) |
| 11302E | Plug, Straight(FOR TIMING GEAR COVER) |
| 11305A | Seal, Oil(FOR OIL SEAL RETAINER, NO.2) |
| 11305B | Pin, Ring(FOR OIL SEAL RETAINER, NO.2) |
| 11312 | Gasket, Front End Plate |
| 11314 | Gasket, Timing Chain NO.2 Cover |
| 11319 | Gasket, Timing Belt Cover, NO.3 |
| 11322B | Cover, Timing Belt, NO.2 |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11329 | Gasket, Timing Gear Rear Cover |
| 11338 | Gasket, Timing Chain Cover, NO.2 |
| 11354 | Seal, Flywheel Housing Dust |
| 11355 | Plate, Rear End |
| 11355A | Plug, Hole(FOR REAR END PLATE) |
| 11361 | Cover, Flywheel Housing Under |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11383 | Gasket, Engine Rear Oil Seal Retainer |
| 11384 | Gasket, Oil Seal Retainer, NO.2 |
| 11385 | Retainer, Camshaft Oil Seal |
| 11391 | Pointer, Timing |
| 11444B | Plug, Hole(FOR WATER INLET HOUSING) |
| 11444C | Gasket, Heater Pipe |
| 11444E | Plug, Hole |
| 11492A | Plate, Water Seal |
| 12282 | Hanger, Engine, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
