Toyota Hilux 2WD

1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

44 part groups · 16 illustrations

Illustrations

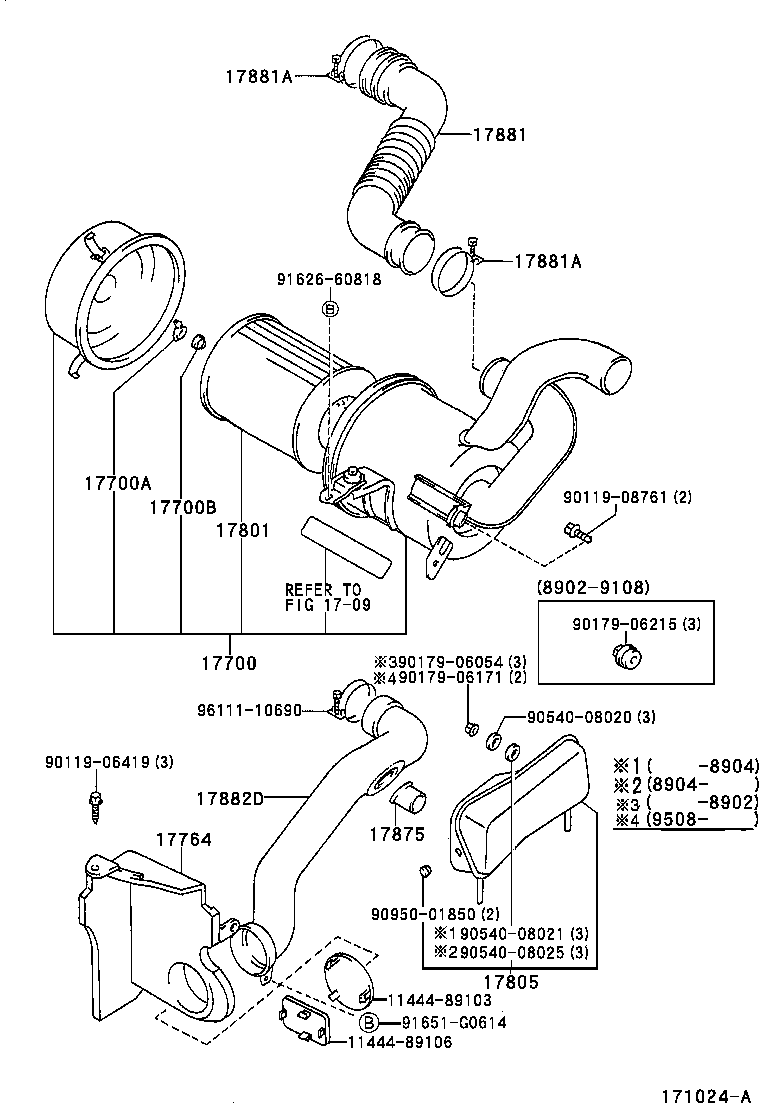

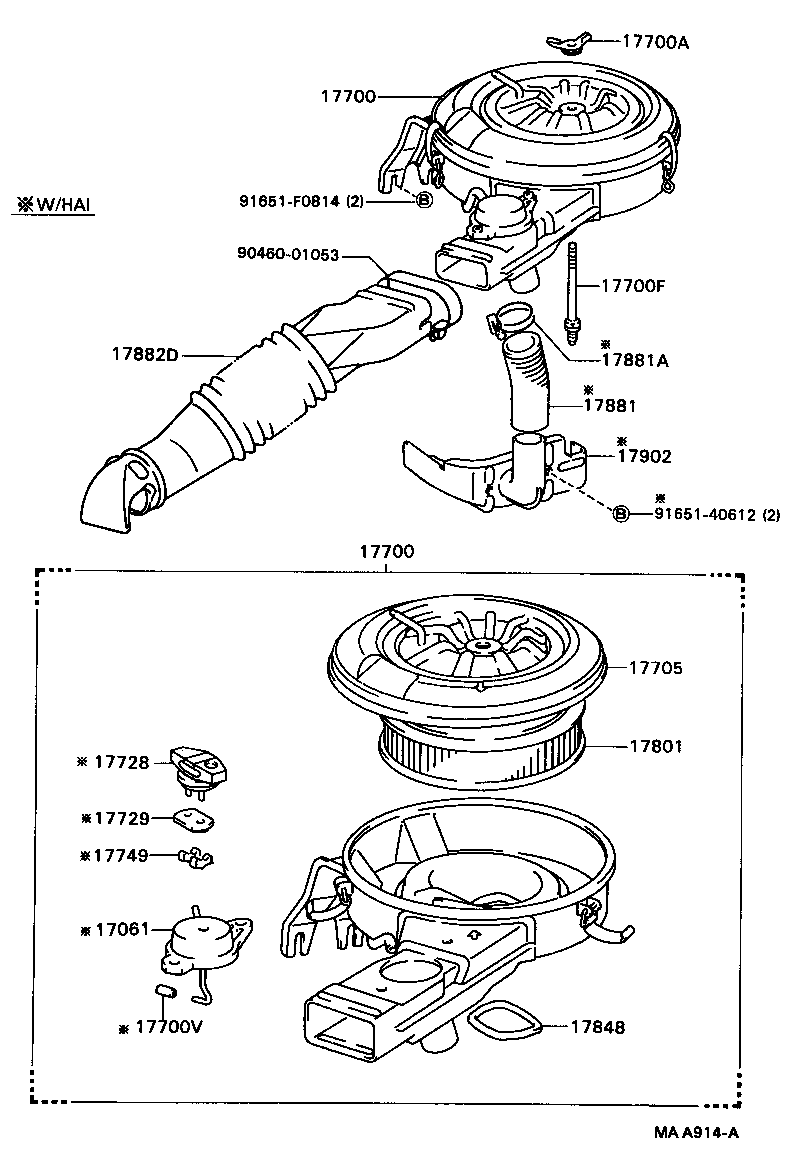

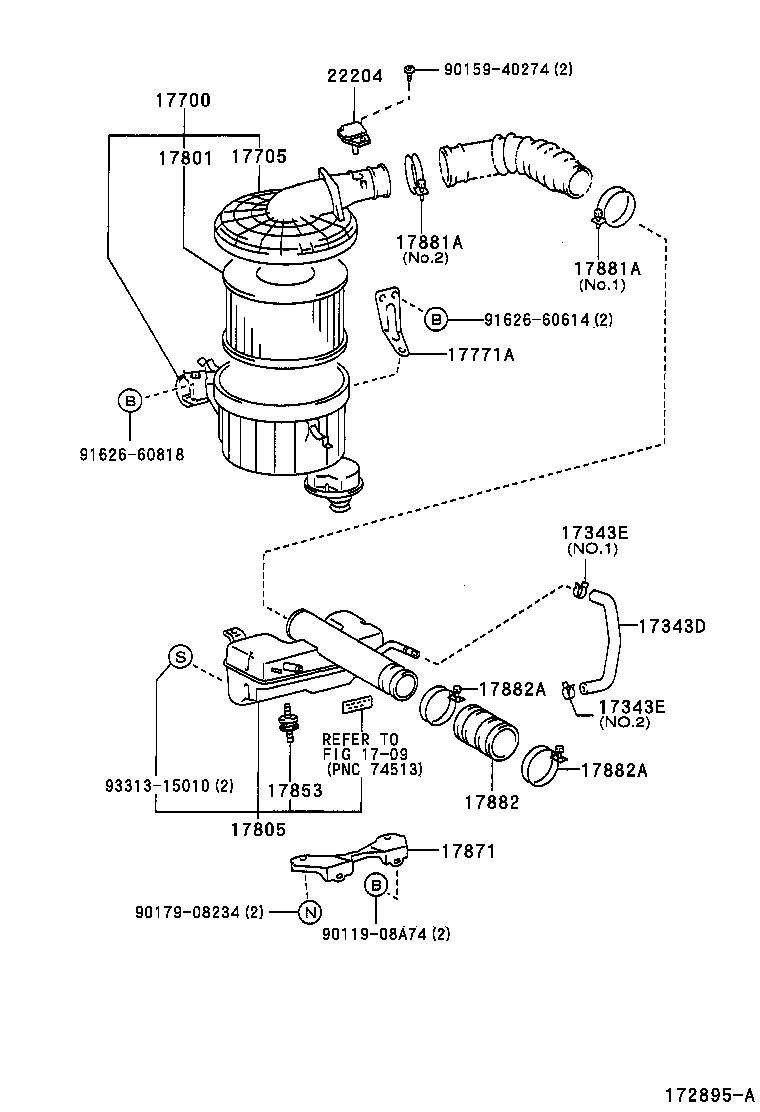

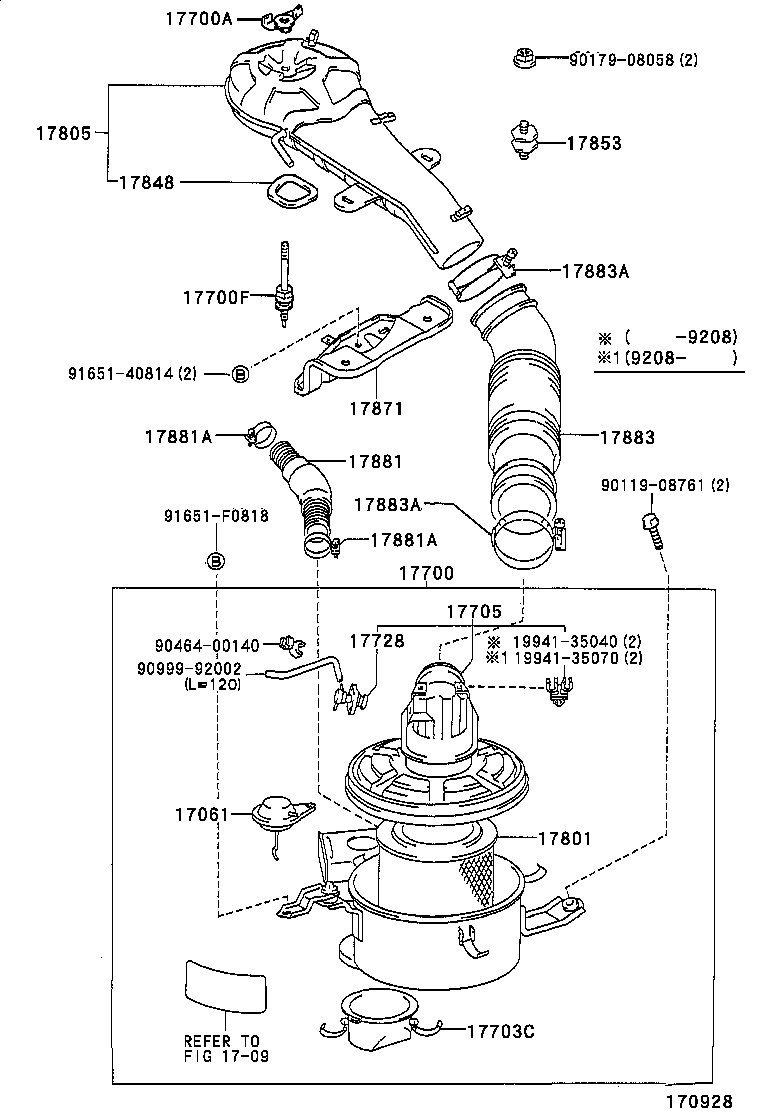

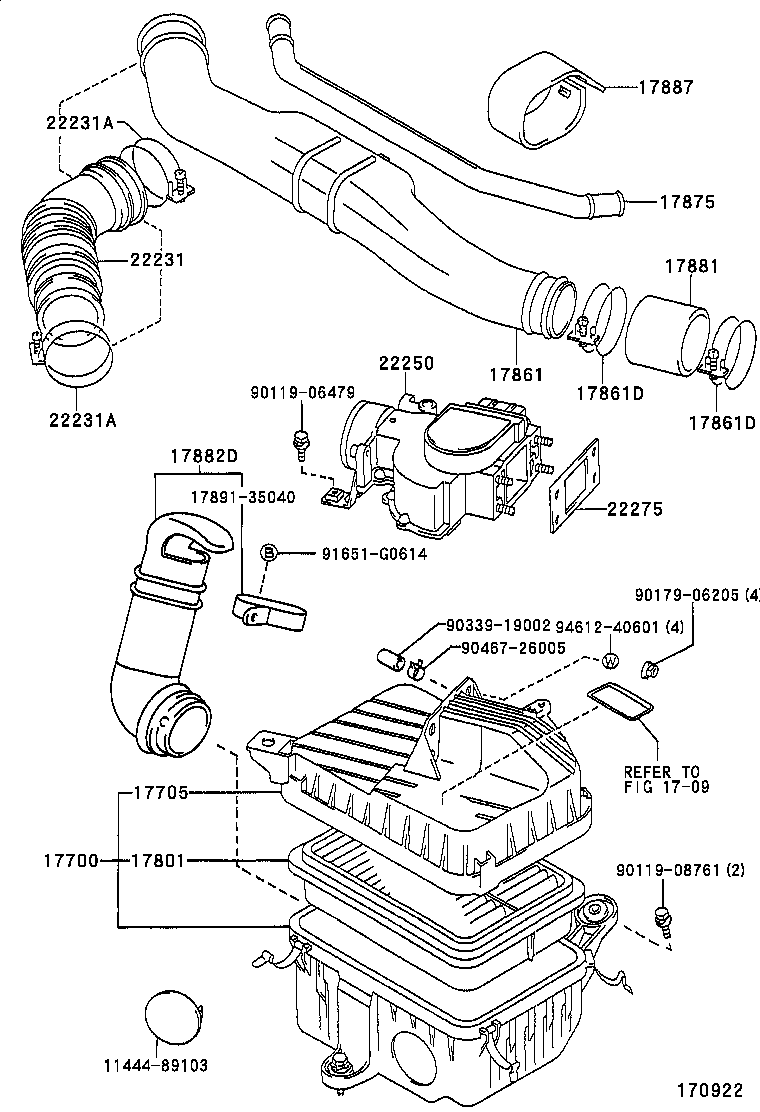

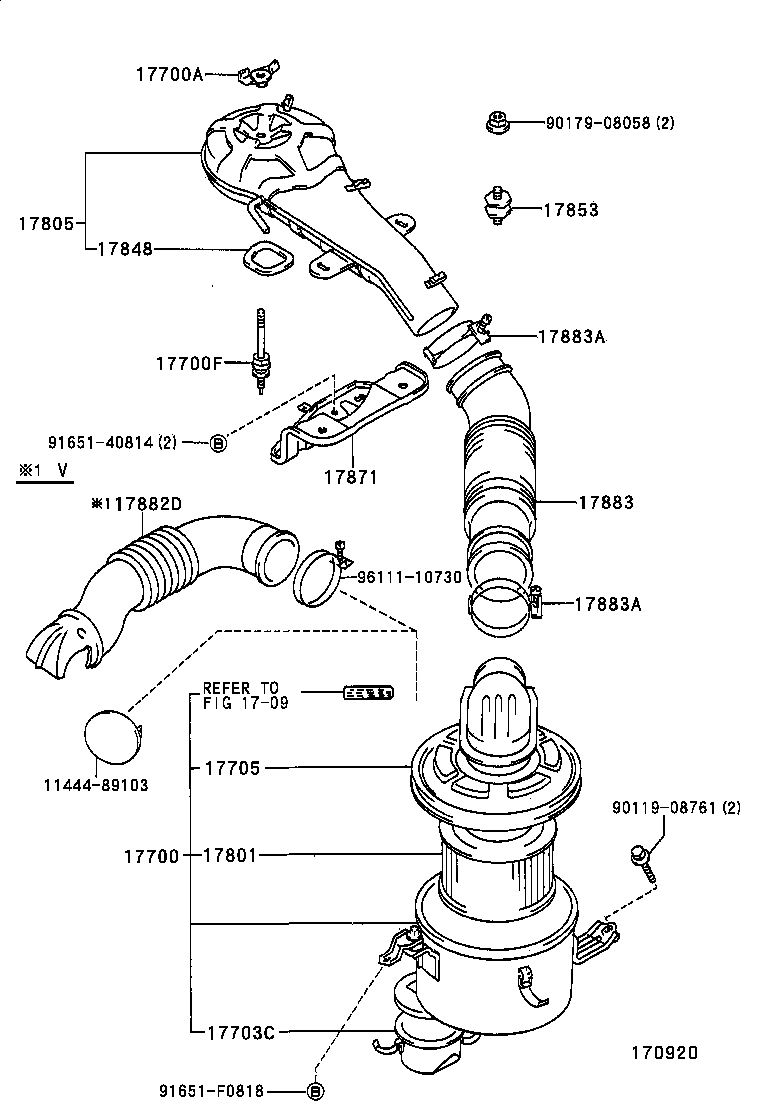

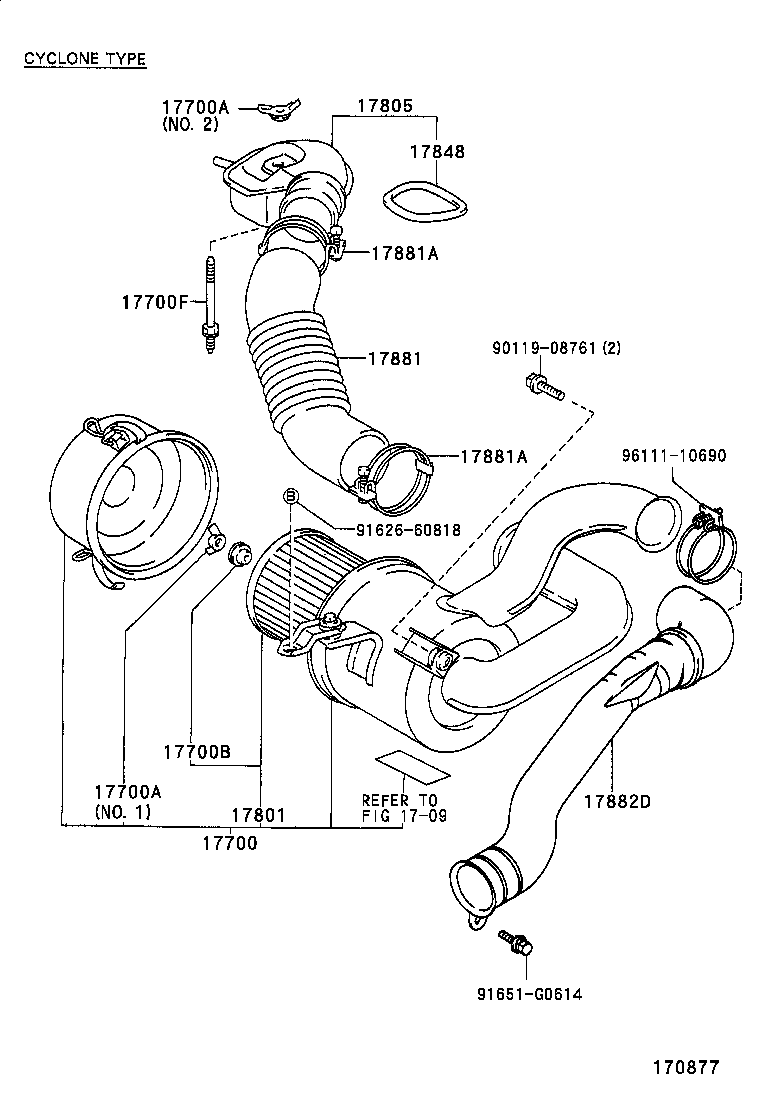

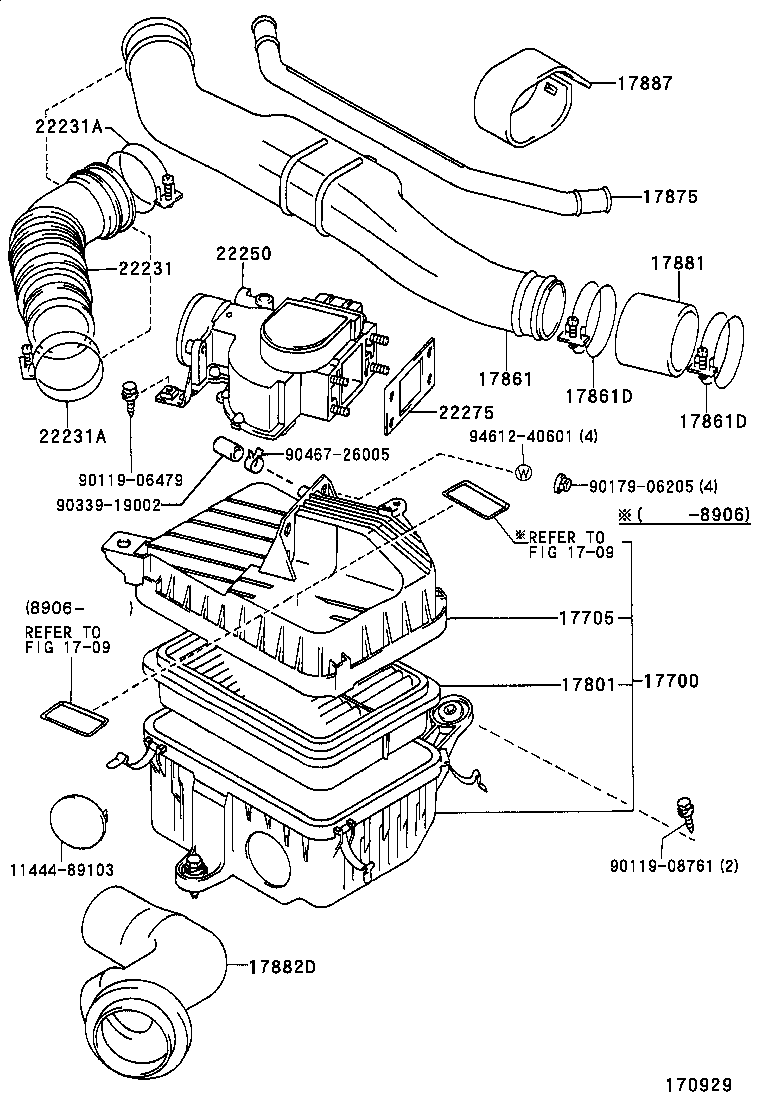

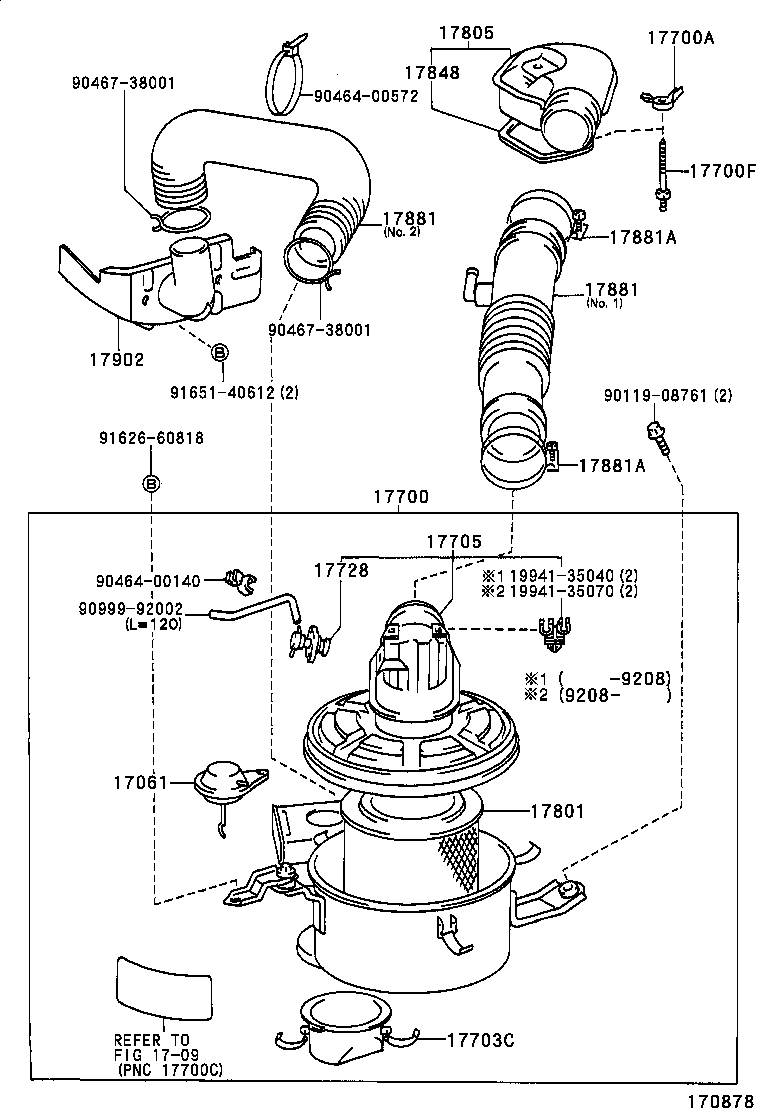

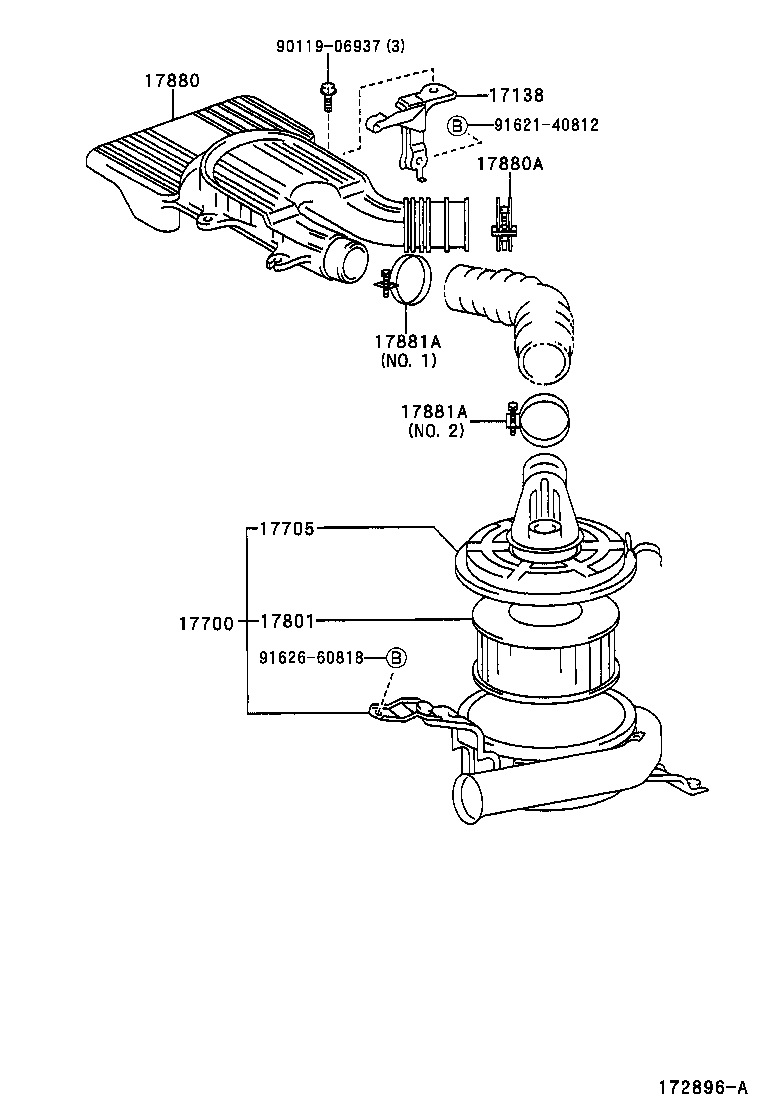

Figure 171021A 171021A 1989-10 → 1998-06 Figure 171024A 171024A 1988-08 → 2001-06 Figure 172896A 172896A 2001-06 → — Figure 170920 170920 1988-08 → 1990-05 Figure 170920 170920 1990-05 → — Figure 170928 170928 1990-05 → — Figure 170929 170929 1994-01 → 1995-11 Figure 170929 170929 1997-09 → 1997-10 Figure 170922 170922 1995-11 → 1997-10 Figure 170922 170922 1997-10 → — Figure 172895A 172895A 2001-05 → — Figure MAA914A MAA914A 1988-08 → 1994-01 Figure MAA914A MAA914A 1994-01 → — Figure 170877 170877 1988-08 → 1990-05 Figure 170877 170877 1990-05 → — Figure 170878 170878 1990-05 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17138 Stay, Intake Pipe OR Hose
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700V Bush(FOR AIR CLEANER)
17703C Cap Sub-assy, Dust
17705 Cap Sub-assy, Air Cleaner
17710 Duct Sub-assy, Air Cleaner Inlet, NO.1
17710C Clamp(FOR AIR CLEANER INLET DUCT)
17710E Cable Sub-assy
17710F Knob Sub-assy, Control
17728 Valve, Thermostatic
17729 Gasket, Thermostat Valve
17749 Support, Thermostat Valve
17764 Duct, Air Cleaner
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17848 Gasket, Air Cleaner TO Carburetor
17853 Insulator, Air Cleaner Bracket
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17871 Stay, Air Connector
17875 Pipe, Intake Air Connector
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882D Hose, Cool Air Intake
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17887 Cover, Air Cleaner Hose
17902 Inlet Sub-assy, Hot Air Intake, NO.1
22204 Meter Sub-assy, Intake Air Flow
22231 Hose, Throttle Body
22231A Clamp OR Clip(FOR THROTTLE BODY HOSE)
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
